DOOR FINISHER

INT-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Removal

1. Remove the upper and lower seat belt anchor bolts. Refer to

SB-13, "Removal and Installation"

.

2. Release the clips and remove seat belt retractor cover.
3. Remove the armrest.
4. Remove the screws behind armrest.
5. Release the clips and remove rear door finisher.

Installation

Installation is in the reverse order of removal.

INT-14

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

BODY SIDE TRIM

Removal and Installation

INFOID:0000000009881974

KING CAB

CAUTION:

• Use a suitable tool to remove metal clips from finishers.

• When removing or installing body side welts, do not allow butyl seal to come in contact with pillar

finisher.

CREW CAB

CAUTION:

• Use a suitable tool to remove metal clips from finishers.

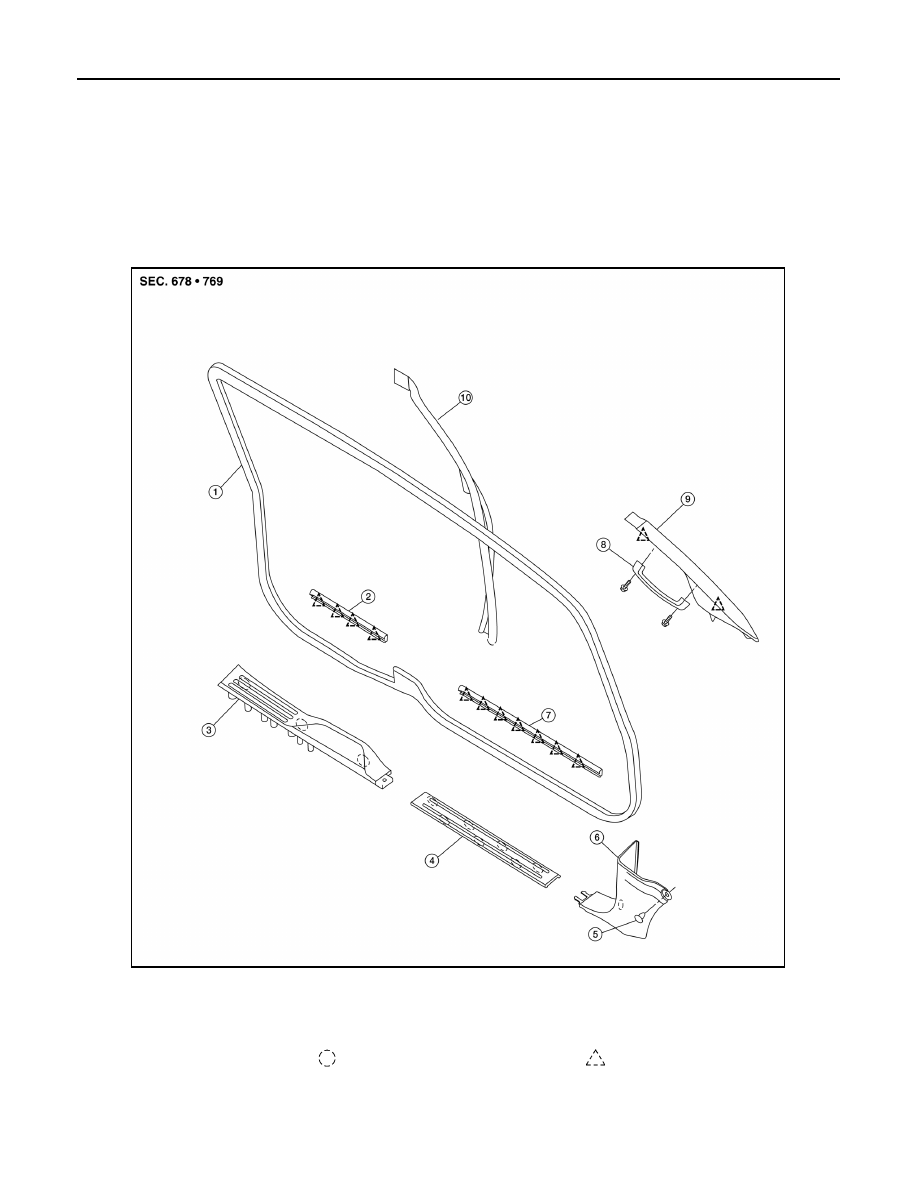

1.

Door welt

2.

Rear door parting seal

3.

Rear kicking plate

4.

Front kicking plate

5.

Plastic clip

6.

Lower dash side finisher

7.

Front door parting seal

8.

 Front pillar assist grip

9.

Front pillar finisher

10. Rear body side welt

Pawl

Clip

AWJIA0759GB

BODY SIDE TRIM

INT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

• When removing or installing body side welts, do not allow butyl seal to come in contact with pillar

finisher.

LOWER DASH SIDE FINISHER

Removal

1. Remove the push pin from lower dash side finisher.
2. Remove the front kicking plate.
3. Remove the lower dash side finisher and front kicking plate together.
4. Remove the lower dash side finisher from front kicking plate.

Installation

Installation is in the reverse order of removal.

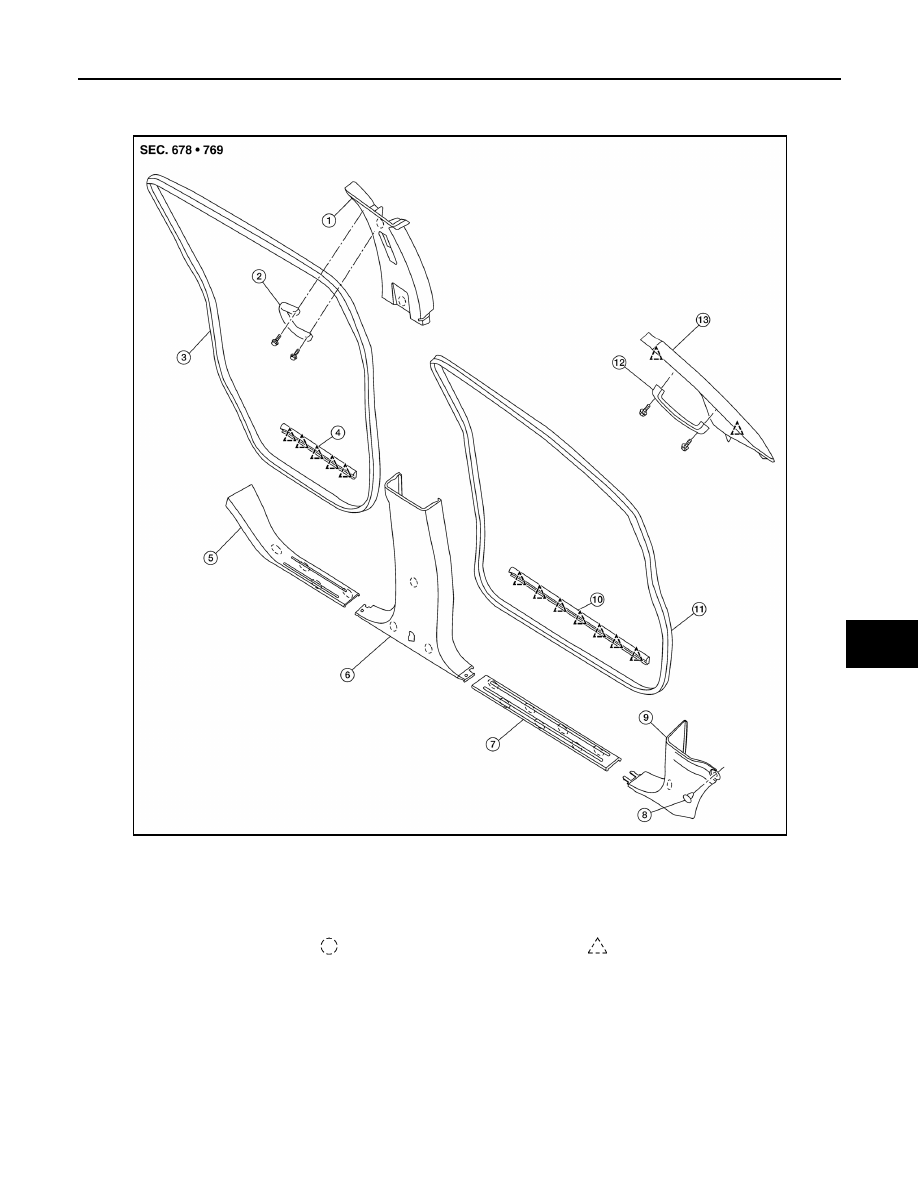

1.

Center pillar upper finisher

2.

Center pillar assist grip

3.

Rear door welt

4.

Rear door parting seal

5.

Rear kicking plate

6.

Center pillar lower finisher

7.

Front kicking plate

8.

Plastic clip

9.

Lower dash side finisher

10. Front door parting seal

11. Front door welt

12. Front pillar assist grip

13. Front pillar finisher

Pawl

Clip

AWJIA0761ZZ

INT-16

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

CENTER PILLAR LOWER FINISHER

Removal

1. Remove the seat belt lower anchor. Refer to

SB-13, "Removal and Installation"

.

• On RH side, disconnect seat belt tension sensor.

2. Remove the front and rear kicking plates.
3. Remove the center pillar lower finisher.

Installation

Installation is in the reverse order of removal.

CENTER PILLAR UPPER FINISHER

Removal

1. Partially remove the front and rear door welts.
2. Remove the front and rear kicking plates.
3. Remove the center pillar lower finisher.
4. Remove the D ring anchor bolt cover and anchor bolt. Refer to

SB-4, "Removal and Installation of Front

Seat Belt"

.

5. Remove the center pillar assist grip covers and bolts, then remove center pillar assist grip.
6. Remove the center pillar upper finisher.

Installation

Installation is in the reverse order of removal.

FRONT PILLAR FINISHER

Removal

1. Remove the front pillar assist grip cover(s) and bolt(s), then remove front pillar assist grip.
2. Release the clips, then remove the front pillar finisher.

Installation

Installation is in the reverse order of removal.

KICKING PLATES

Removal

Release the clips and remove the front and/or rear kicking plates.

Installation

Installation is in the reverse order of removal.

DOOR PARTING SEALS

Removal

1. Open the front and/or rear doors fully.
2. Release the clips and remove the parting seals.

Installation

Installation is in the reverse order of removal.
