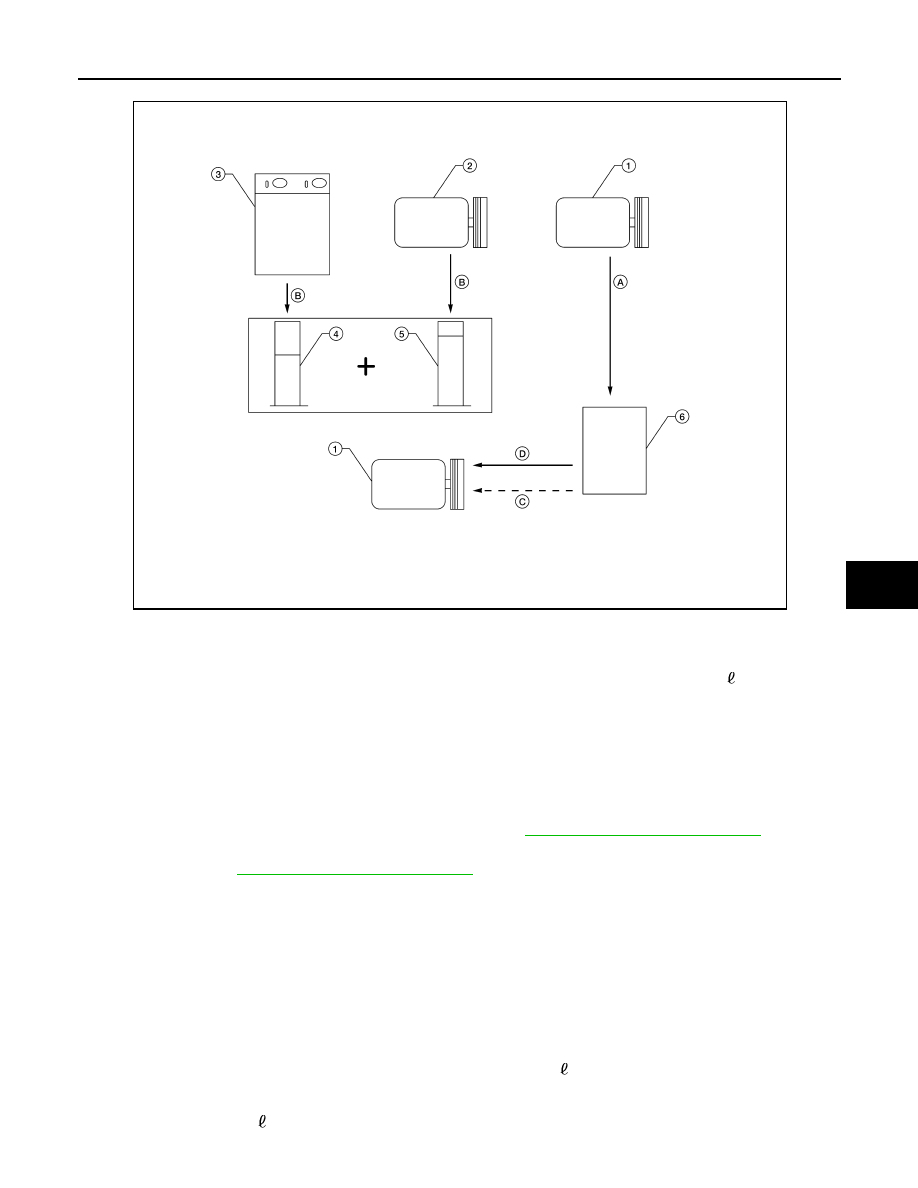

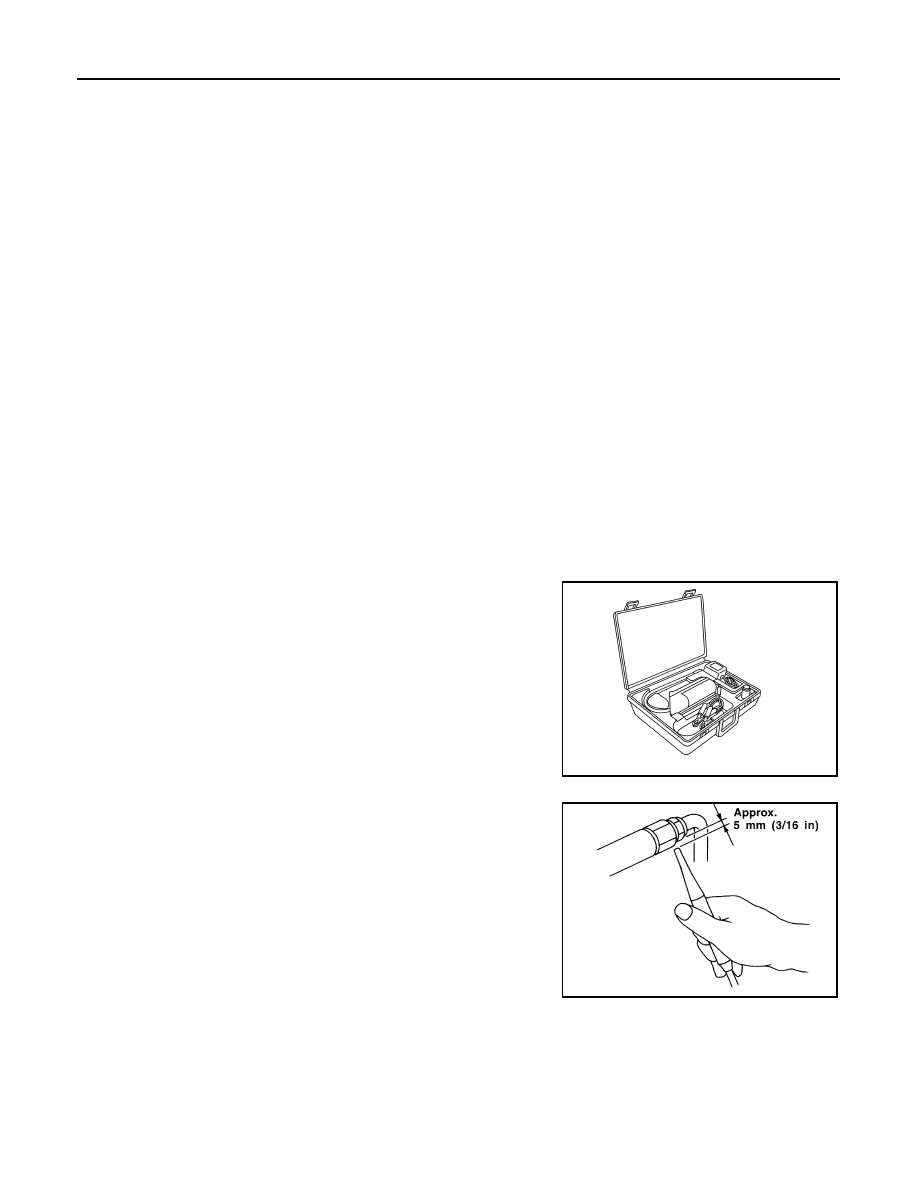

OIL HA-23 < PERIODIC MAINTENANCE > C D E F G H J K L M A B HA N O P 1. Before connecting recovery/recycling equipment to vehicle, check recovery/recycling equipment gauges. No refrigerant pressure should be displayed. If NG, recover refrigerant from equipment lines. 2. Connect recovery/recycling equipment to vehicle. Confirm refrigerant purity in supply tank using recovery/ recycling equipment and refrigerant identifier. If NG, refer to HA-4, "Contaminated Refrigerant" 3. Confirm refrigerant purity in vehicle A/C system using recovery/recycling equipment and refrigerant identi- HA-4, "Contaminated Refrigerant" 4. Discharge refrigerant into the refrigerant recovery/recycling equipment. Measure oil discharged into the recovery/recycling equipment. 5. Drain the oil from the “old” (removed) compressor into a graduated container and recover the amount of oil drained. 6. Drain the oil from the “new” compressor into a separate, clean container. “new” compressor through the suction port opening. 8. Measure an amount of new oil equal to the amount recovered during discharging. Add this oil to “new” compressor through the suction port opening. 9. If the liquid tank also needs to be replaced, add an additional 5 m (0.2 US fl oz, 0.2 Imp fl oz) of oil at this time. CAUTION: Do not add this 5 m (0.2 US fl oz, 0.2 Imp fl oz) of oil if only replacing the compressor. 1. New compressor 2. Old compressor 3. Recovery/recycling equipment 4. Measuring cup X 5. Measuring cup Y 6. New oil A. Drain oil from the new compressor B. Record amount of oil recovered C. Add an additional 5 m (0.2 US fl oz, D. Install new oil equal to recorded WJIA1716E |
