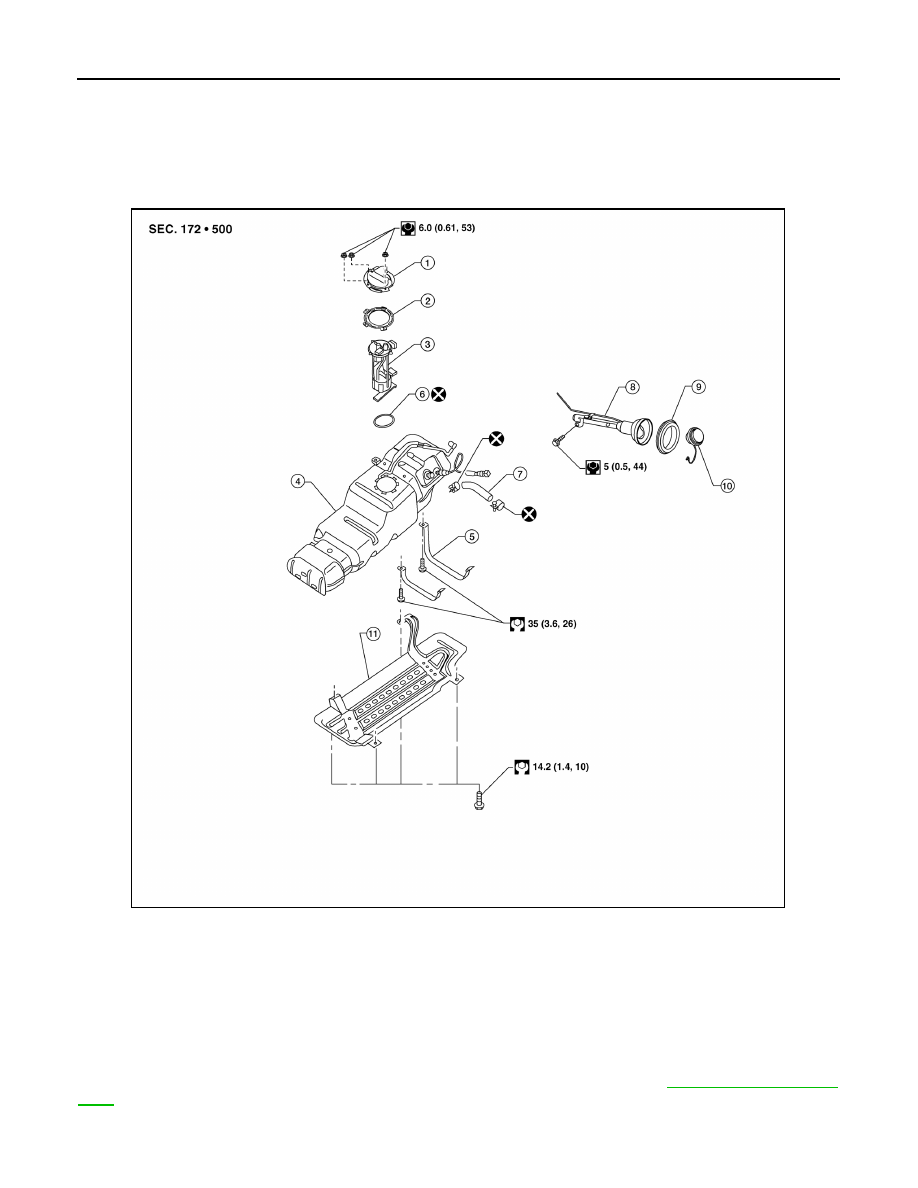

FL-6 < UNIT REMOVAL AND INSTALLATION > FUEL TANK UNIT REMOVAL AND INSTALLATION FUEL TANK Removal and Installation INFOID:0000000009886959 REMOVAL WARNING: Follow the “General Precautions” before working on the fuel system. Refer to . NOTE: 1. Fuel line pump protector 2. Lock ring 3. Fuel level sensor, fuel filter, and fuel 4. Fuel tank 5. Fuel tank straps 6. O-ring 7. Fuel filler hose 8. Fuel filler pipe 9. Fuel filler pipe grommet 10. Fuel filler cap 11. Fuel tank shield AWBIA1081GB |
