EM-32

< REMOVAL AND INSTALLATION >

EXHAUST MANIFOLD AND THREE WAY CATALYST

EXHAUST MANIFOLD AND THREE WAY CATALYST

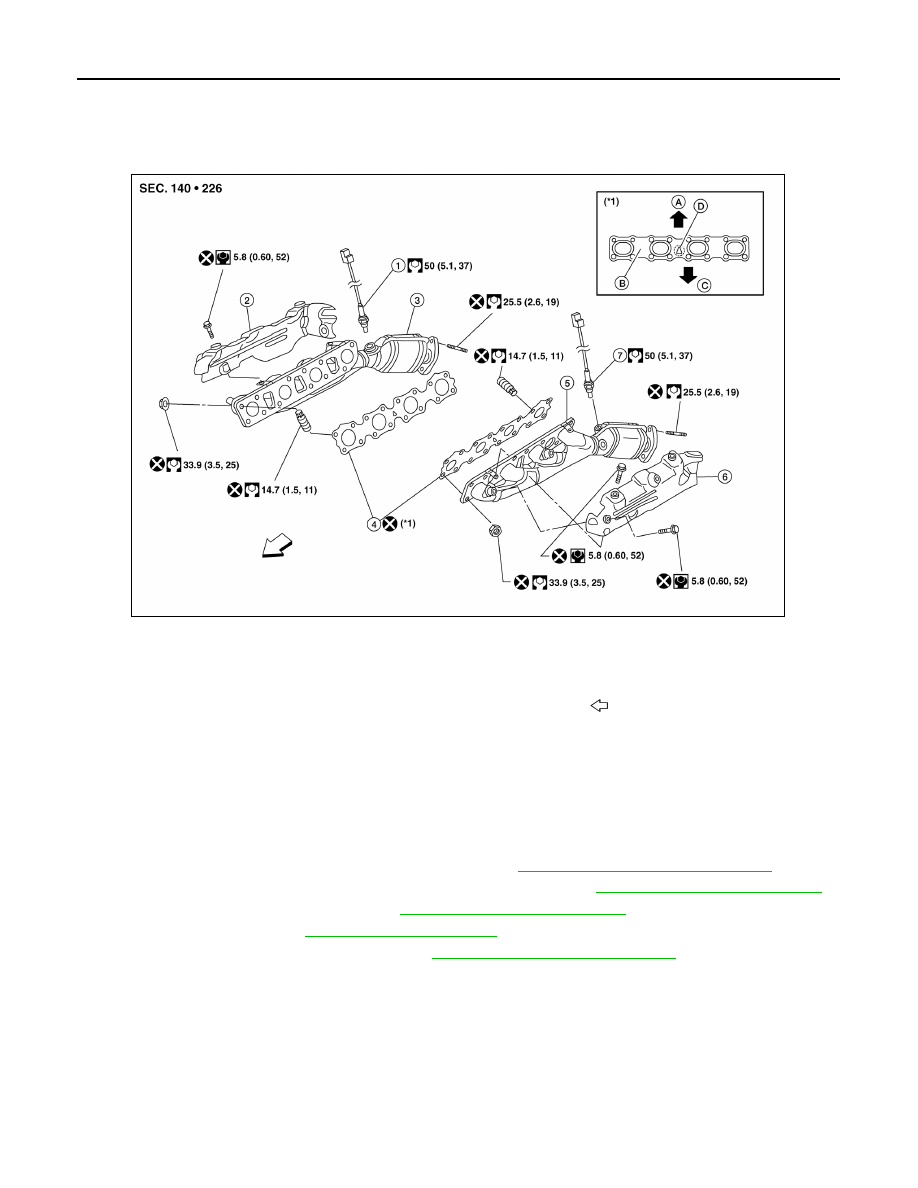

Exploded View

INFOID:0000000009886413

Removal and Installation

INFOID:0000000009886414

REMOVAL

WARNING:

Perform the work when the exhaust and cooling system have cooled sufficiently.
1. Remove the engine under cover.
2. Remove front final drive assembly (4WD models). Refer to

DLN-167, "Removal and Installation"

.

3. Remove the main muffler assembly and center exhaust tube. Refer to

EX-5, "Removal and Installation"

.

4. Remove the front exhaust tubes. Refer to

EX-5, "Removal and Installation"

.

5. Remove front tires. Refer to

WT-48, "Balancing Wheels"

.

6. Remove cover and fender protectors. Refer to

EXT-24, "Removal and Installation"

.

7. Remove the air fuel ratio A/F sensors 1 (bank 1 and bank 2).

• Follow steps below to remove each air fuel ratio A/F sensor.

a. Remove the harness connector of each air fuel ratio A/F sensor, and harness from bracket and middle

clamp.

1. Air fuel ratio A/F sensor 1 (bank 2)

2. Exhaust manifold cover (bank 2)

3. Exhaust manifold (bank 2)

4. Gaskets

5. Exhaust manifold (bank 1)

6. Exhaust manifold cover (bank 1)

7. Air fuel ratio A/F sensor 1 (bank 1)

A. Up

B. Coated face

C.  Manifold side

D. Up mark

Front

AWBIA1079GB

EXHAUST MANIFOLD AND THREE WAY CATALYST

EM-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

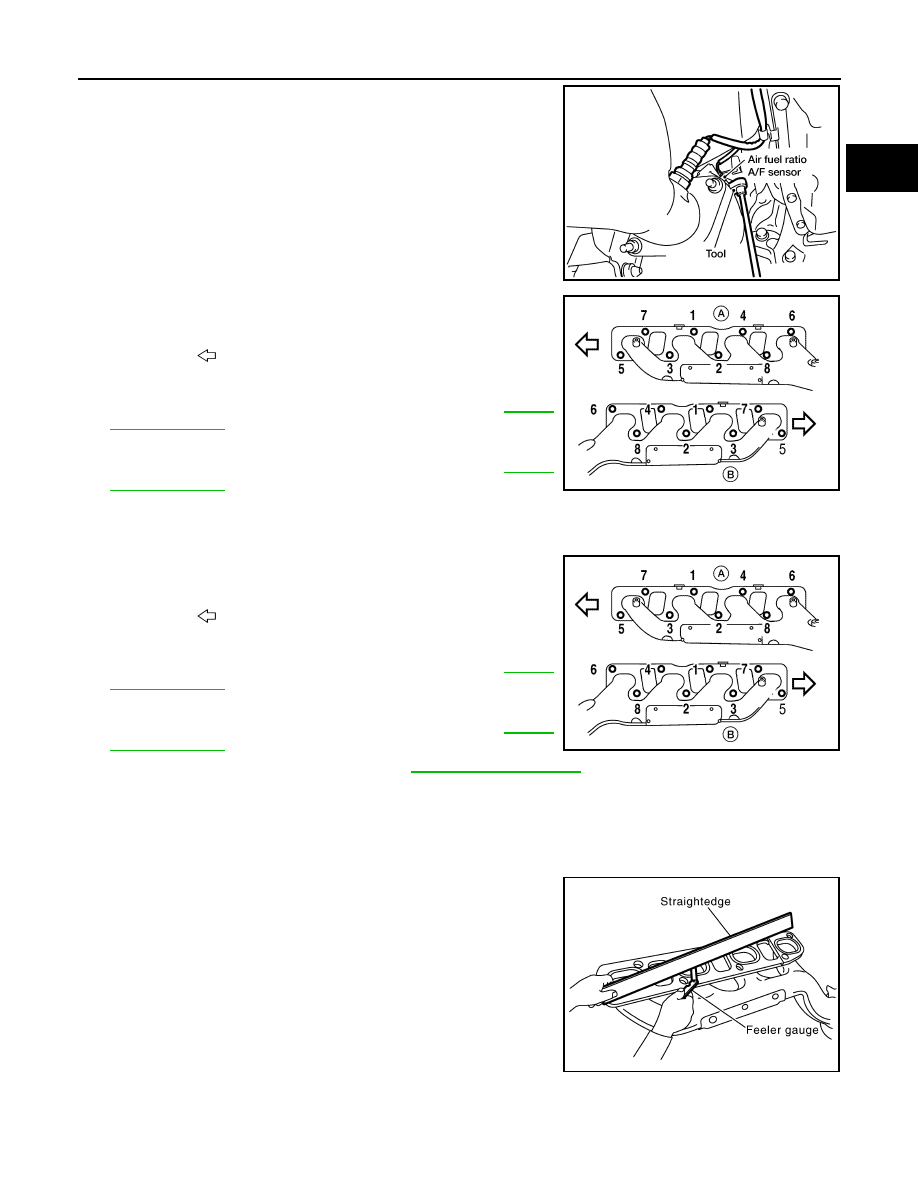

b. Remove the air fuel ratio A/F sensors from both (LH) and (RH)

exhaust manifolds using Tool.

CAUTION:

• Do not damage the air fuel ratio A/F sensors

• Discard any air fuel ratio A/F sensor which has been

dropped from a height of more than 0.5 m (19.7 in) onto a

hard surface such as a concrete floor. Replace it with a

new one.

8. Support the engine using a suitable tool.
9. Remove the exhaust manifold (LH) (A) following the steps

below.

a. Remove the engine mounting insulator. Refer to

EM-88,

"Exploded View"

.

b. Remove the exhaust manifold cover.
c. Remove the engine mounting bracket. Refer to

EM-88,

"Exploded View"

.

d. Loosen the nuts in reverse order as shown using power tool.
e. Remove the exhaust manifold (LH) (A).

10. Remove the exhaust manifold (RH) (B) following the steps

below.

a. Remove the engine mounting insulator. Refer to

EM-88,

"Exploded View"

.

b. Remove the exhaust manifold cover.
c. Remove the engine mounting bracket. Refer to

EM-88,

"Exploded View"

.

d. Remove the oil level gauge guide. Refer to

EM-35, "Exploded View"

.

e. Loosen the nuts in reverse order as shown using power tool.
f.

Remove the exhaust manifold (RH) (B).

INSPECTION AFTER REMOVAL

Surface Distortion

• Check the flatness of each exhaust manifold flange surface using

suitable tools.

• If measurement exceeds the limit, replace the exhaust manifold.

INSTALLATION

Installation is in the reverse order of removal.

Tool number

: KV991J0050 (J-44626)

: Engine front

(B)

: Exhaust manifold (RH)

WBIA0630E

AWBIA0814ZZ

: Engine front

(A)

: Exhaust manifold (LH)

AWBIA0814ZZ

Flatness limit

: 0.3 mm (0.012 in)

KBIA2504E

EM-34

< REMOVAL AND INSTALLATION >

EXHAUST MANIFOLD AND THREE WAY CATALYST

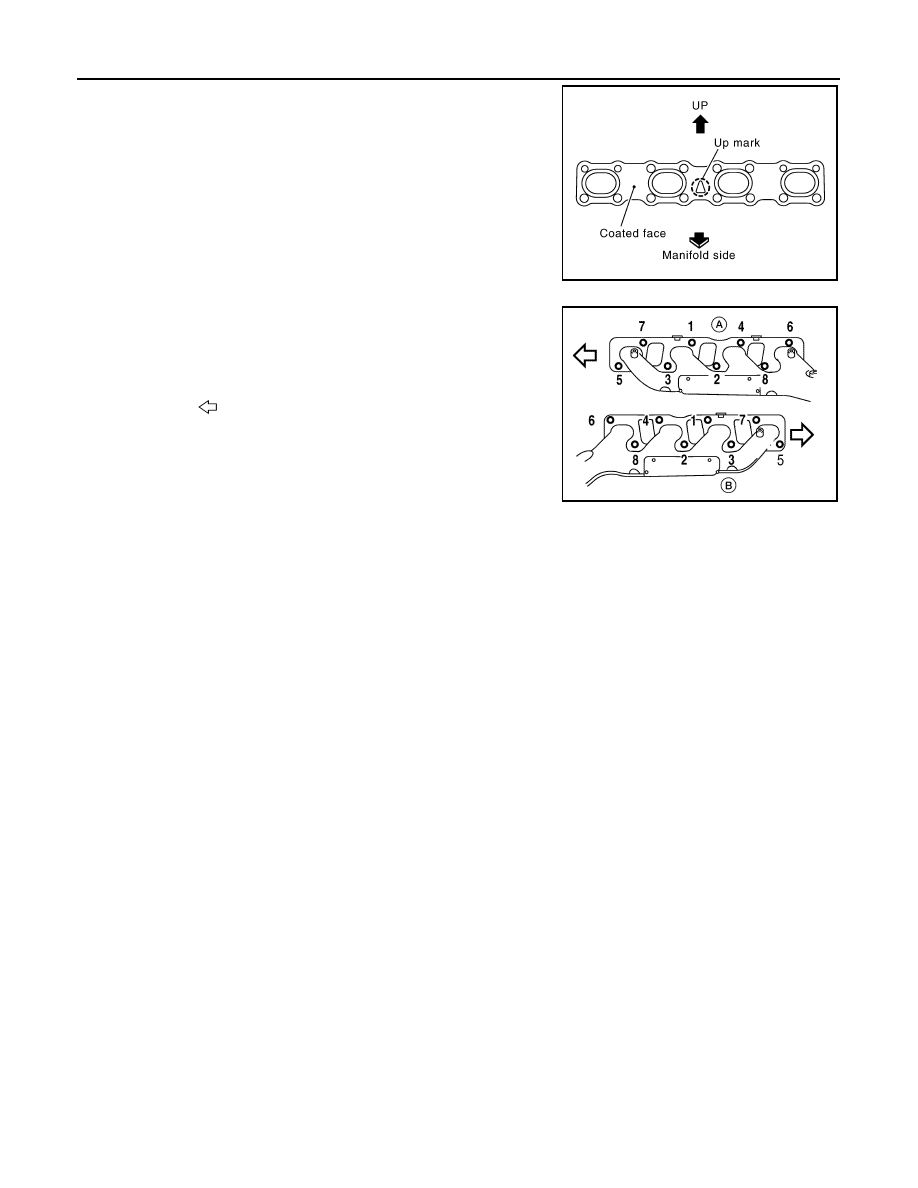

• Install new exhaust manifold gasket with the top of the triangular

up mark on it facing up and its coated face (gray side) toward the

exhaust manifold side.

• Tighten the exhaust manifold nuts (LH) and (RH) in the numerical

order shown. Then recheck the torque of the nuts.

• Before installing new air fuel ratio A/F sensors, clean the exhaust

system threads using suitable tool and apply anti-seize lubricant.

CAUTION:

• Do not over tighten the air fuel ratio A/F sensors. Doing so may cause damage to the sensor,

resulting in the MIL coming on.

KBIA2553E

(A) : Exhaust manifold (LH)
(B) : Exhaust manifold (RH)

: Engine front

Oxygen sensor thread cleaner

: (J-43897-12)

Oxygen sensor thread cleaner

: (J-43897-18)

AWBIA0814ZZ

OIL PAN AND OIL STRAINER

EM-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

OIL PAN AND OIL STRAINER

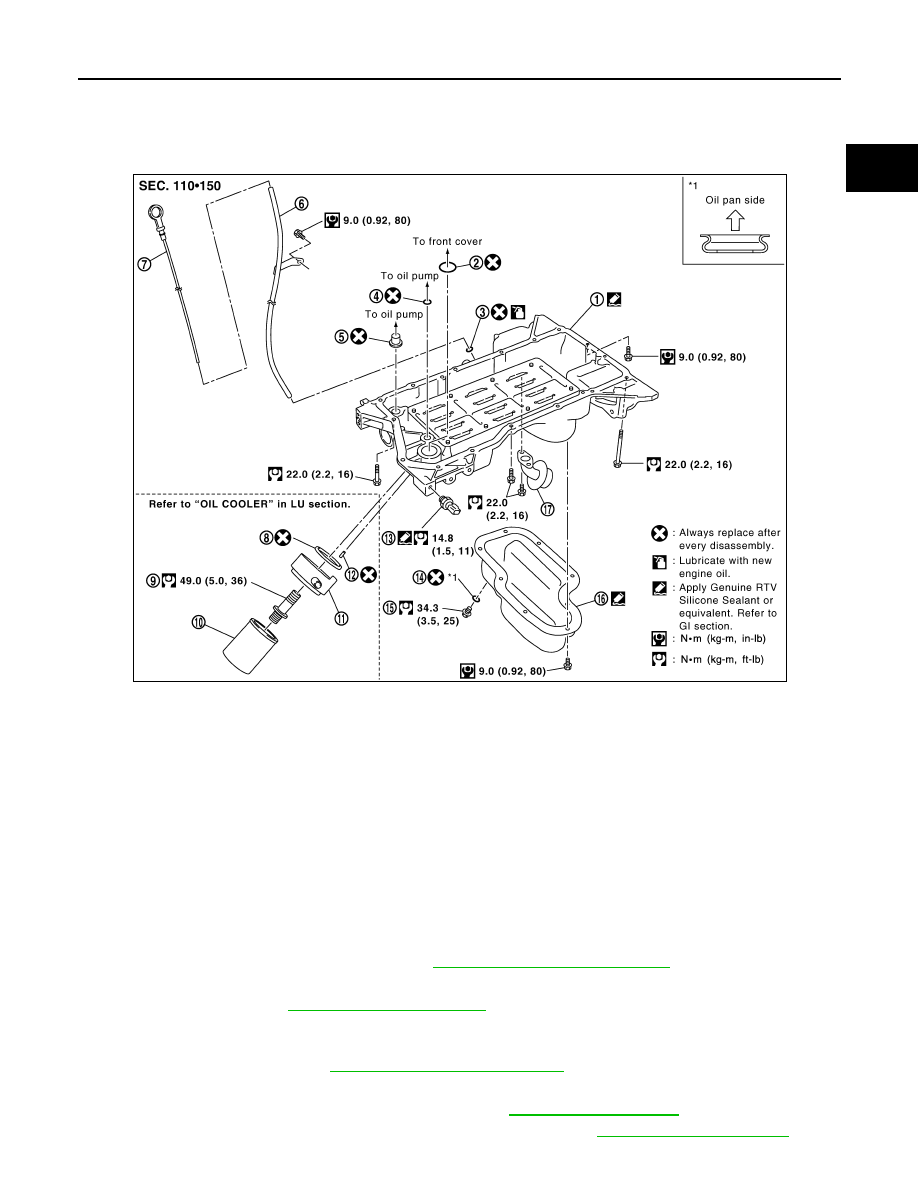

Exploded View

INFOID:0000000009886415

Removal and Installation

INFOID:0000000009886416

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Disconnect battery negative terminal. Refer to

PG-80, "Removal and Installation"

.

2. Remove the air dam and under cover.
3. Drain engine oil. Refer to

LU-9, "Changing Engine Oil"

.

WARNING:

To avoid the danger of being scalded, do not drain the engine oil when the engine is hot.

4. Remove the oil cooler. Refer to

LU-12, "Removal and Installation"

.

5. Disconnect A/T cooler hoses from radiator.
6. Remove lower radiator hose and pipe assembly. Refer to

CO-15, "Exploded View"

.

7. Remove (RH) and (LH) front wheel and tire using power tool. Refer to

WT-48, "Balancing Wheels"

.

1.

Oil pan (upper)

2.

O-ring

3.

O-ring

4.

O-ring

5.

O-ring (with collar)

6.

Oil level gauge guide

7.

Oil level gauge

8.

O-ring

9.

Connector bolt

10.

Oil filter

11. Oil cooler

12. Relief valve

13.

Oil pressure switch

14. Gasket

15. Drain plug

16.

Oil pan (lower)

17. Oil strainer

KBIA2465E
