[TRANSFER: TX15B]

4WD SYSTEM

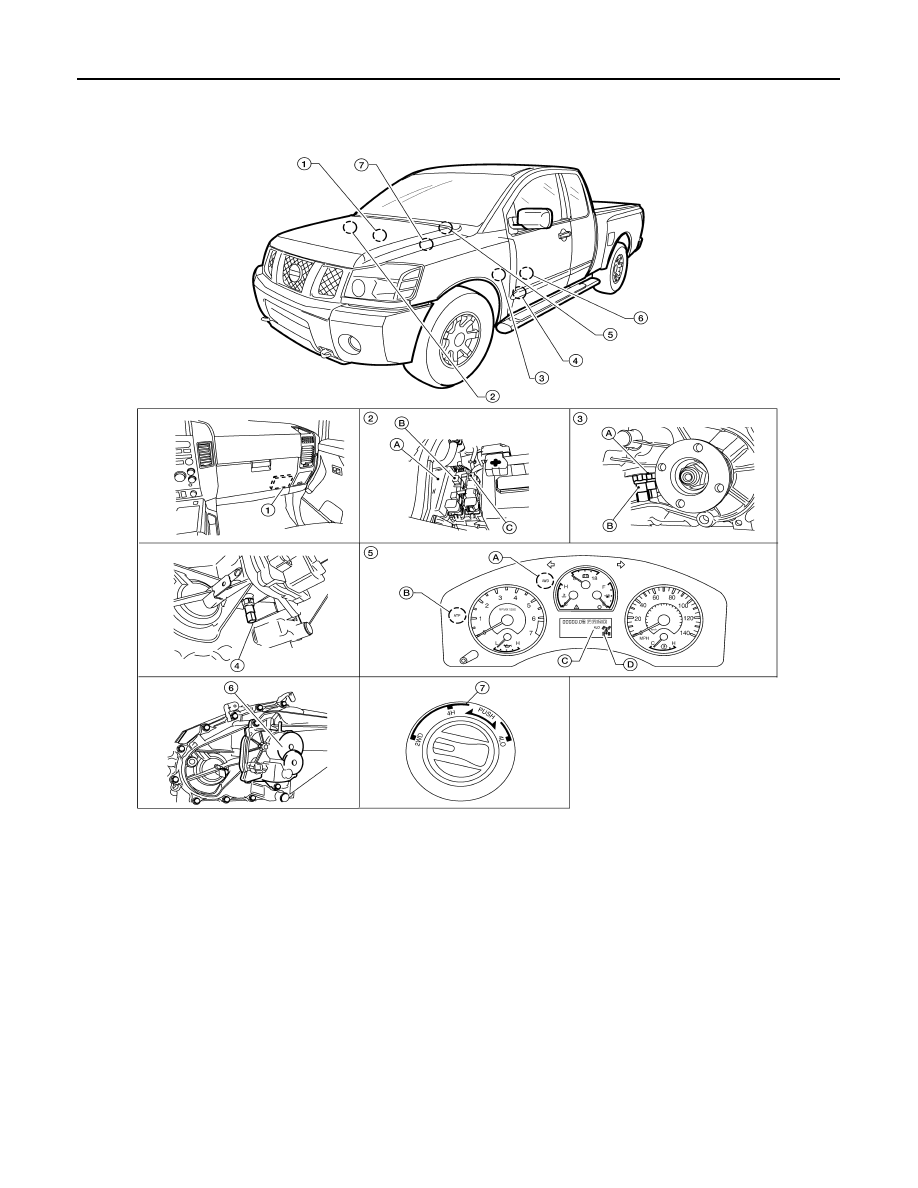

Component Parts Location

INFOID:0000000009885951

1.

Transfer control unit E142, E143

2.

A. IPDM E/R E121
B. Transfer shut off relay 1 E46
C. Transfer shut off relay 2 E47

3.

A. ATP switch F55
B. 4LO switch F60
(View with front propeller
shaft removed)

AWDIA0055ZZ

4WD SYSTEM

DLN-13

< SYSTEM DESCRIPTION >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

CAN Communication

INFOID:0000000009885952

Refer to

LAN-4, "System Description"

.

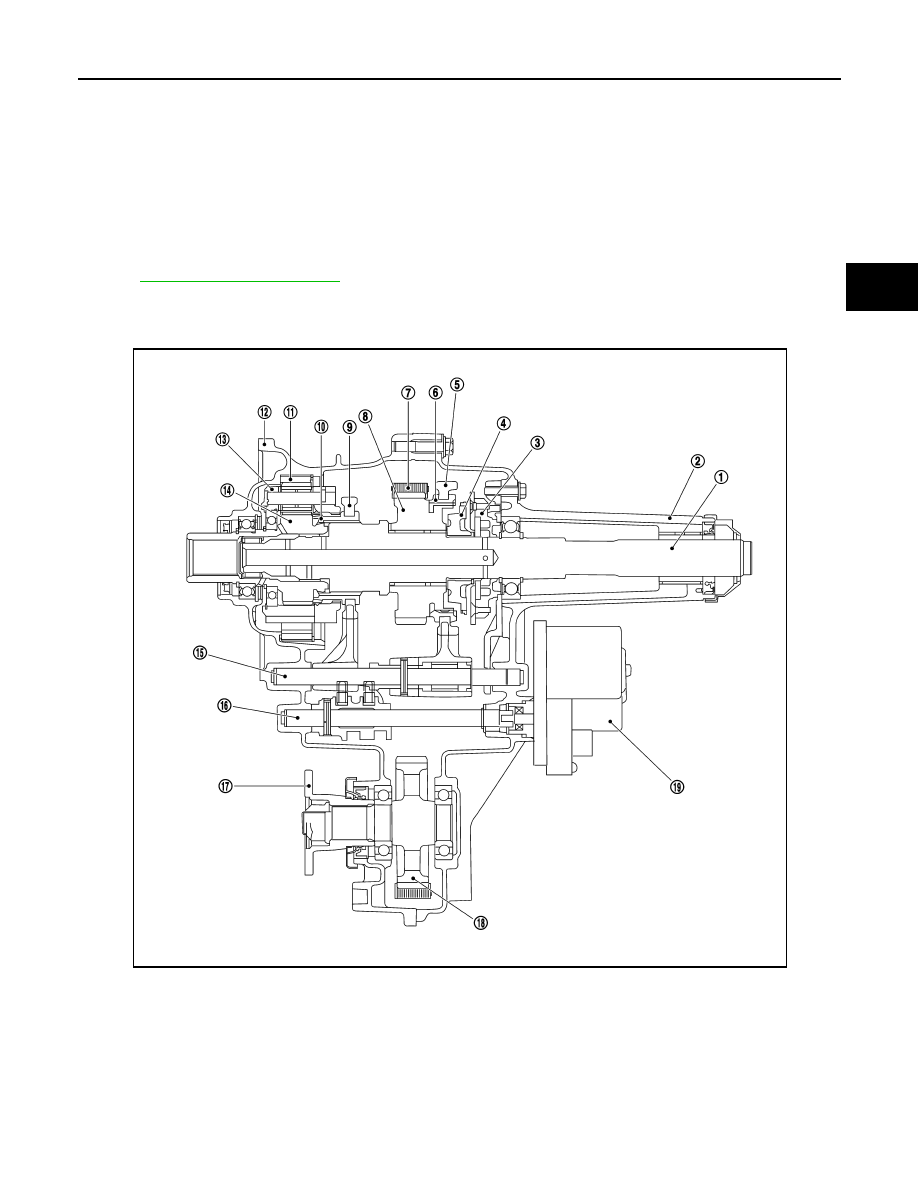

Cross-Sectional View

INFOID:0000000009885953

4.

Wait detection switch F59

5.

Combination meter M24
A. 4WD warning lamp
B. ATP warning lamp
C. 4LO indicator lamp
D. 4WD shift indicator lamp

6.

Transfer control device F58

7.

4WD shift switch
M140 (with 2 control dial system or auto A/C)
M141 (with 3 control dial system without auto A/C)

1.

Mainshaft

2.

Rear case

3.

Oil pump assembly

4.

Clutch gear

5.

2-4 shift fork

6.

2-4 sleeve

7.

Drive chain

8.

Sprocket

9.

L-H shift fork

10. L-H sleeve

11. Internal gear

12. Front case

13. Planetary carrier assembly

14. Sun gear assembly

15. L-H shift rod

16. Control shift rod

17. Companion flange

18. Front drive shaft

19. Transfer control device

WDIA0222E

DLN-14

< SYSTEM DESCRIPTION >

[TRANSFER: TX15B]

4WD SYSTEM

Power Transfer

INFOID:0000000009885954

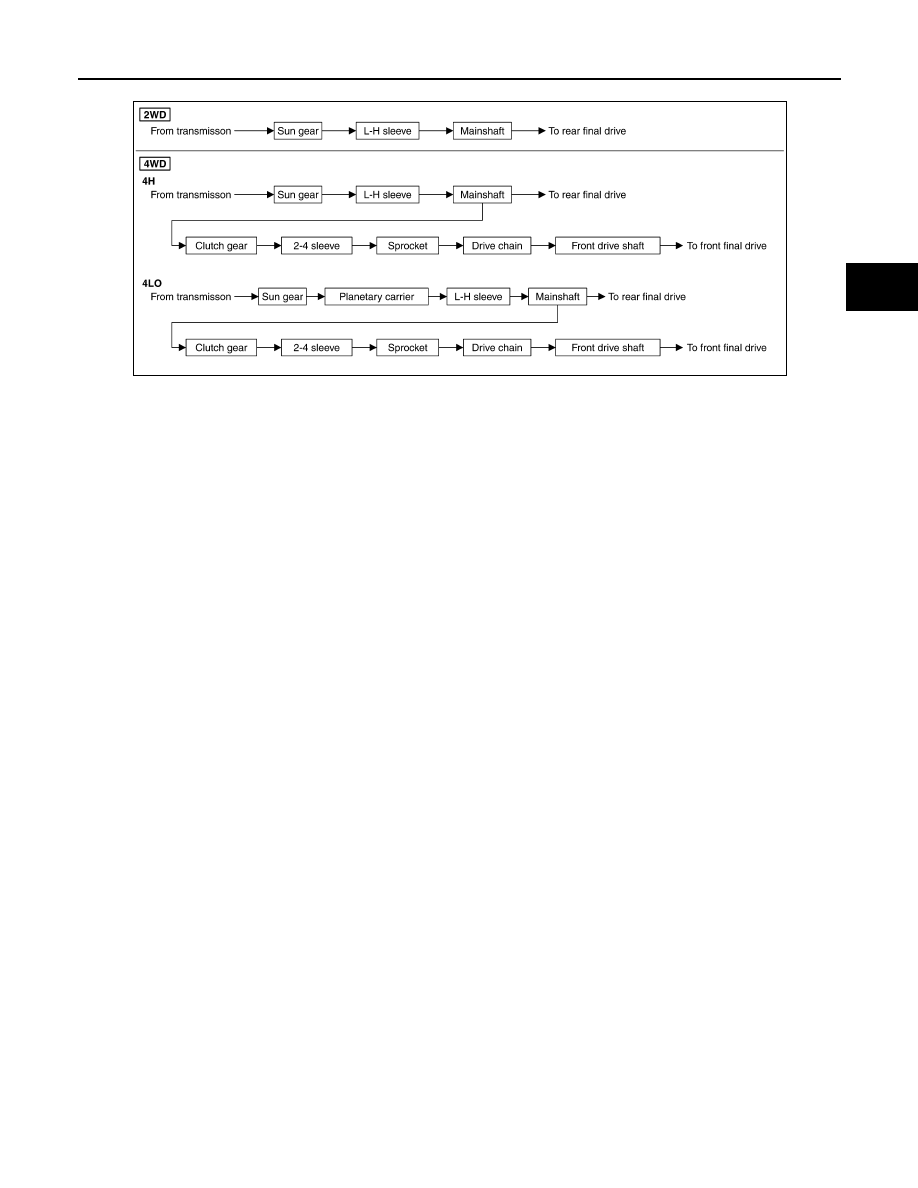

POWER TRANSFER DIAGRAM

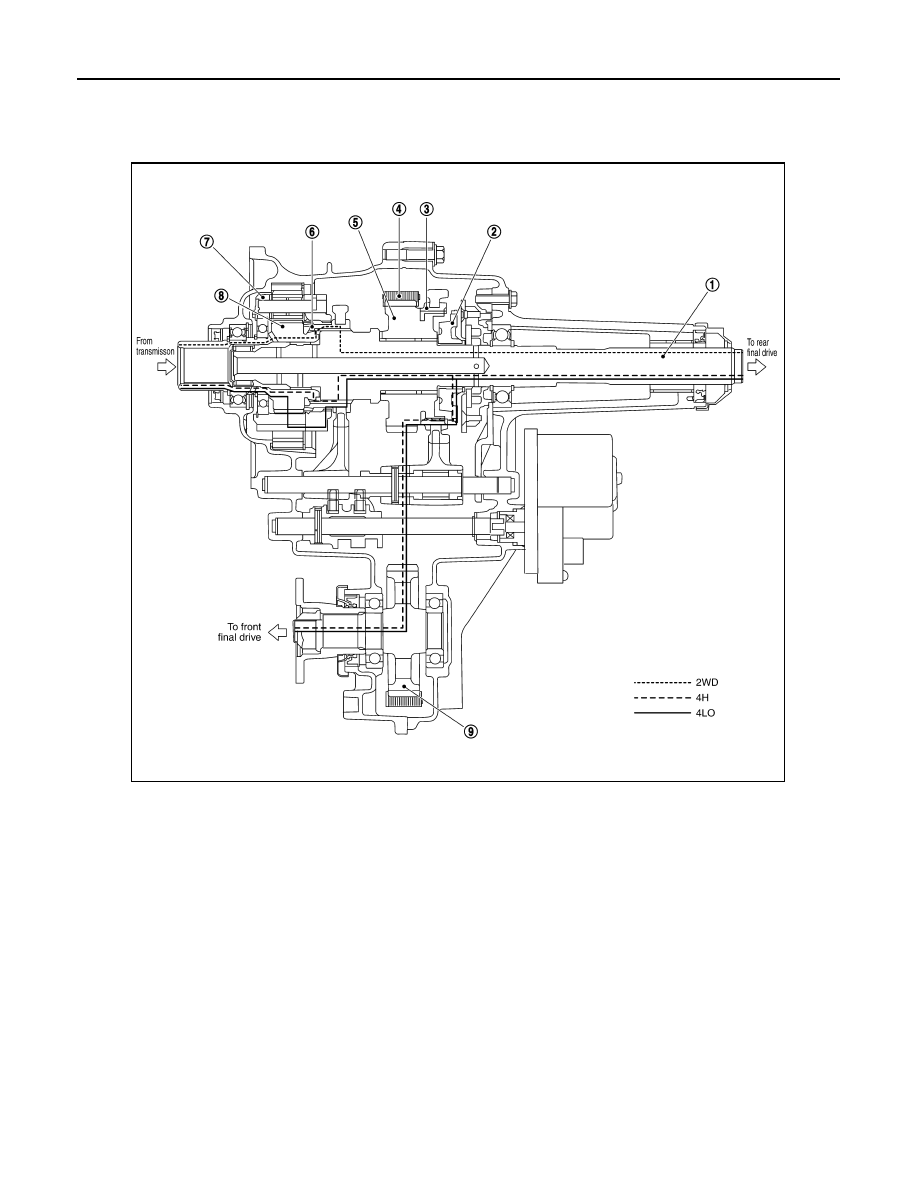

POWER TRANSFER FLOW

1.

Mainshaft

2.

Clutch gear

3.

2-4 sleeve

4.

Drive chain

5.

Sprocket

6.

L-H sleeve

7.

Planetary carrier assembly

8.

Sun gear assembly

9.

Front drive shaft

WDIA0223E

4WD SYSTEM

DLN-15

< SYSTEM DESCRIPTION >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P
