FRONT DOOR LOCK

DLK-129

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

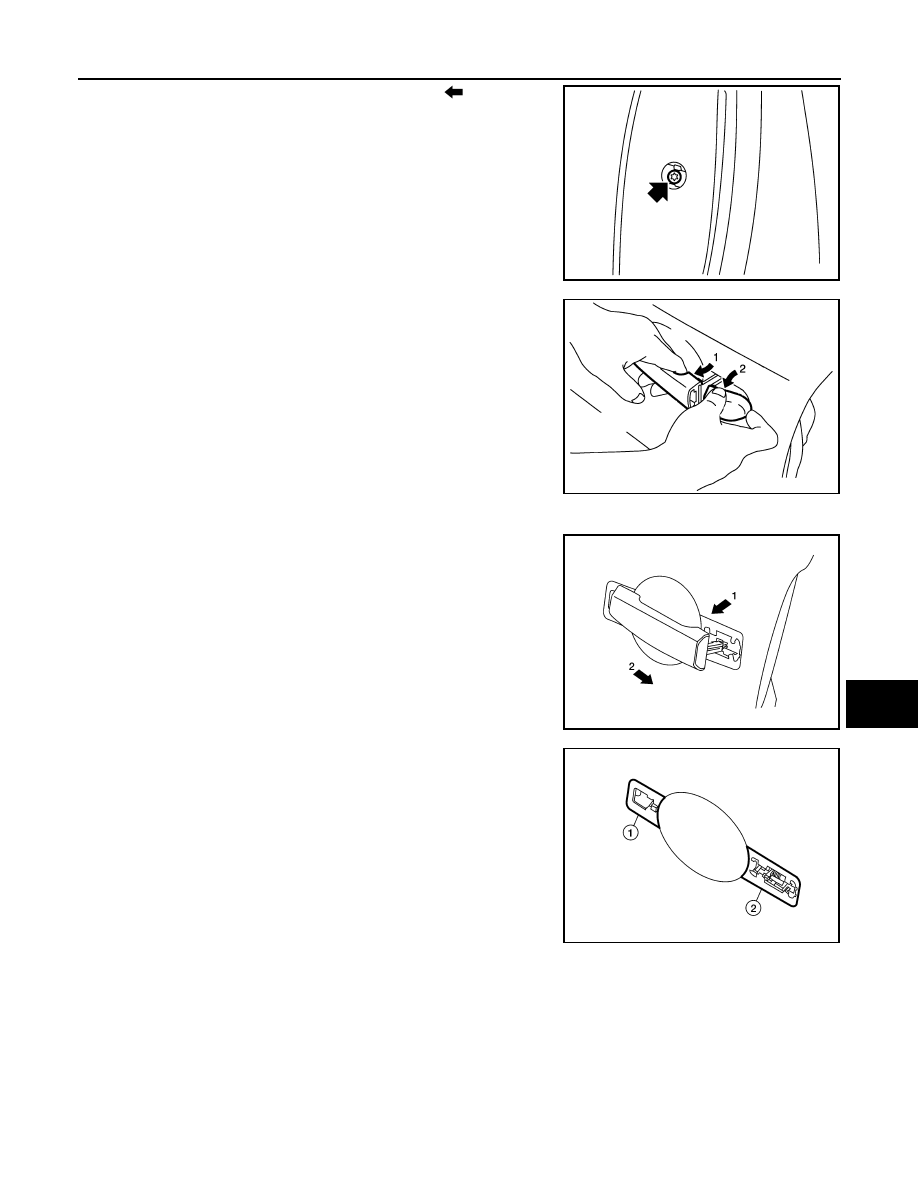

4. Remove the door side grommet, and the bolt (

) that retains

the outside handle bracket.

5. While pulling the outside handle, remove the door key cylinder

assembly or outside handle escutcheon in order shown.

6. Separate the key cylinder rod from the door key cylinder assembly (if equipped).
7. While pulling the outside handle, slide it toward rear of vehicle to

remove in order shown.

8. Remove the front gasket (1) and rear gasket (2).

JMKIA0025ZZ

LIIA1971E

ALKIA0900ZZ

ALKIA0893ZZ

DLK-130

< REMOVAL AND INSTALLATION >

FRONT DOOR LOCK

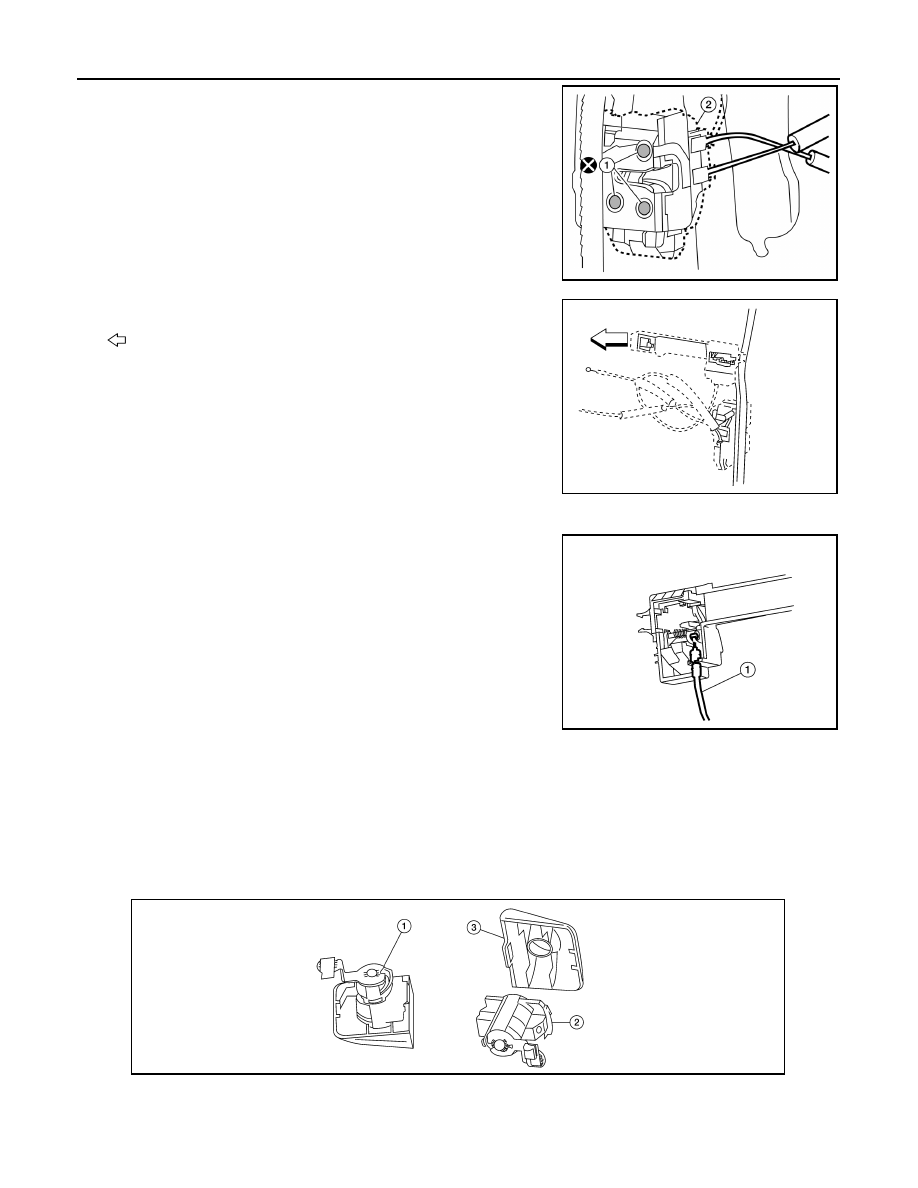

9. Remove the bolts (1) and separate the door lock assembly (2)

from the door.

CAUTION:

Do not reuse bolts.

10. While pulling the outside handle bracket, slide it toward the front

of the vehicle to remove it and the door lock assembly as shown.

: Front

11. Disconnect the door lock actuator electrical connector.
12. Separate the outside handle cable connection (1) from the out-

side handle bracket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

To install the key cylinder rod, be sure to rotate the key cylinder rod holder until a click is felt.

Disassembly and Assembly

INFOID:0000000009878844

DOOR KEY CYLINDER ASSEMBLY

Release the door key cylinder escutcheon pawls to remove the door key cylinder.

AWKIA1768ZZ

ALKIA0895ZZ

ALKIA0896ZZ

1.

Door key cylinder assembly

2.

Key cylinder assembly

3.

Door key cylinder escutcheon

ALKIA0897ZZ

REAR DOOR LOCK

DLK-131

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR DOOR LOCK

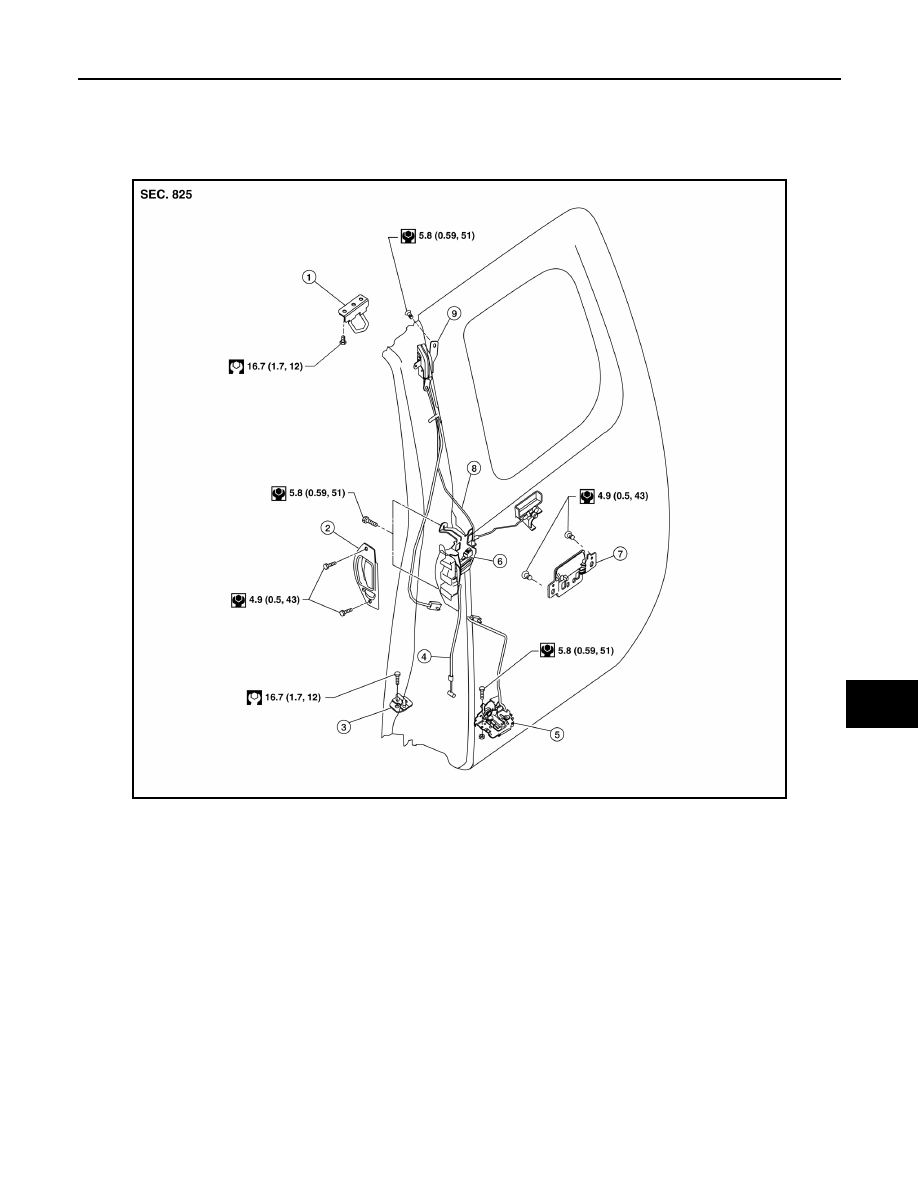

Component Structure

INFOID:0000000009878845

KING CAB

AWKIA1727GB

1.

Rear upper door lock striker

2.

Rear door handle

3.

Rear lower door lock striker

4.

Lower latch cable

5.

Rear lower door latch

6.

Rear door lock assembly

7.

Inside handle

8.

Upper latch cable

9.

Rear upper door latch

DLK-132

< REMOVAL AND INSTALLATION >

REAR DOOR LOCK

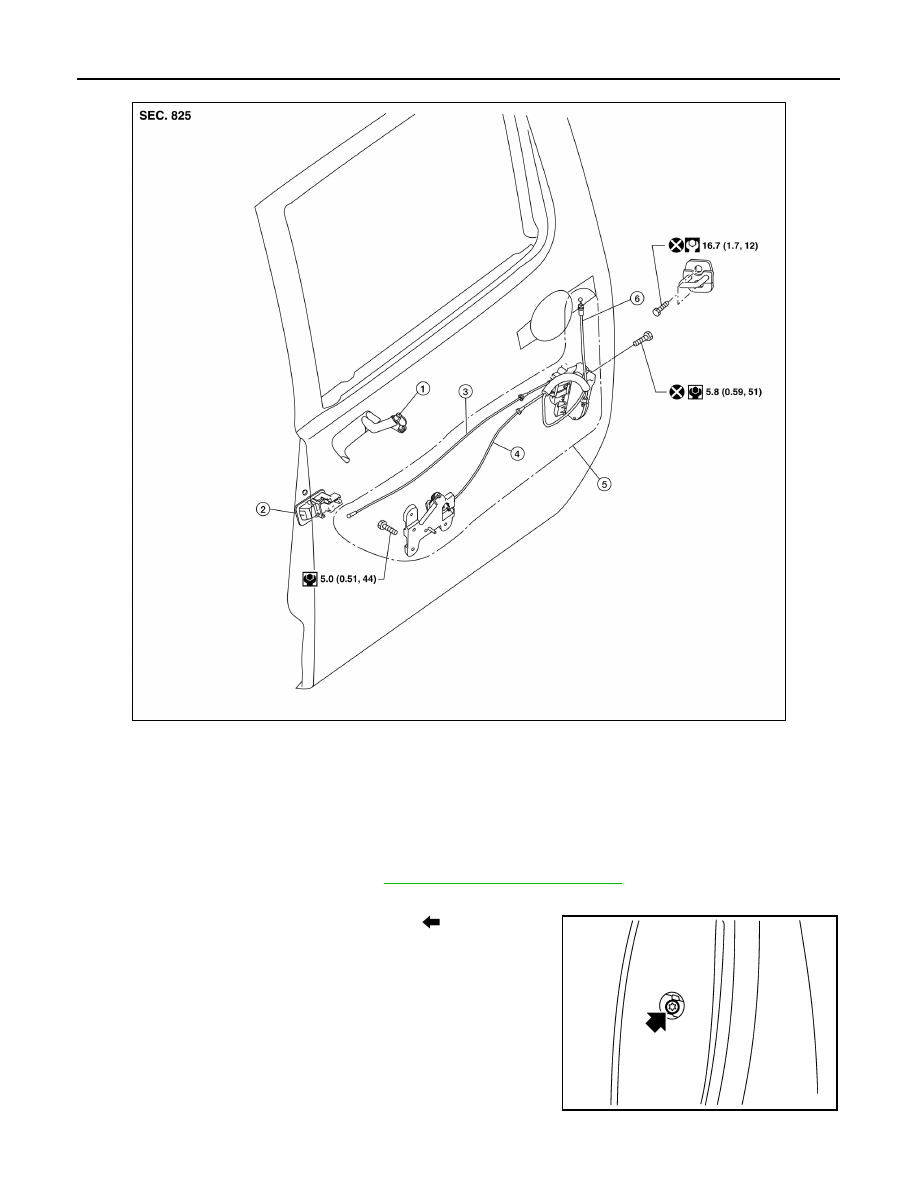

CREW CAB

Removal and Installation

INFOID:0000000009878846

REMOVAL

1. Remove the rear door finisher. Refer to

INT-10, "Removal and Installation"

.

2. Remove the vapor barrier.
3. Remove the door side grommet and the bolt (

) that retains the

outside handle bracket.

AWKIA1726GB

1.

Inside handle

2.

Rear door lock knob

3.

Lock knob cable

4.

Inside handle cable

5.

Rear door lock/remote control as-
sembly

6.

Outside handle cable

JMKIA0025ZZ
