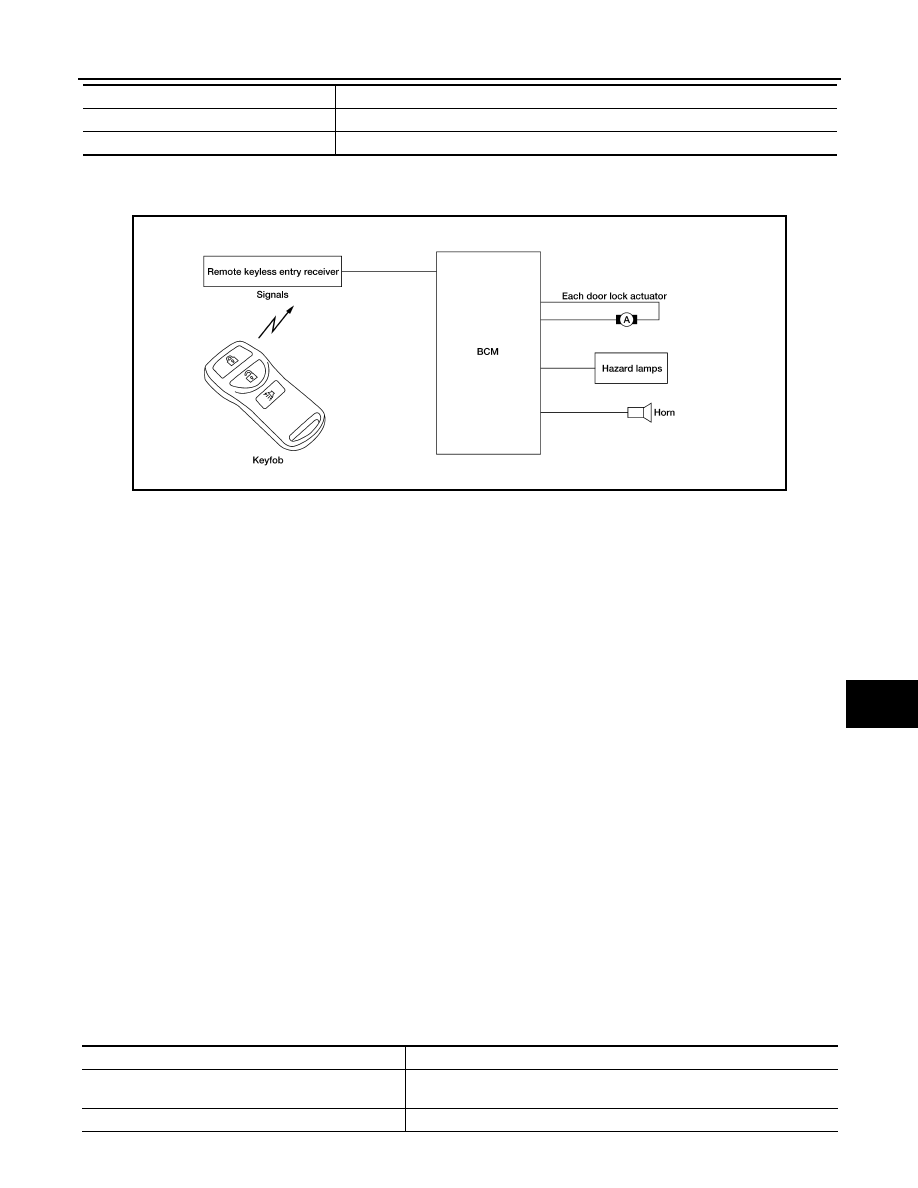

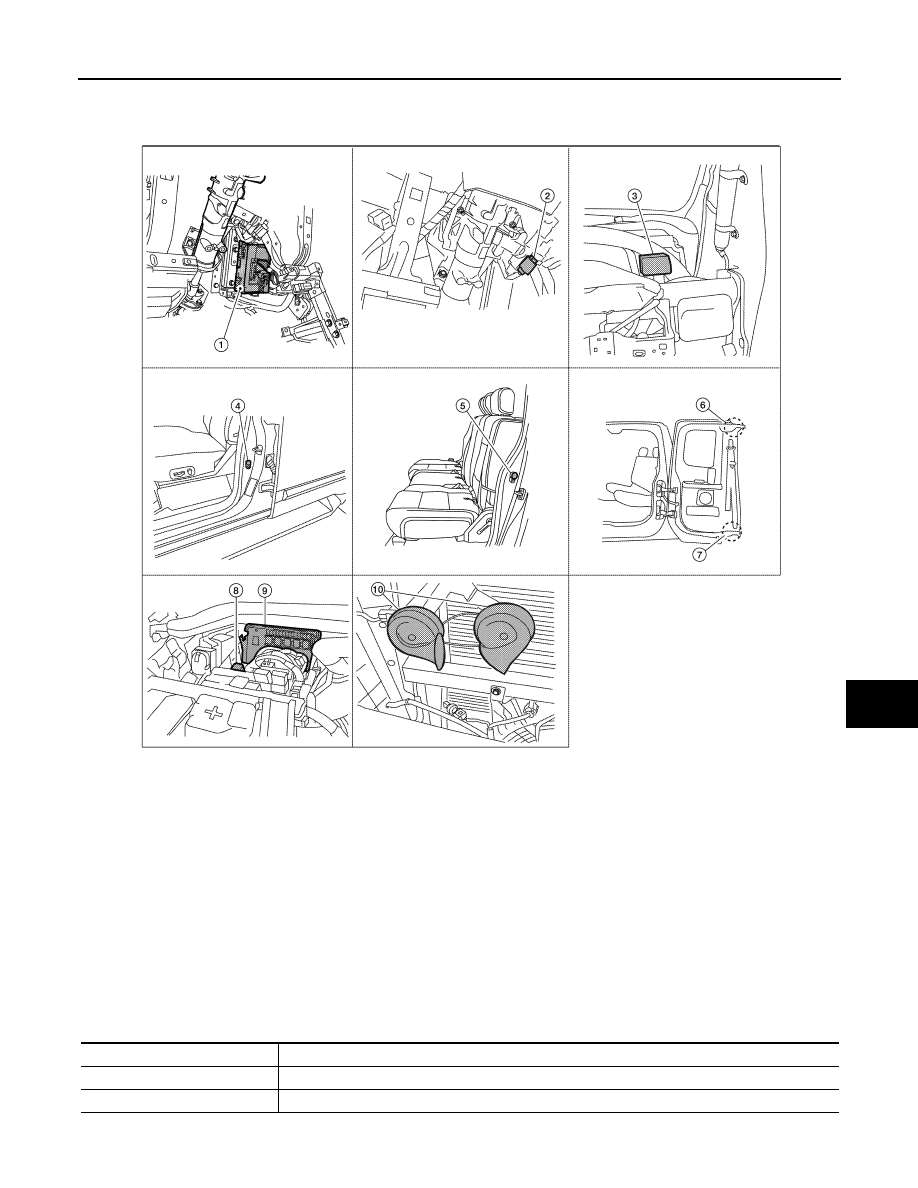

DOOR LOCK FUNCTION DLK-13 < SYSTEM DESCRIPTION > C D E F G H I J L M A B DLK N O P REMOTE KEYLESS ENTRY INFOID:0000000009878748 REMOTE KEYLESS ENTRY : System Description INFOID:0000000009878749 OPERATED PROCEDURE • When the keyfob is operated, the signal from the keyfob is sent and the remote keyless entry receiver receives the signal and sends it to the BCM. The BCM only locks/unlocks the doors if the ID number matches. (Remote control entry functions) • Using the keyfob, the transmitter sends radio waves to the remote keyless entry receiver, which then sends the received waves to the BCM. Only if the ID number matches does the BCM lock/unlock the doors. (Remote control door function) • Unless the key is inserted into the ignition key cylinder or one of the doors is opened within 1 minute after the UNLOCK switch on the keyfob is pressed, all the doors are automatically locked. (Auto lock function) • When a door is locked or unlocked, the vehicle turn signal lamps flash and the horn sounds to verify opera- tion. (Active check function) • When the key is in the ignition key cylinder (when the key switch is ON) and one of the doors is open, the door lock function does not work even when the door lock is operated with the keyfob. • Keyfob ID set up is available. • If a keyfob is lost, a new keyfob can be set up. A maximum of 5 IDs can be set up simultaneously. REMOTE CONTROL ENTRY FUNCTIONS • When a button on the keyfob is operated, the signal is sent from the keyfob and received by the remote key- less entry receiver. • The received signal is sent to the BCM and compared with the registered ID number. • If the ID number matches, the BCM sends the lock/unlock signal to each door lock actuator. • When the door lock actuators receive this signal, each operates to lock/unlock its door. • BCM locks all doors with input of LOCK signal from keyfob. • When an UNLOCK signal is sent from keyfob once, driver's door will be unlocked. • Then, if an UNLOCK signal is sent from keyfob again within 5 seconds, all other doors will be unlocked. REMOTE CONTROL ENTRY OPERATION CONDITIONS Door lock actuator Receives lock/unlock signal from BCM and locks/unlocks each door. Door switch Transmits door open/close condition to BCM. Item Function ALKIA0919GB Keyfob operation Operation condition Door lock operation (locking) • With key removed (key switch: OFF) Door lock operation (unlocking) With key removed (key switch: OFF) |
