BRAKE CONTROL SYSTEM - VDC

BRC-93

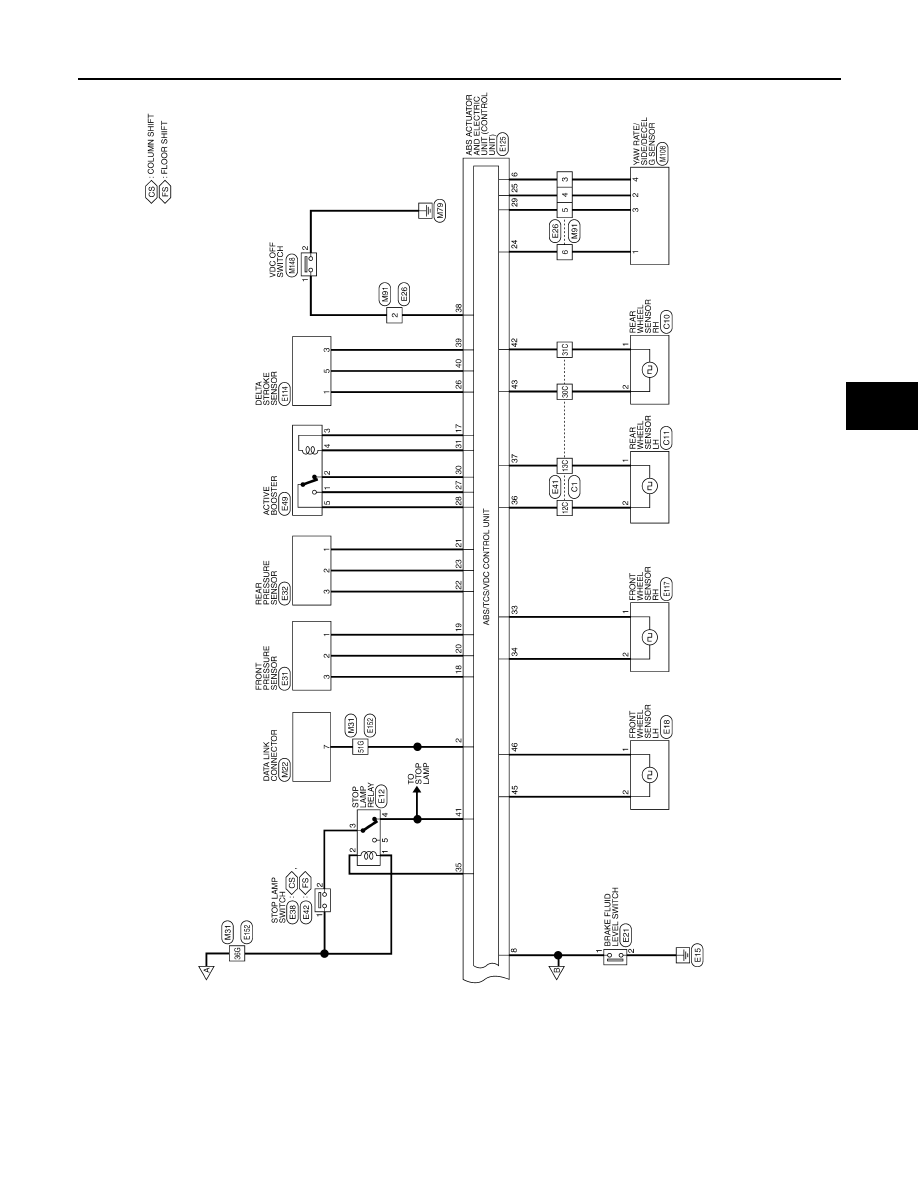

< WIRING DIAGRAM >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABFWA0311GB

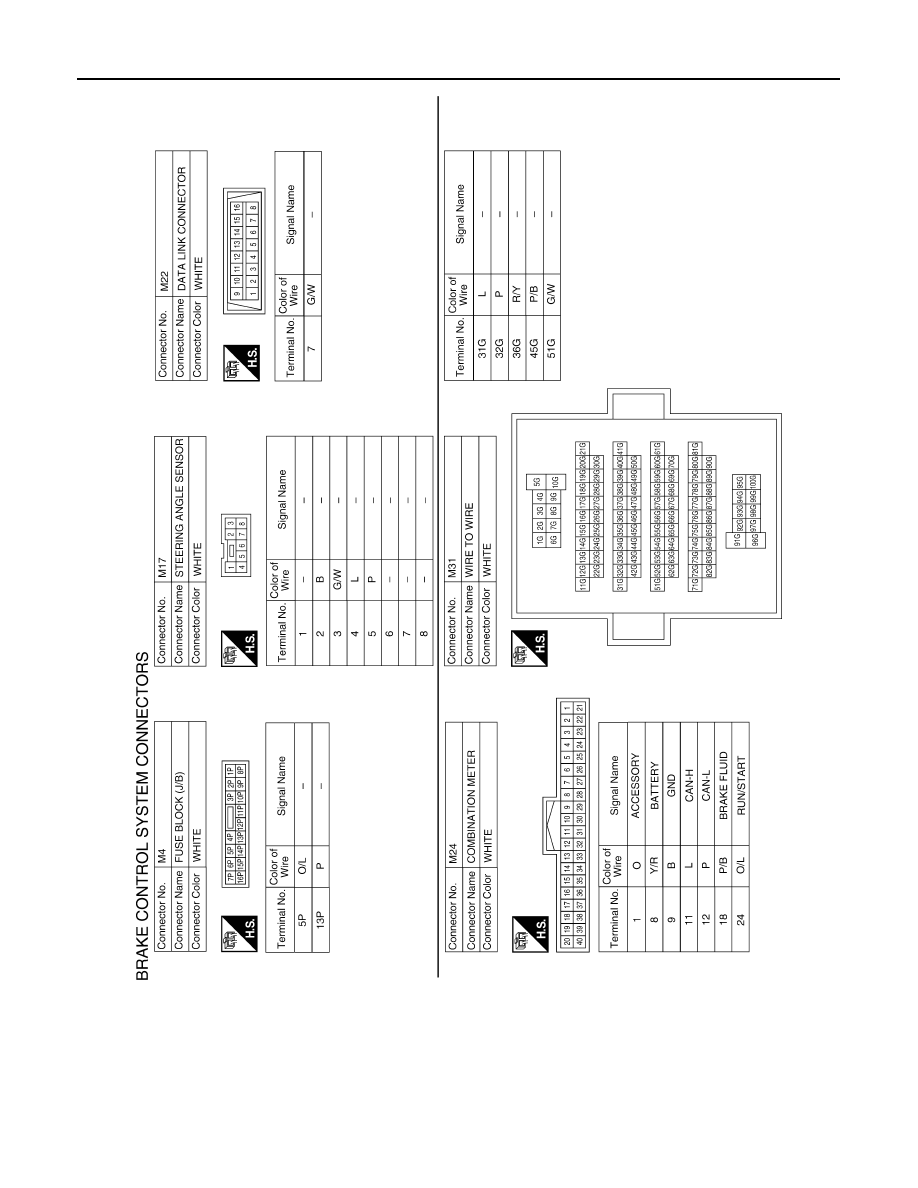

BRC-94

< WIRING DIAGRAM >

[VDC/TCS/ABS]

BRAKE CONTROL SYSTEM - VDC

ABFIA0615GB

BRAKE CONTROL SYSTEM - VDC

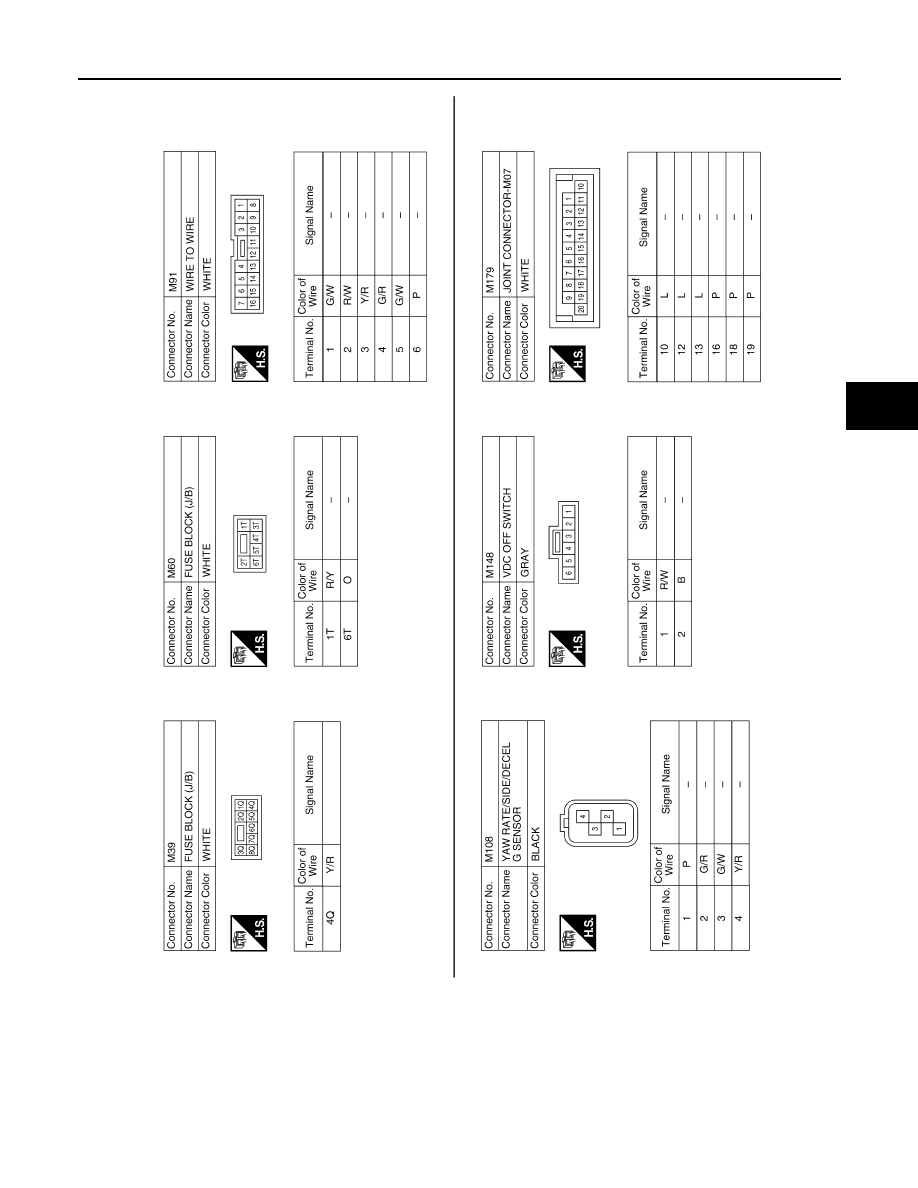

BRC-95

< WIRING DIAGRAM >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABFIA0616GB

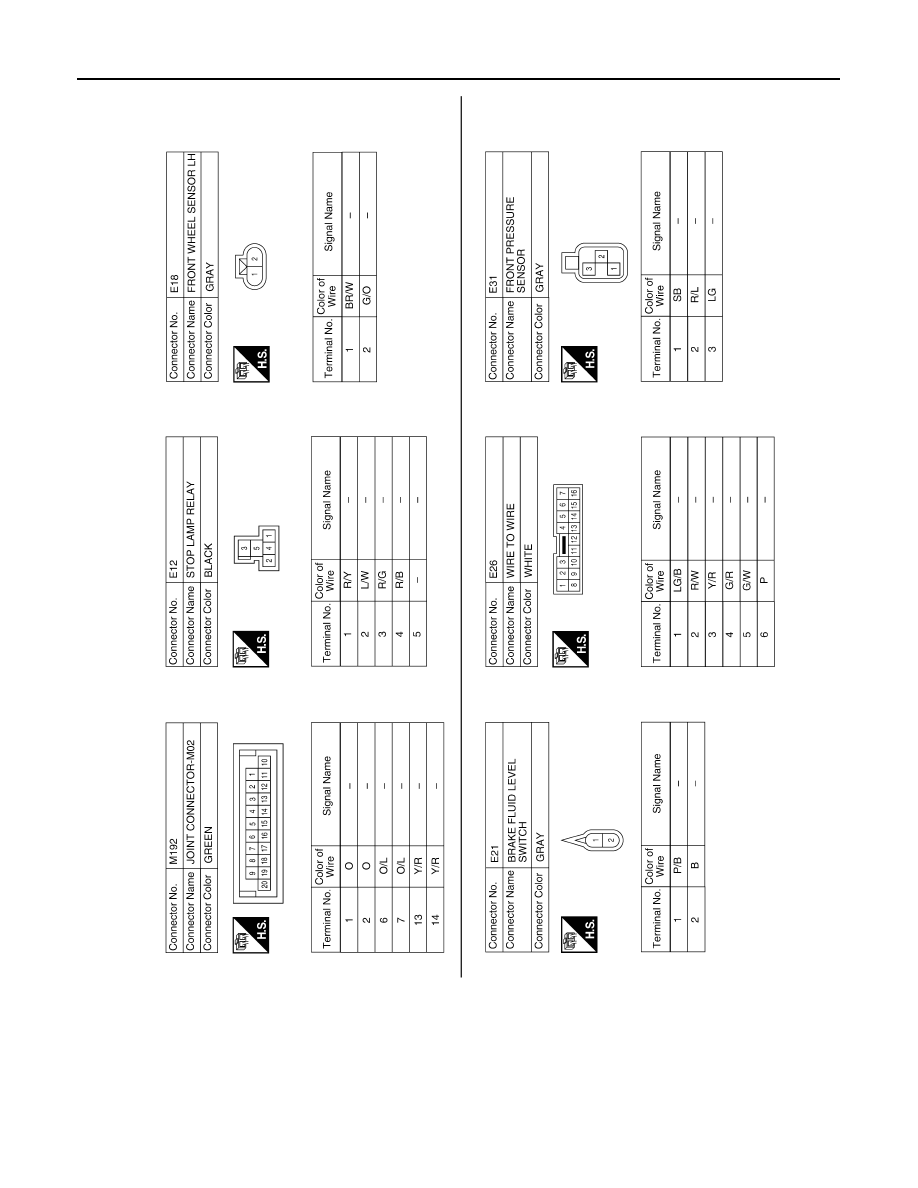

BRC-96

< WIRING DIAGRAM >

[VDC/TCS/ABS]

BRAKE CONTROL SYSTEM - VDC

ABFIA0617GB
