Nissan Titan A60. Manual - part 454

EM-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

EM

A

EM

N

O

P

CONTENTS

ENGINE MECHANICAL

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precaution for Drain Engine Coolant .........................

3

Precaution for Disconnecting Fuel Piping  .................

3

Precaution for Removal and Disassembly  ................

3

Precaution for Inspection, Repair and Replace-
ment ..........................................................................

3

Precaution for Assembly and Installation  ..................

4

Parts Requiring Angular Tightening ..........................

4

Precaution for Liquid Gasket .....................................

4

PREPARATION ............................................

6

PREPARATION ...................................................

6

Special Service Tool  .................................................

6

Commercial Service Tool  ..........................................

8

SYSTEM DESCRIPTION  .............................

10

NOISE, VIBRATION, AND HARSHNESS
(NVH) TROUBLESHOOTING  ............................

10

NVH Troubleshooting - Engine Noise  .....................

10

Use the Chart Below to Help You Find the Cause
of the Symptom  .......................................................

11

PERIODIC MAINTENANCE .........................

13

DRIVE BELTS  ....................................................

13

Checking Drive Belts ...............................................

13

Removal and Installation .........................................

13

Drive Belt Auto Tensioner and Idler Pulley  .............

14

AIR CLEANER FILTER ......................................

15

Exploded View  ........................................................

15

Removal and Installation (Viscous paper type) .......

15

SPARK PLUG  ....................................................

16

Exploded View  ........................................................

16

Removal and Installation  .........................................

16

CAMSHAFT VALVE CLEARANCE  ..................

18

Valve Clearance  ......................................................

18

COMPRESSION PRESSURE  ...........................

23

Checking Compression Pressure  ............................

23

REMOVAL AND INSTALLATION ...............

24

ENGINE ROOM COVER  ...................................

24

Removal and Installation  .........................................

24

AIR CLEANER AND AIR DUCT  .......................

25

Exploded View .........................................................

25

Removal and Installation  .........................................

25

INTAKE MANIFOLD  .........................................

26

Exploded View .........................................................

26

Removal and Installation  .........................................

26

EXHAUST MANIFOLD AND THREE WAY
CATALYST ........................................................

30

Exploded View .........................................................

30

Removal and Installation  .........................................

30

OIL PAN AND OIL STRAINER  .........................

33

Exploded View .........................................................

33

Removal and Installation  .........................................

33

IGNITION COIL  .................................................

38

Exploded View .........................................................

38

Removal and Installation  .........................................

38

ROCKER COVER  .............................................

39

Exploded View .........................................................

39

Removal and Installation  .........................................

39

FUEL INJECTOR AND FUEL TUBE  ................

41

Exploded View .........................................................

41

Removal and Installation  .........................................

41

INTAKE VALVE TIMING CONTROL  ................

45

EM-2

Intake Valve Timing Control Solenoid Valve (LH) ...

45

Intake Valve Timing Control Solenoid Valve (RH) ...

45

Intake Valve Timing Control Position Sensor (LH) ...

46

Intake Valve Timing Control Position Sensor (RH) ...

46

Camshaft Position Sensor (PHASE)  ......................

46

TIMING CHAIN COVER .....................................

48

Removal and Installation  ........................................

48

TIMING CHAIN  ..................................................

52

Exploded View ........................................................

52

Removal and Installation  ........................................

53

CAMSHAFT .......................................................

58

Exploded View ........................................................

58

Removal and Installation  ........................................

58

Inspection after Installation .....................................

67

OIL SEAL ...........................................................

69

Removal and Installation of Valve Oil Seal .............

69

Removal and Installation of Front Oil Seal  .............

69

Removal and Installation of Rear Oil Seal ..............

71

CYLINDER HEAD ..............................................

74

Exploded View ........................................................

74

Removal and Installation  ........................................

74

Exploded View  ........................................................

76

Disassembly and Assembly  ....................................

76

Inspection After Disassembly ..................................

78

UNIT REMOVAL AND INSTALLATION  ....

84

ENGINE ASSEMBLY ........................................

84

Exploded View  ........................................................

84

Removal and Installation .........................................

84

UNIT DISASSEMBLY AND ASSEMBLY ...

88

ENGINE UNIT  ....................................................

88

Exploded View  ........................................................

88

Disassembly and Assembly  ....................................

89

Inspection After Disassembly ..................................

96

HOW TO SELECT PISTON AND BEARING  ...

107

How to Select Piston and Bearing  ........................

107

SERVICE DATA AND SPECIFICATIONS
(SDS) .........................................................

114

SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................

114

Standard and Limit ................................................

114

PRECAUTIONS

EM-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006179367

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Drain Engine Coolant

INFOID:0000000006179368

Drain engine coolant when engine is cooled.

Precaution for Disconnecting Fuel Piping

INFOID:0000000006179369

• Before starting work, make sure no fire or spark producing items are in the work area.

• Release fuel pressure before disconnecting and disassembly.

• After disconnecting pipes, plug openings to stop fuel leakage.

Precaution for Removal and Disassembly

INFOID:0000000006179370

• When instructed to use special service tools, use the specified tools. Always be careful to work safely, avoid

forceful or uninstructed operations.

• Exercise maximum care to avoid damage to mating or sliding surfaces.

• Cover openings of engine system with tape or the equivalent, if necessary, to seal out foreign materials.

• Mark and arrange disassembly parts in an organized way for easy troubleshooting and assembly.

• When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally

opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be used

where noted in the step.

Precaution for Inspection, Repair and Replacement

INFOID:0000000006179371

Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and

replace if necessary.

EM-4

< PRECAUTION >

PRECAUTIONS

Precaution for Assembly and Installation

INFOID:0000000006179372

• Use torque wrench to tighten bolts or nuts to specification.

• When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the

ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is specified,

do exactly as specified.

• Replace with new gasket, packing, oil seal or O-ring.

• Thoroughly wash, clean, and air-blow each part. Carefully check engine oil or engine coolant passages for

any restriction and blockage.

• Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.

Before assembly, oil sliding surfaces well.

• Release air within route when refilling after draining engine coolant.

• Before starting engine, apply fuel pressure to fuel lines with turning ignition switch ON (with engine stopped).

Then make sure that there are no leaks at fuel line connections.

• After repairing, start engine and increase engine speed to check engine coolant, fuel, oil, and exhaust sys-

tems for leakage.

Parts Requiring Angular Tightening

INFOID:0000000006179373

• For final tightening of the following engine parts use Tool:

- Cylinder head bolts

- Main bearing cap bolts

- Connecting rod cap bolts

- Crankshaft pulley bolt (No angle wrench is required as the bolt flange is provided with notches for angle

tightening)

• Do not use a torque value for final tightening.

• The torque value for these parts are for a preliminary step.

• Ensure thread and seat surfaces are clean and lightly coated with engine oil.

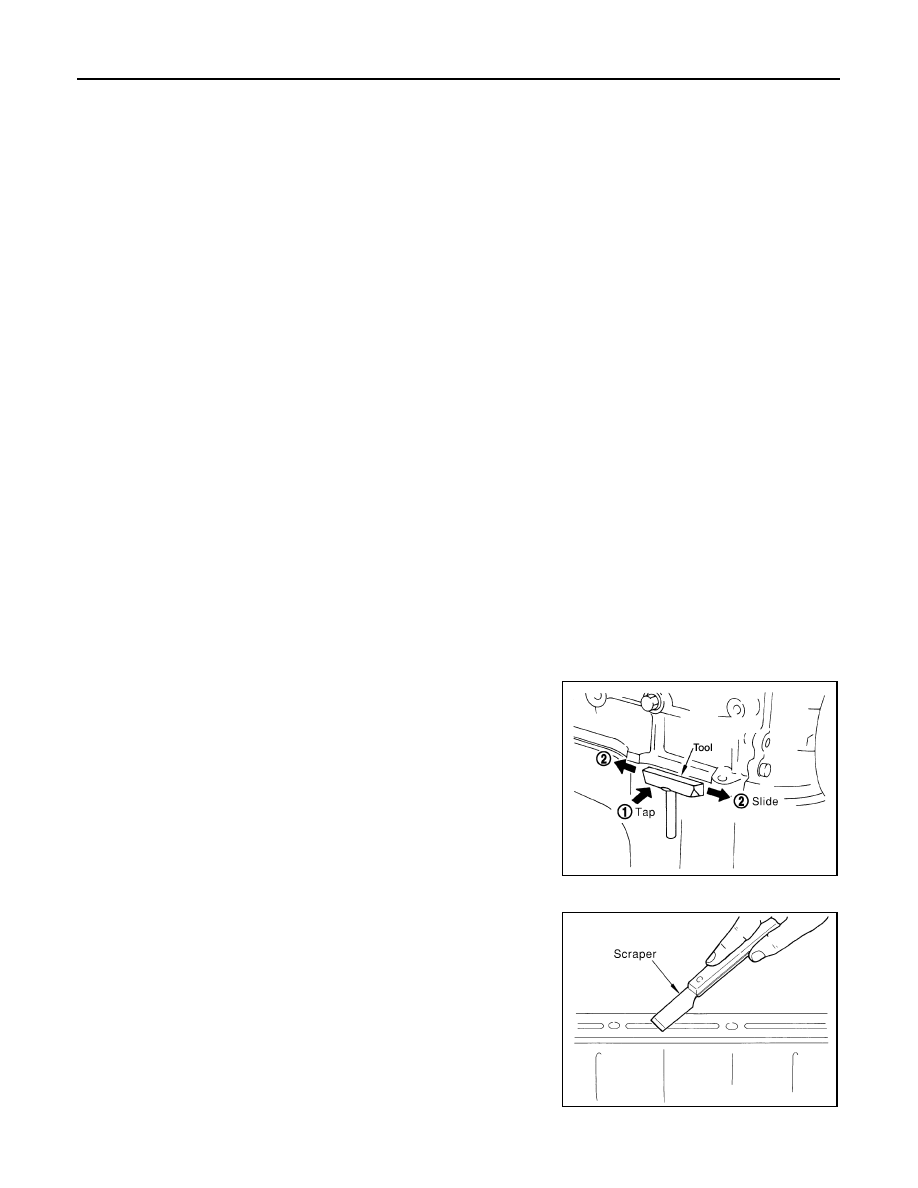

Precaution for Liquid Gasket

INFOID:0000000006179374

REMOVAL OF LIQUID GASKET SEALING

• After removing the bolts and nuts, separate the mating surface and

remove the old liquid gasket sealing using Tool.

CAUTION:

Do not damage the mating surfaces.

• Tap the seal cutter to insert it (1).

• In areas where the Tool is difficult to use, lightly tap to slide it (2).

LIQUID GASKET APPLICATION PROCEDURE

1. Remove the old liquid gasket adhering to the gasket application

surface and the mating surface using suitable tool.

• Remove the liquid gasket completely from the groove of the

liquid gasket application surface, bolts, and bolt holes.

2. Thoroughly clean the mating surfaces and remove adhering

moisture, grease and foreign material.

Tool number

: KV10112100 (BT-8653-A)

Tool number

: KV10111100 (J-37228)

WBIA0566E

PBIC0003E
