ADP-106
< DTC/CIRCUIT DIAGNOSIS >
SEAT MEMORY INDICATOR LAMP
SEAT MEMORY INDICATOR LAMP
Description
INFOID:0000000006163572
• The seat memory switch is installed on the driver side door trim. The operation signal is inputted to the auto-
matic drive positioner control unit when the memory switch is operated.
• The status of automatic drive positioner system can be checked according to the illuminating/flashing status.
Component Function Check
INFOID:0000000006163573
1.
CHECK FUNCTION
1. Select “MEMORY SW INDCTR” in “Active test” mode with CONSULT-III.
2. Check the memory indicator operation.
Is the operation of relevant parts normal?
YES
>> Inspection End.
NO
>> Perform diagnosis procedure. Refer to
ADP-106, "Diagnosis Procedure"

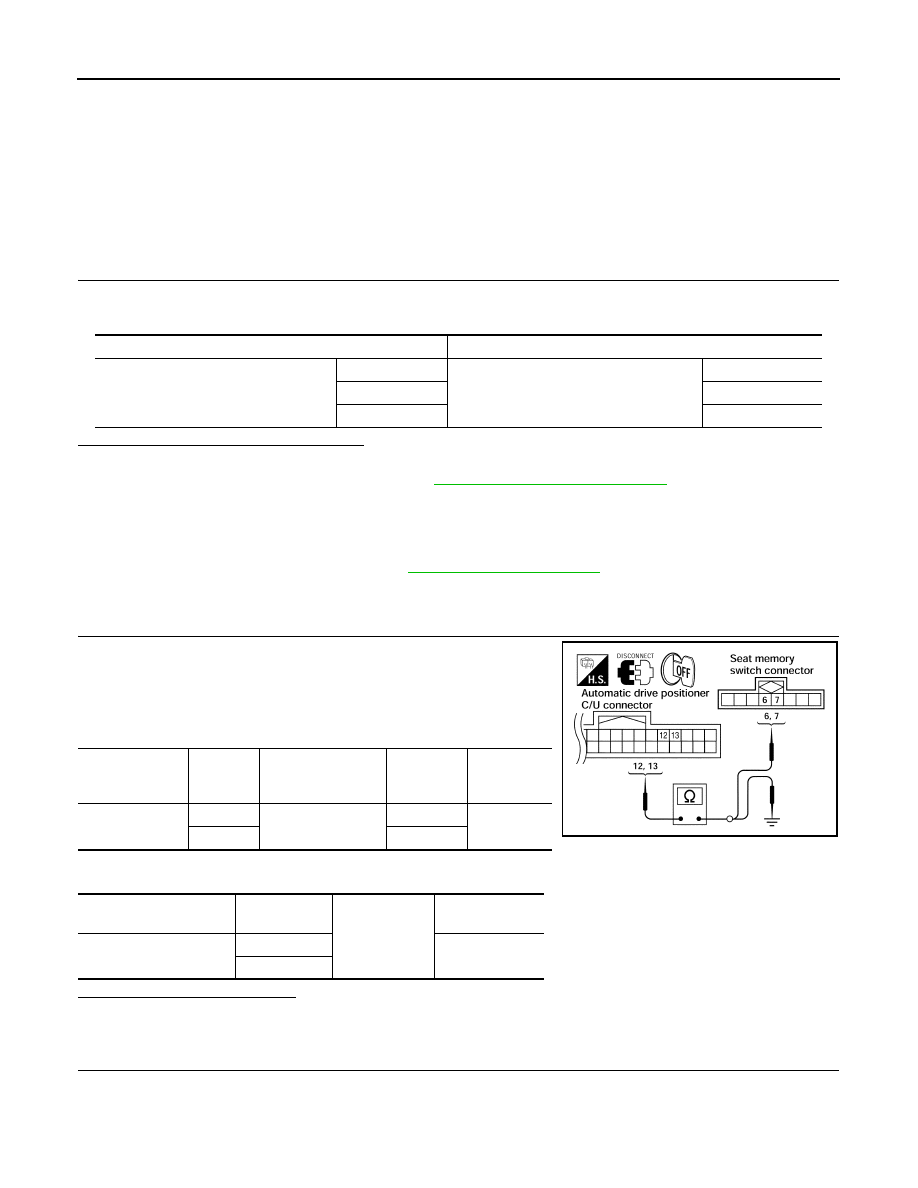

Diagnosis Procedure
INFOID:0000000006163574
Regarding Wiring Diagram information, refer to
1.
CHECK SEAT MEMORY INDICATOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and seat
memory switch.
3. Check continuity between automatic drive positioner control unit
harness connector and seat memory switch harness connector.
4. Check continuity between automatic drive positioner control unit harness connector and ground.
Is the inspection result normal?
YES
>> GO TO 2
NO
>> Repair or replace harness.
2.

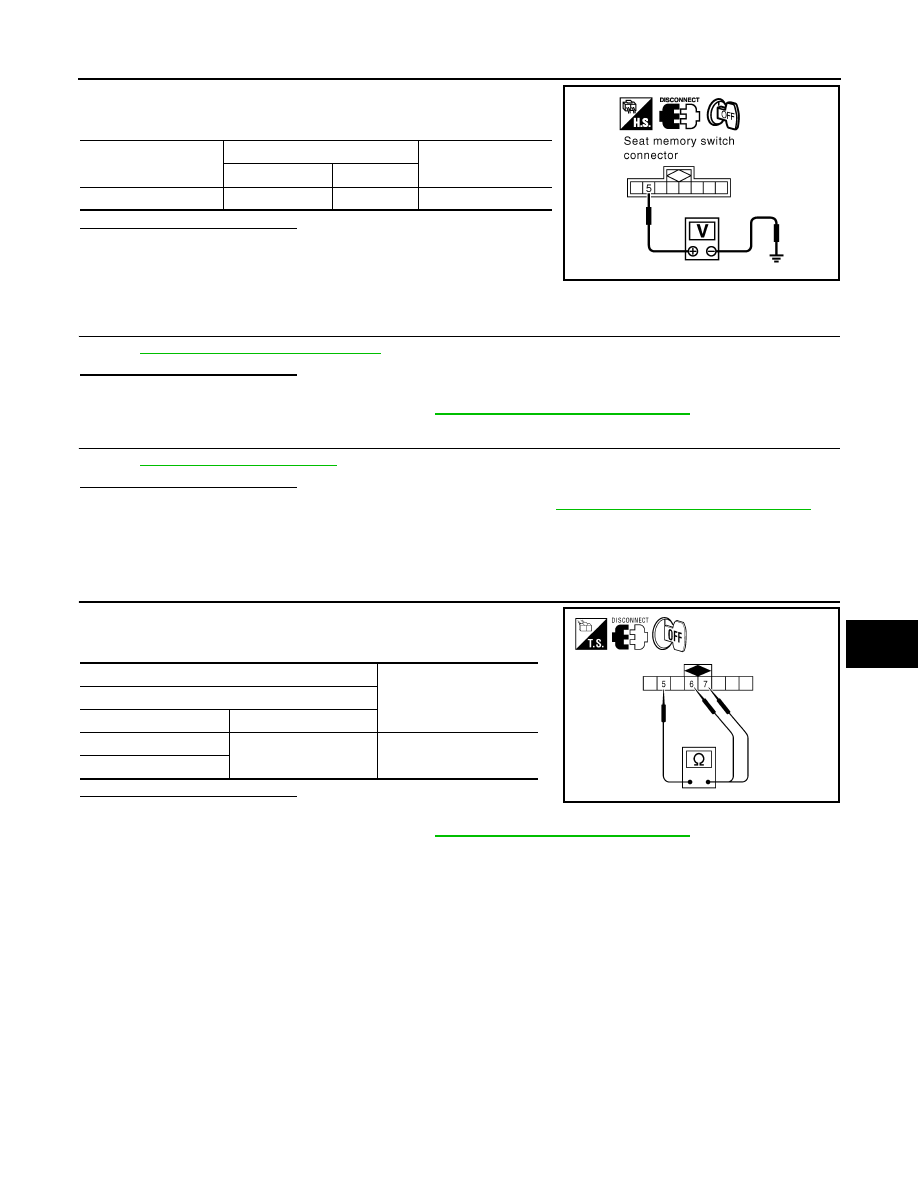

CHECK MEMORY INDICATOR POWER SUPPLY
Test item
Description
MEMORY SW INDCTR
OFF
Memory switch indicator
OFF
ON-1
Indicator 1: ON
ON-2
Indicator 2: ON
Automatic drive
positioner control
unit connector
Terminal
Seat memory switch
connector
Terminal
Continuity
M33
12
D5
6
Yes
13
7
Automatic drive position-
er connector
Terminal
Ground
Continuity
M33
12
No
13
LIIA1022E
