PG-72

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

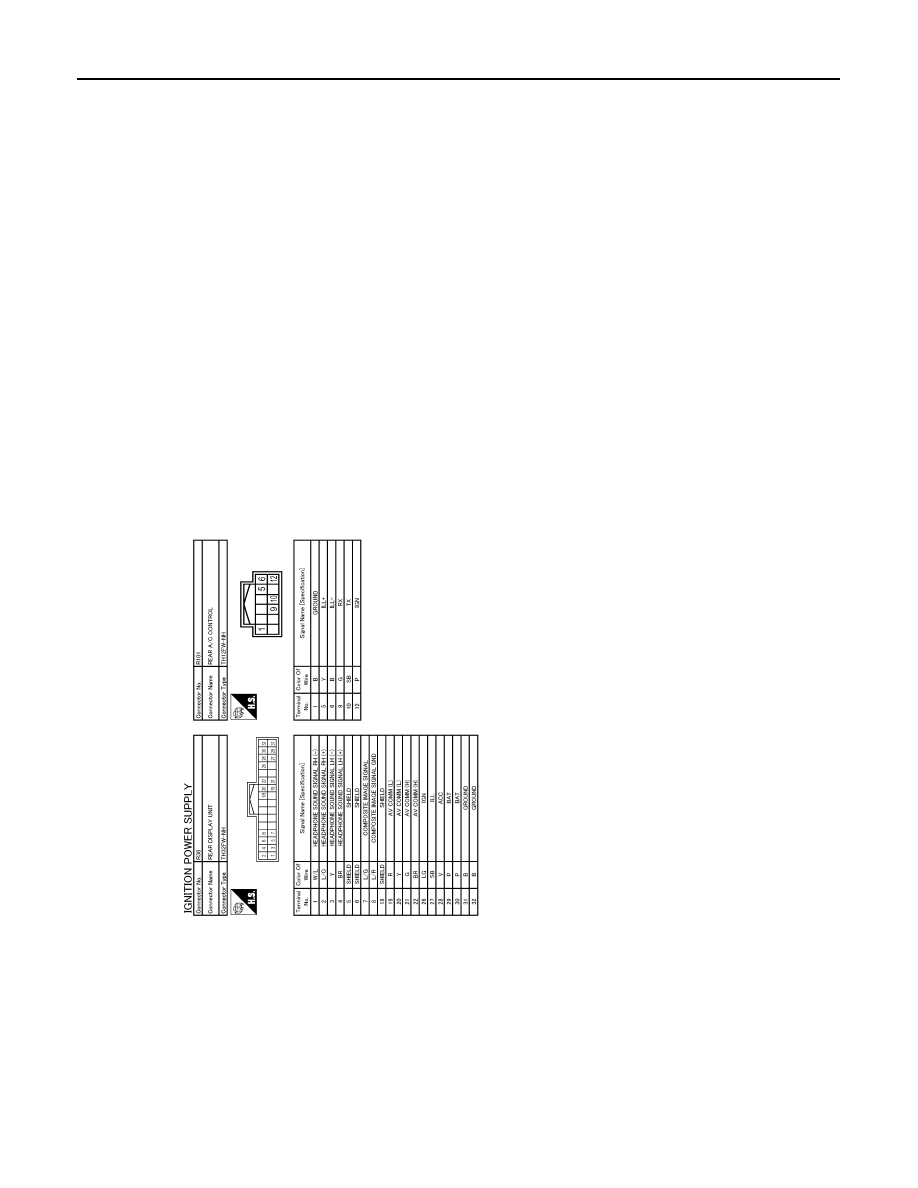

JRMWE3400GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-73

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

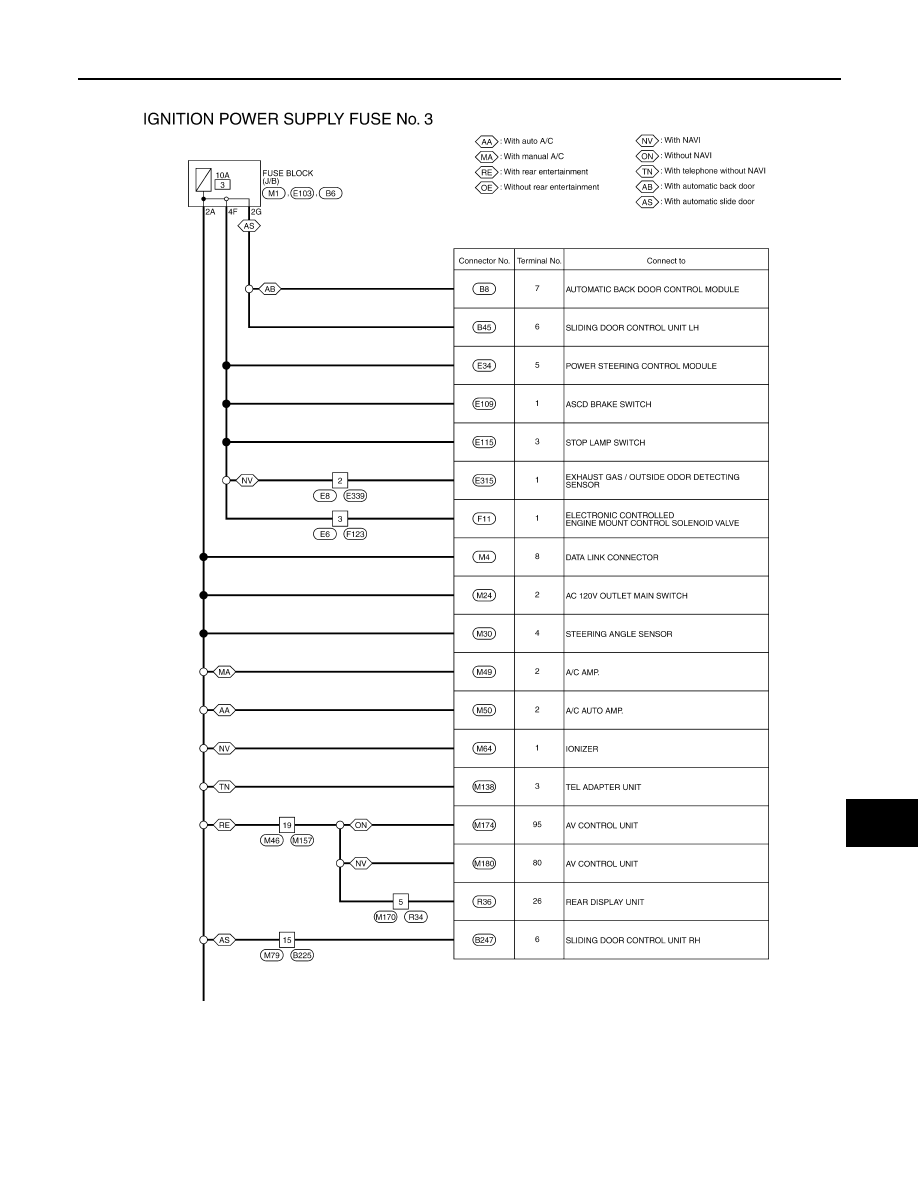

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 3 -

INFOID:0000000009651761

JRMWE3401GB

PG-74

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

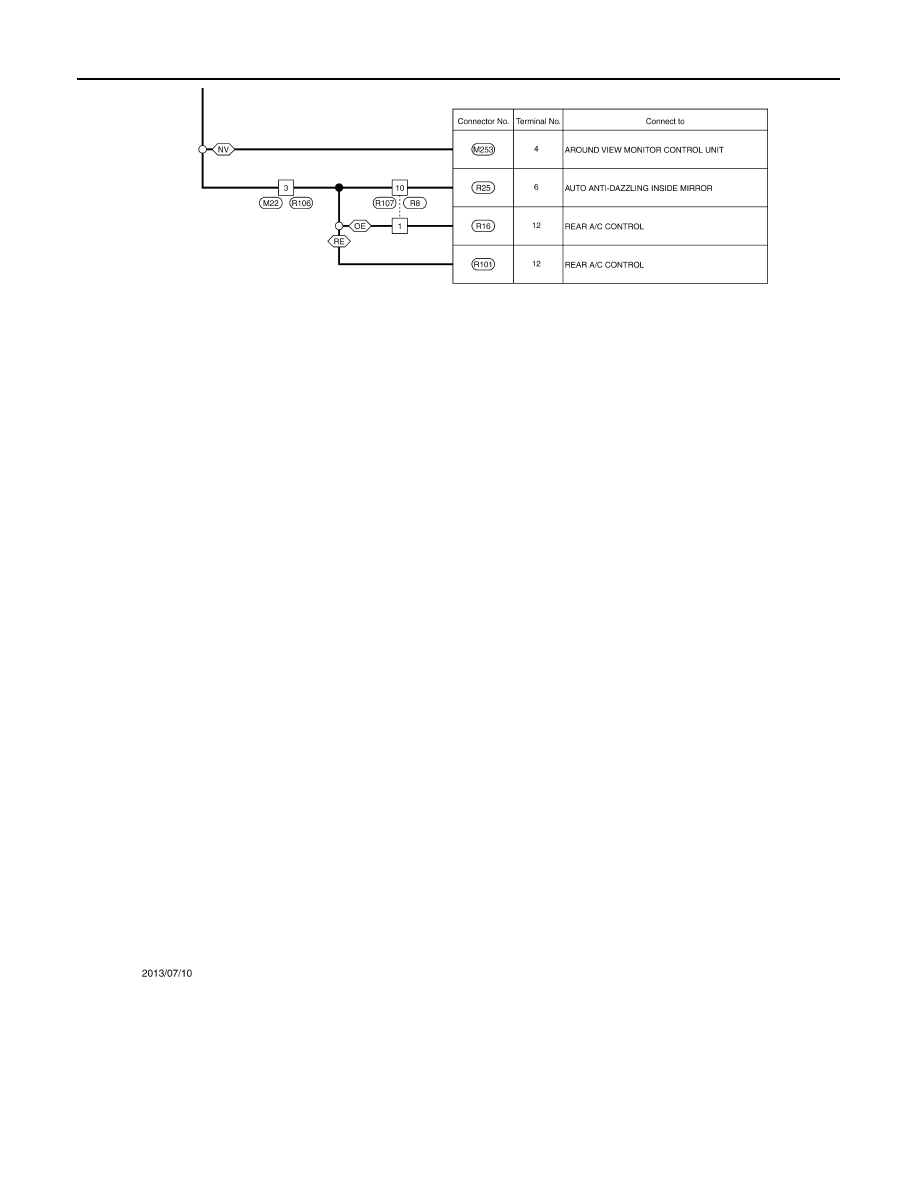

JRMWE3402GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-75

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

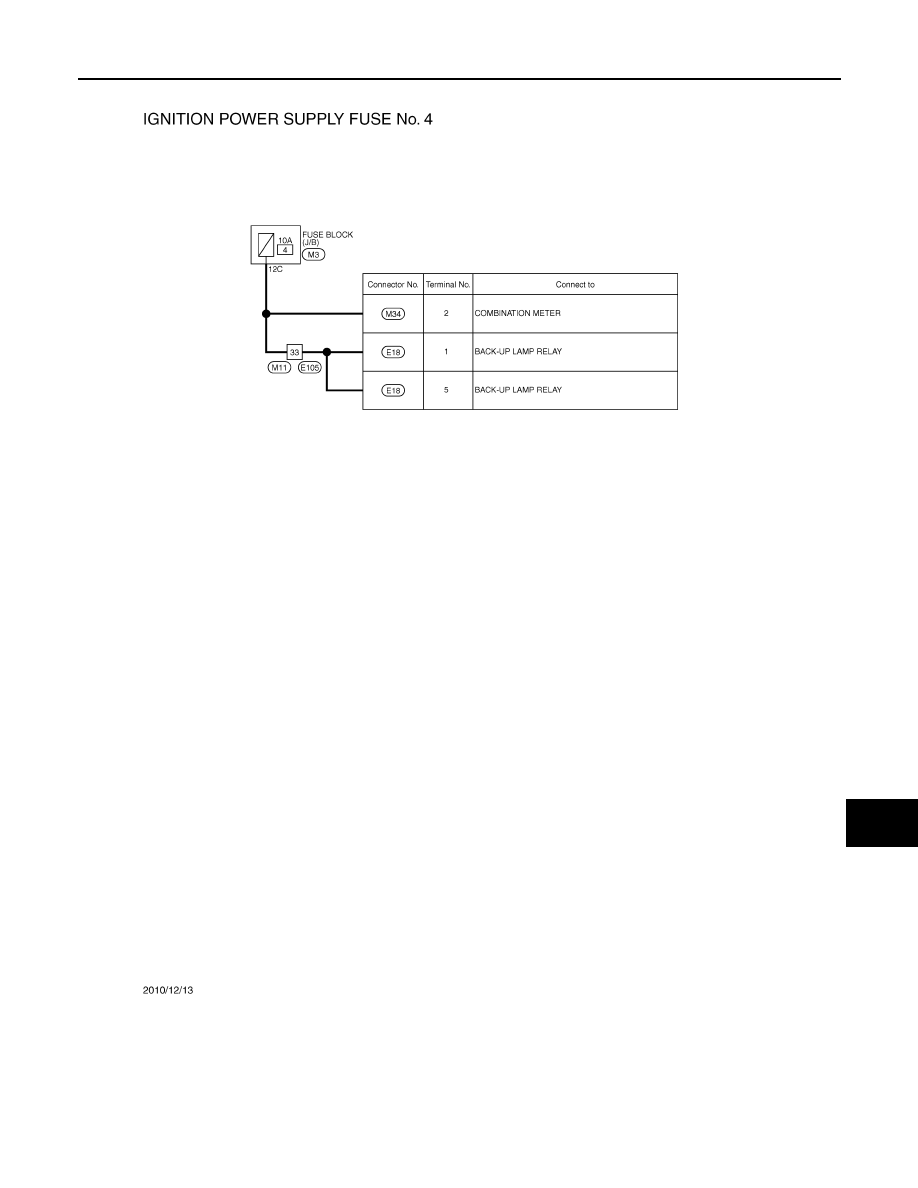

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 4 -

INFOID:0000000009651762

JCMWA7773GB
