Nissan Quest E52. Manual - part 926

PCS

PCS-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

PCS

A

O

P

N

CONTENTS

POWER CONTROL SYSTEM

IPDM E/R

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precautions for Removing Battery Terminal  .............

3

SYSTEM DESCRIPTION  ..............................

4

COMPONENT PARTS  ........................................

4

IPDM E/R  .....................................................................

4

IPDM E/R : Component Parts Location .....................

4

SYSTEM ..............................................................

5

RELAY CONTROL SYSTEM  ......................................

5

RELAY CONTROL SYSTEM : System Descrip-
tion ............................................................................

5

RELAY CONTROL SYSTEM : Fail-safe  ...................

6

POWER CONTROL SYSTEM  .....................................

8

POWER CONTROL SYSTEM : System Descrip-
tion ............................................................................

8

SIGNAL BUFFER SYSTEM  ........................................

8

SIGNAL BUFFER SYSTEM : System Description

......

8

POWER CONSUMPTION CONTROL SYSTEM  .........

9

POWER CONSUMPTION CONTROL SYSTEM :
System Diagram ........................................................

9

POWER CONSUMPTION CONTROL SYSTEM :
System Description  ...................................................

9

DIAGNOSIS SYSTEM (IPDM E/R) .....................

11

Diagnosis Description  .............................................

11

CONSULT Function (IPDM E/R)  .............................

13

ECU DIAGNOSIS INFORMATION ..............

16

IPDM E/R  ............................................................

16

Reference Value ......................................................

16

Fail-safe ...................................................................

23

DTC Index ...............................................................

24

WIRING DIAGRAM  ......................................

26

IPDM E/R ...........................................................

26

Wiring Diagram ........................................................

26

DTC/CIRCUIT DIAGNOSIS  .........................

30

U1000 CAN COMM CIRCUIT  ...........................

30

Description ...............................................................

30

DTC Logic ................................................................

30

Diagnosis Procedure  ...............................................

30

B2098 IGNITION RELAY ON STUCK  ..............

31

Description ...............................................................

31

DTC Logic ................................................................

31

Diagnosis Procedure  ...............................................

31

B2099 IGNITION RELAY OFF STUCK  ............

33

Description ...............................................................

33

DTC Logic ................................................................

33

Diagnosis Procedure  ...............................................

33

POWER SUPPLY AND GROUND CIRCUIT  ....

35

Diagnosis Procedure  ...............................................

35

REMOVAL AND INSTALLATION  ...............

36

IPDM E/R ...........................................................

36

Exploded View .........................................................

36

Removal and Installation  .........................................

36

POWER DISTRIBUTION SYSTEM

PRECAUTION ..............................................

37

PRECAUTIONS .................................................

37

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

37

Precautions for Removing Battery Terminal ............

37

PCS-2

SYSTEM DESCRIPTION  ............................

38

COMPONENT PARTS  .......................................

38

Component Parts Location  .....................................

38

SYSTEM .............................................................

39

POWER DISTRIBUTION SYSTEM ...........................

39

POWER DISTRIBUTION SYSTEM : System De-
scription ..................................................................

39

Fail-safe ..................................................................

40

DIAGNOSIS SYSTEM (BCM)  ............................

41

COMMON ITEM  ........................................................

41

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  ....................................................

41

INTELLIGENT KEY ...................................................

42

INTELLIGENT KEY : CONSULT Function (BCM -
INTELLIGENT KEY)  ...............................................

43

ECU DIAGNOSIS INFORMATION ..............

47

BCM ...................................................................

47

List of ECU Reference  ............................................

47

WIRING DIAGRAM  .....................................

48

POWER DISTRIBUTION SYSTEM  ...................

48

Wiring Diagram  .......................................................

48

BASIC INSPECTION ...................................

54

DIAGNOSIS AND REPAIR WORK FLOW  ........

54

Work Flow ...............................................................

54

DTC/CIRCUIT DIAGNOSIS .........................

57

B2614 ACC RELAY CIRCUIT  ...........................

57

DTC Logic ...............................................................

57

Diagnosis Procedure  ..............................................

57

Component Inspection ............................................

58

B2615 BLOWER RELAY CIRCUIT  ...................

59

DTC Logic ...............................................................

59

Diagnosis Procedure  ..............................................

59

Component Inspection ............................................

60

B2616 IGNITION RELAY CIRCUIT  ...................

61

DTC Logic  ...............................................................

61

Diagnosis Procedure ...............................................

61

Component Inspection  ............................................

62

B2618 BCM  .......................................................

63

DTC Logic  ...............................................................

63

Diagnosis Procedure ...............................................

63

B261A PUSH-BUTTON IGNITION SWITCH .....

65

DTC Logic  ...............................................................

65

Diagnosis Procedure ...............................................

65

B26F1 IGNITION RELAY  ..................................

67

DTC Logic  ...............................................................

67

Diagnosis Procedure ...............................................

67

B26F2 IGNITION RELAY  ..................................

68

DTC Logic  ...............................................................

68

Diagnosis Procedure ...............................................

68

B26F6 BCM  .......................................................

70

DTC Logic  ...............................................................

70

Diagnosis Procedure ...............................................

70

PUSH-BUTTON IGNITION SWITCH  .................

71

Component Function Check ..................................

71

Diagnosis Procedure ...............................................

71

Component Inspection  ............................................

72

PUSH-BUTTON IGNITION SWITCH POSI-
TION INDICATOR ..............................................

74

Description ..............................................................

74

Component Function Check ..................................

74

Diagnosis Procedure ...............................................

74

SYMPTOM DIAGNOSIS  ............................

76

PUSH-BUTTON IGNITION SWITCH DOES
NOT OPERATE  .................................................

76

Description ..............................................................

76

Diagnosis Procedure ...............................................

76

PUSH-BUTTON IGNITION SWITCH POSI-
TION INDICATOR DOES NOT ILLUMINATE ...

77

Description ..............................................................

77

Diagnosis Procedure ...............................................

77

PCS

PRECAUTIONS

PCS-3

< PRECAUTION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009652844

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

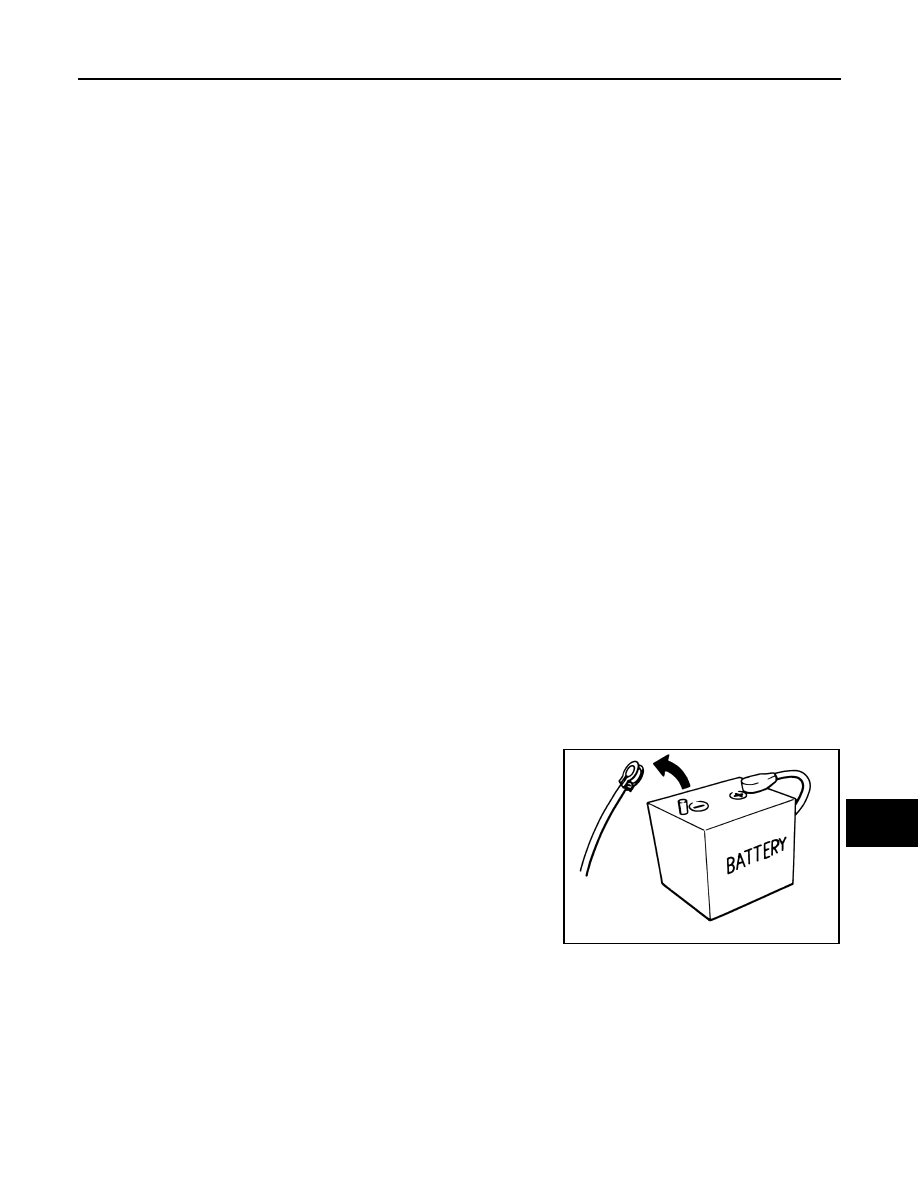

Precautions for Removing Battery Terminal

INFOID:0000000009995799

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

SEF289H

PCS-4

< SYSTEM DESCRIPTION >

[IPDM E/R]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

IPDM E/R

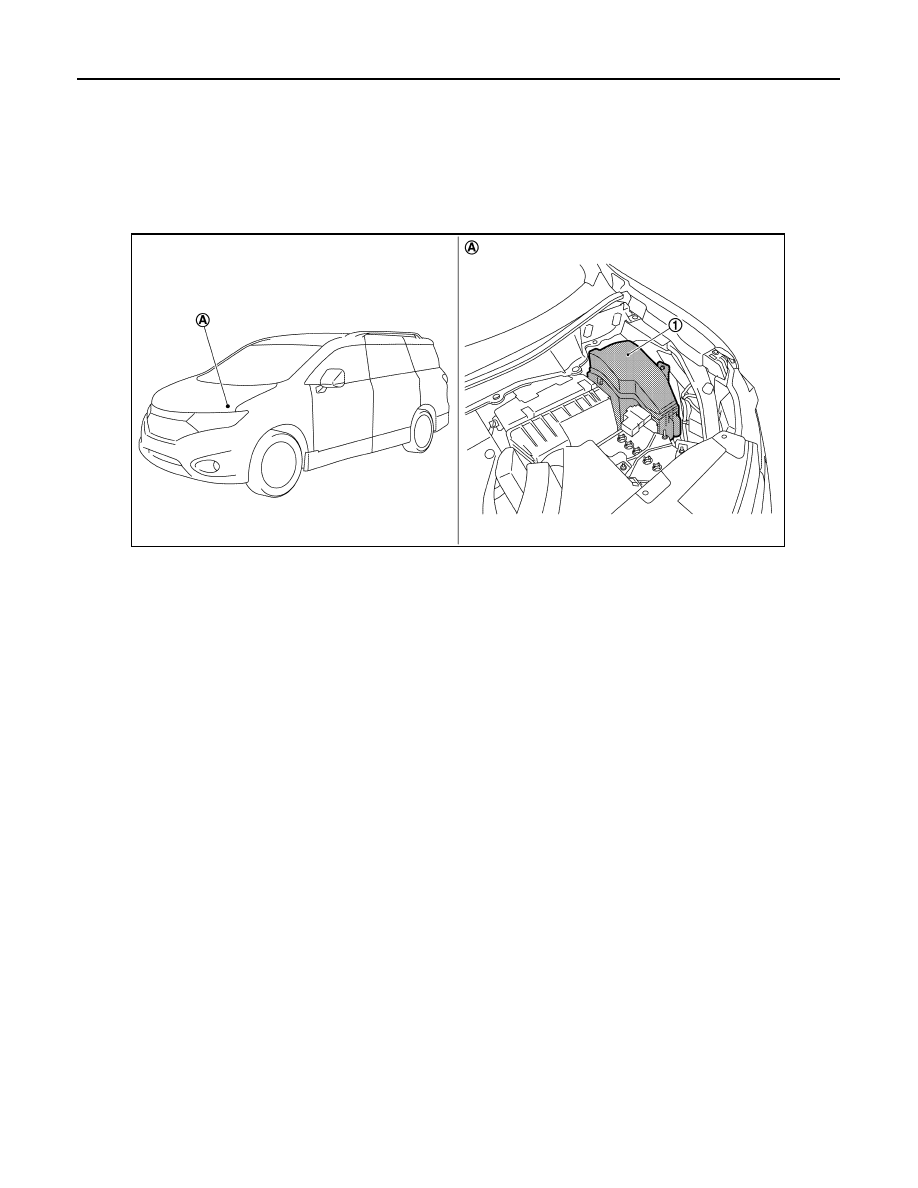

IPDM E/R : Component Parts Location

INFOID:0000000009652845

1.

IPDM E/R

A.

Engine room (LH)

JMMIA0844ZZ
