MIR-52

< REMOVAL AND INSTALLATION >

[WITHOUT ADP]

DOOR MIRROR

Models without side turn signal lamp

DOOR MIRROR ASSEMBLY

DOOR MIRROR ASSEMBLY : Removal and Installation

INFOID:0000000009652731

CAUTION:

• When removing, always use a remover tool that is made of plastic.
• Be careful not to scratch or damage door mirror body when removing.
• Always replace door mirror corner cover after every disassembly.

REMOVAL

1.

Remove front door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Remove front door module assembly mounting bolts, pull out the front door module assembly to make
space in order to disengage the harness connector.

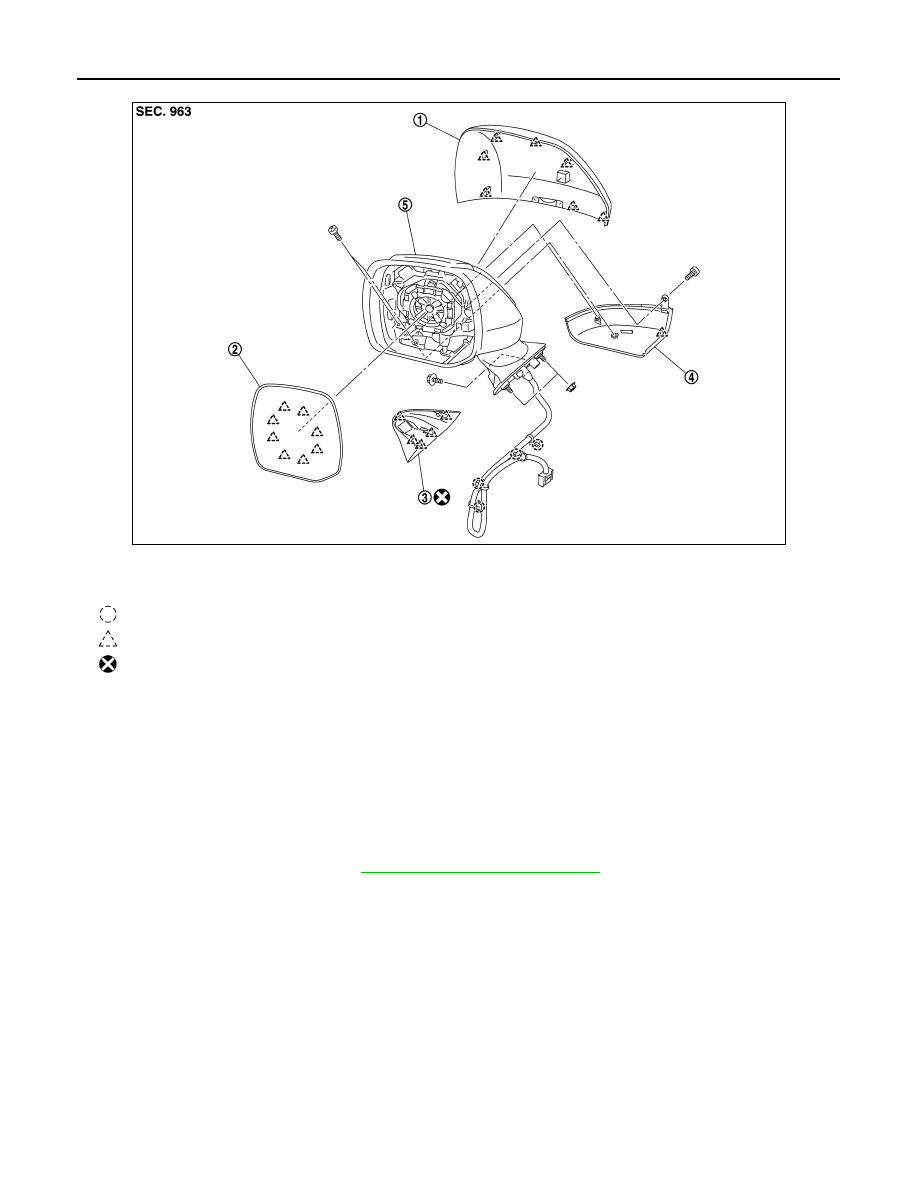

JMLIA2187ZZ

1.

Door mirror cover

2.

Glass mirror

3.

Door mirror corner cover

4.

Door mirror under cover

5.

Door mirror

: Clip

: Pawl

: Always replace after every disassembly.

DOOR MIRROR

MIR-53

< REMOVAL AND INSTALLATION >

[WITHOUT ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

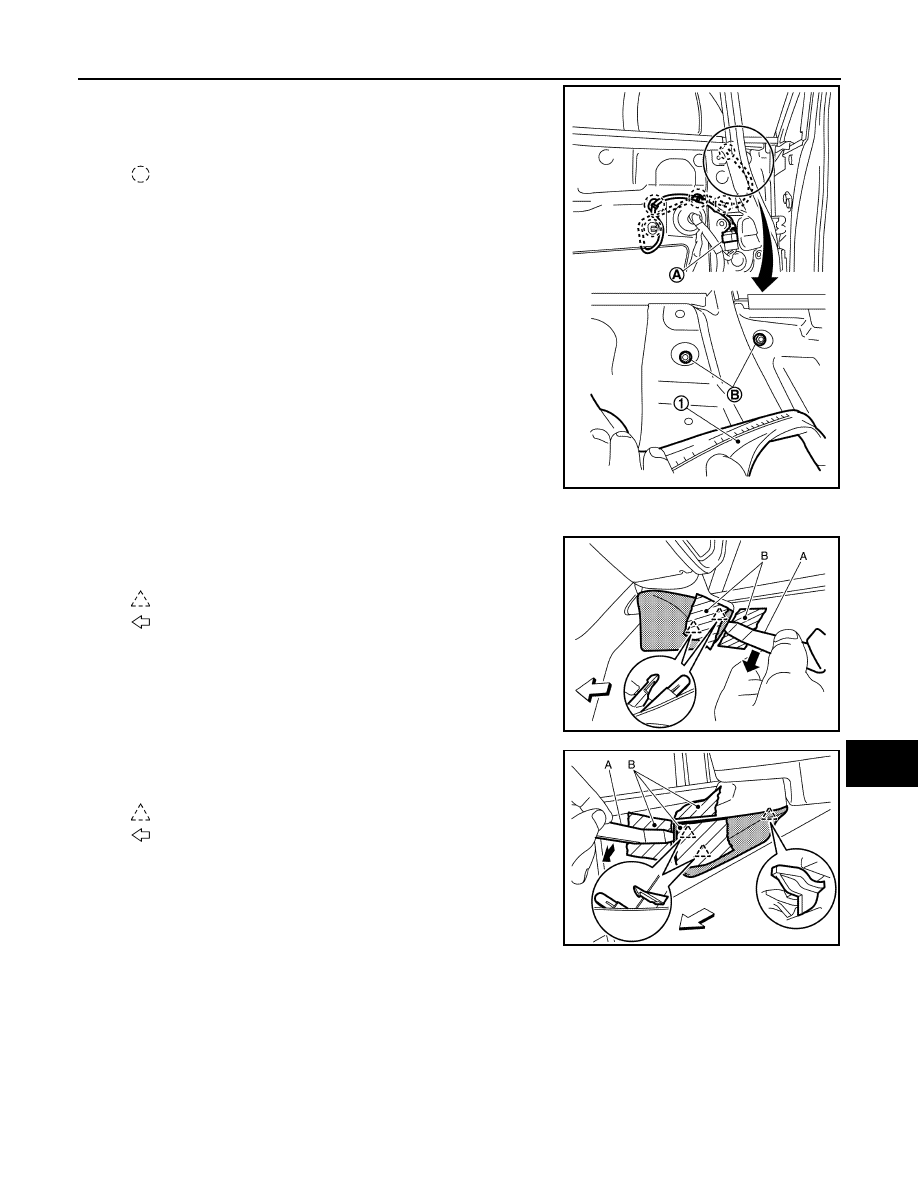

3.

Remove harness connector (A).

4.

Remove front door speaker and then, from the hole of front door
speaker disconnect the harness connectors.

5.

Peel off front door weather-strip (1), and then remove door mir-
ror mounting nuts (B).

6.

Remove door mirror corner cover.

a.

Disengage the door mirror corner cover fixing pawls with
remover tool (A). (front door side)

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

b.

Disengage the door mirror corner cover fixing pawls with
remover tool (A). (front fender side)

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

7.

Remove door mirror mounting bolt.

8.

Remove door mirror assembly from door panel.

INSTALLATION

1.

Insert door mirror harness connector through the door outer panel hole.

2.

Install door mirror assembly into the door panel and tighten the mounting bolt and nuts.

3.

Install the door mirror harness fixing clips to the door panel from the hole of door speaker.

4.

Install front door finisher.

: Clip

JMLIA2195ZZ

: Pawl

: Vehicle front

JMLIA1582ZZ

: Pawl

: Vehicle front

JMLIA1583ZZ

MIR-54

< REMOVAL AND INSTALLATION >

[WITHOUT ADP]

DOOR MIRROR

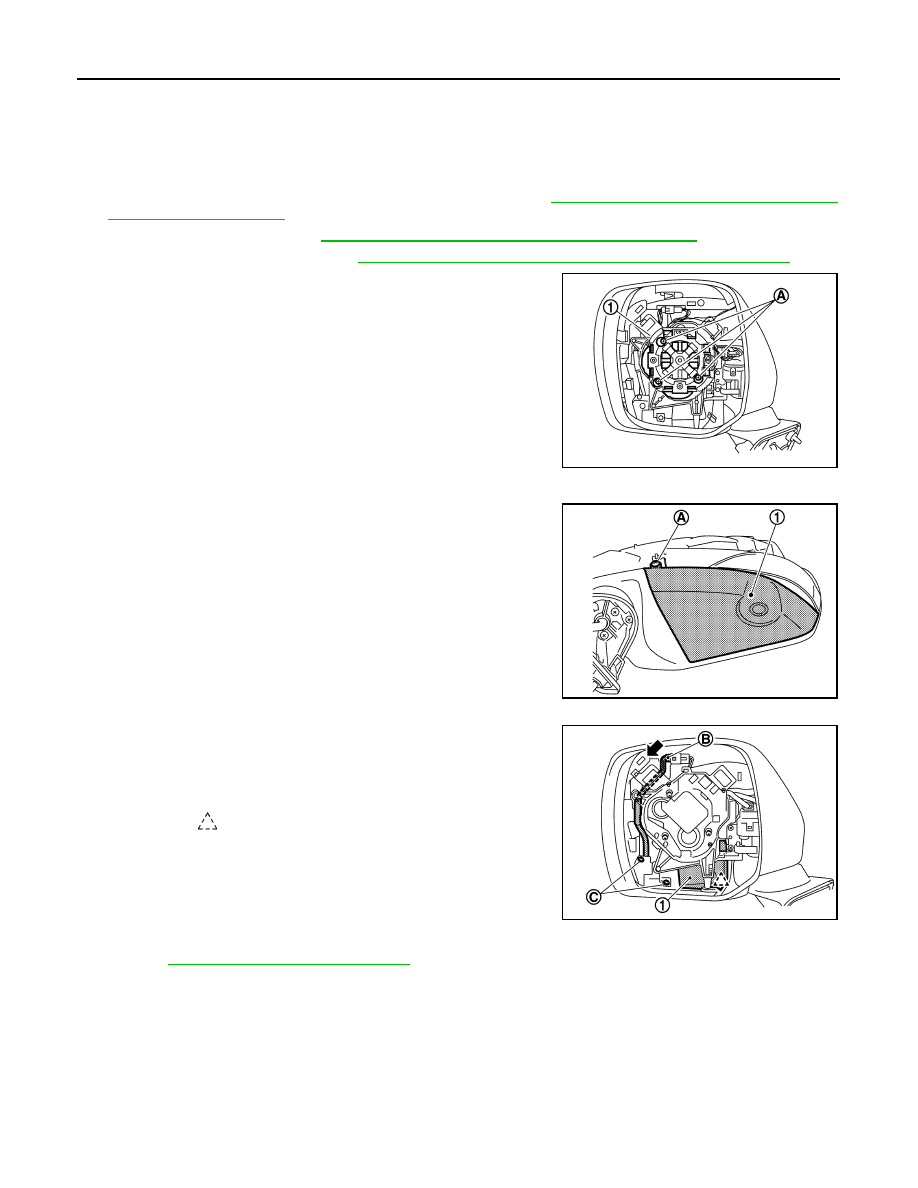

DOOR MIRROR ASSEMBLY : Disassembly and Assembly

INFOID:0000000009652732

CAUTION:

When removing, always use a remover tool that is made of plastic.

DISASSEMBLY

1.

Remove door mirror assembly from the door panel. Refer to

MIR-52, "DOOR MIRROR ASSEMBLY :

Removal and Installation"

.

2.

Remove glass mirror. Refer to

MIR-56, "GLASS MIRROR : Removal and Installation"

.

3.

Remove door mirror cover. Refer to

MIR-57, "DOOR MIRROR COVER : Removal and Installation"

.

4.

Remove door mirror actuator (1).

a.

Remove the mounting screws (A).

b.

Disconnect the harness connectors behind the actuator.

5.

Remove around view camera finisher assembly (1). (with around view camera)
1.

Remove around view camera finisher mounting screw (A).

2.

Disconnect harness connector (B) and remove mounting
screws (C).

3.

Disengage around view camera finisher assembly (1) fixing
pawls and remove it from door mirror housing.

6.

Remove around view camera mounting screws and then remove it from around view camera finisher.
Refer to

AV-631, "Removal and Installation"

.

7.

Remove door mirror under cover (1). (with side turn signal lamp)

JMLIA1507ZZ

JMLIA1510ZZ

: Pawl

JMLIA1508ZZ

DOOR MIRROR

MIR-55

< REMOVAL AND INSTALLATION >

[WITHOUT ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

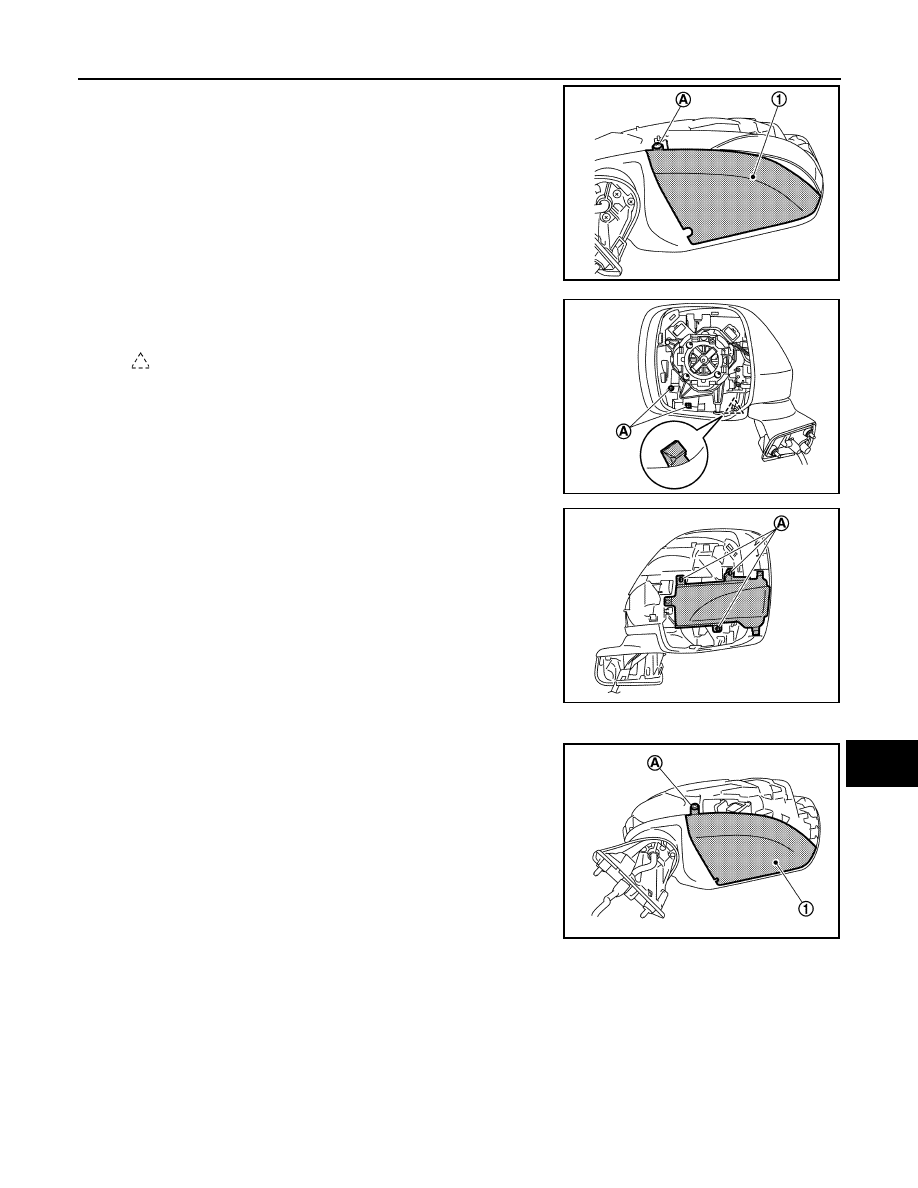

a.

Remove door mirror under cover mounting screw (A).

b.

Remove door mirror under cover mounting screws (A) and dis-
engage the fixing pawl.

c.

Remove door mirror side turn signal lamp mounting screws (A)
and remove side turn signal lamp.

8.

Remove door mirror under cover (1). (without side turn signal lamp)

a.

Remove door mirror under cover mounting screw (A).

JMLIA2188ZZ

: Pawl

JMLIA2190ZZ

JMLIA2191ZZ

JMLIA2189ZZ
