MA-32

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

STEEL WHEEL (EMERGENCY)

Item

Limit

Runout

Axial runout (Average)

Less than 0.8 mm (0.031 in)

Radial runout (Average)

Less than 0.5 mm (0.020 in)

Allowable unbalance

Dynamic (At flange)

Less than 5 g (0.17 oz) (one side)

Static (At flange)

Less than 10 g (0.35 oz)

Item

Limit

Runout

Axial runout (Average)

Less than 1.5 mm (0.059 in)

Radial runout (Average)

MIR-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

MIR

A

B

MIR

N

O

P

CONTENTS

MIRRORS

WITH ADP

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precautions for Removing Battery Terminal  .............

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tools ..............................................

4

Commercial Service Tools .......................................

4

SYSTEM DESCRIPTION  ..............................

5

COMPONENT PARTS  ........................................

5

Component Parts Location ........................................

5

Door Mirror Remote Control Switch  ..........................

5

Door Mirror  ................................................................

6

Auto Anti-dazzling Inside Mirror  ................................

6

SYSTEM ..............................................................

7

DOOR MIRROR SYSTEM  ...........................................

7

DOOR MIRROR SYSTEM : System Description ......

7

DOOR MIRROR SYSTEM : Schematic  ....................

8

AUTO ANTI-DAZZLING INSIDE MIRROR SYS-
TEM ..............................................................................

8

AUTO ANTI-DAZZLING INSIDE MIRROR SYS-
TEM : System Description .........................................

8

DIAGNOSIS SYSTEM (DRIVER SEAT CON-
TROL UNIT) .........................................................

9

CONSULT Function  ..................................................

9

ECU DIAGNOSIS INFORMATION ..............

12

DRIVER SEAT CONTROL UNIT, AUTOMAT-
IC DRIVE POSITIONER CONTROL UNIT  .........

12

List of ECU Reference .............................................

12

WIRING DIAGRAM  ......................................

13

DOOR MIRROR SYSTEM .................................

13

Wiring Diagram ........................................................

13

AUTO ANTI-DAZZLING INSIDE MIRROR
SYSTEM ............................................................

20

Wiring Diagram ........................................................

20

SYMPTOM DIAGNOSIS  ..............................

22

REVERSE INTERLOCK DOOR MIRROR
DOES NOT OPERATE ......................................

22

Diagnosis Procedure  ...............................................

22

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................

23

Work Flow ................................................................

23

Inspection Procedure ...............................................

25

Diagnostic Worksheet ..............................................

27

REMOVAL AND INSTALLATION  ...............

29

INSIDE MIRROR  ...............................................

29

Exploded View .........................................................

29

Removal and Installation  .........................................

29

DOOR MIRROR  ................................................

31

Exploded View .........................................................

31

DOOR MIRROR ASSEMBLY  ....................................

33

DOOR MIRROR ASSEMBLY : Removal and In-
stallation ..................................................................

33

DOOR MIRROR ASSEMBLY : Disassembly and
Assembly .................................................................

35

GLASS MIRROR ........................................................

37

GLASS MIRROR : Removal and Installation ...........

37

DOOR MIRROR COVER  ...........................................

38

MIR-2

DOOR MIRROR COVER : Removal and Installa-
tion ..........................................................................

38

DOOR MIRROR REMOTE CONTROL
SWITCH .............................................................

40

Removal and Installation  ........................................

40

WITHOUT ADP

PRECAUTION .............................................

41

PRECAUTIONS  .................................................

41

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

41

Precautions for Removing Battery Terminal  ...........

41

PREPARATION ...........................................

42

PREPARATION  .................................................

42

Special Service Tools ...........................................

42

Commercial Service Tools ....................................

42

WIRING DIAGRAM  .....................................

43

DOOR MIRROR SYSTEM  .................................

43

Wiring Diagram  .......................................................

43

AUTO ANTI-DAZZLING INSIDE MIRROR
SYSTEM ............................................................

46

Wiring Diagram  .......................................................

46

REMOVAL AND INSTALLATION ..............

48

INSIDE MIRROR ................................................

48

Exploded View  ........................................................

48

Removal and Installation .........................................

48

DOOR MIRROR .................................................

50

Exploded View  ........................................................

50

DOOR MIRROR ASSEMBLY ....................................

52

DOOR MIRROR ASSEMBLY : Removal and In-
stallation ..................................................................

52

DOOR MIRROR ASSEMBLY : Disassembly and
Assembly ................................................................

54

GLASS MIRROR  .......................................................

56

GLASS MIRROR : Removal and Installation  ..........

56

DOOR MIRROR COVER  ...........................................

57

DOOR MIRROR COVER : Removal and Installa-
tion ..........................................................................

57

DOOR MIRROR REMOTE CONTROL
SWITCH .............................................................

59

Removal and Installation .........................................

59

PRECAUTIONS

MIR-3

< PRECAUTION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009652697

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

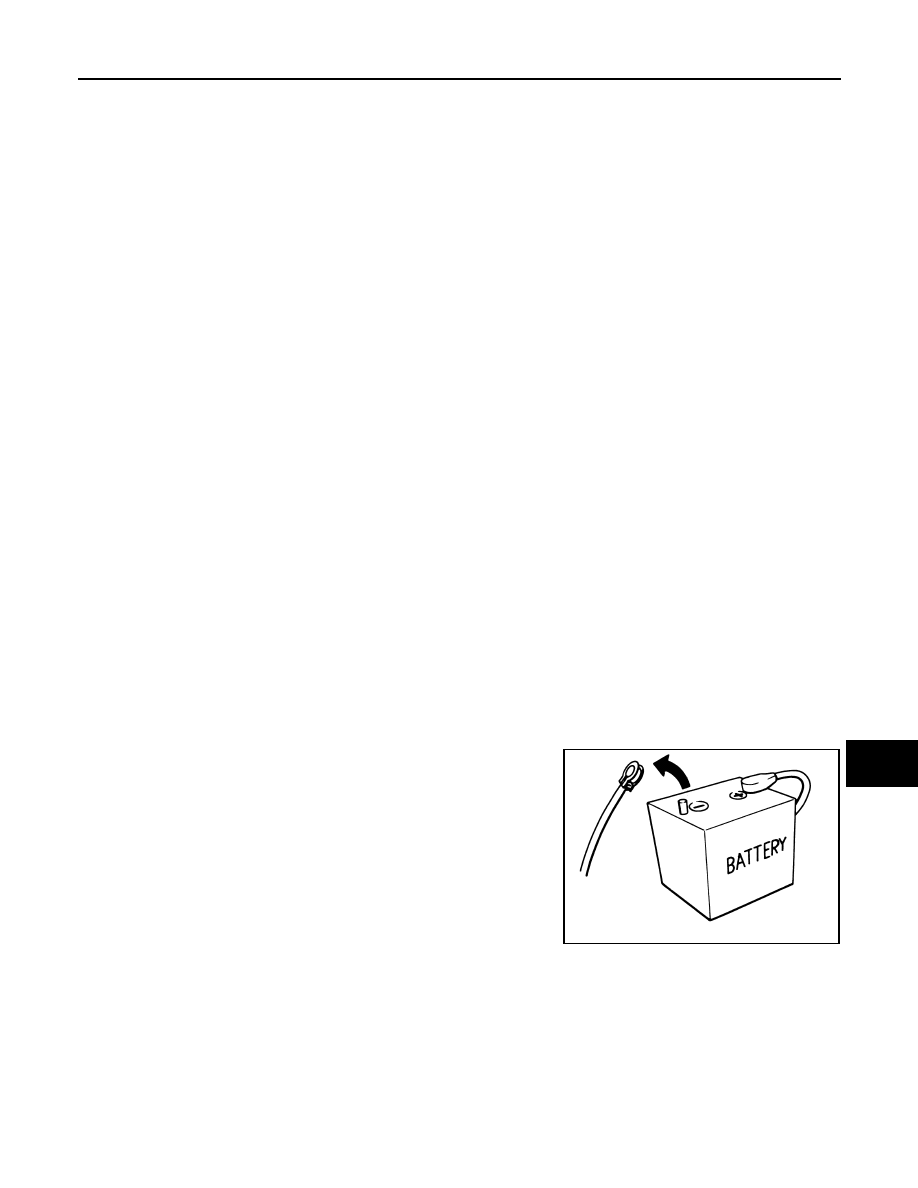

Precautions for Removing Battery Terminal

INFOID:0000000009890716

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

SEF289H
