BACK DOOR TRIM

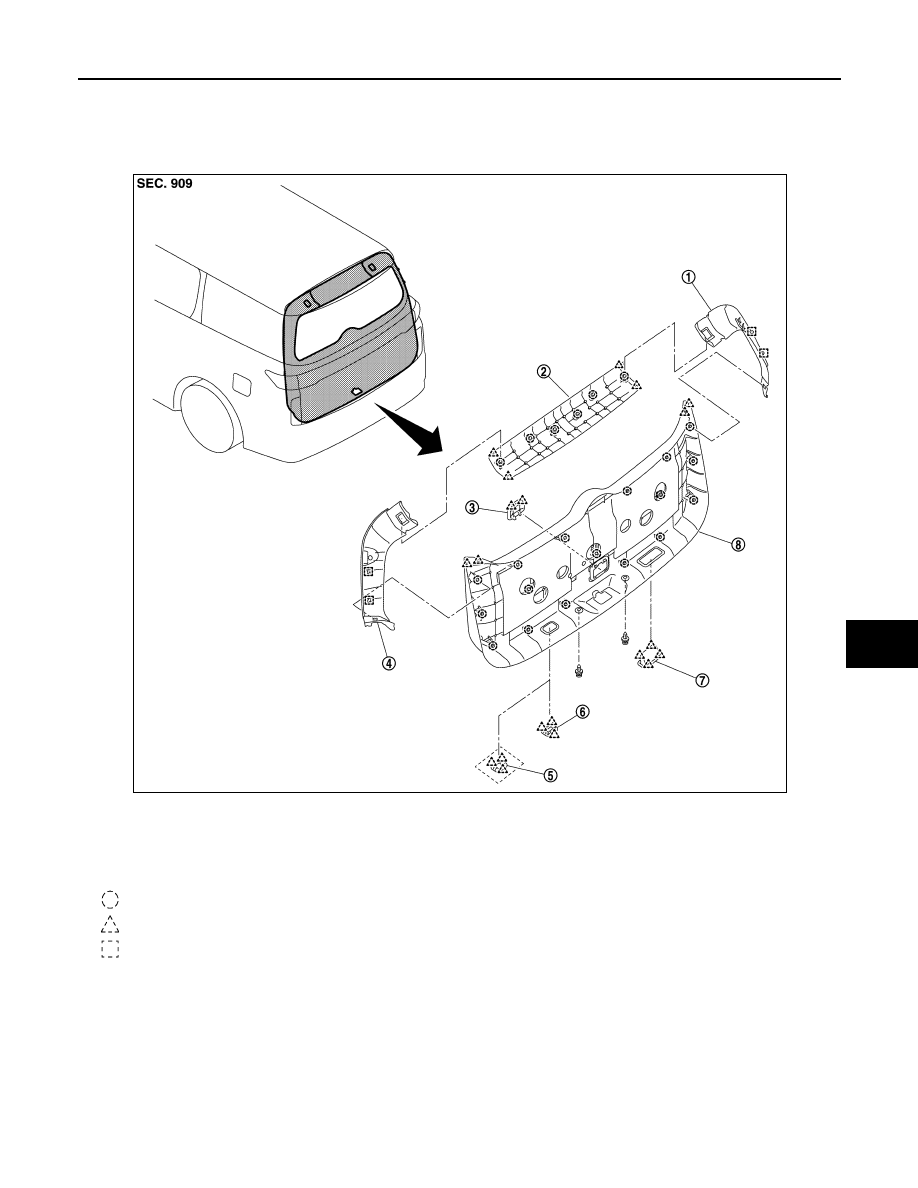

Exploded View

INFOID:0000000009650306

BACK DOOR PULL HANDLE

BACK DOOR PULL HANDLE : Removal and Installation

INFOID:0000000009650307

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the back door panel.

REMOVAL

1.

Fully open the back door.

1.

Back door side finisher RH

2.

Back door upper garnish

3.

Emergency lid

4.

Back door side finisher LH

5.

Back door lower finisher cap
(without automatic back door)

6.

Automatic back door close switch
finisher

7.

Back door pull handle

8.

Back door lower finisher

: Clip

: Pawl

: Metal clip

JMJIA6261ZZ

INT-48

< REMOVAL AND INSTALLATION >

BACK DOOR TRIM

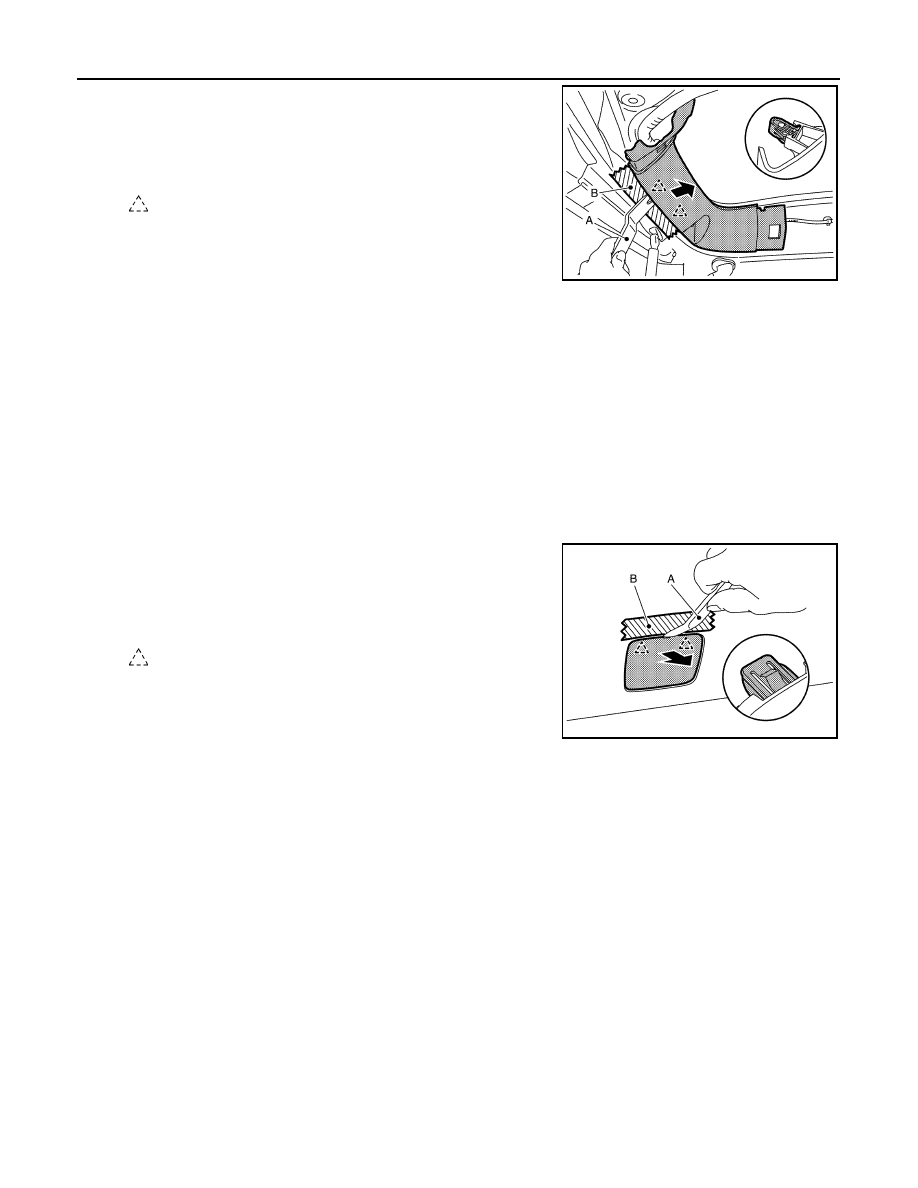

2.

Disengage back door pull handle fixing pawls using a remover
tool (A), and then remove back door pull handle.

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

INSTALLING

Install in the reverse order of removal.

BACK DOOR LOWER FINISHER

BACK DOOR LOWER FINISHER : Removal and Installation

INFOID:0000000009650308

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the back door panel.

REMOVAL

1.

Fully open the back door.

2.

Remove back door pull handle. Refer to

INT-47, "BACK DOOR PULL HANDLE : Removal and Installa-

tion"

.

3.

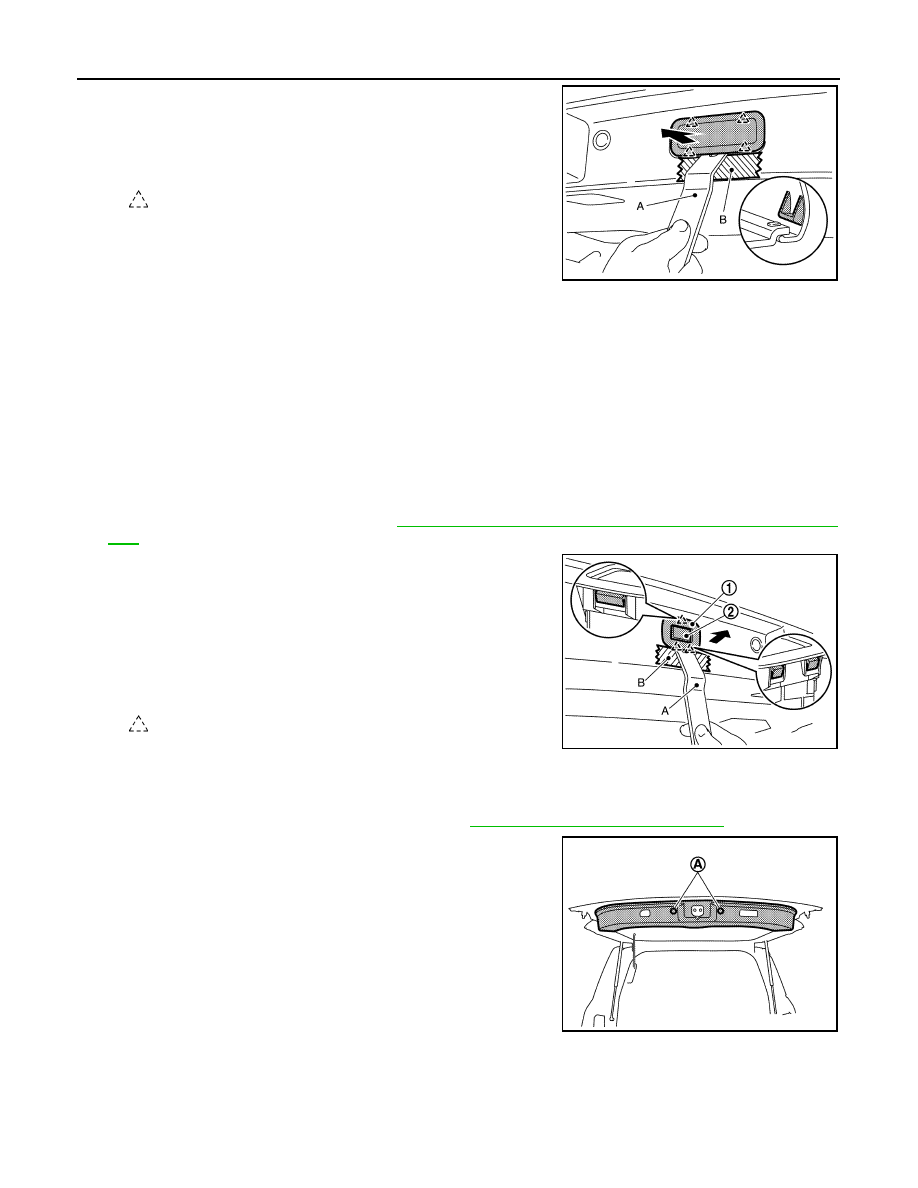

Remove automatic back door close switch finisher (1) and auto-
matic back door close switch (2) as a set. (with automatic back
door)

a.

Disengage automatic back door close switch finisher fixing
pawls using a remover tool (A).

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

b.

Disconnect harness connector, and then remove automatic back door close switch finisher and automatic
back door close switch as a set.
NOTE:
Remove automatic back door close switch: Refer to

DLK-498, "Removal and Installation"

.

4.

Remove back door lower finisher fixing clips (A).

: Pawl

JMJIA4932ZZ

: Pawl

JMJIA4933ZZ

JMJIA4934ZZ

BACK DOOR TRIM

INT-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

5.

Disengage back door lower finisher fixing clips and pawls, and
then remove back door lower finisher.

INSTALLING

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing, check in advance that clips are accurately aligned with the holes on back door panel
side, and then install by pressing in.

BACK DOOR UPPER FINISHER

BACK DOOR UPPER FINISHER : Removal and Installation

INFOID:0000000009650309

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the back door panel.

REMOVAL

1.

Fully open the back door.

2.

Disengage back door upper finisher fixing clips and pawls using
a remover tool (A), and then remove back door upper finisher.

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

INSTALLING

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing, check in advance that clips are accurately aligned with the holes on back door panel
side, and then install by pressing in.

BACK DOOR SIDE FINISHER

BACK DOOR SIDE FINISHER : Removal and Installation

INFOID:0000000009650310

CAUTION:

• When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
• Never damage the back door panel.

REMOVAL

1.

Fully open the back door.

2.

Remove back door lower finisher. Refer to

INT-48, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

3.

Remove back door upper finisher. Refer to

INT-49, "BACK DOOR UPPER FINISHER : Removal and

Installation"

.

4.

Remove back door support rod. (with automatic back door) Refer to

DLK-477, "BACK DOOR SUPPORT

ROD : Removal and Installation"

.

: Clip

: Pawl

JMJIA6264ZZ

: Clip

: Pawl

JMJIA6262ZZ

INT-50

< REMOVAL AND INSTALLATION >

BACK DOOR TRIM

5.

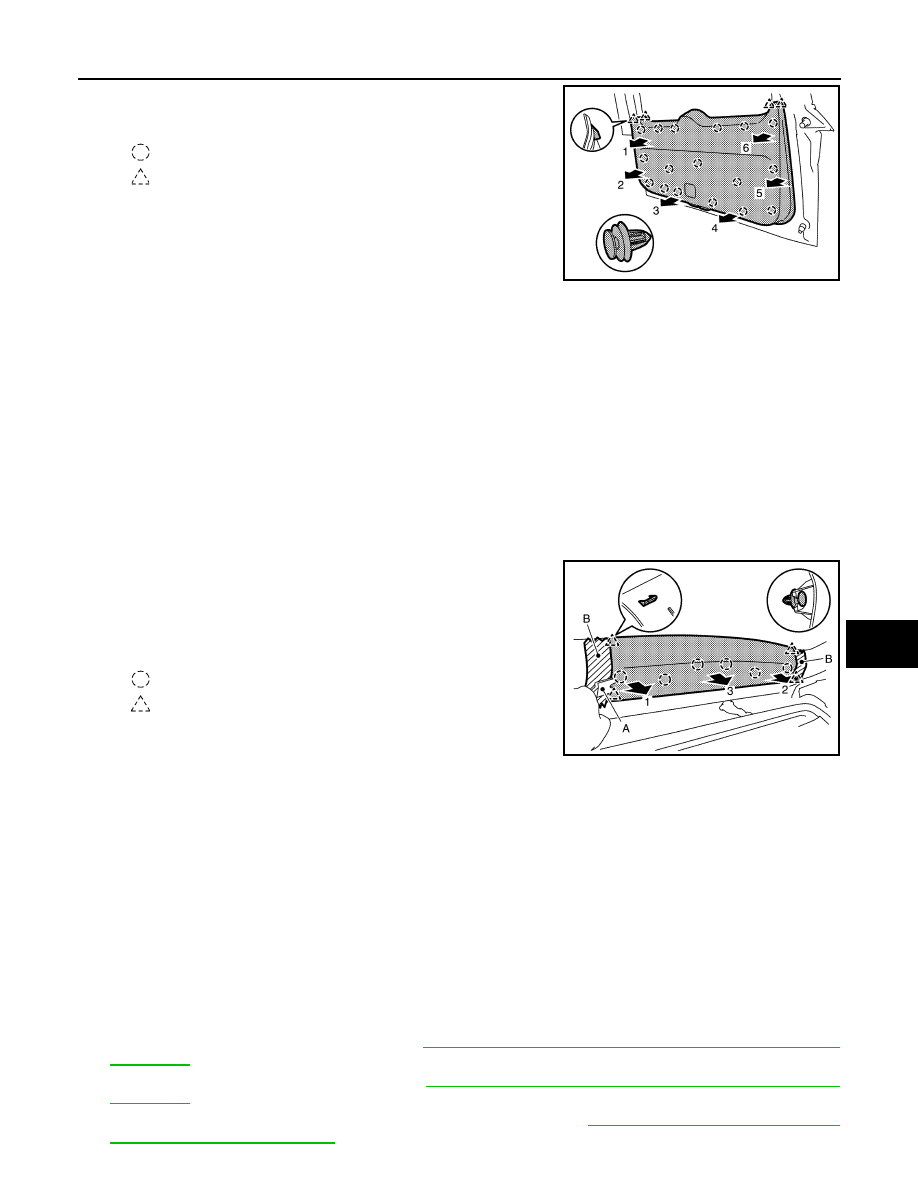

Disengage back door side finisher fixing metal clips using a
remover tool (A), and then remove back door side finisher.

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

INSTALLING

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing, check in advance that metal clips are accurately aligned with the holes on back door
panel side, and then install by pressing in.

EMERGENCY LID

EMERGENCY LID : Removal and Installation

INFOID:0000000009650311

CAUTION:

When removing, always use a remover tool that is made of plastic to prevent damage to the parts.

REMOVAL

1.

Fully open the back door.

2.

Insert a remover tool (A) into cutout portion of emergency lid,
disengage pawls, and then remove emergency lid.

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

INSTALLING

Install in the reverse order of removal.

: Metal clip

JMJIA6263ZZ

: Pawl

JMJIA4938ZZ
