Nissan Quest E52. Manual - part 785





INL-20

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

NOTE:

*: Refer to the following for details of the power supply position.

• OFF (OFF, LOCK): Ignition switch OFF

• ACC: Ignition switch ACC

• IGN: Ignition switch ON with engine stopped

• RUN: Ignition switch ON with engine running

• CRANK: At engine cranking

Power supply position shifts to “OFF (LOCK)” from “OFF (OFF)”, when ignition switch is in the OFF position, shift position is in the P
position, and any of the following conditions are met.

• Closing door

• Opening door

• Door is locked using door request switch

• Door is locked using Intelligent Key

The power supply position shifts to “ACC” when the push-button ignition switch (push switch) is pushed at “OFF (LOCK)”.

INT LAMP

CONSULT screen item

Indication/Unit

Description

Vehicle Speed

km/h

Vehicle speed of the moment a particular DTC is detected

Odo/Trip Meter

km

Total mileage (Odometer value) of the moment a particular DTC is detected

Vehicle Condition

SLEEP>LOCK

Power position status of
the moment a particular
DTC is detected*

While turning BCM status from low power consumption mode to
normal mode [Power supply position is OFF (LOCK)]

SLEEP>OFF

While turning BCM status from low power consumption mode to
normal mode [Power supply position is OFF (OFF)]

LOCK>ACC

While turning power supply position from OFF (LOCK) to ACC

ACC>ON

While turning power supply position from ACC to ON

RUN>ACC

While turning power supply position from RUN to ACC (Except
emergency stop operation)

CRANK>RUN

While turning power supply position from CRANK to RUN

RUN>URGENT

While turning power supply position from RUN to ACC (Emergen-
cy stop operation)

ACC>OFF

While turning power supply position from ACC to OFF (OFF)

OFF>LOCK

While turning power supply position from OFF (OFF) to OFF
(LOCK)

OFF>ACC

While turning power supply position from OFF (OFF) to ACC

ON>CRANK

While turning power supply position from ON to CRANK

OFF>SLEEP

While turning BCM status from normal mode [Power supply posi-
tion is OFF (OFF)] to low power consumption mode

LOCK>SLEEP

While turning BCM status from normal mode [Power supply posi-
tion is OFF (LOCK)] to low power consumption mode

LOCK

Power supply position is OFF (LOCK)

OFF

Power supply position is OFF (OFF)

ACC

Power supply position is ACC

ON

Power supply position is ON

ENGINE RUN

Power supply position is RUN

CRANKING

Power supply position is CRANK

IGN Counter

0 - 39

The number of times that ignition switch is turned ON after DTC is detected
• The number is 0 when a malfunction is detected now.
• The number increases like 1

 2

 3...38

 39 after returning to the normal condition

whenever ignition switch OFF

 ON.

• The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.

DIAGNOSIS SYSTEM (BCM)

INL-21

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

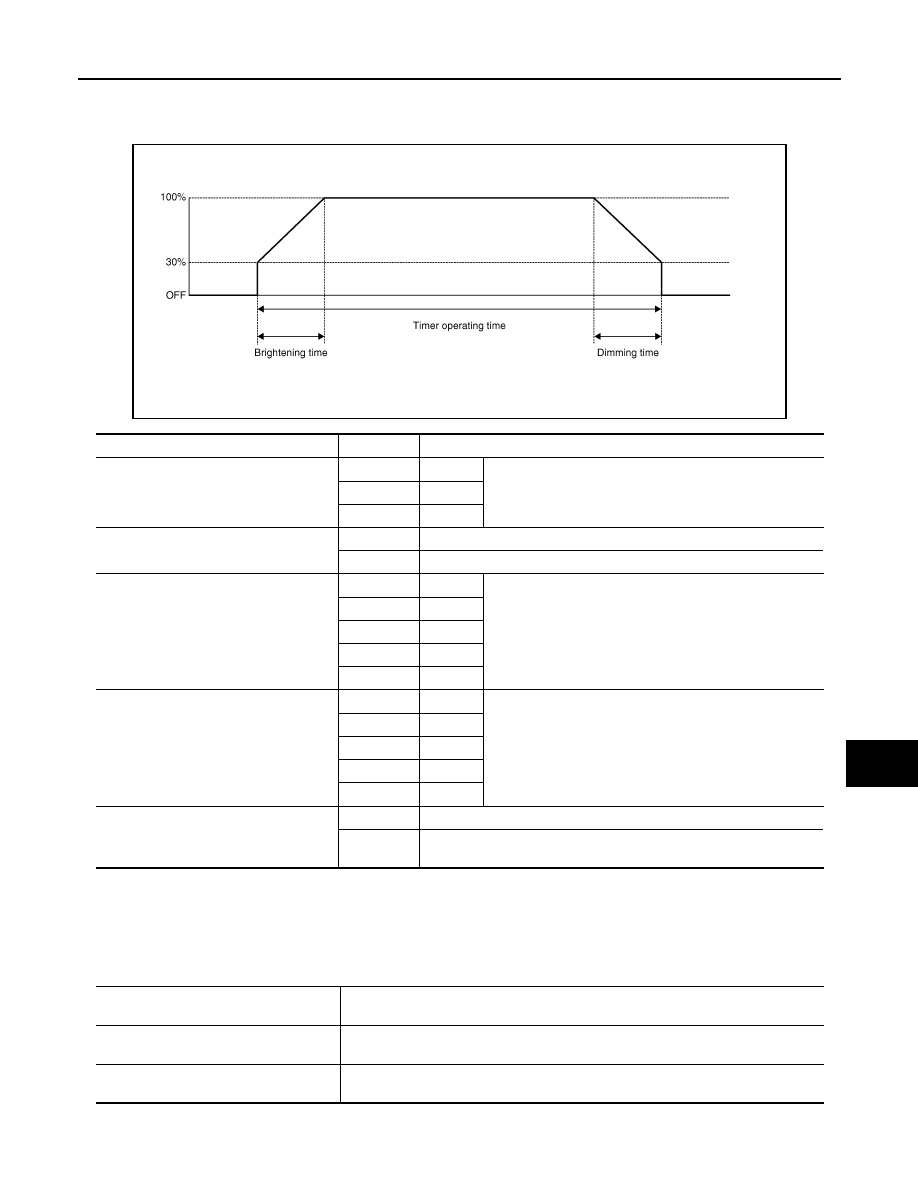

INT LAMP : CONSULT Function (BCM - INT LAMP)

INFOID:0000000009653475

WORK SUPPORT

*: Factory setting

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

JPLIA0093GB

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 2

7.5 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 3*

15 sec.

MODE 4

30 sec.

SET I/L D-UNLCK INTCON

On*

With the interior room lamp timer function

Off

Without the interior room lamp timer function

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door
only.

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

The switch status input from door request switch (driver side)

REQ SW-AS
[On/Off]

The switch status input from door request switch (passenger side)

INL-22

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

BATTERY SAVER

BATTERY SAVER : CONSULT Function (BCM - BATTERY SAVER)

INFOID:0000000009653476

WORK SUPPORT

REQ SW-RR
[On/Off]

NOTE:
The item is indicated, but not monitored.

REQ SW-RL
[On/Off]

PUSH SW
[On/Off]

The switch status input from push-button ignition switch

UNLK SEN -DR
[On/Off]

Driver door unlock status input from unlock sensor

DOOR SW-DR
[On/Off]

The switch status input from front door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from sliding door switch RH

DOOR SW- RL
[On/Off]

The switch status input from sliding door switch LH

DOOR SW- BK
[On/Off]

The switch status input from back door switch

CDL LOCK SW
[On/Off]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW
[On/Off]

Unlock switch status input from door lock and unlock switch

TRNK/HAT MNTR
[On/Off]

NOTE:
The item is indicated, but not monitored

KEY CYL LK-SW
[On/Off]

Lock switch status received from door key cylinder switch

KEY CYL UN-SW
[On/Off]

Unlock switch status received from door key cylinder switch

RKE-LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver

Monitor item

[Unit]

Description

Test item

Operation

Description

INT LAMP

On

Outputs the interior room lamp control signal to turn the interior room lamps ON.
 [Map lamp, personal lamp (when applicable lamps switch is in DOOR position.)]

Off

Stops the interior room lamp control signal to turn the interior room lamps.

STEP LAMP TEST

On

Outputs the step lamp control signal to turn the step lamps ON.

Off

Stops the step lamp control signal to turn the step lamps ON.

DIAGNOSIS SYSTEM (BCM)

INL-23

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

*:Factory setting

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 1

30 min.

Sets the interior room lamp battery saver timer operating
time.
NOTE:
The factor setting is 10 minutes. The setting cannot be re-
turned to the factory setting, when the setting is changed
once.

MODE 2

60 min.

MODE 3

15 min.

BATTERY SAVER SET

On

*

With the exterior lamp battery saver function

Off

Without the exterior lamp battery saver function

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

The switch status input from door request switch (driver side)

REQ SW-AS
[On/Off]

The switch status input from door request switch (passenger side)

REQ SW-RR
[On/Off]

NOTE:
The item is indicated, but not monitored.

REQ SW-RL
[On/Off]

PUSH SW
[On/Off]

The switch status input from push-button ignition switch

UNLK SEN -DR
[On/Off]

Driver door unlock status input from unlock sensor

DOOR SW-DR
[On/Off]

The switch status input from front door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from sliding door switch RH

DOOR SW- RL
[On/Off]

The switch status input from sliding door switch LH

DOOR SW- BK
[On/Off]

The switch status input from back door switch

CDL LOCK SW
[On/Off]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW
[On/Off]

Unlock switch status input from door lock and unlock switch

TRNK/HAT MNTR
[On/Off]

NOTE:
The item is indicated, but not monitored

KEY CYL LK-SW
[On/Off]

Lock switch status received from door key cylinder switch

KEY CYL UN-SW
[On/Off]

Unlock switch status received from door key cylinder switch

RKE-LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver
