HRN-6

< REMOVAL AND INSTALLATION >

HORN

REMOVAL AND INSTALLATION

HORN

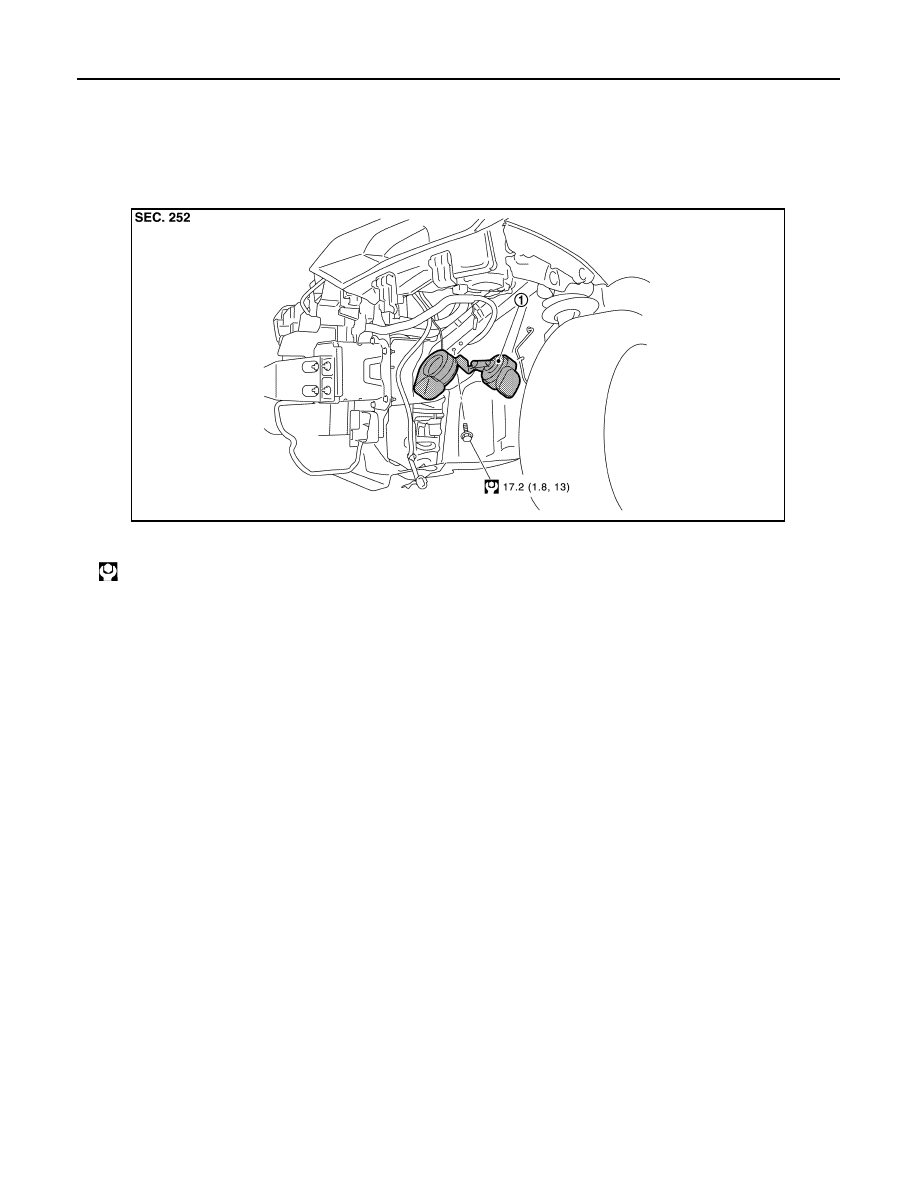

Exploded View

INFOID:0000000009650686

Removal and Installation

INFOID:0000000009650687

REMOVAL

1.

Disconnect the horn (high and low) connectors.

2.

Remove the horn assembly mounting bolt.

3.

Remove the horn assembly.

INSTALLATION

Install in the reverse order of removal.

1.

Horn assembly

: N·m (kg-m, ft-lb)

JMLIA2110GB

INL-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

INL

A

B

INL

N

O

P

CONTENTS

INTERIOR LIGHTING SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precautions for Removing Battery Terminal  .............

3

SYSTEM DESCRIPTION  ..............................

4

COMPONENT PARTS  ........................................

4

Component Parts Location ........................................

4

Bulb Specifications ....................................................

5

SYSTEM ..............................................................

6

INTERIOR ROOM LAMP CONTROL SYSTEM  ..........

6

INTERIOR ROOM LAMP CONTROL SYSTEM :
System Description  ...................................................

6

INTERIOR ROOM LAMP CONTROL SYSTEM :
Circuit Diagram  .........................................................

9

INTERIOR ROOM LAMP BATTERY SAVER SYS-
TEM ............................................................................

10

INTERIOR ROOM LAMP BATTERY SAVER
SYSTEM : System Description  ...............................

11

INTERIOR ROOM LAMP BATTERY SAVER
SYSTEM : Circuit Diagram ......................................

13

ILLUMINATION CONTROL SYSTEM  .......................

14

ILLUMINATION CONTROL SYSTEM : System
Description ..............................................................

15

ILLUMINATION CONTROL SYSTEM : Circuit Di-
agram ......................................................................

16

AUTO LIGHT ADJUSTMENT SYSTEM  ....................

16

AUTO LIGHT ADJUSTMENT SYSTEM : System
Description ..............................................................

17

AUTO LIGHT ADJUSTMENT SYSTEM : Circuit
Diagram ...................................................................

18

DIAGNOSIS SYSTEM (BCM)  ............................

19

COMMON ITEM  .........................................................

19

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  .....................................................

19

INT LAMP ...................................................................

20

INT LAMP : CONSULT Function (BCM - INT
LAMP) ......................................................................

21

BATTERY SAVER  .....................................................

22

BATTERY SAVER : CONSULT Function (BCM -
BATTERY SAVER) ..................................................

22

ECU DIAGNOSIS INFORMATION ..............

25

BCM ...................................................................

25

List of ECU Reference .............................................

25

WIRING DIAGRAM  ......................................

26

INTERIOR ROOM LAMP CONTROL SYSTEM

...

26

Wiring Diagram ........................................................

26

ILLUMINATION .................................................

38

Wiring Diagram ........................................................

38

BASIC INSPECTION  ...................................

53

DIAGNOSIS AND REPAIR WORK FLOW  .......

53

Work Flow ................................................................

53

DTC/CIRCUIT DIAGNOSIS  .........................

56

INTERIOR ROOM LAMP POWER SUPPLY
CIRCUIT ............................................................

56

Component Function Check  ....................................

56

Diagnosis Procedure  ...............................................

56

INTERIOR ROOM LAMP CONTROL CIRCUIT

...

58

Component Function Check  ....................................

58

Diagnosis Procedure  ...............................................

58

INL-2

LUGGAGE ROOM LAMP CIRCUIT  ..................

60

Description ..............................................................

60

Diagnosis Procedure  ..............................................

60

STEP LAMP CIRCUIT  .......................................

62

Component Function Check  ...................................

62

Diagnosis Procedure  ..............................................

62

PUSH-BUTTON IGNITION SWITCH ILLUMI-
NATION CIRCUIT  ..............................................

64

Component Function Check  ...................................

64

Diagnosis Procedure  ..............................................

64

SYMPTOM DIAGNOSIS  .............................

66

INTERIOR LIGHTING SYSTEM SYMPTOMS ...

66

Symptom Table  ......................................................

66

REMOVAL AND INSTALLATION ...............

67

MAP LAMP  ........................................................

67

Exploded View  ........................................................

67

Removal and Installation  ........................................

67

Replacement ..........................................................

67

VANITY MIRROR LAMP  ...................................

69

Exploded View  ........................................................

69

Replacement ..........................................................

69

GLOVE BOX LAMP  ...........................................

70

Exploded View  ........................................................

70

Replacement ..........................................................

70

FOOT LAMP  ......................................................

72

DRIVER SIDE  ............................................................

72

DRIVER SIDE : Exploded View  ..............................

72

DRIVER SIDE : Replacement .................................

72

PASSENGER SIDE  ...................................................

73

PASSENGER SIDE : Exploded View  .....................

73

PASSENGER SIDE : Replacement ........................

73

STEP LAMP .......................................................

75

Exploded View  ........................................................

75

Removal and Installation .........................................

75

Replacement ...........................................................

75

PERSONAL LAMP  ............................................

77

Exploded View  ........................................................

77

Removal and Installation .........................................

77

Replacement ...........................................................

78

LUGGAGE ROOM LAMP ..................................

79

Exploded View  ........................................................

79

Removal and Installation .........................................

79

Replacement ...........................................................

79

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

81

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

81

Bulb Specifications ..................................................

81

PRECAUTIONS

INL-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009653463

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

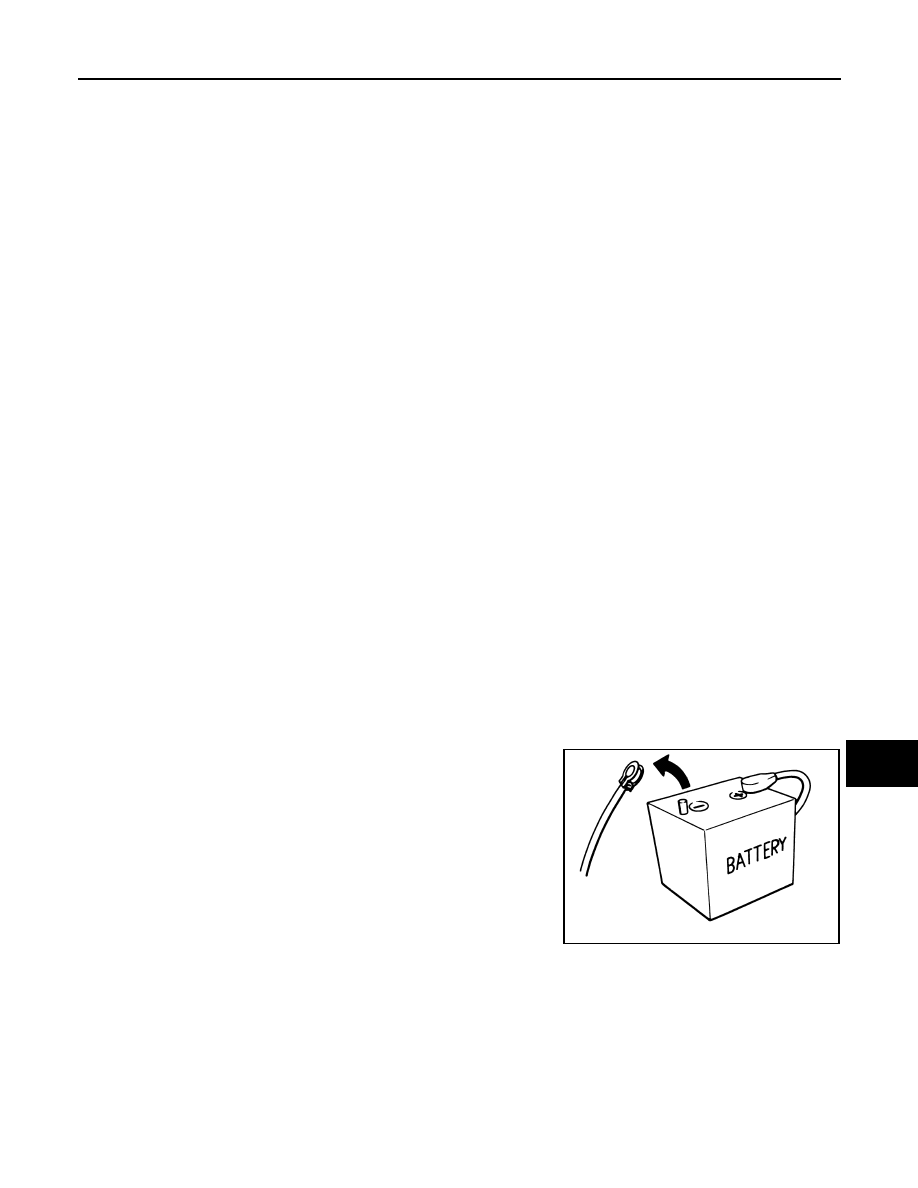

Precautions for Removing Battery Terminal

INFOID:0000000009980881

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

SEF289H
