Nissan Quest E52. Manual - part 708





LUBRICANT

HA-23

< BASIC INSPECTION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

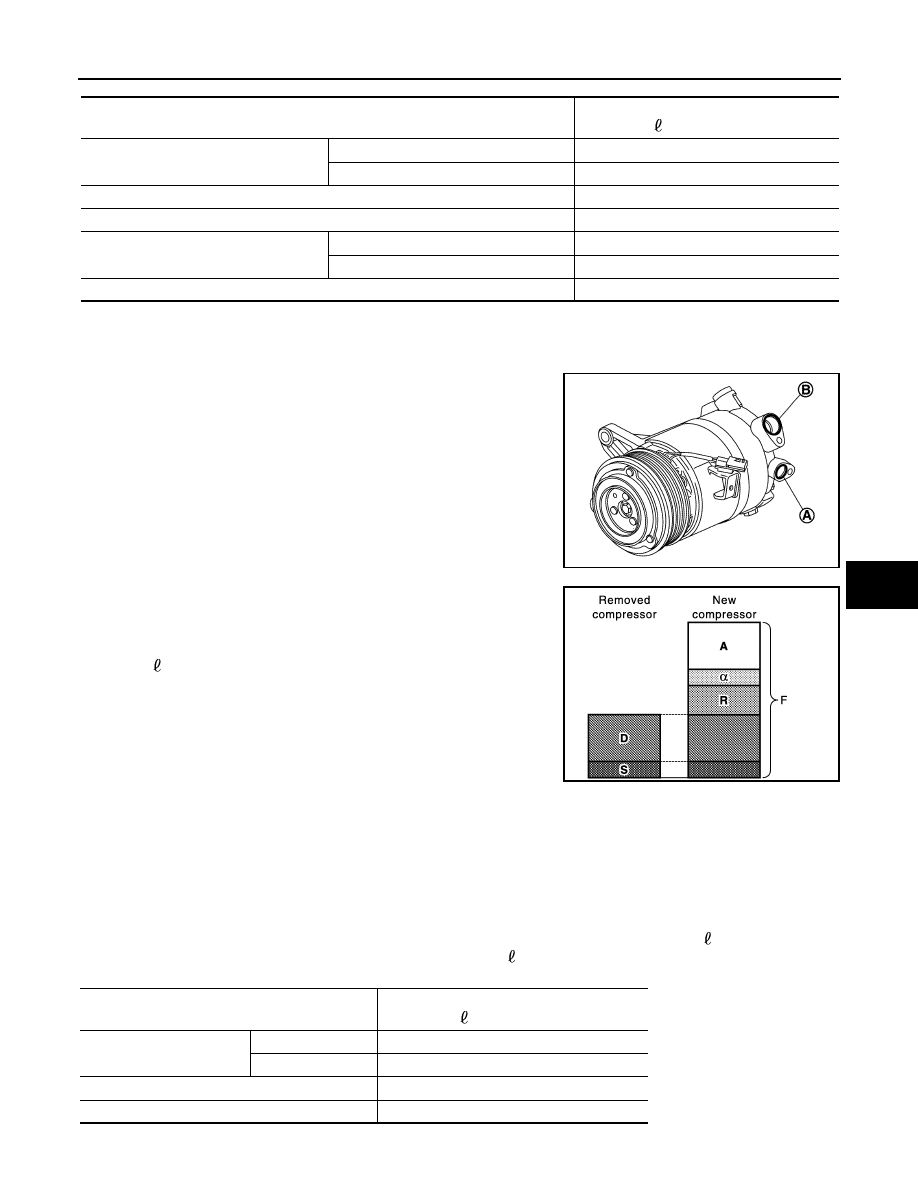

Lubricant Adjusting Procedure for Compressor Replacement

INFOID:0000000009651571

1.

Drain lubricant from removed compressor and measure lubricant amount.
1.

Drain lubricant from high-pressure port (A) and low-pres-
sure port (B) while rotating magnet clutch.

2.

Measure total amount of lubricant that is drained from
removed compressor.

2.

Drain lubricant from a new compressor that is calculated accord-
ing to the following conditions.

CAUTION:

If lubricant amount that is drained from removed compressor is less than 60 m  (2.0 US fl oz, 2.1
Imp fl oz), perform calculation by setting “D” as 40 m  (1.4 US fl oz, 1.4 Imp fl oz).

Conditions

Lubricant amount to be added to A/C system

m

 (US fl oz, Imp fl oz)

Replace evaporator

Front A/C unit

75 (2.5, 2.6)

Rear A/C unit

40 (1.4, 1.4)

Replace condenser

35 (1.2, 1.2)

Replace liquid tank

10 (0.3, 0.4)

Refrigerant leakage is detected

Large amount leakage

30 (1.0, 1.1)

Small amount leakage

Lubricant amount that is recycled together with refrigerant during recycle operation

α

JMIIA1144ZZ

Amount to be drained (A)
[m  (US fl oz, Imp fl oz)] = F

 (D + S + R +

α

)

F

: Lubricant amount that a new compressor con-
tains [250 (8.5, 8.8)]

D

: Lubricant amount that is drained from removed
compressor

S

: Lubricant amount that remains inside of removed
compressor
[30 (1.0, 1.1)]

R

: Lubricant amount to be added according to com-
ponents that are removed except compressor

α

: Lubricant amount that is recycled together with
refrigerant during recycle operation

Conditions

Lubricant amount to be added to A/C system

m

 (US fl oz, Imp fl oz)

Replace evaporator

Front

75 (2.5, 2.6)

Rear

40 (1.4, 1.4)

Replace condenser

35 (1.2, 1.2)

Replace liquid tank

10 (0.3, 0.4)

JPIIA1455GB

HA-24

< BASIC INSPECTION >

LUBRICANT

Example: Lubricant amount to be drained from a new compressor when replacing compressor and liquid
tank. [m  (US fl oz, Imp fl oz)] [D = 60 (2.0, 2.1),

α

 = 5 (0.2, 0.2)]

250 (8.5, 8.8)

 [60 (2.0, 2.1) + 30 (1.0, 1.1) + 10 (0.3, 0.4) + 5 (0.2, 0.2)] = 145 (5.0, 5.1)

3.

Install compressor and check the operation.

PERFORMANCE TEST

HA-25

< BASIC INSPECTION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

PERFORMANCE TEST

Inspection

INFOID:0000000009651572

INSPECTION PROCEDURE

1.

Connect recovery/recycling/recharging equipment (for HFC-134a) or manifold gauge.

2.

Start the engine, and set to the following condition.

Test condition

3.

Maintain test condition until A/C system becomes stable. (Approximately 10 minutes)

4.

Check that test results of “recirculating-to-discharge air temperature” and “ambient air temperature-to-
operating pressure” are within the specified value.

5.

When test results are within the specified value, inspection is complete.
If any of test result is out of the specified value, perform diagnosis by gauge pressure. Refer to

HA-27,

"Symptom Table"

.

RECIRCULATING-TO-DISCHARGE AIR TEMPERATURE TABLE

FRONT

REAR

Surrounding condition

Indoors or in the shade (in a well-ventilated place)

Vehicle condition

Door

Closed

Door glass

Full open

Hood

Open

Engine speed

Idle speed

A/C condition (front/rear)

Temperature control switch or dial

Full cold

A/C switch

ON

Air outlet

VENT (ventilation)

Intake door position

Recirculation

Fan (blower) speed

Maximum speed set

Inside air (Recirculating air) at blower assembly inlet

Discharge air temperature from center ventilator

°

C (

°

F)

Relative humidity

%

Air temperature

°

C (

°

F)

50 – 60

20 (68)

6.9 - 8.9 (44 - 48)

25 (77)

10.8 - 13.3 (51 - 56)

30 (86)

14.9 - 17.9 (58 - 64)

35 (95)

20.3 - 23.8 (69 - 75)

60 – 70

20 (68)

8.9 - 10.9 (48 - 52)

25 (77)

13.3 - 15.8 (55 - 60)

30 (86)

17.9 - 20.9 (64 - 70)

35 (95)

23.8 - 27.4 (75 - 81)

Inside air (Recirculating air) at blower assembly inlet

Discharge air temperature from rear ventilator grille A RH*

°

C (

°

F)

Relative humidity

%

Air temperature

°

C (

°

F)

50 – 60

20 (68)

9.4 - 11.4 (49 - 53)

25 (77)

13.5 - 15.9 (56 - 61)

30 (86)

17.5 - 20.5 (63 - 69)

35 (95)

21.2 - 24.7 (70 - 76)

HA-26

< BASIC INSPECTION >

PERFORMANCE TEST

*: Measuring point of temperature is 5 mm (1.99 in) from air outlet end of rear ventilator grille A RH (passenger
room side).

AMBIENT AIR TEMPERATURE-TO-OPERATING PRESSURE TABLE

60 – 70

20 (68)

11.4 - 13.4 (53 - 56)

25 (77)

15.9 - 18.5 (61 - 65)

30 (86)

20.5 - 23.6 (69 - 74)

35 (95)

24.7 - 28.2 (76 - 83)

Inside air (Recirculating air) at blower assembly inlet

Discharge air temperature from rear ventilator grille A RH*

°

C (

°

F)

Relative humidity

%

Air temperature

°

C (

°

F)

Fresh air

High-pressure (Discharge side)

kPa (kg/cm

2

, psi)

Low-pressure (Suction side)

kPa (kg/cm

2

, psi)

Relative humidity

%

Air temperature

°

C (

°

F)

50 – 70

25 (77)

930 - 1,130

(9.5 - 11.5, 134.9 - 163.9)

240 - 300

(2.4 - 3.1, 34.8 - 43.5)

30 (86)

1,113 - 1,361

(11.3 - 13.9, 161.3 - 197.3)

288 - 351

(2.9 - 3.6, 41.8 - 51.0)

35 (95)

1,363 - 1,669

(13.9 - 17.0, 197.6 - 242.0)

343 - 424

(3.5 - 4.3, 49.7 - 61.5)

40 (104)

1,830 - 2,230

(18.7 - 22.7, 265.4 - 323.4)

410 - 500

(4.2 - 5.1, 59.5 - 72.5)
