Nissan Quest E52. Manual - part 680





EVAP CANISTER

FL-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

1.

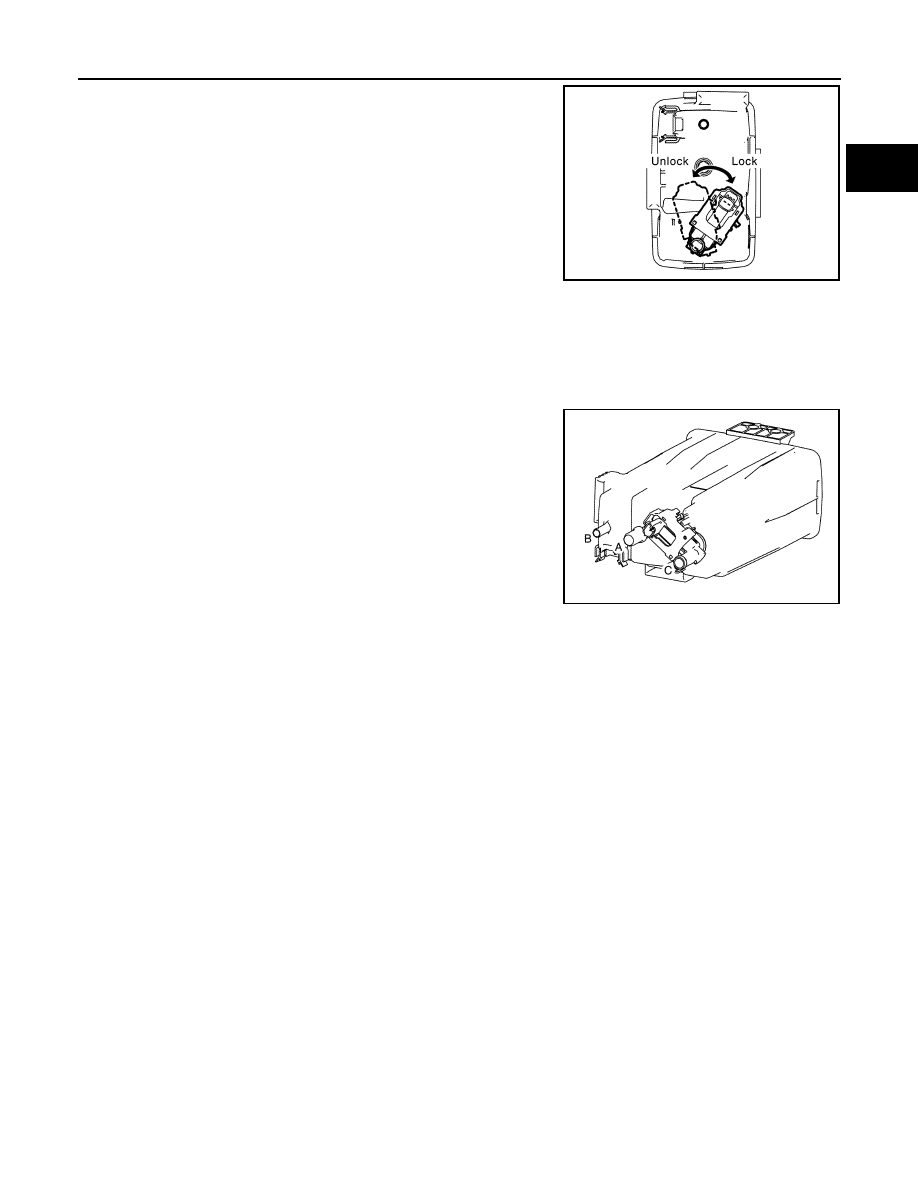

Disengage the pawl and turn EVAP canister vent control valve
counterclockwise.

2.

Remove the EVAP canister vent control valve.

3.

Remove EVAP control pressure sensor.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

Always replace O-ring with a new one.

Inspection

INFOID:0000000009653269

Check EVAP canister as per the following:

1.

Block port (B).

2.

Blow air into port (A) and check that it flows freely out of port (C).

3.

Release blocked port (B).

4.

Apply vacuum pressure to port (B) and check that vacuum pres-
sure exists at the ports (A) and (C).

5.

Block port (A) and (B).

6.

Apply pressure to port (C) and check that there is no leakage.

JSBIA1330GB

JSBIA1331ZZ

FL-18

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Fuel Tank

INFOID:0000000009653270

Standard and Limit

Fuel tank capacity

Approx. 75.6   (20 US gal, 16-5/8 Imp gal)

Fuel recommendation

Refer to

GI-28

FSU-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

FSU

A

B

FSU

N

O

P

CONTENTS

FRONT SUSPENSION

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Precaution for Procedure without Cowl Top Cover

......

2

Precautions for Suspension  ......................................

2

Precautions for Removing Battery Terminal  .............

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tools ................................................

4

Commercial Service Tools  ........................................

4

SYMPTOM DIAGNOSIS  ...............................

5

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

5

NVH Troubleshooting Chart  ......................................

5

PERIODIC MAINTENANCE ..........................

6

FRONT SUSPENSION ASSEMBLY  ...................

6

Inspection ..................................................................

6

WHEEL ALIGNMENT ..........................................

7

Inspection ..................................................................

7

Adjustment ................................................................

7

REMOVAL AND INSTALLATION ................

9

FRONT COIL SPRING AND STRUT  .................

9

Exploded View ..........................................................

9

Removal and Installation  ..........................................

9

Disassembly and Assembly .....................................

10

Inspection ................................................................

11

Disposal ...................................................................

12

TRANSVERSE LINK .........................................

13

Exploded View .........................................................

13

Removal and Installation  .........................................

13

Inspection ................................................................

13

FRONT STABILIZER  ........................................

15

Exploded View .........................................................

15

Removal and Installation  .........................................

15

Inspection ................................................................

16

FRONT SUSPENSION MEMBER .....................

17

Exploded View .........................................................

17

Removal and Installation  .........................................

17

Inspection ................................................................

17

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

19

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

19

Wheel Alignment  .....................................................

19

Ball Joint  ..................................................................

21

Wheelarch Height  ....................................................

21

FSU-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009978069

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000009650659

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Precautions for Suspension

INFOID:0000000009650660

• When installing rubber bushings, the final tightening must be carried out under unladen conditions with tires

on ground. Spilled oil might shorten the life of rubber bushings. Be sure to wipe off any spilled oil.

- Unladen conditions mean that fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and

mats are in designated positions.

• After servicing suspension parts, be sure to check wheel alignment.
• Self-lock nuts are not reusable. Always use new ones when installing. Since new self-lock nuts are pre-oiled,

tighten as they are.

PIIB3706J
