HAZARD SWITCH

HAZARD SWITCH

Exploded View

INFOID:0000000009653201

Removal and Installation

INFOID:0000000009653202

REMOVAL

1.

Remove instrument finisher A. Refer to

IP-14, "Removal and Installation"

.

2.

Disengage fixing pawls, and then remove hazard switch from instrument finisher A.

INSTALLATION

Install in the reverse order of removal.

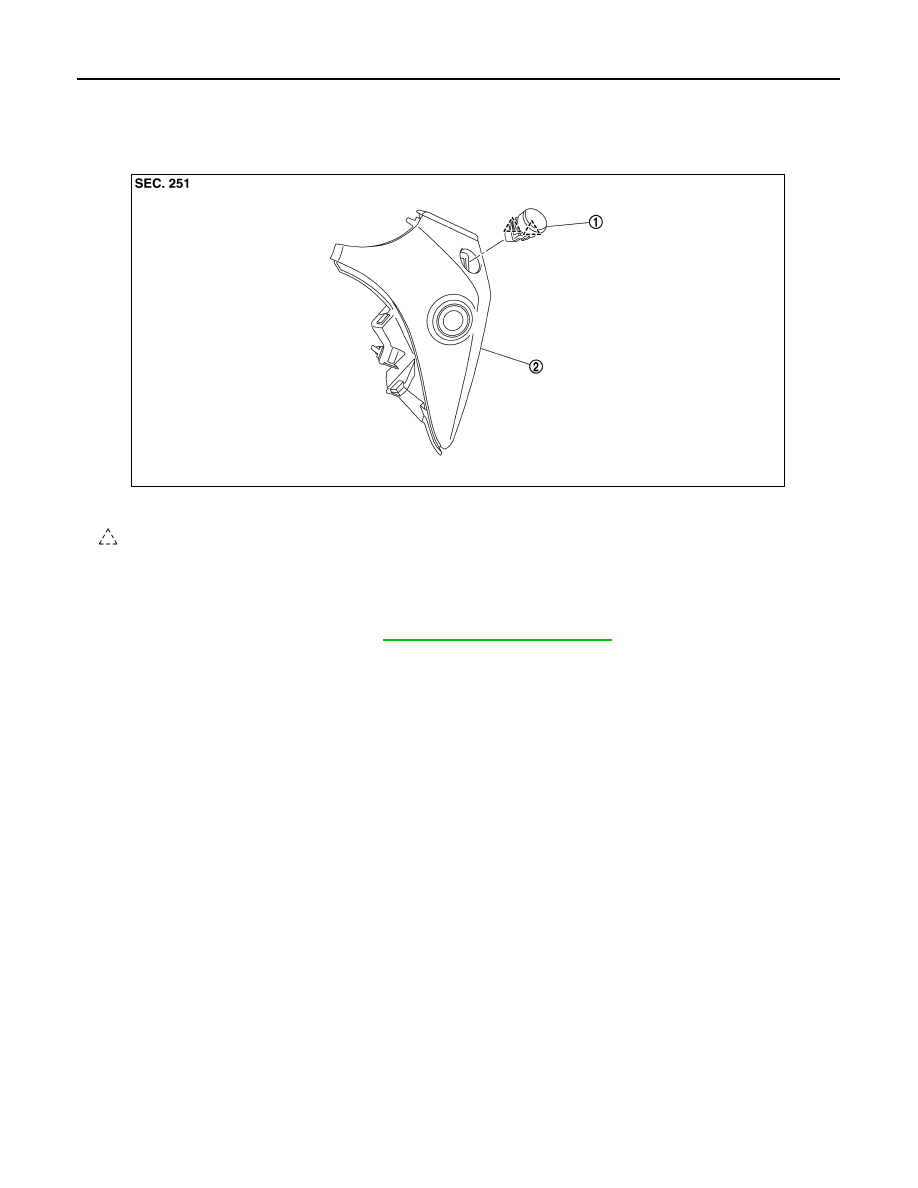

1.

Hazard switch

2.

Instrument finisher A

: Pawl

JMLIA2175ZZ

SIDE TURN SIGNAL LAMP

EXL-221

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SIDE TURN SIGNAL LAMP

Exploded View

INFOID:0000000009653203

Side turn signal lamp is integrated in the door mirror. Refer to

MIR-31, "Exploded View"

.

EXL-222

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

REAR COMBINATION LAMP

REAR COMBINATION LAMP

Exploded View

INFOID:0000000009653204

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000009653205

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

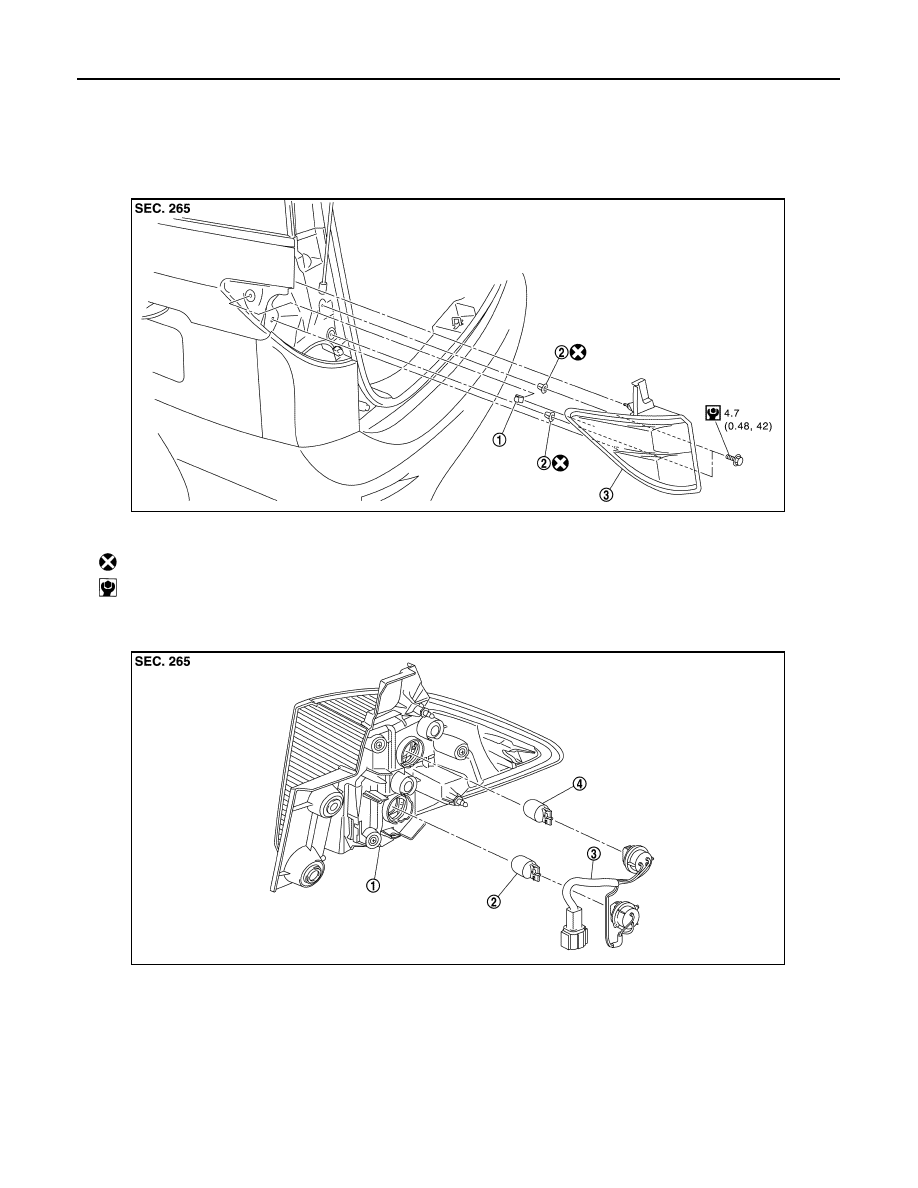

1.

Clip

2.

Grommet

3.

Rear combination lamp assembly

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

JMLIA2171GB

1.

Rear combination lamp housing assembly

2.

Rear turn signal lamp bulb

3.

Bulb socket assembly

4.

Tail lamp/stop lamp bulb

JMLIA2172ZZ

REAR COMBINATION LAMP

EXL-223

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

1.

Fully open back door.

2.

Remove rear combination lamp assembly mounting bolts.

3.

Pull the rear combination lamp assembly toward rear of the vehicle, and then remove rear combination
lamp assembly.

4.

Disconnect the rear combination lamp connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000009653206

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

REAR TURN SIGNAL LAMP BULB

1.

Remove rear combination lamp assembly. Refer to

EXL-222, "Removal and Installation"

.

2.

Rotate rear turn signal lamp bulb socket counterclockwise, and then remove rear turn signal lamp bulb
socket.

3.

Remove rear turn signal lamp bulb from rear turn signal lamp bulb socket.

TAIL LAMP/STOP LAMP BULB

1.

Remove rear combination lamp assembly. Refer to

EXL-222, "Removal and Installation"

.

2.

Rotate tail lamp/stop lamp bulb socket counterclockwise, and then remove tail lamp/stop lamp bulb
socket.

3.

Remove tail lamp/stop lamp bulb from tail lamp/stop lamp bulb socket.
