VARIABLE INDUCTION AIR SYSTEM

VARIABLE INDUCTION AIR SYSTEM

Component Function Check

INFOID:0000000009651304

1.

CHECK OVERALL FUNCTION-I

 With CONSULT

1.

Start engine and warm it up to the normal operating temperature.

2.

Perform “VIAS S/V-1” in “ACTIVE TEST” mode with CONSULT.

3.

Turn VIAS control solenoid valve 1 “ON” and “OFF”, and check that power valve actuator 1 rod moves.

 Without CONSULT

1.

Start engine and warm it up to the normal operating temperature.

2.

Rev engine quickly up to approximately 5,000 rpm.

3.

Check that power valve actuator 1 rod moves.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>>

EC-447, "Diagnosis Procedure"

.

2.

CHECK OVERALL FUNCTION-II

 With CONSULT

1.

Perform “VIAS S/V-2” in “ACTIVE TEST” mode with CONSULT.

2.

Turn VIAS control solenoid valve 2 “ON” and “OFF”, and check that power valve actuator 2 rod moves.

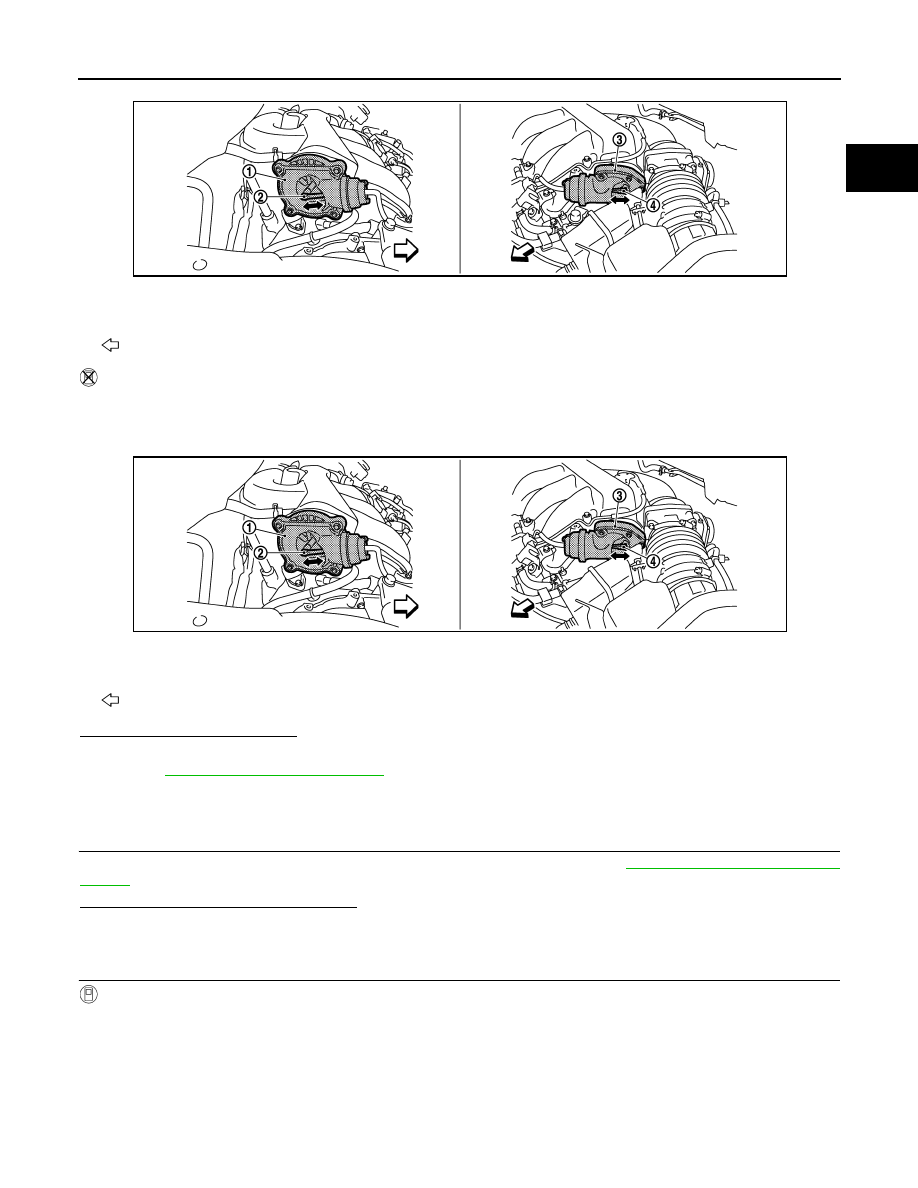

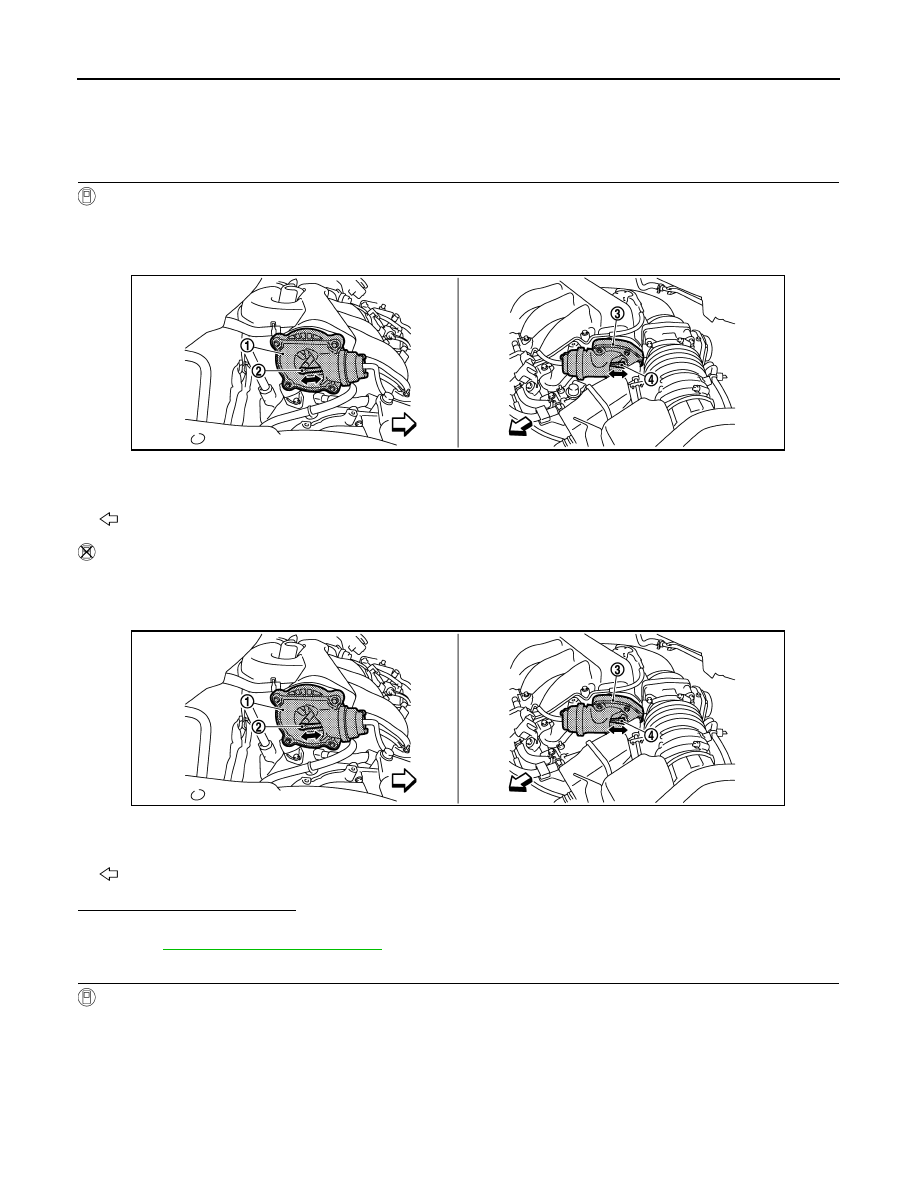

1.

Power valve actuator 1

2.

Power valve actuator 1 rod

3.

Power valve actuator 2

4.

Power valve actuator 2 rod

: Vehicle front

1.

Power valve actuator 1

2.

Power valve actuator 1 rod

3.

Power valve actuator 2

4.

Power valve actuator 2 rod

: Vehicle front

JMBIA1129ZZ

JMBIA1386ZZ

VARIABLE INDUCTION AIR SYSTEM

EC-447

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

 Without CONSULT

1.

When revving engine up to 5,000 rpm quickly.

2.

Rev engine quickly up to approximately 5,000 rpm.

3.

Check that power valve actuator 2 rod moves.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>>

EC-447, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009651305

1.

INSPECTION START

Confirm the malfunctioning system (power valve 1 or power valve 2). Refer to

EC-446, "Component Function

Check"

.

Which system is related to the incident?

Power valve 1>>GO TO 2.
Power valve 2>>GO TO 6.

2.

CHECK VACUUM EXISTENCE-I

 With CONSULT

1.

Stop engine and disconnect vacuum hose connected to power valve actuator 1.

2.

Start engine and let it idle.

3.

Perform “VIAS S/V-1” in “ACTIVE TEST” mode with CONSULT.

4.

Turn VIAS control solenoid valve 1 ON and OFF, and check vacuum existence under the following condi-
tions.

1.

Power valve actuator 1

2.

Power valve actuator 1 rod

3.

Power valve actuator 2

4.

Power valve actuator 2 rod

: Vehicle front

1.

Power valve actuator 1

2.

Power valve actuator 1 rod

3.

Power valve actuator 2

4.

Power valve actuator 2 rod

: Vehicle front

JMBIA1129ZZ

JMBIA1386ZZ

EC-448

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

VARIABLE INDUCTION AIR SYSTEM

 Without CONSULT

1.

Stop engine and disconnect vacuum hose connected to power valve actuator 1.

2.

Disconnect VIAS control solenoid valve 1 harness connector.

3.

Start engine.

4.

Rev engine quickly up to approximately 5,000 rpm.

5.

Check vacuum existence under the following conditions.

Is the inspection result normal?

YES

>> Repair or replace power valve actuator 1. Refer to

EC-15, "ENGINE CONTROL SYSTEM : Com-

ponent Parts Location"

.

NO

>> GO TO 3.

3.

CHECK VACUUM TANK

1.

Stop engine and disconnect vacuum hose connected to intake manifold collector.

2.

Start engine and let it idle.

3.

Check vacuum existence from intake manifold collector.

Does vacuum existence from the intake manifold collector?

YES

>> GO TO 4.

NO

>> Replace intake manifold collector. Refer to

EM-28, "Exploded View"

.

4.

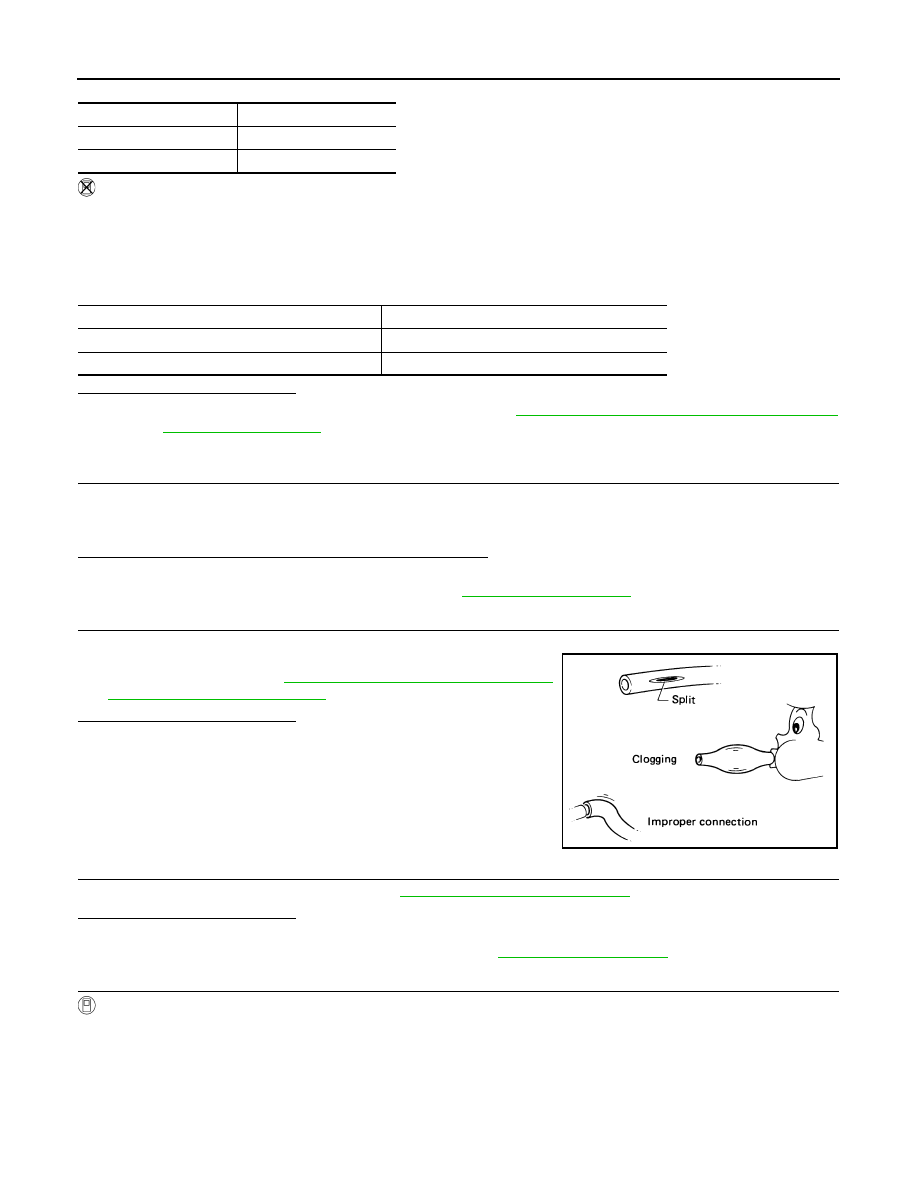

CHECK VACUUM HOSE

1.

Stop engine.

2.

Check vacuum hose for crack, clogging, improper connection or
disconnection. Refer to

EC-52, "VARIABLE INDUCTION AIR

SYSTEM : System Description"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair hoses or tubes.

5.

CHECK VIAS CONTROL SOLENOID VALVE 1

Check VIAS control solenoid valve 1. Refer to

EC-384, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace VIAS control solenoid valve 1. Refer to

EM-28, "Exploded View"

.

6.

CHECK VACUUM EXISTENCE-II

 With CONSULT

1.

Stop engine and disconnect vacuum hose connected to power valve actuator 2.

2.

Start engine and let it idle.

3.

Perform “VIAS S/V-2” in “ACTIVE TEST” mode with CONSULT.

4.

Turn VIAS control solenoid valve 2 ON and OFF, and check vacuum existence under the following condi-
tions.

VIAS S/V-1

Vacuum

ON

Existed

OFF

Not existed

Condition

Vacuum

Idle

Existed

Rev engine quickly up to approximately 5,000 rpm

Not existed

SEF109L

VARIABLE INDUCTION AIR SYSTEM

EC-449

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

 Without CONSULT

1.

Stop engine and disconnect vacuum hose connected to power valve actuator 2.

2.

Disconnect VIAS control solenoid valve 1 harness connector.

3.

Start engine.

4.

Rev engine quickly up to approximately 5,000 rpm.

5.

Check vacuum existence under the following conditions.

Is the inspection result normal?

YES

>> Repair or replace power valve actuator 2. Refer to

EC-15, "ENGINE CONTROL SYSTEM : Com-

ponent Parts Location"

.

NO

>> GO TO 7.

7.

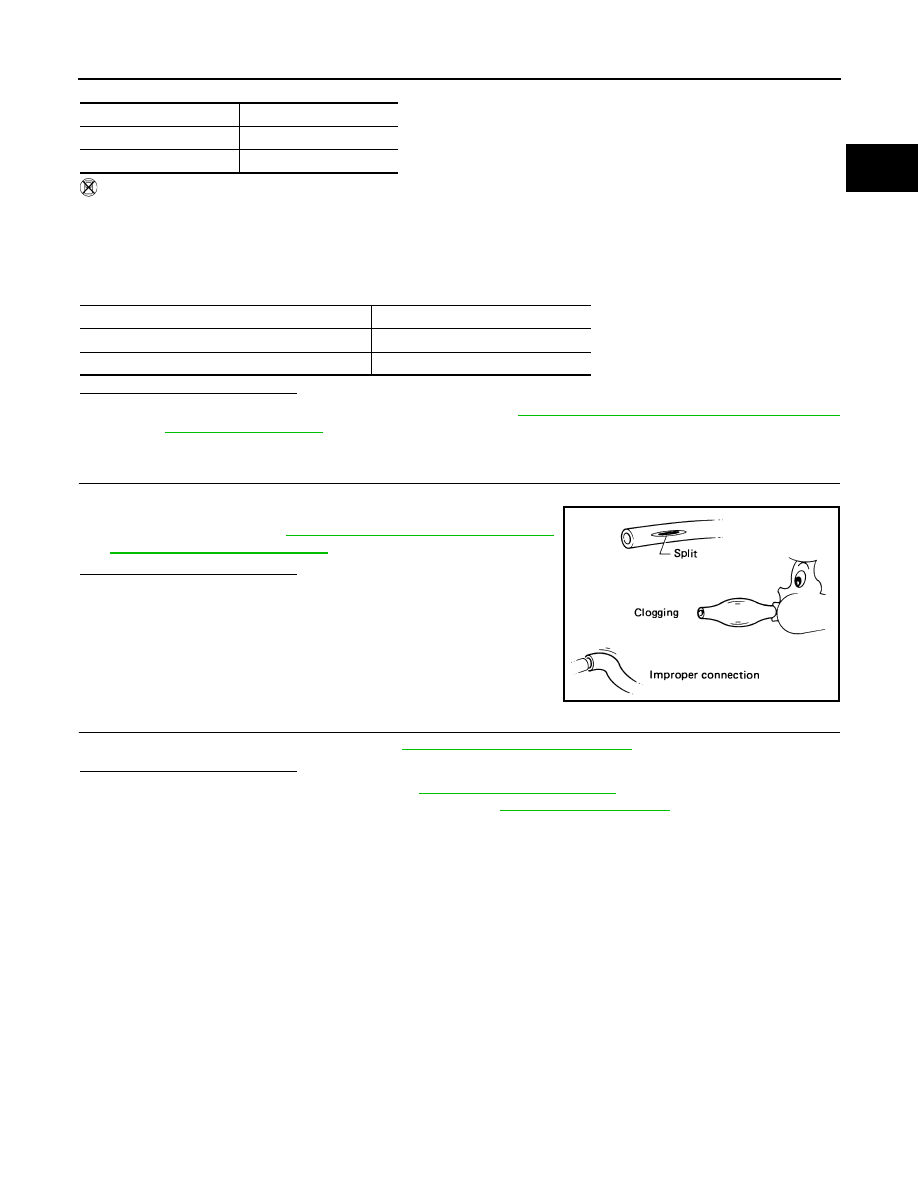

CHECK VACUUM HOSE

1.

Stop engine.

2.

Check vacuum hose for crack, clogging, improper connection or
disconnection. Refer to

EC-52, "VARIABLE INDUCTION AIR

SYSTEM : System Description"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair hoses or tubes.

8.

CHECK VIAS CONTROL SOLENOID VALVE 2

Check VIAS control solenoid valve 2. Refer to

EC-386, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> Replace VIAS control solenoid valve 2. Refer to

EM-28, "Exploded View"

.

VIAS S/V 2

Vacuum

ON

Existed

OFF

Not existed

Condition

Operation

Idle

Existed

Rev engine quickly up to approximately 5,000 rpm

Not existed

SEF109L
