P0196 EOT SENSOR

NO

>> Replace engine oil temperature sensor. Refer to

EM-66, "Exploded View"

.

P0197, P0198 EOT SENSOR

EC-259

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0197, P0198 EOT SENSOR

DTC Logic

INFOID:0000000009651102

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start engine and wait at least 5 seconds.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Proceed to

EC-259, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009651103

1.

CHECK EOT SENSOR POWER SUPPLY

1.

Disconnect engine oil temperature (EOT) sensor harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between EOT sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

2.

CHECK EOT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between EOT sensor harness connector and ECM harness connector.

4.

Also check harness for short to ground and short to power.

DTC No.

Trouble Diagnosis

Name

DTC detecting condition

Possible Cause

P0197

Engine oil tempera-
ture sensor circuit low
input

An excessively low voltage from the sensor is
sent to ECM.

• Harness or connectors

(The sensor circuit is open or shorted.)

• Engine oil temperature sensor

P0198

Engine oil tempera-
ture sensor circuit
high input

An excessively high voltage from the sensor is
sent to ECM.

EOT sensor

Ground

Voltage

Connector

Terminal

F66

1

Ground

Approx. 5 V

EOT sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

F66

2

F8

76

Existed

EC-260

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P0197, P0198 EOT SENSOR

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

3.

CHECK ENGINE OIL TEMPERATURE SENSOR

Check engine oil temperature sensor. Refer to

EC-260, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> Replace engine oil temperature sensor. Refer to

EM-66, "Exploded View"

.

Component Inspection

INFOID:0000000009651104

1.

CHECK ENGINE OIL TEMPERATURE SENSOR

1.

Turn ignition switch OFF.

2.

Disconnect engine oil temperature sensor harness connector.

3.

Remove engine oil temperature sensor. Refer to

EM-66, "Exploded View"

.

4.

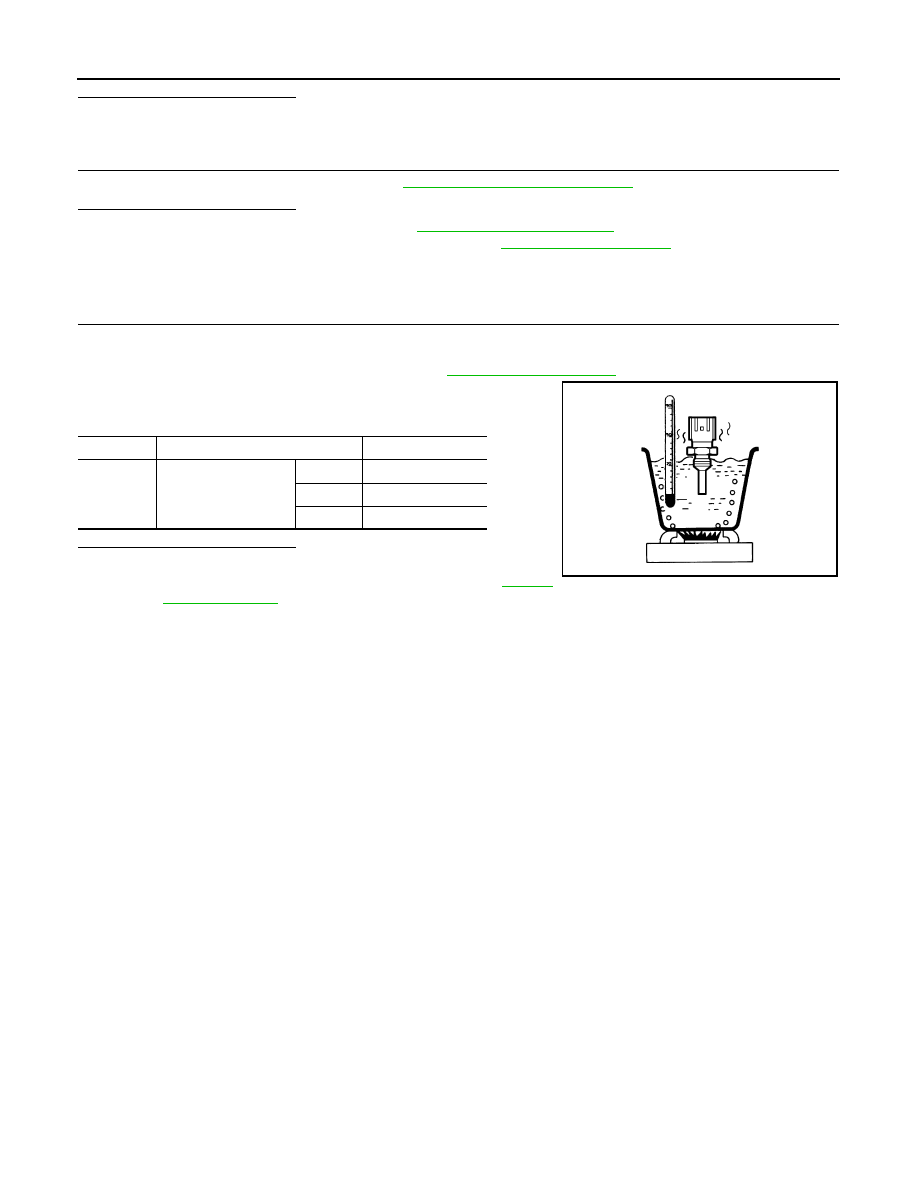

Check resistance between engine oil temperature sensor termi-
nals by heating with hot water as shown in the figure.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace engine oil temperature sensor. Refer to

EM-66,

"Exploded View"

.

Terminals

Condition

Resistance

1 and 2

Temperature [

°

C (

°

F)]

20 (68)

2.1 - 2.9 k

Ω

50 (122)

0.68 - 1.00 k

Ω

90 (194)

0.236 - 0.260 k

Ω

JMBIA0080ZZ

P0222, P0223 TP SENSOR

EC-261

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0222, P0223 TP SENSOR

DTC Logic

INFOID:0000000009651105

DTC DETECTION LOGIC

NOTE:
If DTC P0222 or P0223 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.
Refer to

EC-337, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start engine and let it idle for 1 second.

2.

Check DTC.

Is DTC detected?

YES

>> Proceed to

EC-261, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009651106

1.

CHECK THROTTLE POSITION SENSOR 1 POWER SUPPLY

1.

Disconnect electric throttle control actuator harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between electric throttle control actuator harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

2.

CHECK THROTTLE POSITION SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between electric throttle control actuator and ECM harness connector.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0222

Throttle position sensor
1 circuit low input

An excessively low voltage from the TP sensor
1 is sent to ECM.

• Harness or connectors

(TP sensor 1 circuit is open or shorted.)

• Electric throttle control actuator

(TP sensor 1)

P0223

Throttle position sensor
1 circuit high input

An excessively high voltage from the TP sensor
1 is sent to ECM.

Electric throttle control actuator

Ground

Voltage

Connector

Terminal

F29

1

Ground

Approx. 5 V
