DLK-430

< REMOVAL AND INSTALLATION >

FRONT FENDER

FRONT FENDER

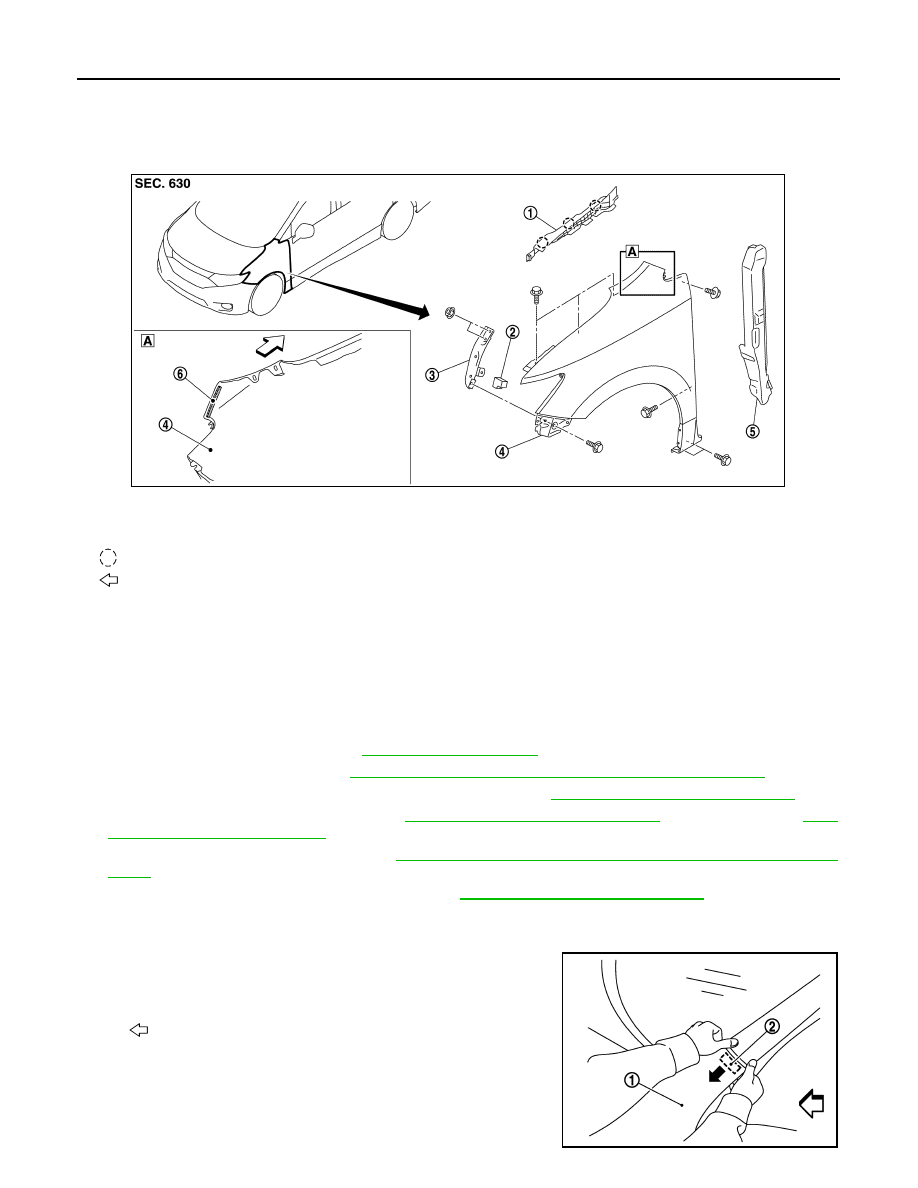

Exploded View

INFOID:0000000009649427

FRONT FENDER

FRONT FENDER : Removal and Installation

INFOID:0000000009649428

CAUTION:

Use a shop cloth to protect the body from being damaged during removal and installation.

REMOVAL

1.

Remove front fender cover. Refer to

EXT-21, "Exploded View"

.

2.

Remove hood side cover. Refer to

DLK-431, "HOOD SIDE COVER : Removal and Installation"

.

3.

Remove front bumper fascia and bumper side bracket. Refer to

EXT-12, "Removal and Installation"

.

4.

Remove front combination lamp. Refer to

EXL-104, "Removal and Installation"

 (XENON TYPE) or

EXL-

214, "Removal and Installation"

 (HALOGEN TYPE).

5.

Remove fender protect molding. Refer to

EXT-24, "FENDER PROTECT MOLDING : Removal and Instal-

lation"

.

6.

Remove fender protector (front and rear). Refer to

EXT-23, "Removal and Installation"

.

7.

Remove front fender spacer and front fender baffle.

8.

Remove mounting bolts of front fender assembly.

9.

Remove front fender stiffener (2) from the vehicle body while
carefully pulling upper portion of front fender (1) toward vehicle
outside.

1.

Hood side cover

2.

Front fender spacer

3.

Front fender stay

4.

Front fender assembly

5.

Front fender baffle

6.

Front fender stiffener

: Clip

: Vehicle front

JMKIA8254ZZ

: Vehicle front

JMKIA5633ZZ

FRONT FENDER

DLK-431

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

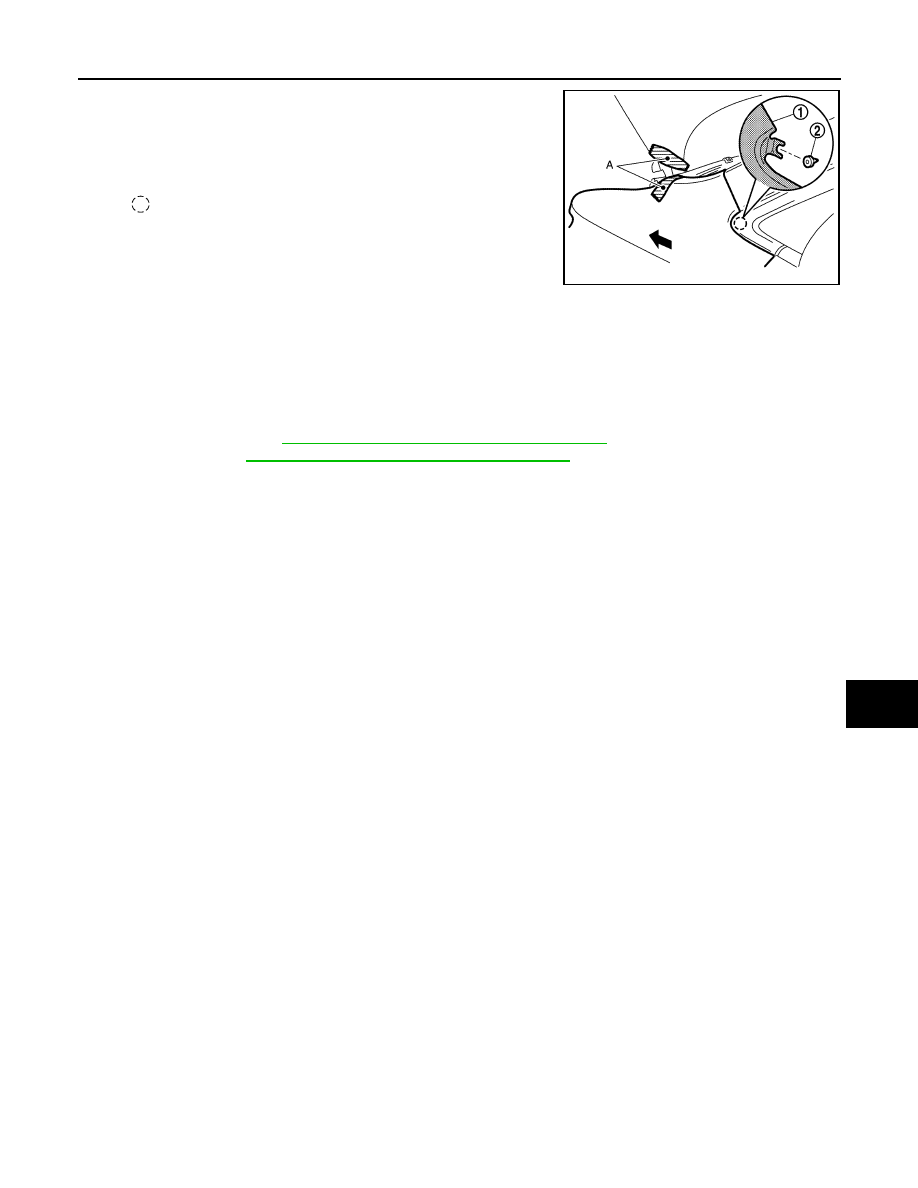

10. Move front fender (1) toward vehicle front, and then disengage

clip (2).

CAUTION:

Apply protective tape (A) on the hood and front fender to
protect the painted surface from damage.

11. Remove front fender assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• After installation, apply the touch-up paint (the body color) onto the head of front fender mounting

bolts.

• After installation, adjust the following part.
- Hood assembly: Refer to

DLK-425, "HOOD ASSEMBLY : Adjustment"

.

- Front door: Refer to

DLK-434, "DOOR ASSEMBLY : Adjustment"

.

HOOD SIDE COVER

HOOD SIDE COVER : Removal and Installation

INFOID:0000000009649429

REMOVAL

1.

Disconnect end of hood side cover from front combination lamp.

2.

Remove fixing clips, and then remove hood side cover.

INSTALLATION

Install in the reverse order of removal.

: Clip

JMKIA6332ZZ

DLK-432

< REMOVAL AND INSTALLATION >

FRONT DOOR

FRONT DOOR

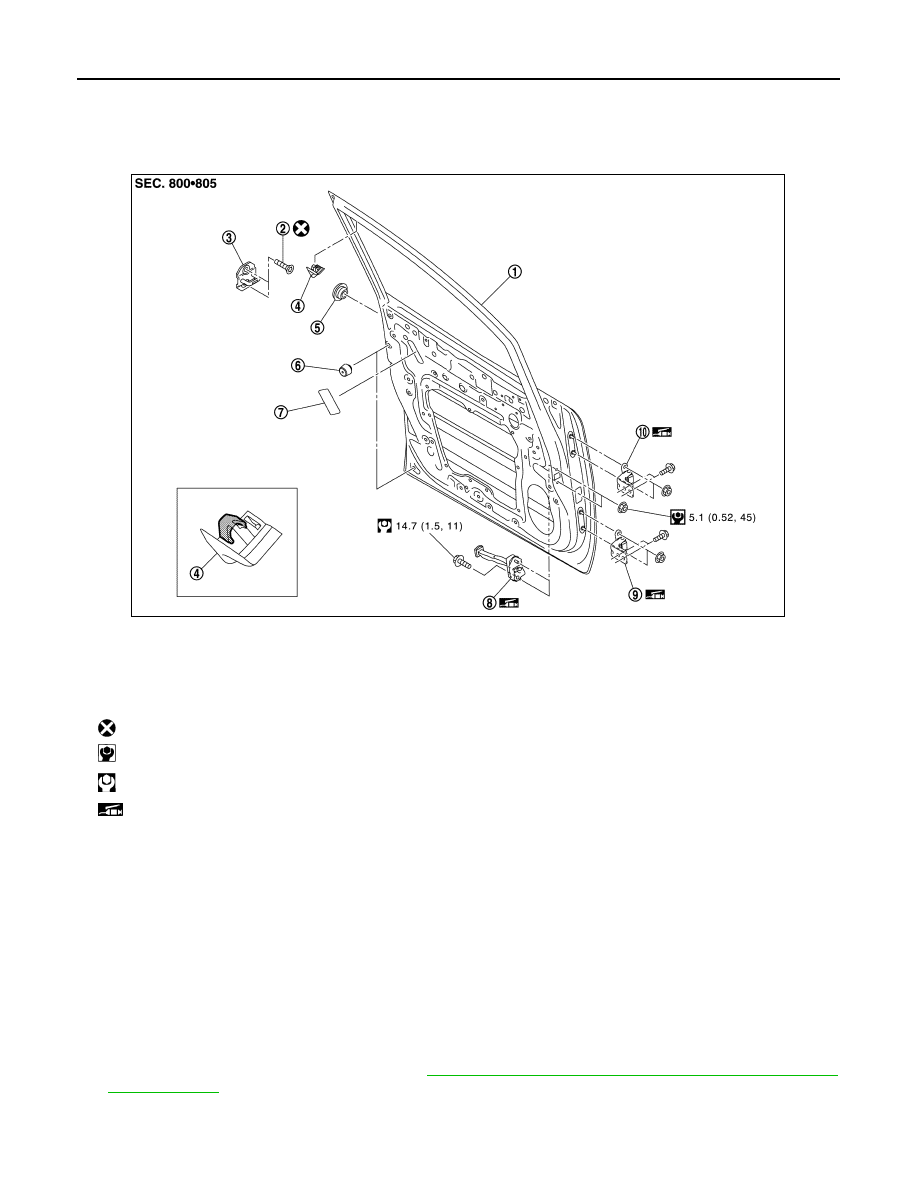

Exploded View

INFOID:0000000009649430

DOOR ASSEMBLY

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009649431

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or
more.

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing front door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove front door protect molding. Refer to

EXT-25, "FRONT DOOR PROTECT MOLDING : Removal

and Installation"

.

1.

Front door panel

2.

TORX bolt

3.

Door striker

4.

Front door sash inner cover

5.

Grommet

6.

Bumper rubber

7.

Hole cover

8.

Door check link

9.

Door hinge (lower)

10. Door hinge (upper)

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

JMKIA8255GB

FRONT DOOR

DLK-433

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

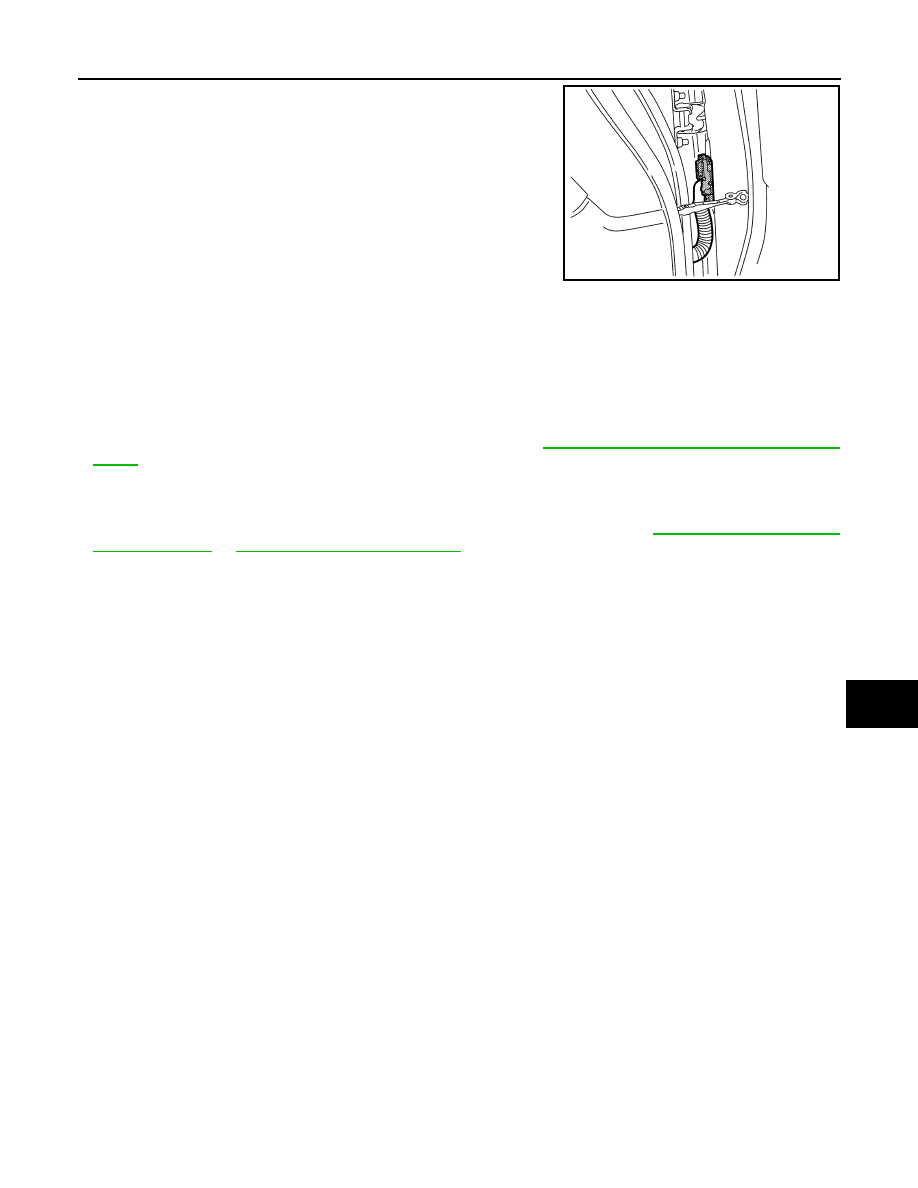

2.

Disconnect front door harness connector.

3.

Remove mounting bolt of door check link on the vehicle.

4.

Remove door hinge mounting nuts (door side), and then remove door assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• Check front door open/close, lock/unlock operation after installation.
• After installation, perform the fitting adjustment. Refer to

DLK-434, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-15, "On Board Diag-

nosis Function"

 or

SRC-19, "CONSULT Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMKIA8256ZZ
