SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

AUTO OPEN/CLOSE FUNCTION : System Description

INFOID:0000000009648992

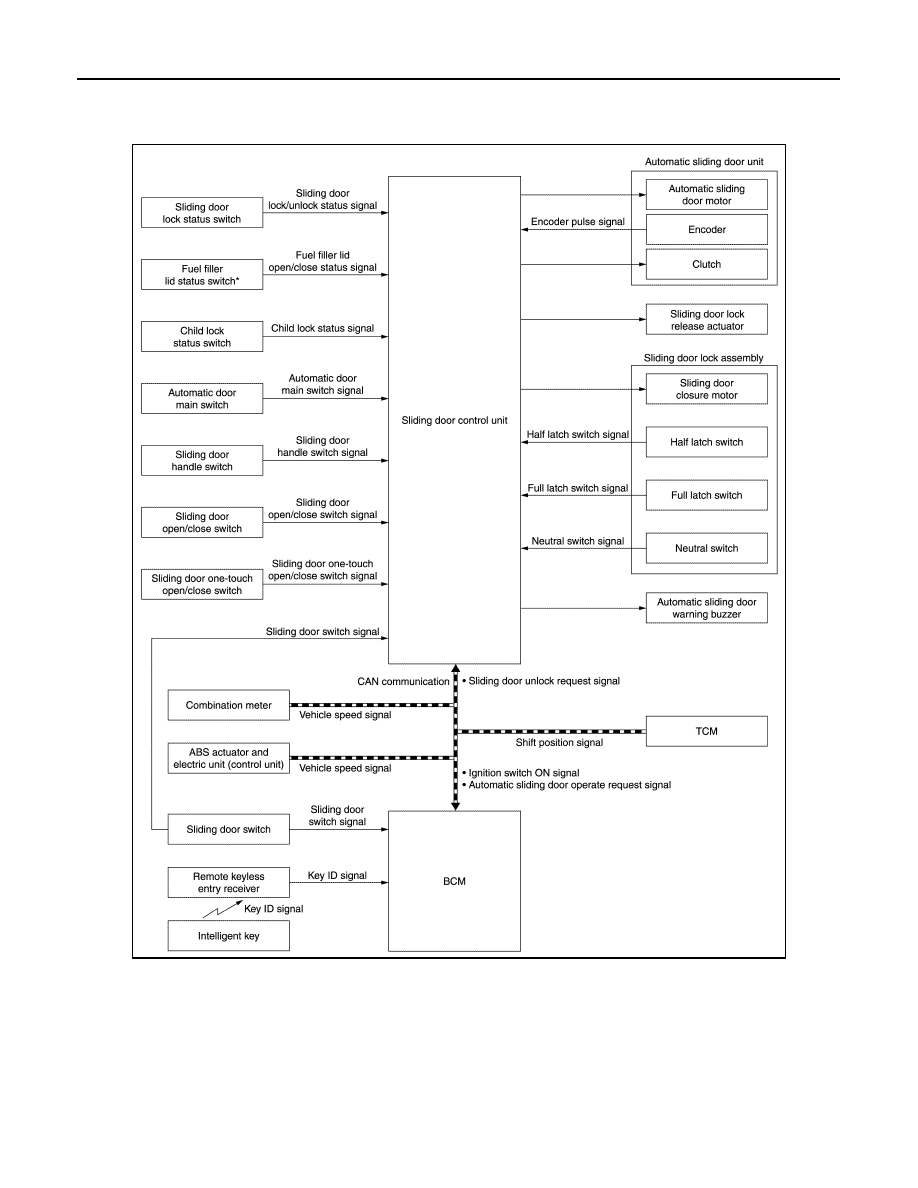

SYSTEM DIAGRAM

*

: For automatic sliding door LH

Auto open/close function operates auto open/close of sliding door according to operation of sliding door han-
dle, sliding door open/close switch, sliding door one-touch open/close switch, and Intelligent Key.

AUTO OPEN/CLOSE FUNCTION (OPEN OPERATION)

Sliding Door Handle Operation

• When sliding door handle is operated, sliding door handle switch, half latch switch, and full latch switch turn

ON. Sliding door control unit sounds automatic sliding door warning buzzer as a reminder.
NOTE:
The function may not be operated unless sliding door handle is pulled continuously.

JMKIA8090GB

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

DLK-71

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• Sliding door control unit operates sliding door lock release actuator, and then operates automatic sliding

door motor to move sliding door to the fully open position.

• When sliding door handle is operated again during auto open operation, sliding door control unit stops auto

open operation and operates sliding door in reverse direction to the fully closed position.

• When child lock is in the lock status, auto open function does not operate even when sliding door inside han-

dle is operated.

Sliding Door Open/close Switch and Sliding Door One-touch Open/close Switch Operation

• When sliding door open/close switch or sliding door one-touch open/close switch is operated, sliding door

control unit sounds automatic sliding door warning buzzer as a reminder.

• Sliding door control unit operates clutch and sliding door lock release actuator, and it releases sliding door

latch (only when sliding door is fully closed).

• Sliding door control unit detects half latch switch signal and full latch switch signal. When judging that sliding

door latch is released, sliding door control unit operates automatic sliding door motor and it moves sliding
door to the fully open position.

• When switch is operated again during auto open operation, sliding door control unit stops auto open opera-

tion and operates sliding door in reverse direction to the fully closed position.

Intelligent Key Button Operation

• When sliding door open button of Intelligent Key is operated, BCM transmits automatic sliding door operate

request signal to sliding door control unit via CAN communication.

• When automatic sliding door operate request signal is received from BCM, sliding door control unit sounds

automatic sliding door warning buzzer as a reminder.

• Sliding door control unit operates clutch and sliding door lock release actuator, and it releases sliding door

latch. (Only when sliding door is fully closed.)

• Sliding door control unit detects half latch switch signal and full latch switch signal. When judging that sliding

door latch is released, sliding door control unit operates automatic sliding door motor and it moves sliding
door to the fully open position.

• When Intelligent Key button is operated again during auto open operation, sliding door control unit stops

auto open operation and operates sliding door in reverse direction to the fully closed position.

OPERATION CONDITION

The auto open operation is performed, when the following conditions are satisfied.

Operation

Operation condition

Sliding door open/close switch (front side)

Vehicle speed: 0 km/h

Battery voltage: 11 V or more

Fuel filler lid: Closed status (Operation condition for sliding door LH)

Shift position: P position

*

Sliding door: Not fully opened

Sliding door: Unlocked while fully closed

Vehicle security system: Not set

Intelligent Key

Vehicle speed: 0 km/h

Battery voltage: 11 V or more

Fuel filler lid: Closed status (Operation condition for sliding door LH)

Shift position: P position

*

Sliding door: Not fully opened

Sliding door: Unlocked while fully closed

DLK-72

< SYSTEM DESCRIPTION >

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

*

: Only when ignition switch is in the ON position.

AUTO OPEN/CLOSE FUNCTION (CLOSE OPERATION)

• Sliding door control unit sounds automatic sliding door warning buzzer as a reminder, when operation of slid-

ing door handle, sliding door open/close switch, sliding door one-touch open/close switch, or Intelligent Key
button is detected while sliding door is in the fully open status.
NOTE:
The function may not be operated unless sliding door handle is pulled continuously.

• Sliding door control unit operates clutch and sliding door lock release actuator and it performs latch release

operation, so that sliding door control unit can judge whether sliding door latch is in released status.

• Sliding door control unit operates automatic sliding door motor and moves sliding door to half latch status,

when sliding door control unit judges sliding door handle switch ON status and latch release status accord-
ing to operation of sliding door release actuator.

• Sliding door control unit detects half latch status according to half latch switch. Sliding door control unit oper-

ates sliding door auto closure function and closes sliding door to the fully closed position.

• When sliding door handle, each switch, or Intelligent Key button is operated again during auto close opera-

tion, sliding door control unit stops auto close operation and operates sliding door in reverse direction to the
fully open position.

OPERATION CONDITION

The auto close operation is performed, when the following conditions are satisfied.
• Automatic door main switch: ON

*1

• Battery voltage: 11 V or more
• Fuel filler lid: Closed status

*2

• Sliding door: Fully open

Sliding door open/close switch (rear side)

Automatic door main switch: ON

Vehicle speed: 0 km/h

Battery voltage: 11 V or more

Fuel filler lid: Closed status (Operation condition for sliding door LH)

Shift position: P position

*

Sliding door: Not fully opened

Sliding door: Unlocked while fully closed

Child lock: Unlocked status while sliding door is fully closed

Vehicle security system: Not set

Sliding door handle

Automatic door main switch: ON

Vehicle speed: 0 km/h

Battery voltage: 11 V or more

Fuel filler lid: Closed status (Operation condition for sliding door LH)

Shift position: P position

*

Sliding door: Not fully opened

Sliding door: Unlocked while fully closed

Child lock: Unlocked (Sliding door inside handle only)

Vehicle security system: Not set

Sliding door one-touch open/close switch

Automatic door main switch: ON

Vehicle speed: 0 km/h

Battery voltage: 11 V or more

Fuel filler lid: Closed status (Operation condition for sliding door LH)

Shift position: P position

*

Sliding door: Not fully opened

Sliding door: Unlocked while fully closed

Operation

Operation condition

SYSTEM (AUTOMATIC SLIDING DOOR SYSTEM)

DLK-73

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

*1

: Except operation of sliding door open/close switch (front side) and Intelligent Key button.

*2

: When sliding door LH is operated.

CONTROL WHEN OPERATION CONDITION IS NOT SATISFIED

Sliding door is controlled as described in the following table, when operation condition becomes invalid during
automatic operation.

AUTO OPEN/CLOSE FUNCTION : Fail-safe

INFOID:0000000009648993

FAIL-SAFE CONTROL BT DTC

Sliding door control unit performs fail-safe control when any DTC is detected.

Condition

Operation

Automatic door main switch: Turned to the OFF position

One-way operation is continued

Shift position: P position

→

 Other than P position

One-way operation is continued

Vehicle speed: 0 km/h more during auto open operation

• Automatic sliding door warning buzzer sounds continuously

and hold function is activated

• When the vehicle stops, automatic sliding door warning buzz-

er operation stops, intermittent clutch function operates, and
sliding door enters into manual mode

Low battery voltage: 11 – 9 V

One-way operation is continued

Low battery voltage: 9 – 5 V for 2.1 seconds or more (Traction
force lower limit – clutch force assurance)

Automatic sliding door motor stops, and then intermittent clutch
function operate

Low battery voltage: 5 – 4 V
(Control unit reset voltage – clutch hold voltage)

• Automatic sliding door motor stops (Clutch ON)

→

 sliding

door stops continuously and stays restricted (Clutch ON in
circuit)

• Control is impossible because control unit is reset

Low battery voltage: 4 – 0 V

• Sliding door stops continuously and stays restricted

(Clutch ON in circuit)

• Sliding door position cannot be held when the vehicle is on a

slope, because clutch force is not sufficient

Fuel filler lid: Open

Intermittent clutch function operates. Sliding door enters into
manual mode (Sliding door returns to electric mode when fuel
filler lid is closed)
