BRM-34

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

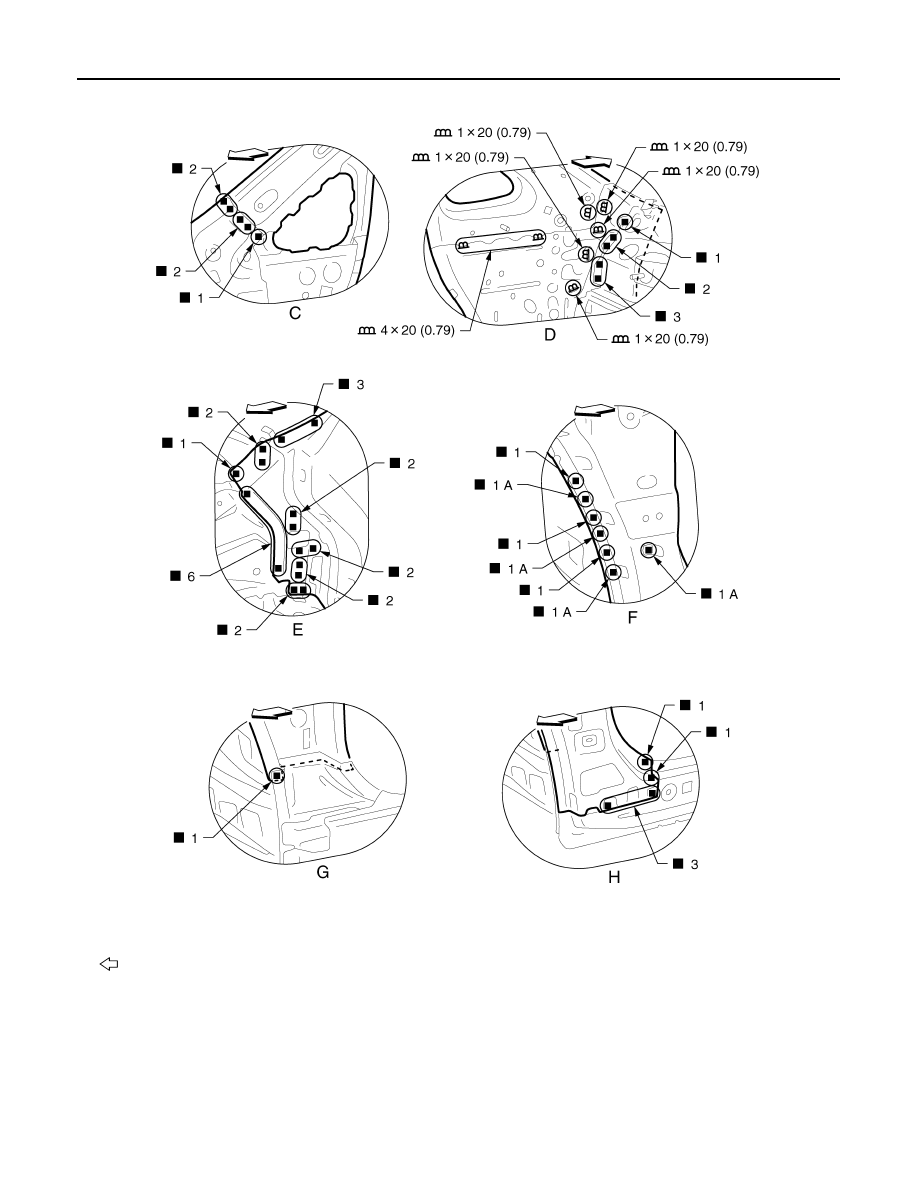

View C and H: Before installing outer front side body and front fender bracket assembly

Unit: mm (in)

: Vehicle front

JSKIA2460GB

REPLACEMENT OPERATIONS

BRM-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

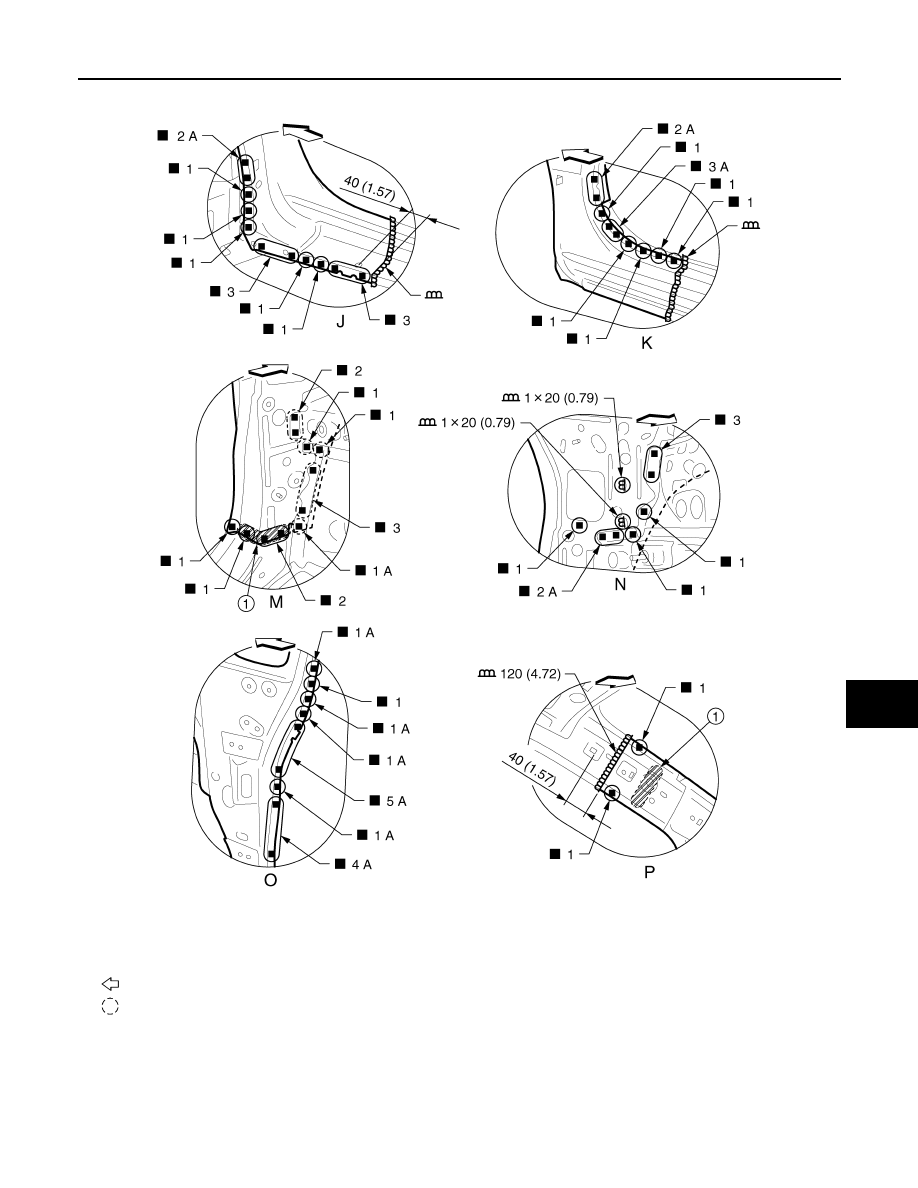

View M: Before installing outer front side body, front fender bracket assembly, and front pillar brace

1.

Urethane foam

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

JSKIA2461GB

BRM-36

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

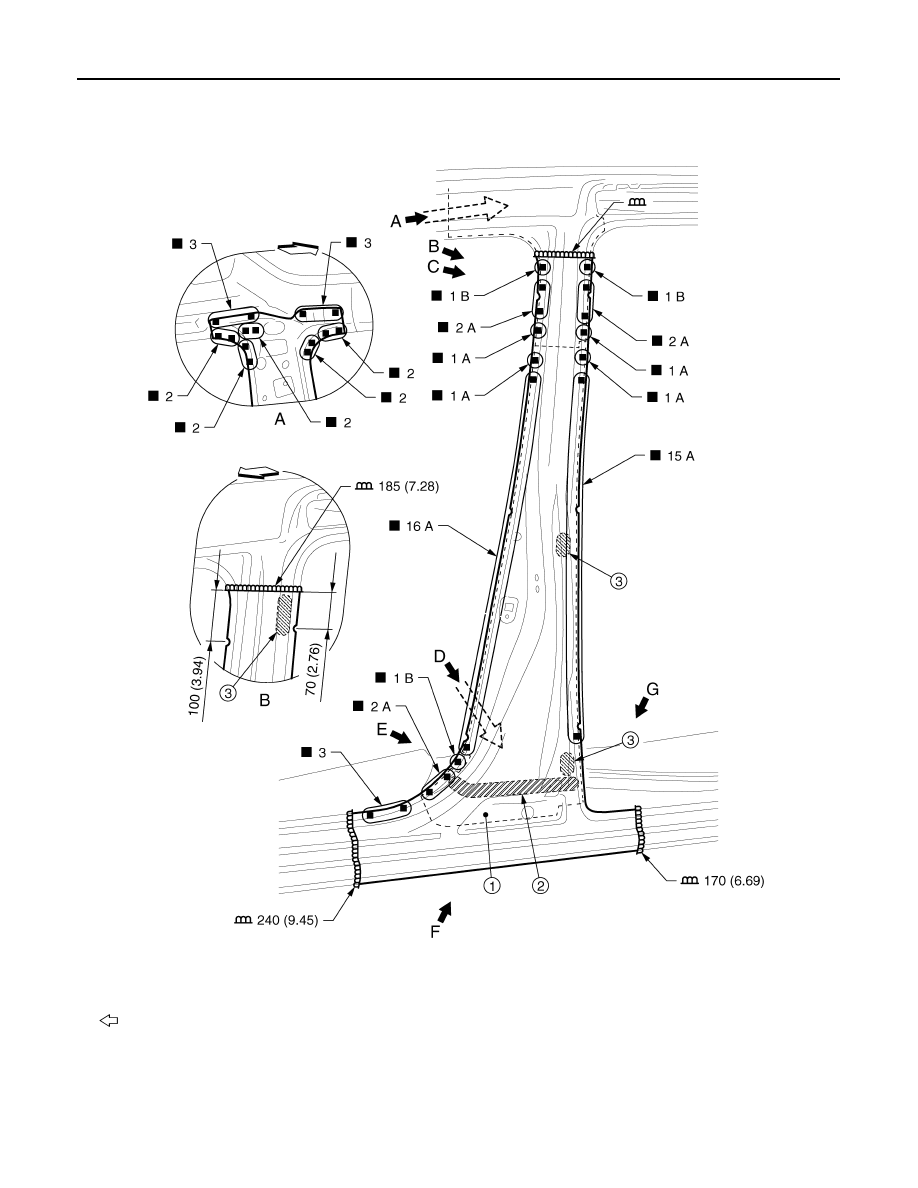

Center Pillar

INFOID:0000000009648879

1.

Center pillar reinforcement

2.

Urethane foam

3.

Adhesive

Unit: mm (in)

: Vehicle front

Replacement parts

z

Outer front side body

z

Center pillar reinforcement

z

Inner center pillar

JSKIA2462GB

REPLACEMENT OPERATIONS

BRM-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

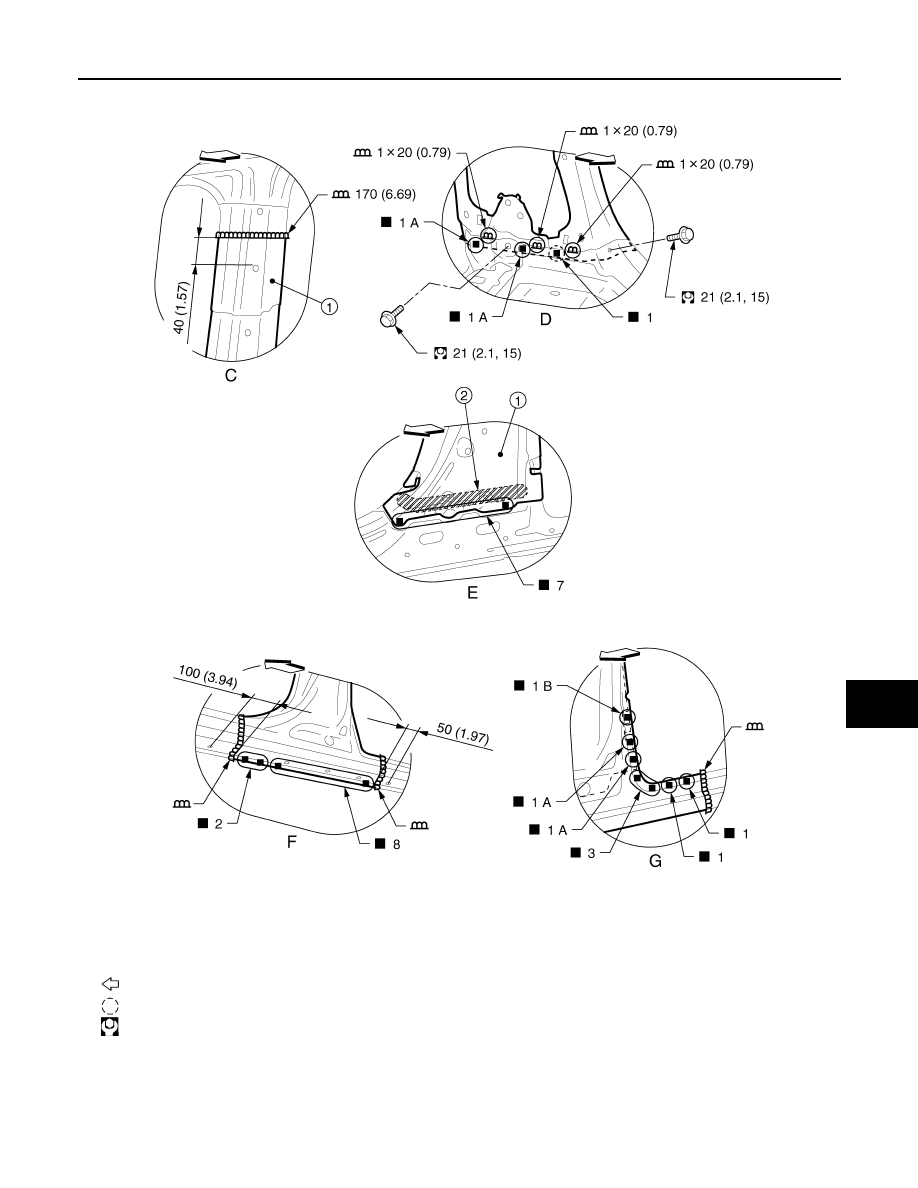

View C and E: Before installing outer front side body
View D: Before installing outer front side body and center pillar reinforcement

1.

Center pillar reinforcement

2.

Urethane foam

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

: N·m (kg-m, ft-lb)

JSKIA2463GB
