REAR DISC BRAKE

REAR DISC BRAKE

BRAKE PAD

BRAKE PAD : Inspection and Adjustment

INFOID:0000000009651811

INSPECTION

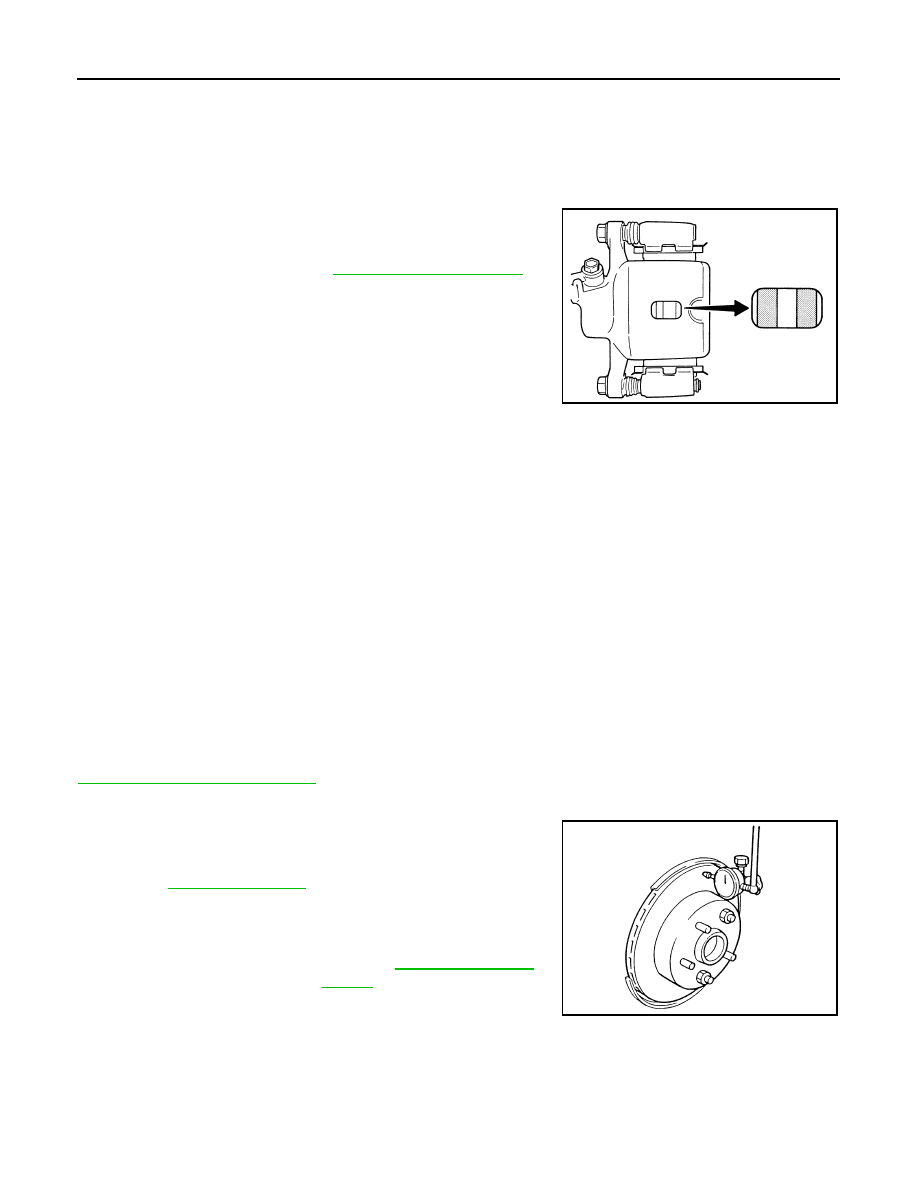

Check brake pad wear thickness from an inspection hole on cylinder
body. Check using a scale if necessary.

ADJUSTMENT

Burnish contact surfaces between disc rotor and brake pads according to the following procedure after refin-
ishing or replacing brake pads, or if a soft pedal occurs at very low mileage.

CAUTION:

• Be careful of vehicle speed because the brake does not operate firmly/securely until pads and disc

rotor are securely fitted.

• Only perform this procedure under safe road and traffic conditions. Use extreme caution.
1.

Drive vehicle on straight, flat road.

2.

Depress brake pedal with the power to stop vehicle within 3 to 5 seconds until the vehicle stops.

3.

Drive without depressing brake for a few minutes to cool the brake.

4.

Repeat steps 1 to 3 until pad and disc rotor are securely fitted.

DISC ROTOR

DISC ROTOR : Inspection and Adjustment

INFOID:0000000009651812

INSPECTION

Appearance

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace it if necessary. Refer to

RAX-6, "Removal and Installation"

.

Runout

1.

Fix the disc rotor to the wheel hub and bearing assembly with
wheel nuts (2 points at least).

2.

Check the wheel bearing axial end play before the inspection.
Refer to

RAX-4, "Inspection"

.

3.

Inspect the runout with a dial indicator to measure at 10 mm
(0.39 in) inside the disc edge.

4.

Find the installation position that has a minimum runout by shift-
ing the disc rotor-to-wheel hub and bearing assembly installation
position by one hole at a time if the runout exceeds the limit value.

• Refinish the disc rotor if the runout is outside the limit even after performing the above operation. [When

refinishing, use the Pro-Cut PEM On-Car brake Lathe (Tool No. 38-PFM90.5) or equivalent.]

CAUTION:

• Check in advance that the thickness of the disc rotor is wear thickness + 0.3 mm (0.012 in) or more.

Wear thickness

: Refer to

BR-51, "Rear Disc Brake"

.

BRA0010D

Runout (with it attached
to the vehicle)

: Refer to

BR-51, "Rear Disc

Brake"

.

SBR019B

REAR DISC BRAKE

BR-17

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

• If the thickness is less than wear thickness + 0.3 mm (0.012 in), replace the disc rotor. Refer to

RAX-6, "Removal and Installation"

.

Thickness

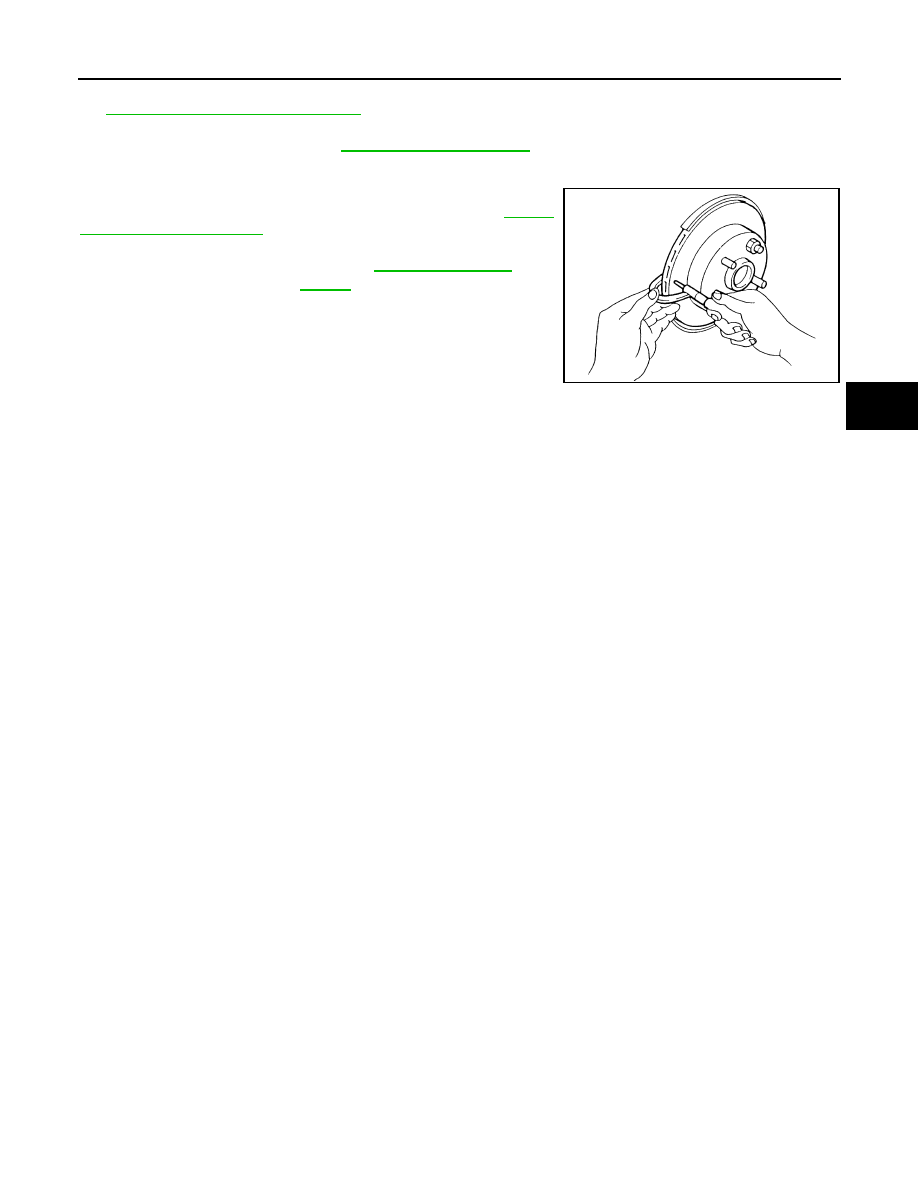

Check the thickness of the disc rotor using a micrometer. Replace
the disc rotor if the thickness is below the wear limit. Refer to

RAX-6,

"Removal and Installation"

.

ADJUSTMENT

Burnish contact surfaces between disc rotors and brake pads according to the following procedure after refin-
ishing or replacing disc rotor, or if a soft pedal occurs at very low mileage.

CAUTION:

• Be careful of vehicle speed because the brake does not operate firmly/securely until pad and disc

rotor are securely fitted.

• Only perform this procedure under safe road and traffic conditions. Use extreme caution.

1.

Drive vehicle on straight, flat road.

2.

Depress brake pedal with the power to stop vehicle within 3 to 5 seconds until the vehicle stops.

3.

Drive without depressing brake for a few minutes to cool the brake.

4.

Repeat steps 1 to 3 until pad and disc rotor are securely fitted.

Wear thickness

: Refer to

BR-51, "Rear Disc Brake"

.

Wear thickness

: Refer to

BR-51, "Rear Disc

Brake"

.

SBR020B

BR-18

< REMOVAL AND INSTALLATION >

BRAKE PEDAL

REMOVAL AND INSTALLATION

BRAKE PEDAL

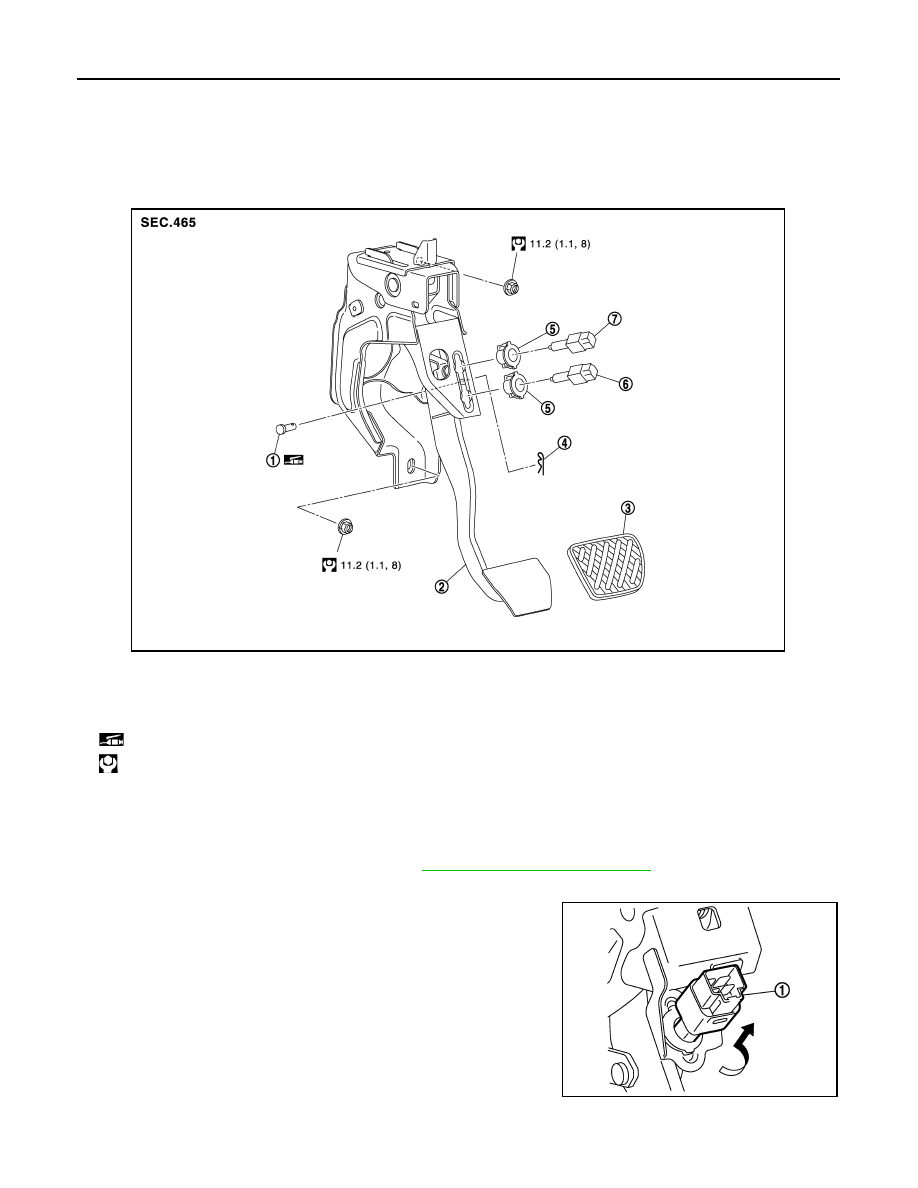

Exploded View

INFOID:0000000009651813

Removal and Installation

INFOID:0000000009651814

REMOVAL

1.

Remove instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

2.

Disconnect the stop lamp switch and the brake switch harness connectors.

3.

Rotate the stop lamp switch and the brake switch (1) counter
clockwise to remove.

1.

Clevis pin

2.

Brake pedal assembly

3.

Brake pedal pad

4.

Snap pin

5.

Clip

6.

Brake switch

7.

Stop lamp switch

: Apply multi-purpose grease.

: N·m (kg-m, ft-lb)

JSFIA0957GB

JPFIA0815ZZ

BRAKE PEDAL

BR-19

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

4.

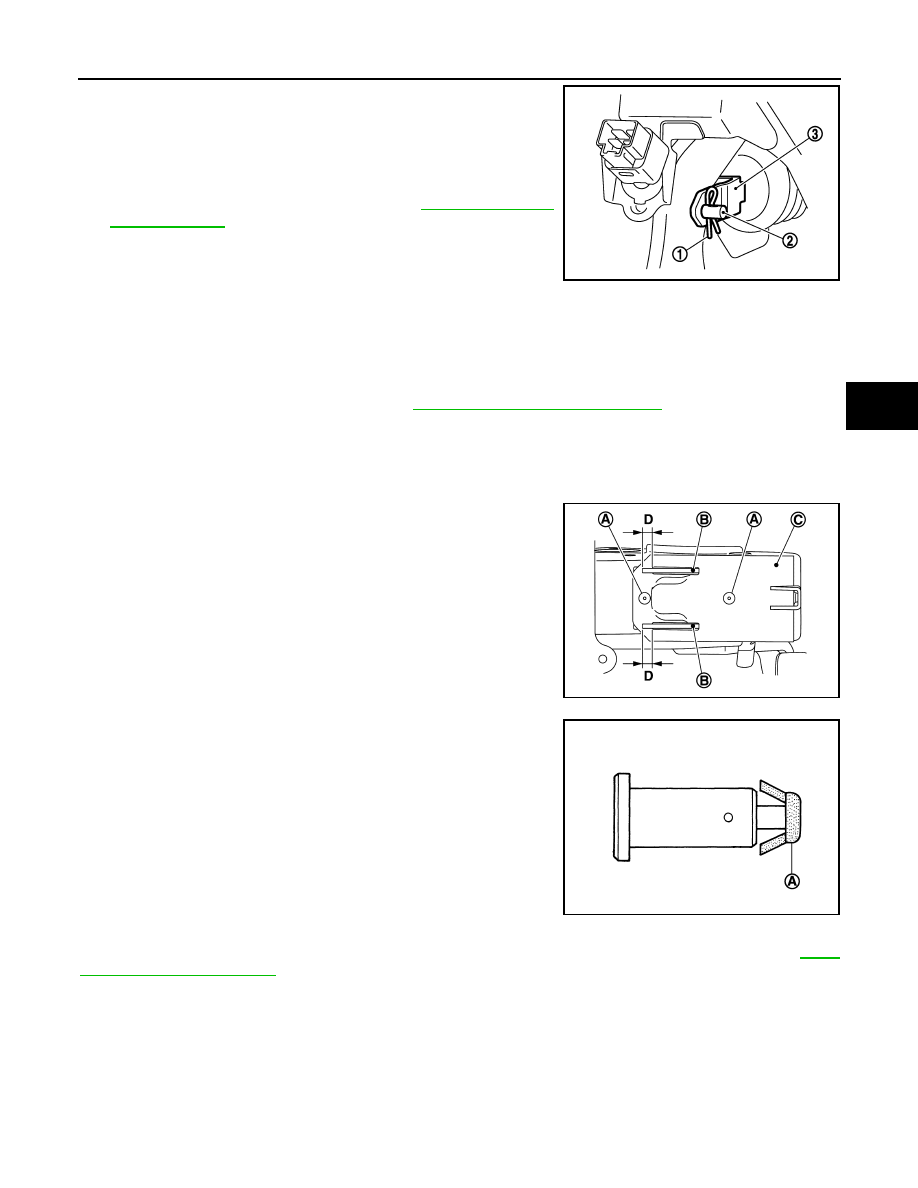

Remove snap pin (1) and clevis pin (2) from clevis (3) of brake
booster.

5.

Remove the brake pedal assembly.

CAUTION:

Hold the brake booster and master cylinder assembly so as
not to drop out or contact them other parts.

6.

Perform inspection after removal. Refer to

BR-19, "Inspection

and Adjustment"

.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Apply the multi-purpose grease to the clevis pin and the mating faces. (Not necessary if grease has been

already applied)
NOTE:
The clevis pin may be inserted in either direction.

• Perform adjustment after installation. Refer to

BR-19, "Inspection and Adjustment"

.

Inspection and Adjustment

INFOID:0000000009651815

INSPECTION AFTER REMOVAL

• Check for the following items and replace the brake pedal assembly if necessary.
- Check the brake pedal upper rivet (made by aluminum) (A) for

deformation.

- Check the brake pedal for bend, damage, and cracks on the

welded parts.

- Check the lapping length (D) of sub-bracket (B) and slide plate (C).

• Check clevis pin and plastic stopper (A) for damage and deforma-

tion. If any is found, replace clevis pin.

ADJUSTMENT AFTER INSTALLATION

Adjust each item of brake pedal after installing the brake pedal assembly to the vehicle. Refer to

BR-7,

"Inspection and Adjustment"

.

JPFIA0816ZZ

D

: 6.0 mm (0.236 in) or more

JSFIA0459ZZ
