Nissan Quest E52. Manual - part 194

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REAR WINDOW DEFOGGER

REAR WINDOW DEFOGGER : CONSULT Function (BCM - REAR DEFOGGER)

INFOID:0000000009978882

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ACTIVE TEST

BUZZER

BUZZER : CONSULT Function (BCM - BUZZER)

INFOID:0000000009978883

CONSULT APPLICATION ITEMS

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LOCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLK” on CONSULT screen is touched
• The front door lock actuator (driver side) is unlocked when “DR UNLK” on CONSULT screen is

touched

• The front door lock actuator (passenger side) is unlocked when “AS UNLK” on CONSULT

screen is touched

• The door lock actuator (other) is unlocked when “OTR ULK” on CONSULT screen is touched

Monitor Item

Description

REAR DEF SW

Displays “Press (ON)/other (OFF)” status determined with the rear window defogger switch.

PUSH SW

Indicates [ON/OFF] condition of push switch.

Test Item

Description

REAR DEFOGGER

Rear window defogger operates when ON on CONSULT screen is touched.

Test item

Diagnosis mode

Description

BUZZER

Data Monitor

Displays BCM input data in real time.

Active Test

Operation of electrical loads can be checked by sending driving signal to them.

Display item

[Unit]

Description

PUSH SW
[On/Off]

Status of push-button ignition switch judged by BCM.

UNLK SEN-DR
[On/Off]

Status of unlock sensor judged by BCM.

VEH SPEED 1
[km/h]

Value of vehicle speed signal received from combination meter with CAN communication line.

TAIL LAMP SW
[On/Off]

Status of lighting switch judged by BCM using the combination switch readout function.

FR FOG SW
[On/Off]

Status of front fog lamp switch judged by BCM using the combination switch readout function.

BCS-20

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

INT LAMP

INT LAMP : CONSULT Function (BCM - INT LAMP)

INFOID:0000000009978879

WORK SUPPORT

DOOR SW-DR
[On/Off]

Status of driver side door switch judged by BCM.

CDL LOCK SW
[On/Off]

Status of door lock unlock switch judged by BCM.

Display item

[Unit]

Description

Display item

[Unit]

Description

SEAT BELT WARN TEST

The seat belt warning chime operation can be checked by operating the relevant function (On/Off).

ID REGIST WARNING

The ID regist warning chime operation can be checked by operating the relevant function (On/Off).

LIGHT WARN ALM

The light warning chime operation can be checked by operating the relevant function (On/Off).

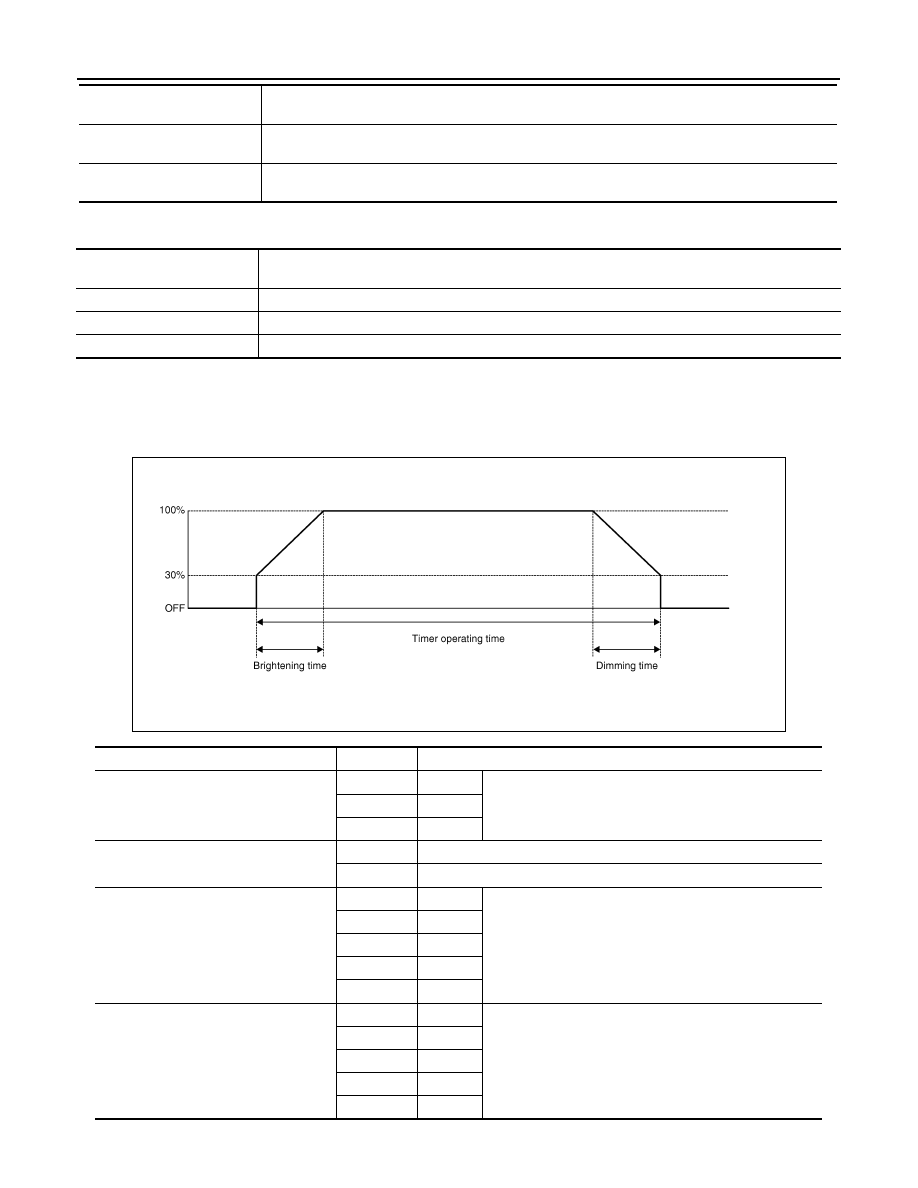

JPLIA0093GB

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 2

7.5 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 3*

15 sec.

MODE 4

30 sec.

SET I/L D-UNLCK INTCON

On*

With the interior room lamp timer function

Off

Without the interior room lamp timer function

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-21

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

*: Factory setting

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ACTIVE TEST

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door
only.

Service item

Setting item

Setting

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

The switch status input from door request switch (driver side)

REQ SW-AS
[On/Off]

The switch status input from door request switch (passenger side)

REQ SW-RR
[On/Off]

NOTE:
The item is indicated, but not monitored.

REQ SW-RL
[On/Off]

PUSH SW
[On/Off]

The switch status input from push-button ignition switch

UNLK SEN -DR
[On/Off]

Driver door unlock status input from unlock sensor

DOOR SW-DR
[On/Off]

The switch status input from front door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from sliding door switch RH

DOOR SW- RL
[On/Off]

The switch status input from sliding door switch LH

DOOR SW- BK
[On/Off]

The switch status input from back door switch

CDL LOCK SW
[On/Off]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW
[On/Off]

Unlock switch status input from door lock and unlock switch

TRNK/HAT MNTR
[On/Off]

NOTE:
The item is indicated, but not monitored

KEY CYL LK-SW
[On/Off]

Lock switch status received from door key cylinder switch

KEY CYL UN-SW
[On/Off]

Unlock switch status received from door key cylinder switch

RKE-LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver

BCS-22

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

HEADLAMP

HEADLAMP : CONSULT Function (BCM - HEADLAMP) (Xenon Type Headlamp)

INFOID:0000000009978875

WORK SUPPORT

*

1

: For models without auto light system, this item is displayed but is not operated.

*

2

: For models without auto light system and all models for Canada, this item is displayed but is not operated.

*

3

: Factory setting

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Test item

Operation

Description

INT LAMP

On

Outputs the interior room lamp control signal to turn the interior room lamps ON.
 [Map lamp, personal lamp (when applicable lamps switch is in DOOR position.)]

Off

Stops the interior room lamp control signal to turn the interior room lamps.

STEP LAMP TEST

On

Outputs the step lamp control signal to turn the step lamps ON.

Off

Stops the step lamp control signal to turn the step lamps ON.

Service item

Setting item

Setting

CUSTOM A/LIGHT SET-

TING*

1

MODE 1*

3

Normal

MODE 2

More sensitive setting than normal setting (Turns ON earlier than normal opera-
tion)

MODE 3

More sensitive setting than MODE 2 (Turns ON earlier than MODE 2)

MODE 4

Less sensitive setting than normal setting (Turns ON later than normal operation.)

BATTERY SAVER SET

On*

3

With the exterior lamp battery saver function

Off

Without the exterior lamp battery saver function

ILL DELAY SET*

1

MODE 1*

3

45 sec.

Sets delay timer function timer operation time.
(All doors closed)

MODE 2

Without the
function

MODE 3

30 sec.

MODE 4

60 sec.

MODE 5

90 sec.

MODE 6

120 sec.

MODE 7

150 sec.

MODE 8

180 sec.

AUTO LIGHT LOGIC SET*

2

MODE 1*

3

With twilight ON custom & with wiper INT, LO and HI

MODE 2

With twilight ON custom & with wiper LO and HI

MODE 3

With twilight ON custom & without

MODE 4

Without twilight ON custom & with wiper INT, LO and HI

MODE 5

Without twilight ON custom & with wiper LO and HI

MODE 6

Without twilight ON custom & without
