Nissan Quest E52. Manual - part 189

AV

STEERING ANGLE SENSOR

AV-635

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING ANGLE SENSOR

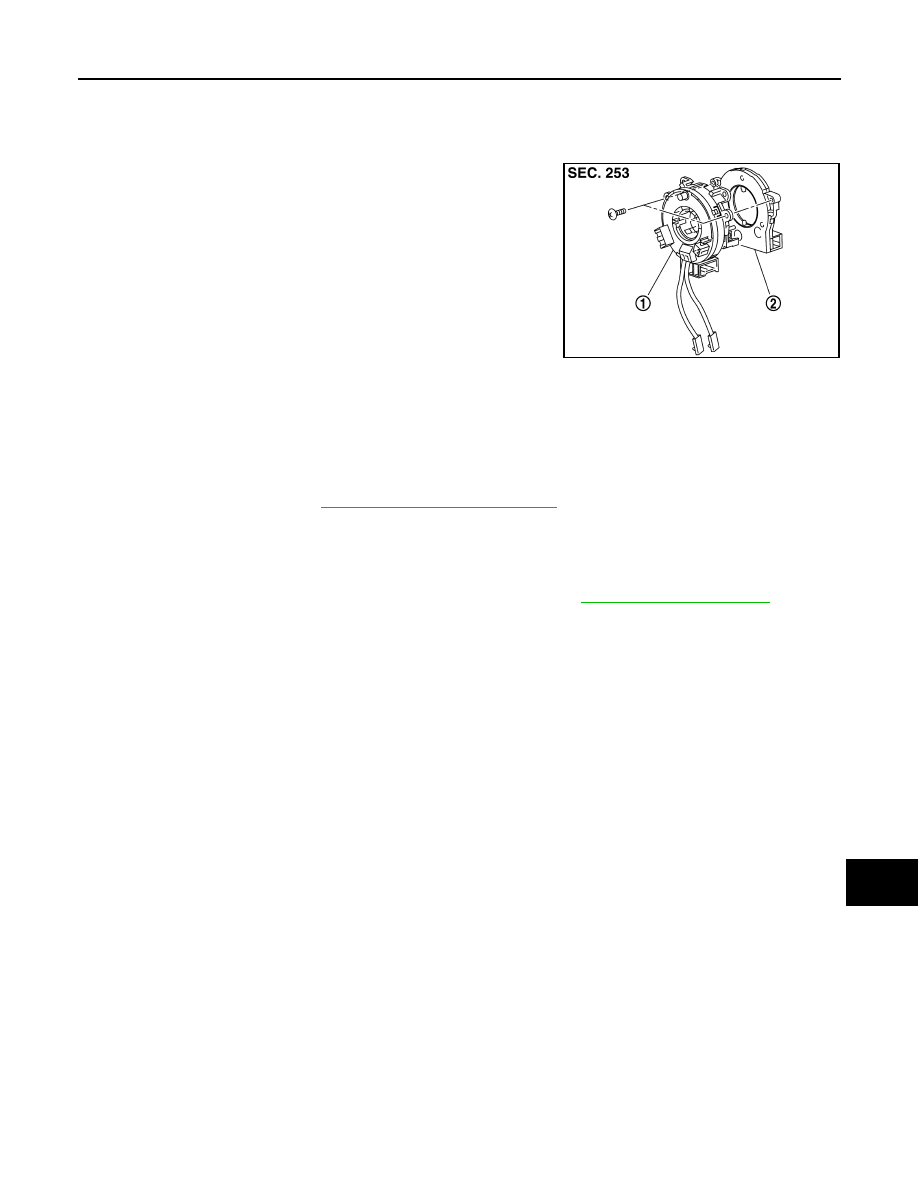

Exploded View

INFOID:0000000009652431

DISASSEMBLY

Removal and Installation

INFOID:0000000009652432

REMOVAL

1.

Remove spiral cable. Refer to

SR-15, "Removal and Installation"

.

2.

Remove steering angle sensor from spiral cable.

INSTALLATION

1.

Install in the reverse order of removal.

2.

Perform steering angle sensor neutral position adjustment. Refer to

BRC-49, "Work Procedure"

.

JSNIA0135ZZ

1.

Spiral cable

2.

Steering angle sensor

AV-636

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

ANTENNA FEEDER

ANTENNA FEEDER

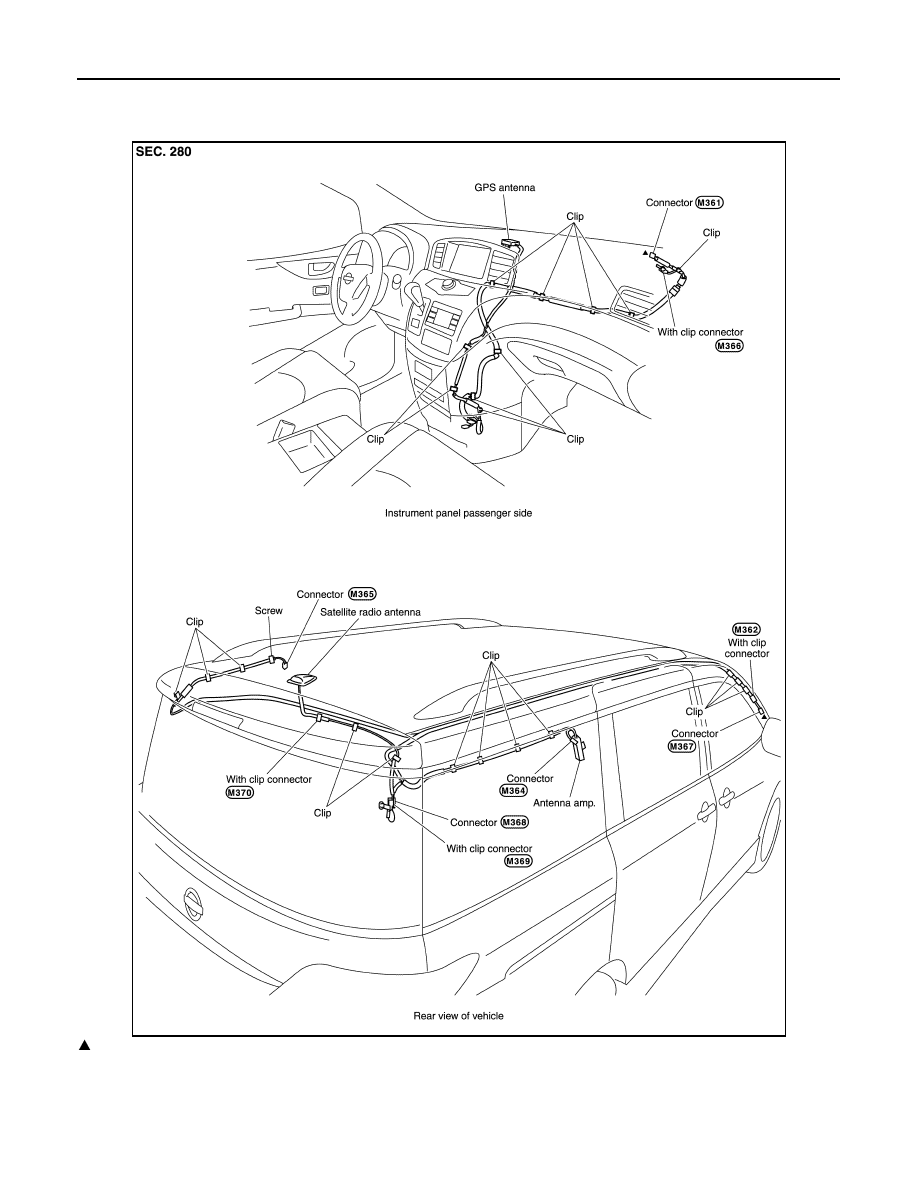

Feeder Layout

INFOID:0000000009652433

: Indicates that the part is connected at points with same symbol in actual vehicle.

JSNIA4207GB

BCS

BCS-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

BCS

A

O

P

N
