WIPER BLADE : Removal and Installation

INFOID:0000000009649579

REMOVAL

1.

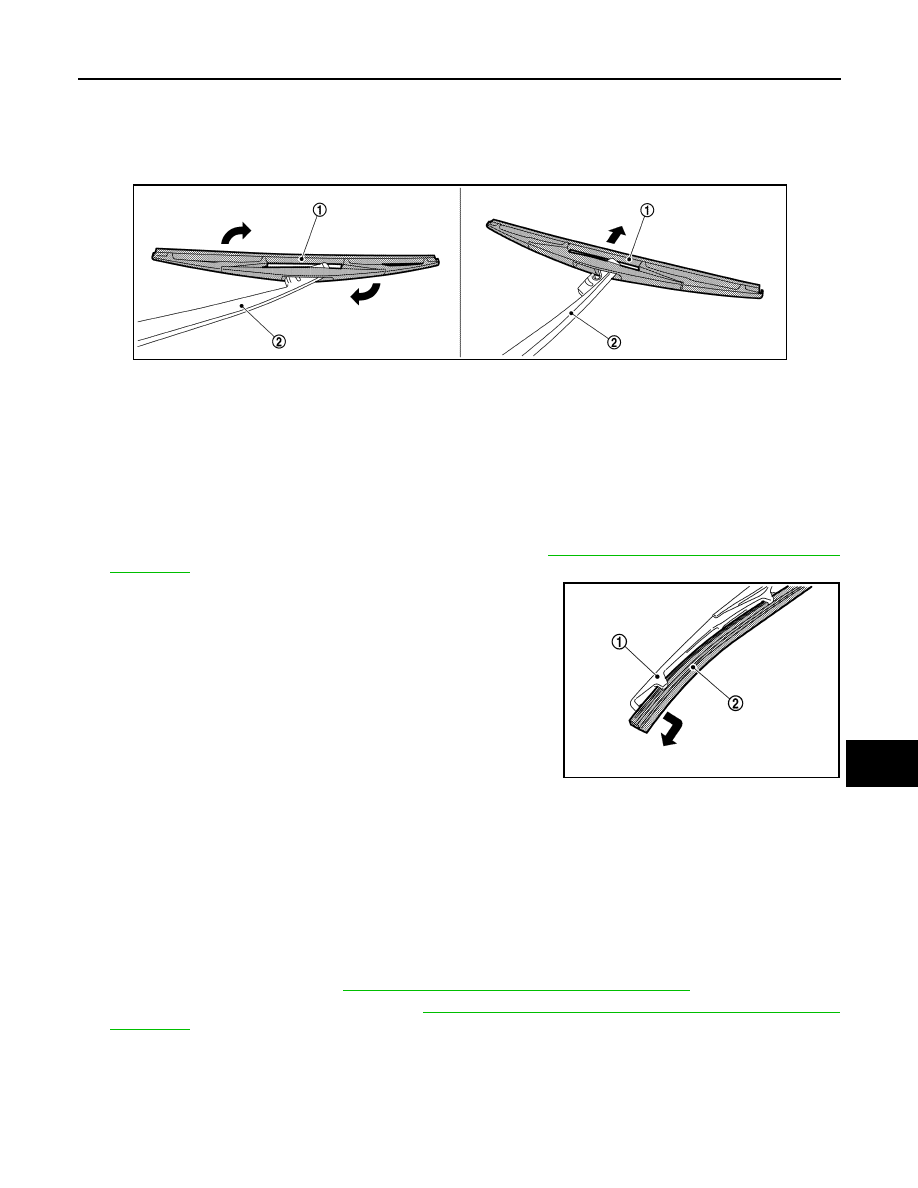

Lift up and hold rear wiper arm. Remove rear wiper blade (1) from rear wiper arm (2) while rotating rear
wiper blade (1) in the direction indicated by the arrow as shown in the figure.

CAUTION:

Wrap wiper arm using a shop cloth so that wiper blade does not damage back door window glass.

INSTALLATION

Install in the reverse order of removal.

WIPER REFILL

WIPER REFILL : Removal and Installation

INFOID:0000000009649580

REMOVAL

1.

Remove rear wiper blade from the rear wiper arm. Refer to

WW-57, "WIPER BLADE : Removal and

Installation"

.

2.

Remove rear wiper refill (2) from the end portion of rear wiper
blade (1) in the direction indicated by the arrow as shown in the
figure. Remove rear wiper refill while sliding it sideward.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• For installation of wiper refill, check that wiper refill is not twisted while installing.
• Check that wiper refill is inserted normally from the correct direction.

WIPER MOTOR

WIPER MOTOR : Removal and Installation

INFOID:0000000009649581

REMOVAL

1.

Remove rear wiper arm. Refer to

WW-55, "WIPER ARM : Removal and Installation"

.

2.

Remove back door lower finisher. Refer to

INT-48, "BACK DOOR LOWER FINISHER : Removal and

Installation"

.

3.

Disconnect rear wiper motor harness connector.

4.

Remove rear wiper motor mounting nut.

5.

Raise rear waiper motor, and remove rear wiper motor from the vehicle.

CAUTION:

Never drop rear wiper motor or cause it to come into contact with other parts.

JMLIA1989ZZ

JMLIA2026ZZ

WW-58

< REMOVAL AND INSTALLATION >

REAR WIPER

6.

Remove pivot seal from the back door.

INSTALLATION

Install in the reverse order of removal.

WASHER TANK

WW-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER TANK

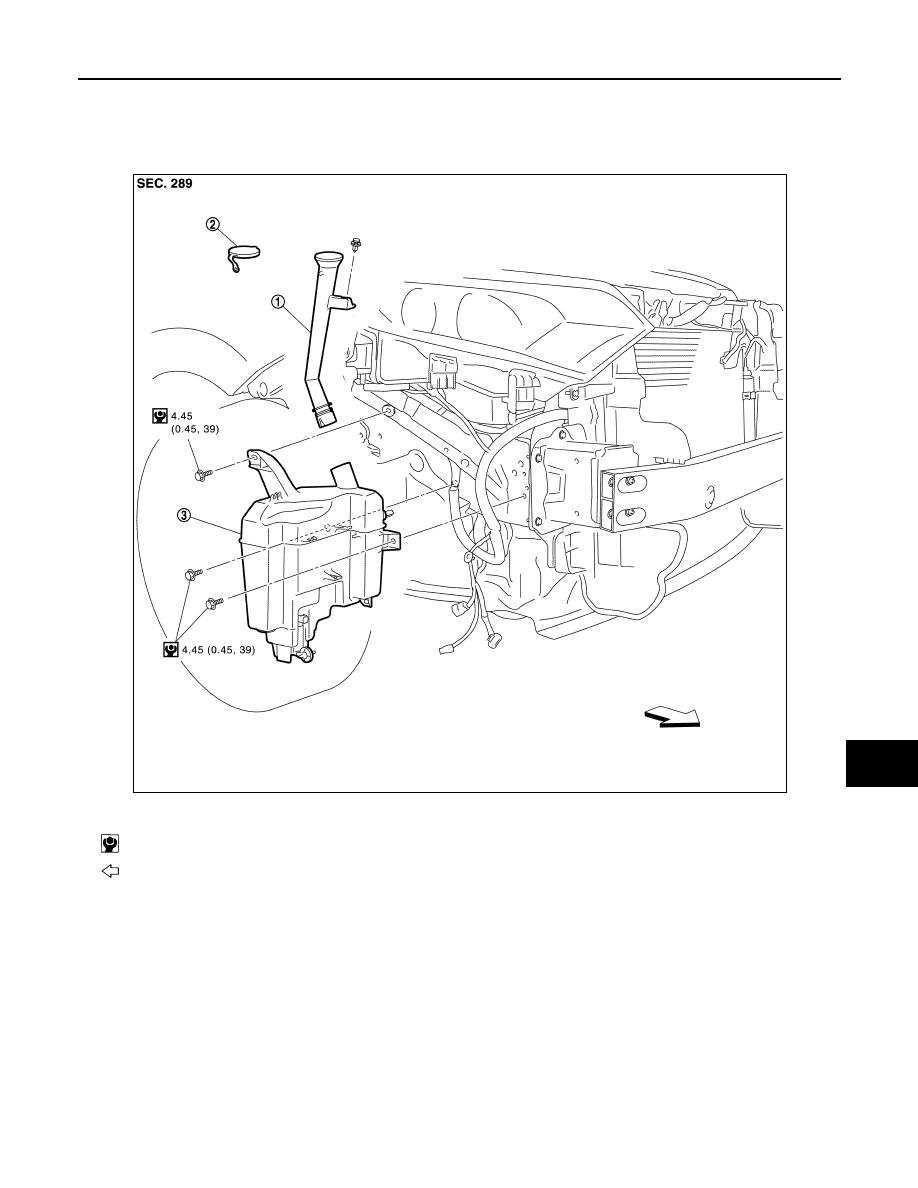

Exploded View

INFOID:0000000009649582

Removal and Installation

INFOID:0000000009649583

REMOVAL

1.

Fully open hood assembly.

1.

Washer tank inlet

2.

Washer tank inlet cap

3.

Washer tank assembly

: N·m (kg-m, in-lb)

: Vehicle front

JMLIA2134GB

WW-60

< REMOVAL AND INSTALLATION >

WASHER TANK

2.

Remove washer tank inlet fixing clip (A).

3.

Pull out washer tank inlet (1) from the washer tank.

4.

Remove fender protector RH (front). Refer to

EXT-23, "Removal and Installation"

.

5.

Disconnect washer pump connector (A) and washer level switch
connector (B).

6.

Remove harness fixing clips (C) from the washer tank (1).

7.

Disconnect front washer tube (3) and rear washer tube (4) from
the front & rear washer pump (2).

8.

Remove washer tank mounting bolts.

9.

Remove washer tank from the vehicle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing tube to front & rear washer pump, be sure to install to front and rear correctly.
• Add water up to the top of the washer tank inlet after installing. Check that there is no leakage.

: Vehicle front

JMLIA1535ZZ

: Clip

: Vehicle front

JMLIA2152ZZ
