Nissan Quest E52. Manual - part 1251

WCS-34

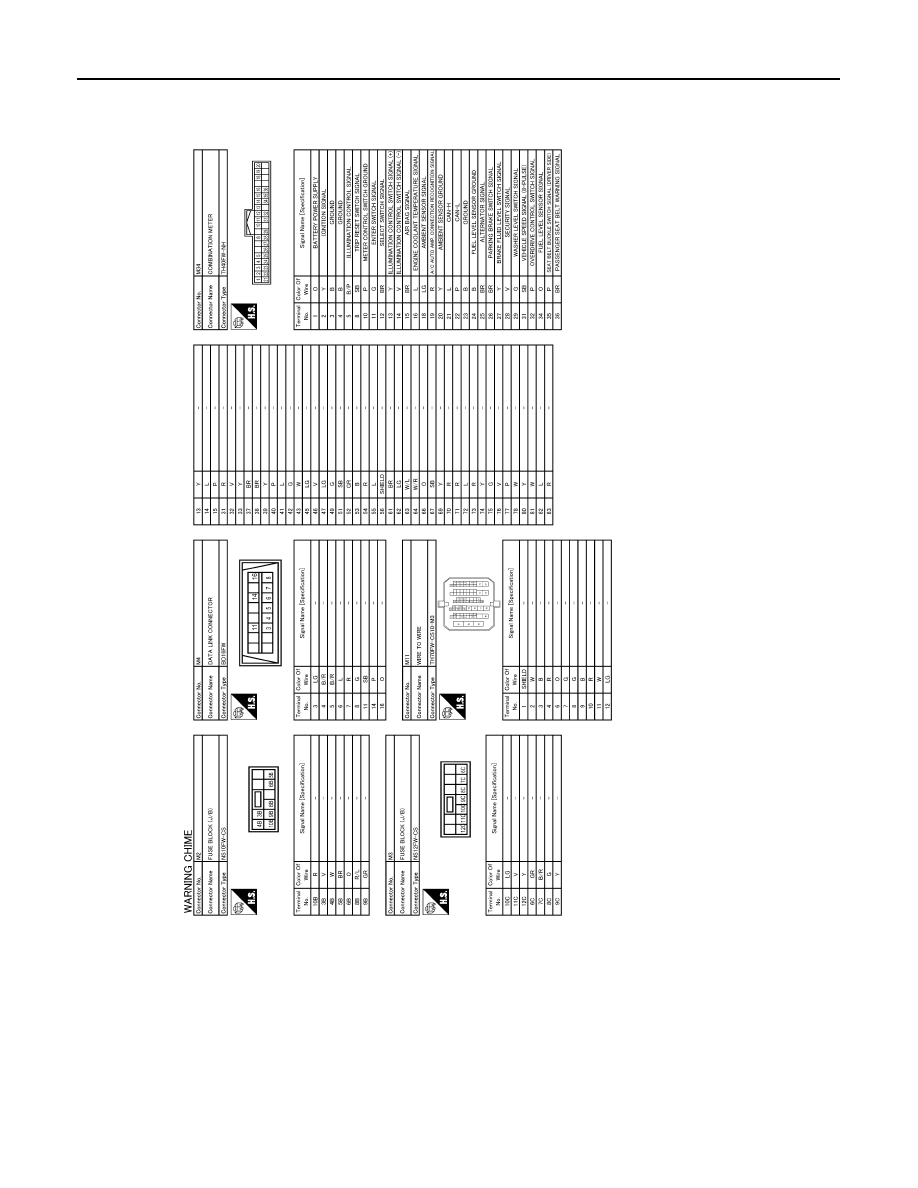

< WIRING DIAGRAM >

WARNING CHIME SYSTEM

JRNWC6720GB

WCS

WARNING CHIME SYSTEM

WCS-35

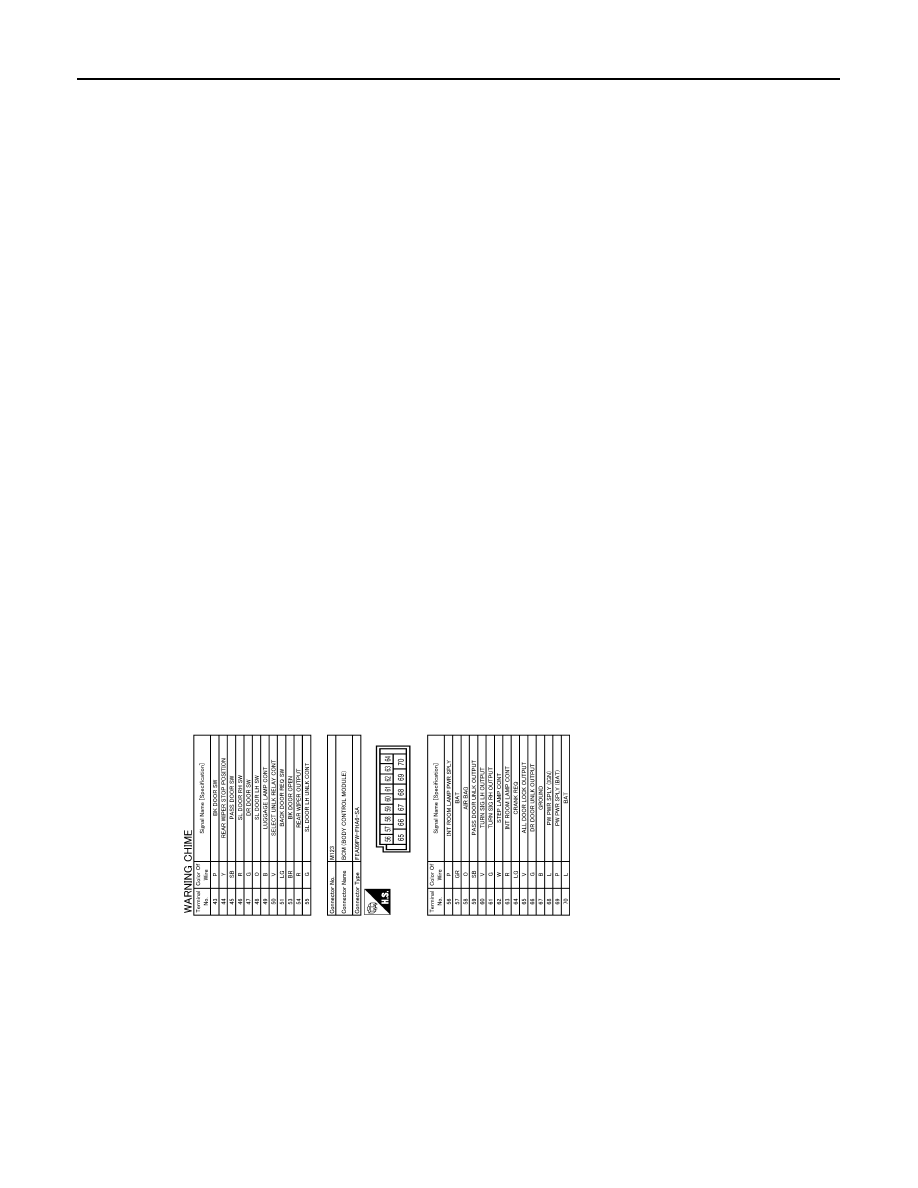

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWC6721GB

WCS-36

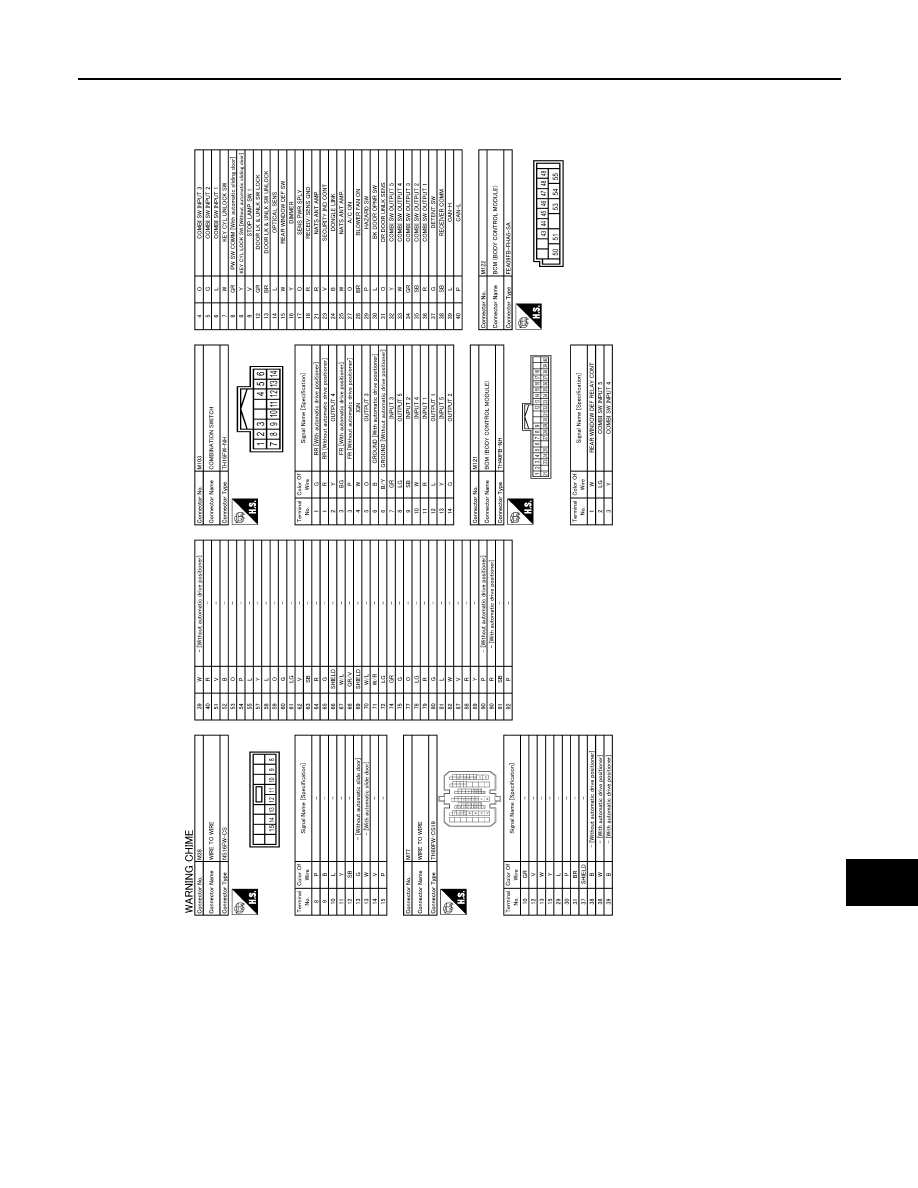

< WIRING DIAGRAM >

WARNING CHIME SYSTEM

JRNWC6722GB

WCS

DIAGNOSIS AND REPAIR WORKFLOW

WCS-37

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009650457

OVERALL SEQUENCE

DETAILED FLOW

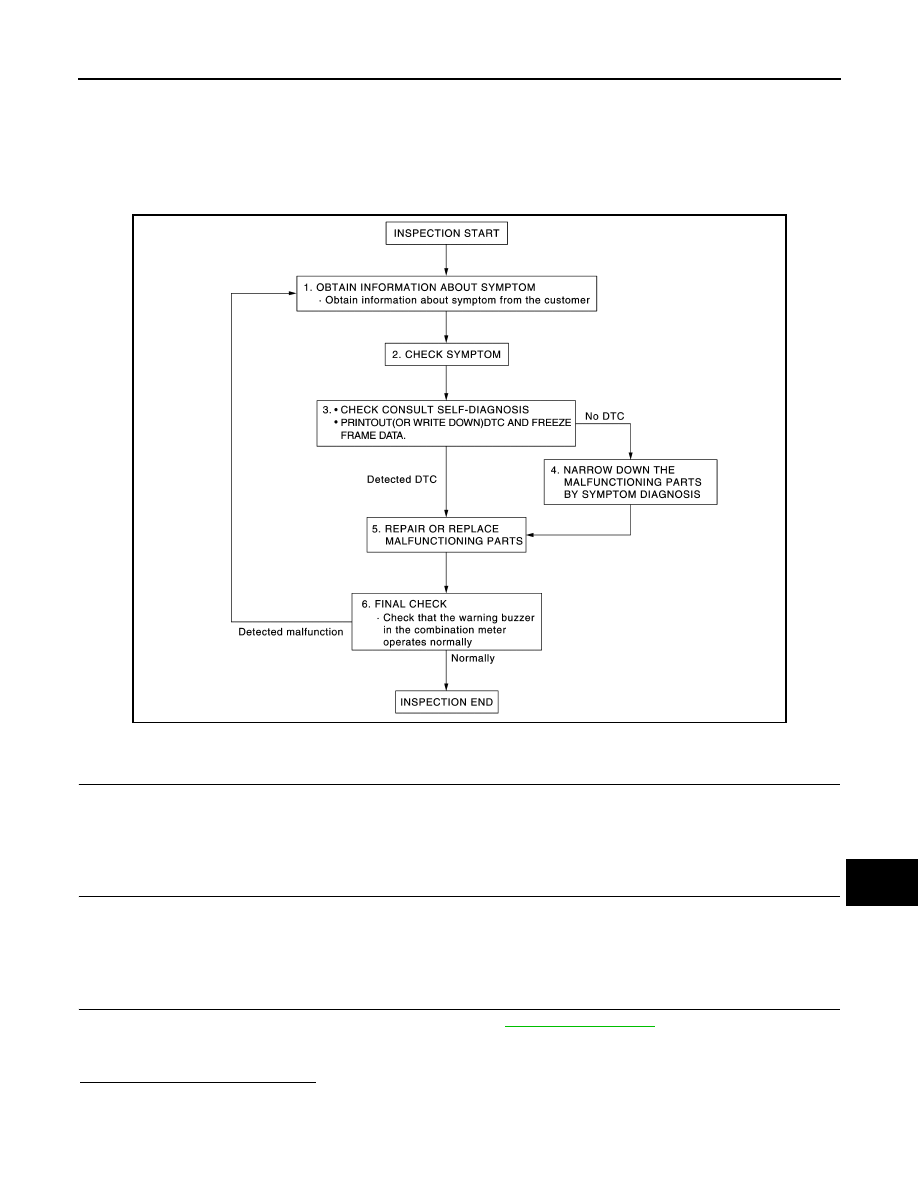

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under
which the malfunction occurred.

>> GO TO 2.

2.

CHECK SYMPTOM

• Check the symptom based on the information obtained from the customer.
• Check if any other malfunctions are present.

>> GO TO 3.

3.

CHECK CONSULT SELF-DIAGNOSIS RESULTS

1.

Connect CONSULT and perform self-diagnosis. Refer to

MWI-48, "DTC Index"

.

2.

When DTC is detected, follow the instructions below:

-

Record DTC and Freeze Frame Data.

Are self-diagnosis results normal?

YES

>> GO TO 4.

NO

>> GO TO 5.

JSNIA4492GB
