Nissan Quest E52. Manual - part 1235

TM-170

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

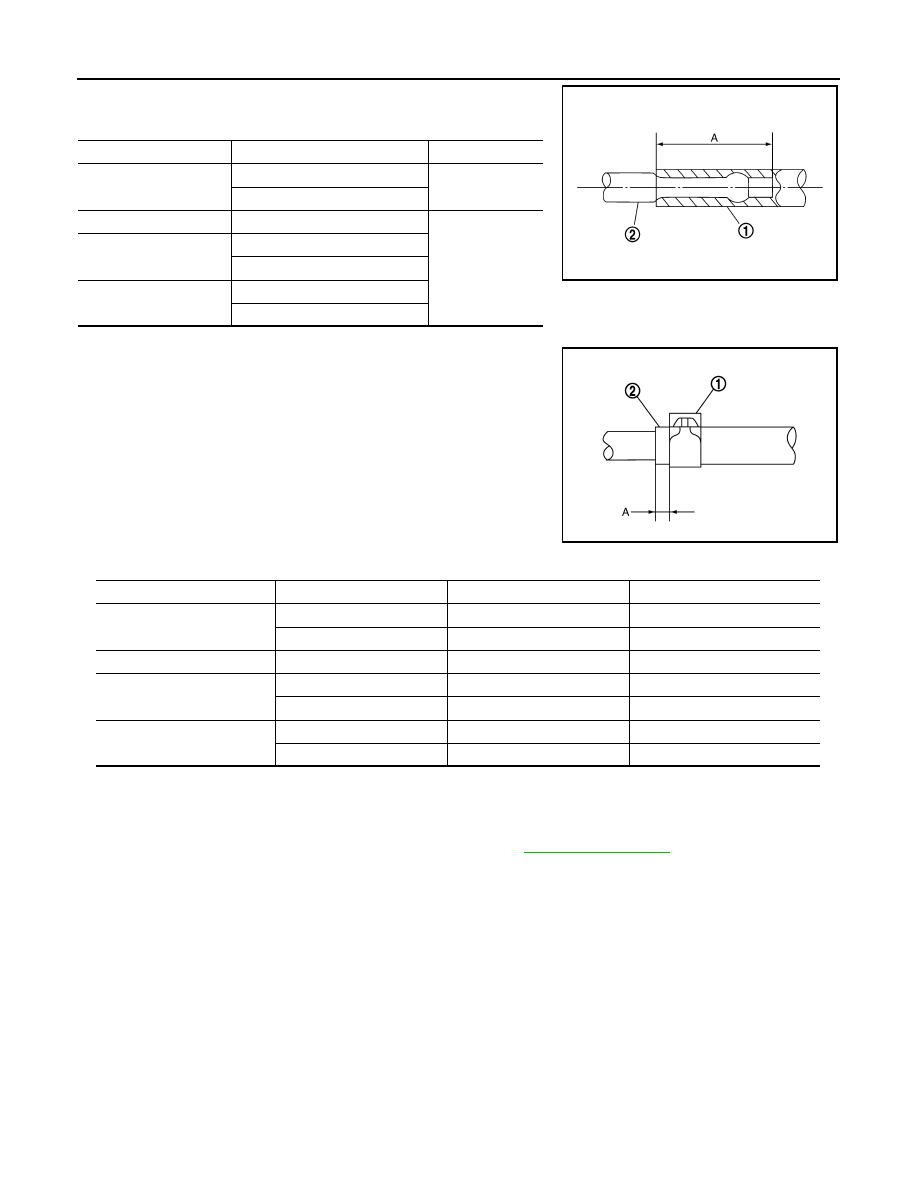

FLUID COOLER SYSTEM

• Insert CVT fluid cooler hose according to dimension “A” described

below.

• Set hose clamps (1) from the end of CVT fluid cooler hose (2)

according to dimension “A” described below.

• Hose clamp should not interfere with the bulge.

CVT FLUID COOLER HOSE : Inspection

INFOID:0000000009650248

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-149, "Inspection"

.

CVT OIL WARMER

CVT fluid cooler hose (1)

Insert side tube (2)

Dimension “A”

CVT fluid cooler hose A

CVT fluid cooler tube

33 mm (1.30 in)

CVT oil warmer

CVT fluid cooler hose B

Radiator

30 mm (1.18 in)

CVT fluid cooler hose C

CVT fluid cooler hose B

CVT oil warmer

CVT fluid cooler hose D

Transaxle assembly

Radiator

SCIA7203E

Dimension “A”

: 5 – 9 mm (0.20 – 0.35 in)

SCIA8123E

CVT fluid cooler hose

Hose end

Paint mark

Position of hose clamp

CVT fluid cooler hose A

CVT fluid cooler tube

Upward and 45

°

 frontward

Upward and 45

°

 frontward

CVT oil warmer

Frontward

Frontward

CVT fluid cooler hose B

Radiator

Upward

Upward

CVT fluid cooler hose C

CVT fluid cooler hose B

Upward

Upward

CVT oil warmer

Frontward

Frontward

CVT fluid cooler hose D

Transaxle assembly

Upward

Upward

Radiator

Backward

Backward

FLUID COOLER SYSTEM

TM-171

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

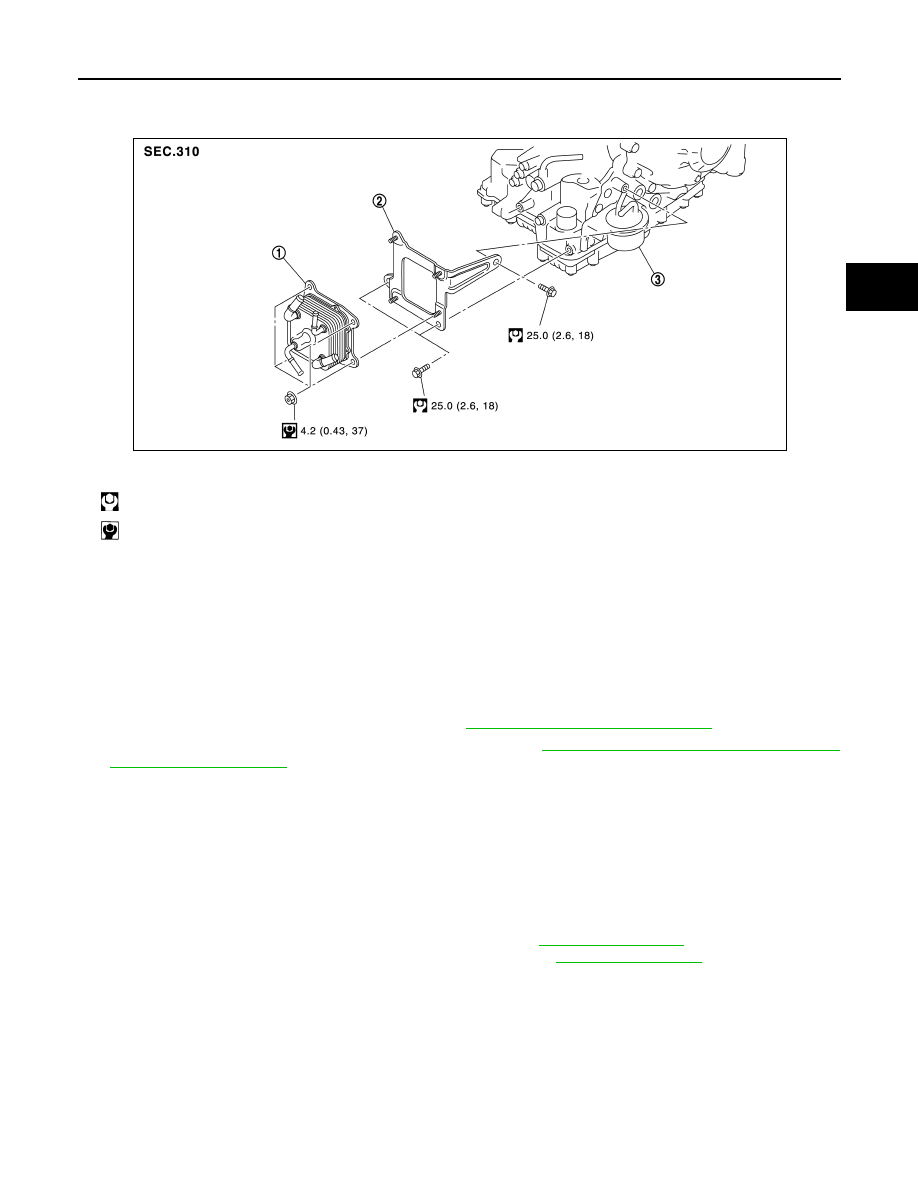

CVT OIL WARMER : Exploded View

INFOID:0000000009650249

CVT OIL WARMER : Removal and Installation

INFOID:0000000009650250

REMOVAL

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator.

CAUTION:

Perform these steps after the coolant temperature has cooled sufficiently.

1.

Remove water hose from CVT oil warmer. Refer to

TM-166, "Removal and Installation"

.

2.

Remove fluid cooler hose from CVT oil warmer. Refer to

TM-169, "CVT FLUID COOLER HOSE :

Removal and Installation"

.

3.

Remove CVT oil warmer.

4.

Remove bracket.

INSTALLATION

Install in the reverse order of removal.

CVT OIL WARMER : Inspection

INFOID:0000000009650251

INSPECTION AFTER INSTALLATION

• Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-149, "Inspection"

.

• Start the engine, and check the joints for coolant leakage. Refer to

TM-149, "Inspection"

.

1.

CVT oil warmer

2.

Bracket

3.

Transaxle assembly

 : N·m (kg-m, ft-lb)

 : N·m (kg-m, in-lb)

JSDIA2321GB

TM-172

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

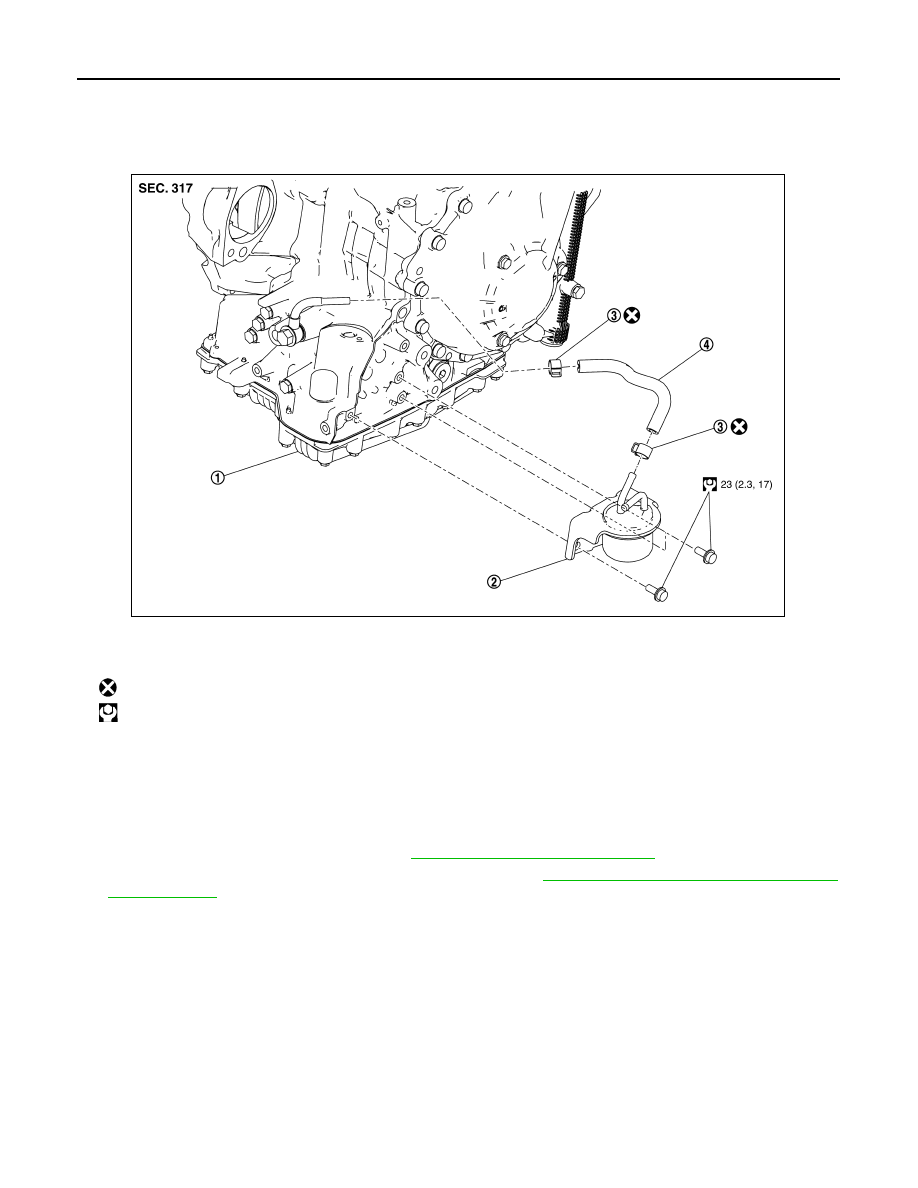

CVT FLUID FILTER

CVT FLUID FILTER

Exploded View

INFOID:0000000009975037

Removal and Installation

INFOID:0000000009975038

NOTE:
Cap or plug openings to prevent fluid from spilling.

REMOVAL

1.

Remove front fender protector LH. Refer to

EXT-23, "Removal and Installation"

.

2.

Pull out fluid cooler hose D from CVT fluid filter. Refer to

TM-169, "CVT FLUID COOLER HOSE :

Exploded View"

.

3.

Remove filter hose.

4.

Remove CVT fluid filter from transaxle assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Never reuse hose clamp.

1.

Transaxle

2.

CVT fluid filter

3.

Hose clamp

4.

Filter hose

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JSDIA4011GB

CVT FLUID FILTER

TM-173

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

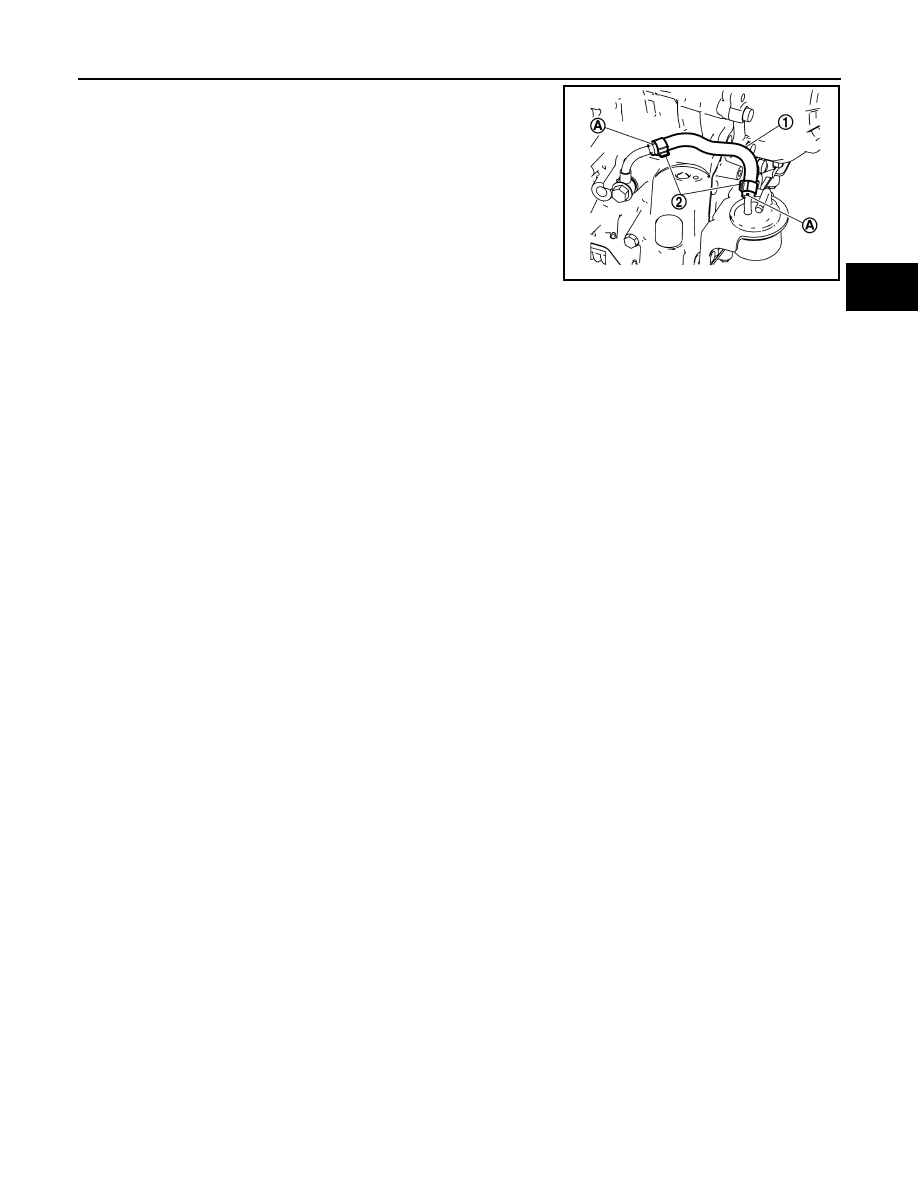

• Install filter hose (1) and hose clamps (2) as shown in the figure.

A

: Paint mark

JSDIA4012ZZ
