STR-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009650597

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000009956681

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

SEF289H

PREPARATION

STR-3

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

PREPARATION

PREPARATION

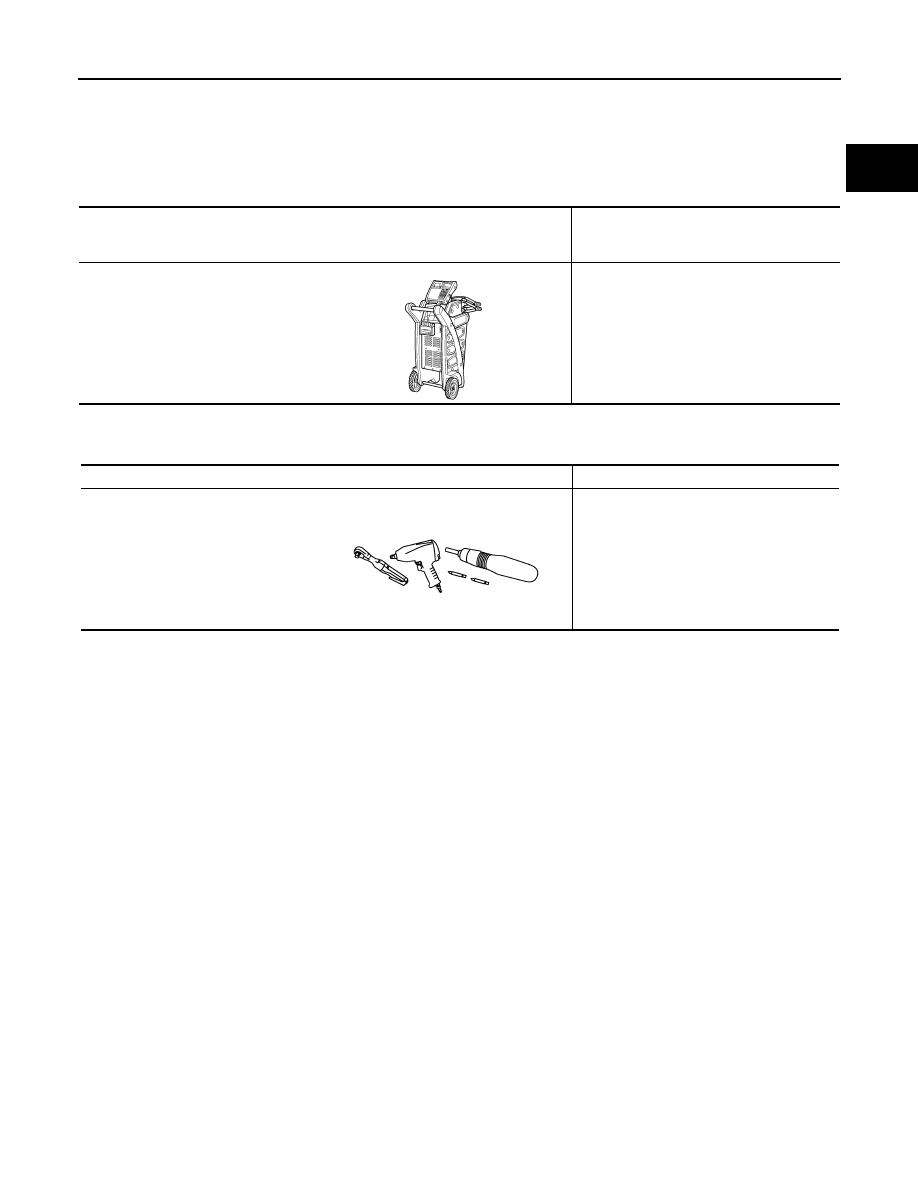

Special Service Tools

INFOID:0000000009650598

Commercial Service Tools

INFOID:0000000009650599

Tool number

(Kent-Moore No.)

Tool name

Description


(—) Model GR8-1200 NI
Multitasking battery and electrical di-
agnostic station

Tests batteries, starting and charging sys-
tems and charges batteries.
For operating instructions, refer to diagnos-
tic station instruction manual.

AWIIA1239ZZ

Tool name

Description

Power tool

Loosening bolts, nuts and screws

PIIB1407E

STR-4

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

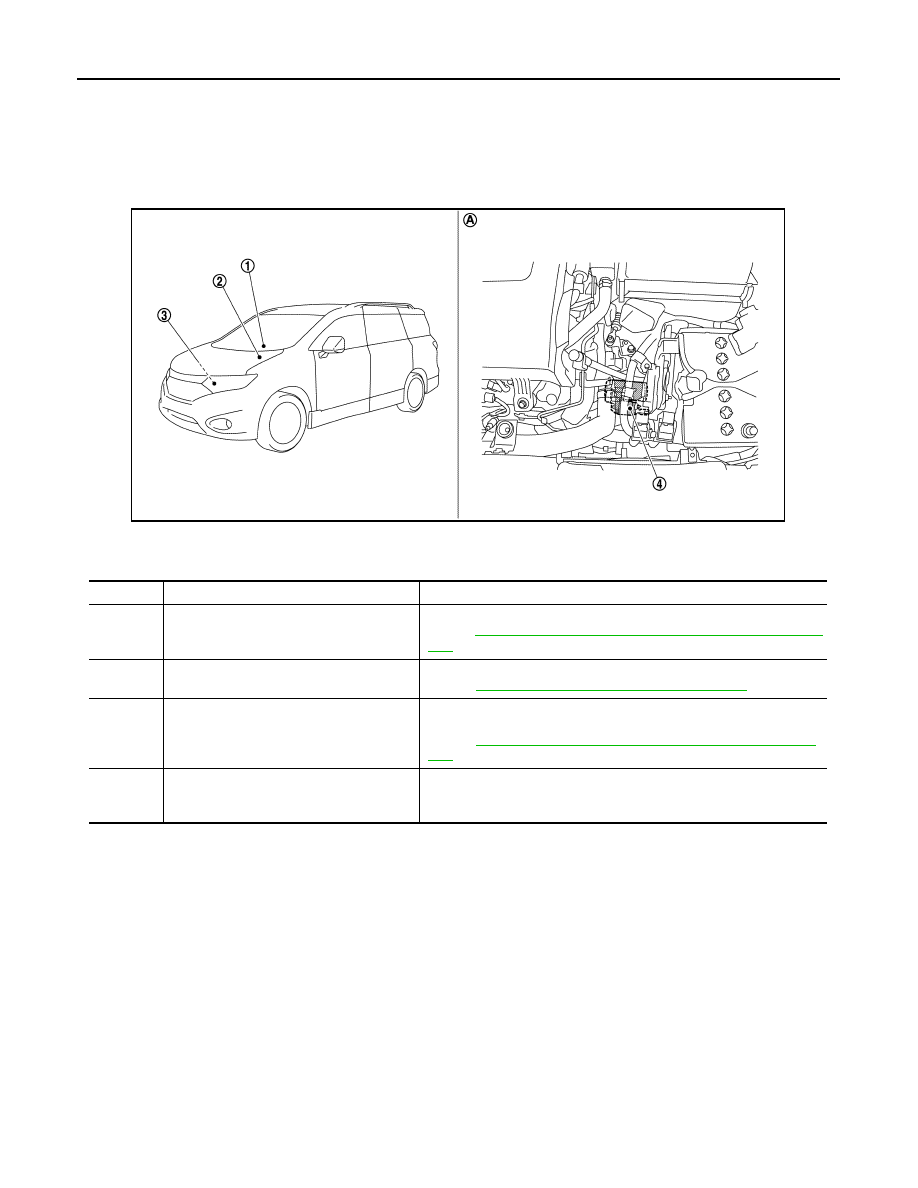

Component Parts Location

INFOID:0000000009650600

A.

Engine room LH

No.

Component part

Description

1.

BCM

BCM controls the starter relay.
Refer to

BCS-4, "BODY CONTROL SYSTEM : Component Parts Loca-

tion"

.

2.

IPDM E/R

CPU inside IPDM E/R controls the starter control relay.
Refer to

PCS-4, "IPDM E/R : Component Parts Location"

.

3.

TCM

TCM supplies power to the starter relay and starter control relay inside
IPDM E/R when the selector lever is shifted to the P or N position.
Refer to

TM-10, "CVT CONTROL SYSTEM : Component Parts Loca-

tion"

.

4.

Starter motor

The starter motor plunger closes and the motor is supplied with battery
power, which in turn cranks the engine, when the “S” terminal is sup-
plied with electric power.

JMBIA3732ZZ

SYSTEM

STR-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

SYSTEM

System Description

INFOID:0000000009650601

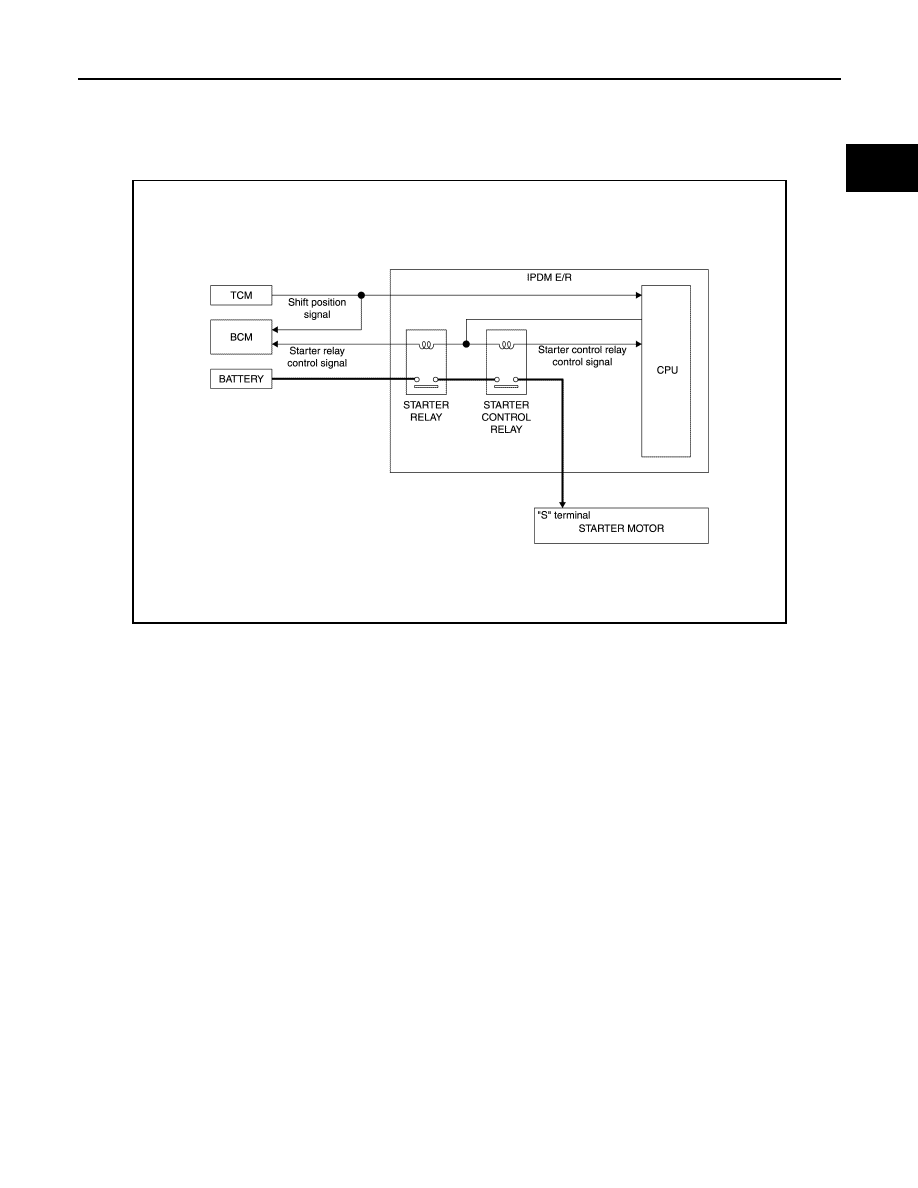

SYSTEM DIAGRAM

OUTLINE

• TCM transmits shift position signal to BCM and IPDM E/R, when selector lever is in the P or N position.
• IPDM E/R supplies power supply to starter relay and starter control relay, when shift position signal is

received.

• When starter operating condition is satisfied, IPDM E/R turns starter control relay ON by starter control relay

control signal.

• When engine cranking condition is satisfied, BCM turns starter relay ON by starter relay control signal.
• Then battery power is supplied to starter motor (“S” terminal) through starter control relay and starter relay.

JMBIA3733GB
