DIAGNOSIS SENSOR UNIT

SRC-25

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

B1198

CURTAIN MODULE LH
[OPEN]

Front curtain air bag module LH circuit is open

SRC-159, "DTC
Logic"

B1199

CURTAIN MODULE LH
[VB-SHORT]

Front curtain air bag module LH circuit is shorted to power sup-
ply circuit

SRC-161, "DTC
Logic"

B1200

CURTAIN MODULE LH
[GND-SHORT]

Front curtain air bag module LH circuit is shorted to ground

SRC-163, "DTC
Logic"

B1201

CURTAIN MODULE LH
[SHORT]

Front curtain air bag module LH circuits are shorted to each
other

SRC-165, "DTC
Logic"

B1202-B1207

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-167, "DTC
Logic"

.

B1209

FRONTAL COLLISION DETEC-
TION

Seat belt pre-tensioner, driver air bag and passenger air bag
are deployed

SRC-168, "De-
scription"

.

B1210

SIDE COLLISION DETECTION

Side air bag, curtain air bag and seat belt pre-tensioner are de-
ployed

SRC-169, "DTC
Logic"

.

B1212-B1214

RH1 SAT-SENS

Front satellite sensor RH is malfunctioning

SRC-170, "DTC
Logic"

.

B1215-B1217

LH1 SAT-SENS

Front satellite sensor LH is malfunctioning

SRC-172, "DTC
Logic"

.

B1218-B1223

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-174, "DTC
Logic"

.

B1234-B1239

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-175, "DTC
Logic"

B1250-B1255

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-176, "DTC
Logic"

B1266-B1269

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-177, "DTC
Logic"

B1282-B1285

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-178, "DTC
Logic"

B1304

SATELLITE SENS RH
[UNIT MALF]

Rear satellite sensor RH is malfunctioning

SRC-179, "DTC
Logic"

B1306
B1308
B1309
B1310

SATELLITE SENS RH
[COMM MALF]

Rear satellite sensor RH is malfunctioning

SRC-181, "DTC
Logic"

B1307

SATELLITE SENS RH
[UNMATCH]

Rear satellite sensor RH is out of the specified specification

SRC-183, "DTC
Logic"

B1311

SATELLITE SENS LH
[UNIT MALF]

Rear satellite sensor LH is malfunctioning

SRC-184, "DTC
Logic"

B1313
B1315
B1316
B1317

SATELLITE SENS LH
[COMM MALF]

Rear satellite sensor LH is malfunctioning

SRC-186, "DTC
Logic"

B1314

SATELLITE SENS LH
[UNMATCH]

Rear satellite sensor LH is out of the specified specification

SRC-188, "DTC
Logic"

B1336
B1337

FR-RH DOOR SATEL SENS
[SENSOR MALFUNCTION]

Front door satellite sensor RH is malfunctioning

SRC-189, "DTC
Logic"

B1338
B1340
B1341
B1342

FR-RH DOOR SATEL SENS
[COMM MALFUNCTION]

Front door satellite sensor RH is malfunctioning

SRC-191, "DTC
Logic"

B1339

FR-RH DOOR SATEL SENS
[MIS-INSTALLATION]

Front door satellite sensor RH is out of the specified specifica-
tion

SRC-193, "DTC
Logic"

B1343
B1344

FR-LH DOOR SATEL SENS
[SENSOR MALFUNCTION]

Front door satellite sensor LH is malfunctioning

SRC-194, "DTC
Logic"

DTC

Diagnostic item

Explanation

Reference page

SRC-26

< ECU DIAGNOSIS INFORMATION >

DIAGNOSIS SENSOR UNIT

B1345
B1347
B1348
B1349

FR-LH DOOR SATEL SENS
[COMM MALFUNCTION]

Front door satellite sensor LH is malfunctioning

SRC-196, "DTC
Logic"

B1346

FR-LH DOOR SATEL SENS
[MIS-INSTALLATION]

Front door satellite sensor LH is out of the specified specifica-
tion

SRC-198, "DTC
Logic"

B1350
B1351

FR DOOR SATEL SENS

Front door satellite sensor is malfunctioning

SRC-199, "DTC
Logic"

B1378-B1381

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-200, "DTC
Logic"

DTC

Diagnostic item

Explanation

Reference page

SRS AIR BAG SYSTEM

SRC-27

< WIRING DIAGRAM >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

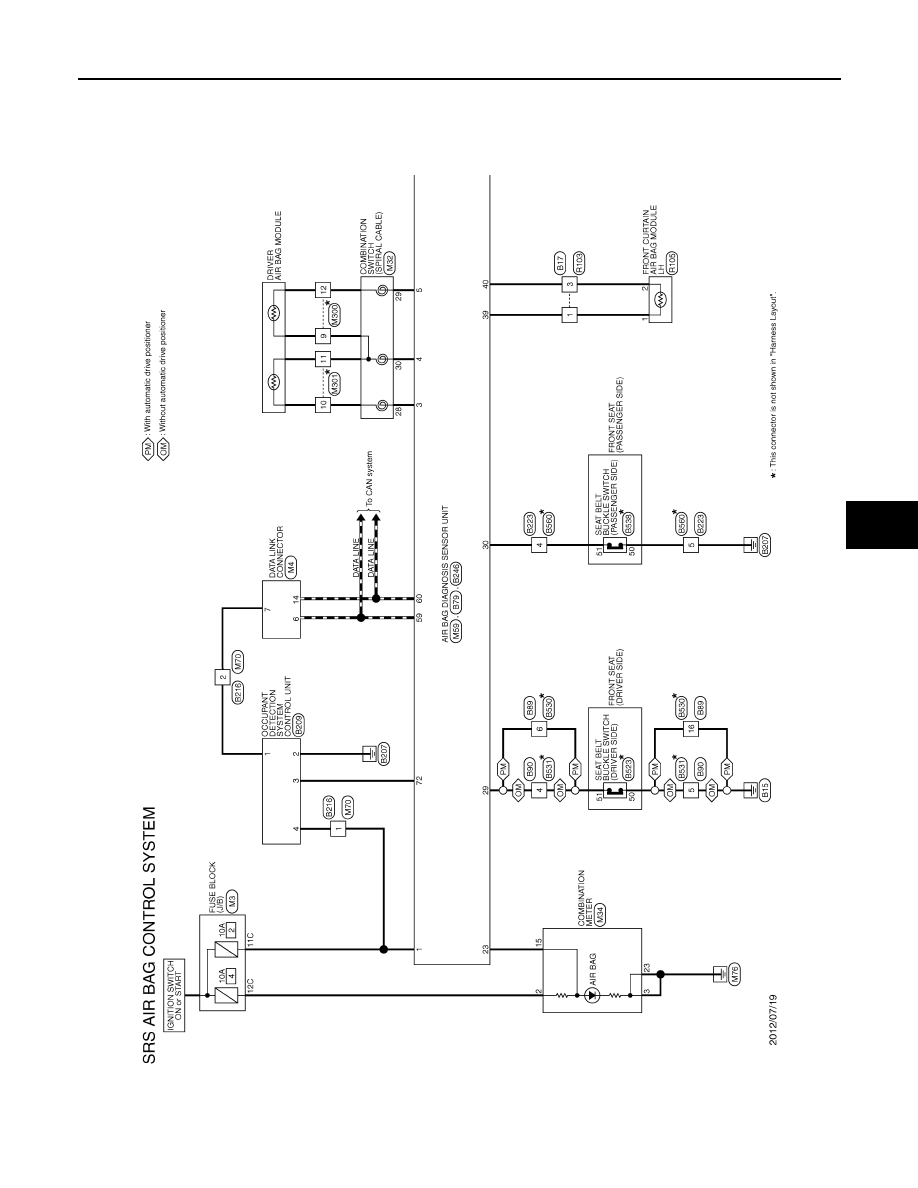

WIRING DIAGRAM

SRS AIR BAG SYSTEM

Wiring Diagram

INFOID:0000000009649849

JRHWC0312GB

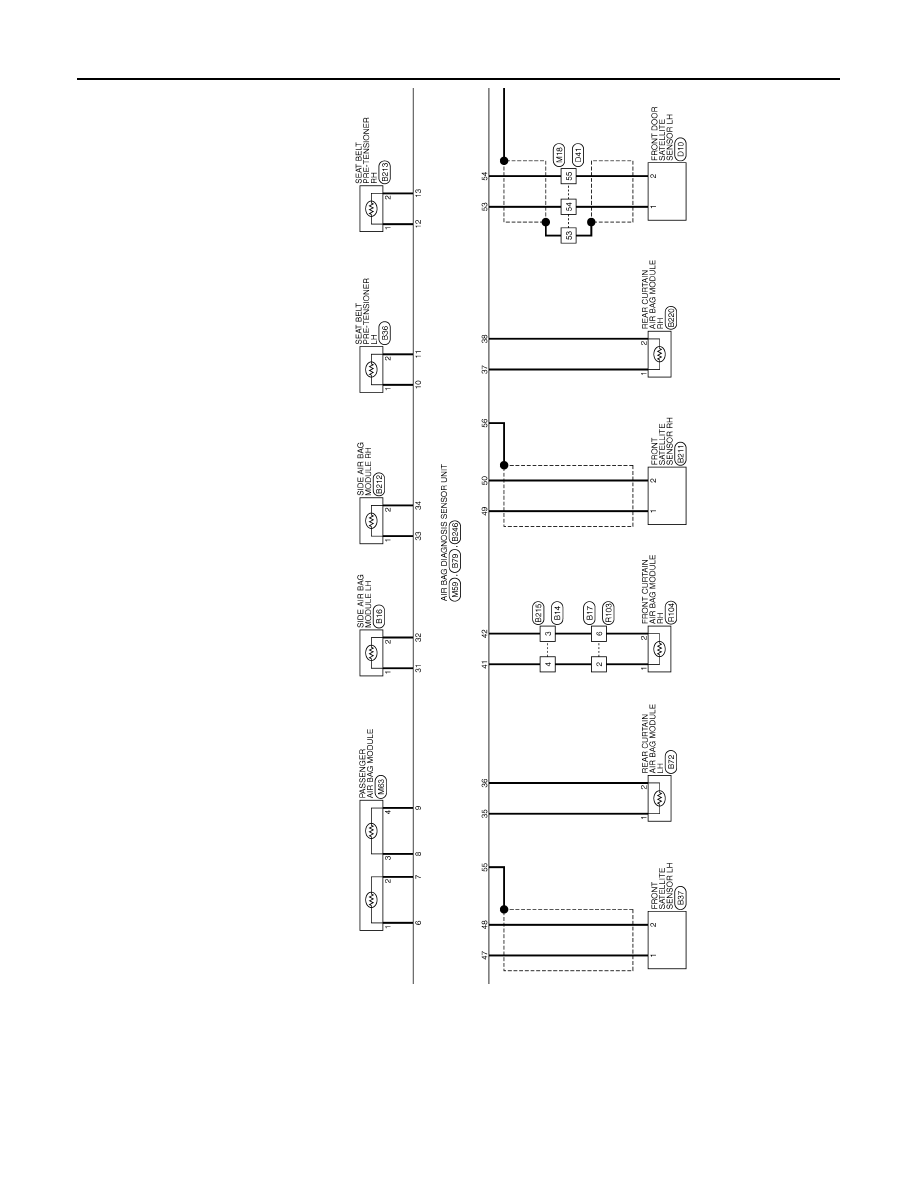

SRC-28

< WIRING DIAGRAM >

SRS AIR BAG SYSTEM

JRHWC0313GB
