Nissan Quest E52. Manual - part 1071

SECOND SEAT

SE-113

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

SECOND SEAT

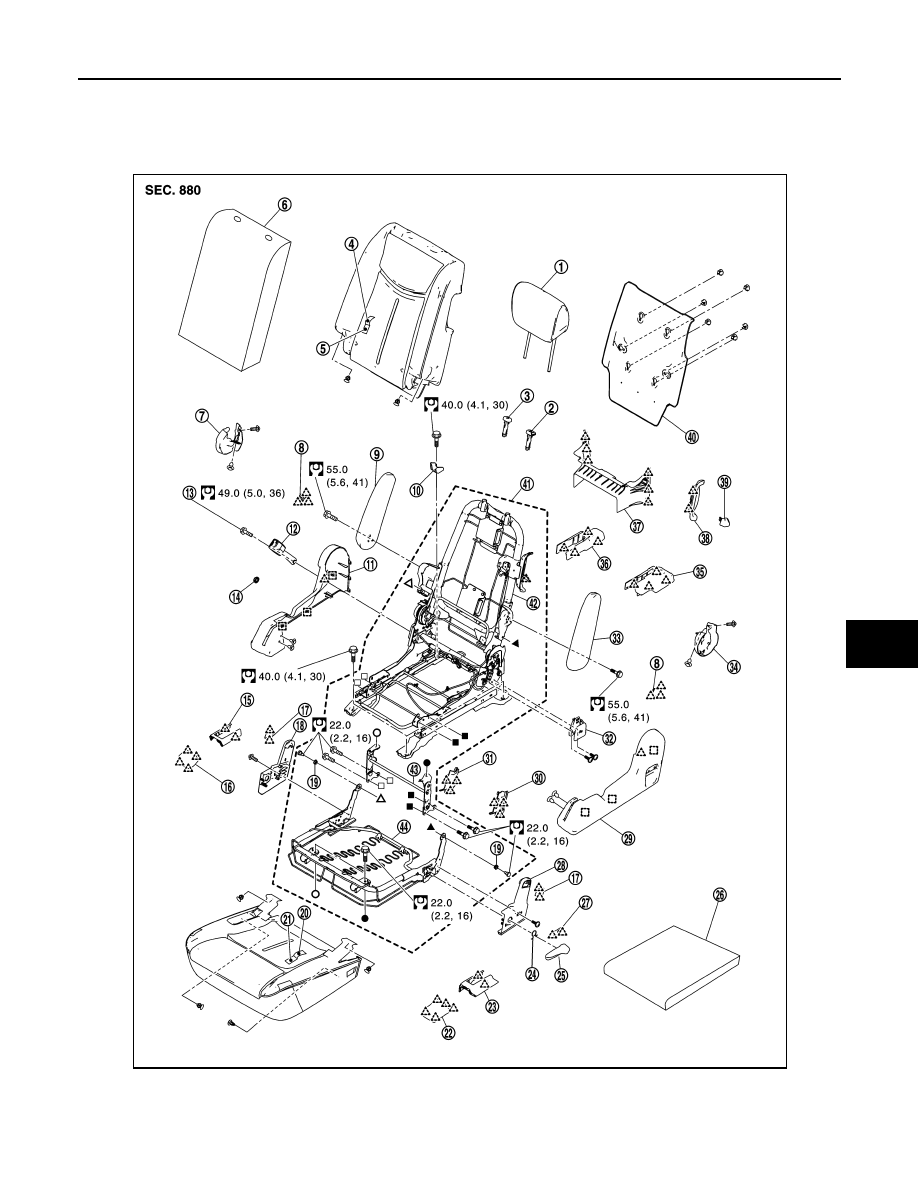

Exploded View

INFOID:0000000009652991

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback trim

5.

Seatback pad

6.

Seatback silencer

7.

Reclining device inner cover

8.

Armrest cap

9.

Inner armrest assembly

JMJIA6214GB

SE-114

< REMOVAL AND INSTALLATION >

SECOND SEAT

Removal and Installation

INFOID:0000000009652992

REMOVAL

1.

Remove headrest.

2.

Remove rear kicking plate. Refer to

INT-22, "KICKING PLATE : Removal and Installation"

.

3.

Slide seat to the frontmost position.

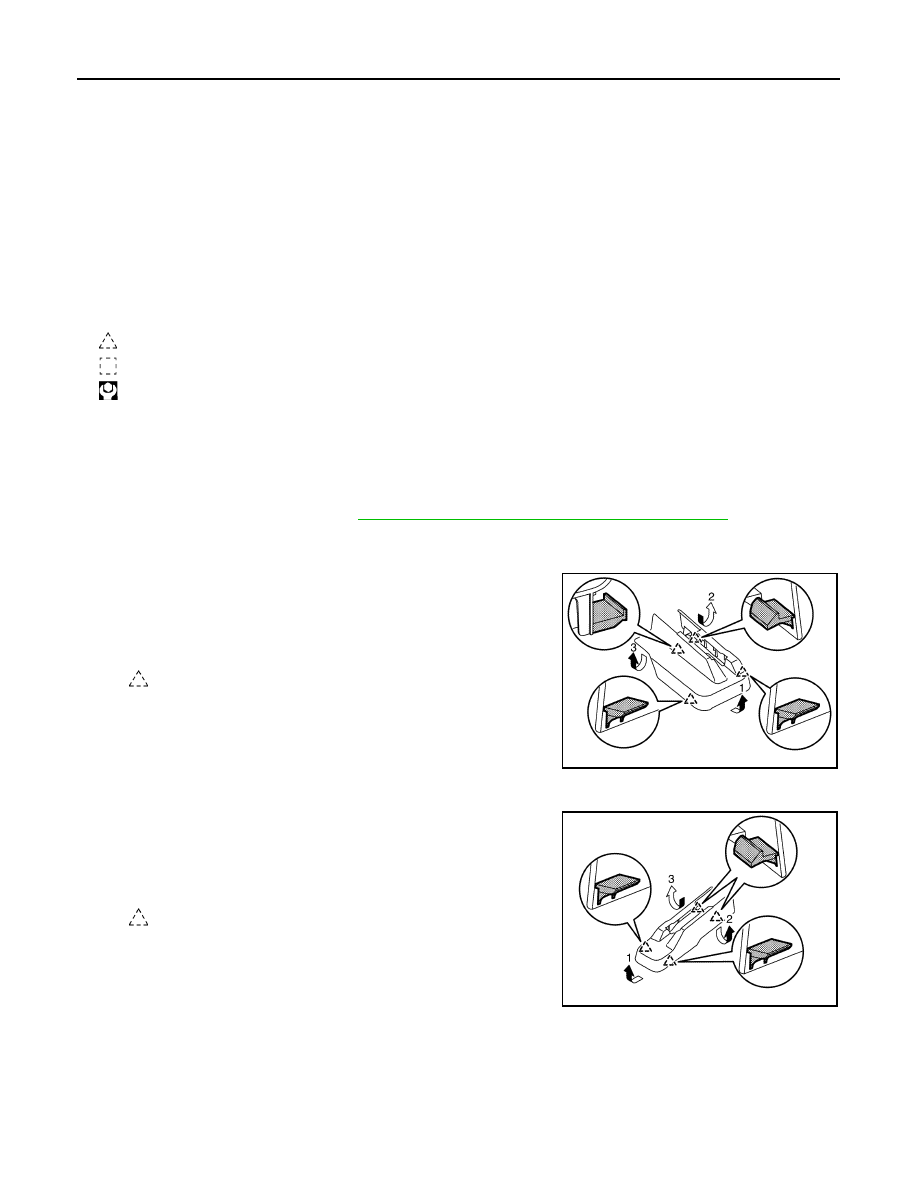

4.

Remove seat rear outer leg cover.

a.

Pull up the rear edge of the seat rear outer leg cover to release
the pawls.

b.

Pull seat rear outer leg cover in direction indicated by the arrow
as shown in the figure. Disengage pawls on the rear side.

5.

Remove seat rear inner leg cover.

a.

Pull up the rear edge of the seat rear inner leg cover to release
the pawls.

b.

Pull seat rear inner leg cover in direction indicated by the arrow
as shown in the figure. Disengage pawls on the rear side.

6.

Remove rear outer mounting bolt.

7.

Remove rear inner mounting bolt and seat slide bracket.

8.

Slide seat to the rearmost position.

9.

Remove seat front outer leg cover (front).

10. Seat slide bracket

11.

Seat cushion inner finisher

12. Seat belt buckle

13. Anchor bolt

14. Anchor bolt cap

15. Seat front inner leg cover (rear)

16. Seat front inner leg cover (front)

17. Seat hinge finisher cap

18. Seat hinge outer finisher RH

19. Bush

20. Seat cushion trim

21. Seat cushion pad

22. Seat front outer leg cover (front)

23. Seat front outer leg cover (rear)

24. Snap ring

25. Seat reclining lever knob

26. Seat cushion silencer

27. Seat hinge finisher patch

28. Seat hinge outer finisher LH

29. Seat cushion outer finisher

30. Seat hinge inner finisher LH

31. Seat hinge inner finisher RH

32. Seat folding lever assembly

33. Outer armrest assembly

34. Reclining device outer cover

35. Seat rear outer leg cover

36. Seat rear inner leg cover

37. Seat cushion rear center finisher

38. Walk-in lever escutcheon

39. Walk-in lever knob

40. Seatback board

41. Seat frame & adjuster assembly

42. Seat frame assembly

43. Seat link assembly

44. Seat cushion frame

: Pawl

: Metal clip

: N·m (kg-m, ft-lb)

: Pawl

JMJIA6225ZZ

: Pawl

JMJIA6226ZZ

SECOND SEAT

SE-115

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

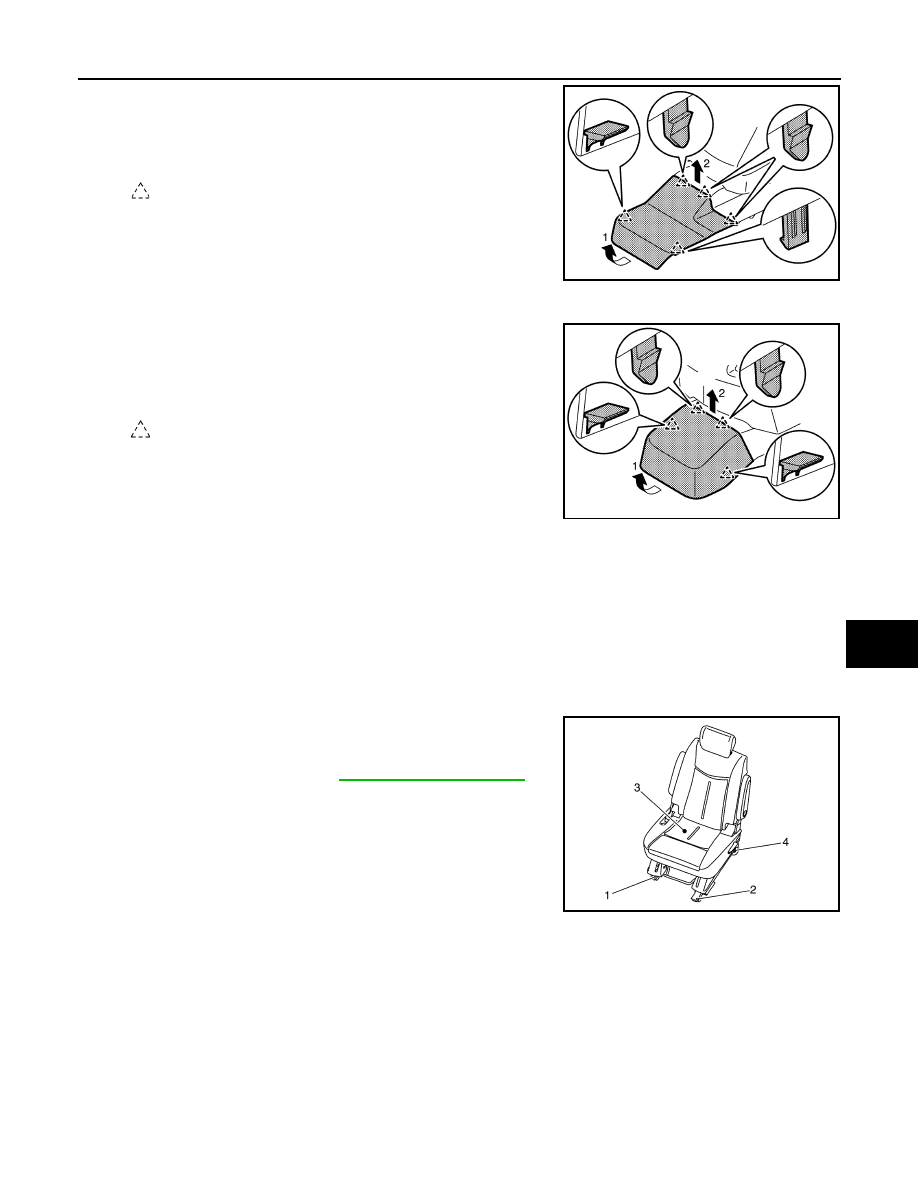

a.

Pull up the front edge of the seat front outer leg (front) cover to
release the pawls.

b.

Pull seat front outer leg cover (front) upwards. Disengage pawls
on the rear side.

10. Remove seat front inner leg cover (front).
a.

Pull up the front edge of the seat front inner leg (front) cover to
release the pawls.

b.

Pull seat front inner leg cover (front) upwards. Disengage pawls
on the rear side.

11. Remove front outer mounting bolt.

12. Remove front inner mounting bolt.
13. Remove seat from the vehicle.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.
• When installing, tighten mounting bolts according to the

numerical order as shown in the figure, starting from front
inner mounting bolt.
For the specified torque, refer to

SE-113, "Exploded View"

.

SEATBACK

SEATBACK : Disassembly and Assembly

INFOID:0000000009652993

DISASSEMBLY

1.

Remove walk-in lever escutcheon.

: Pawl

JMJIA6227ZZ

: Pawl

JMJIA6228ZZ

JMJIA6229ZZ

SE-116

< REMOVAL AND INSTALLATION >

SECOND SEAT

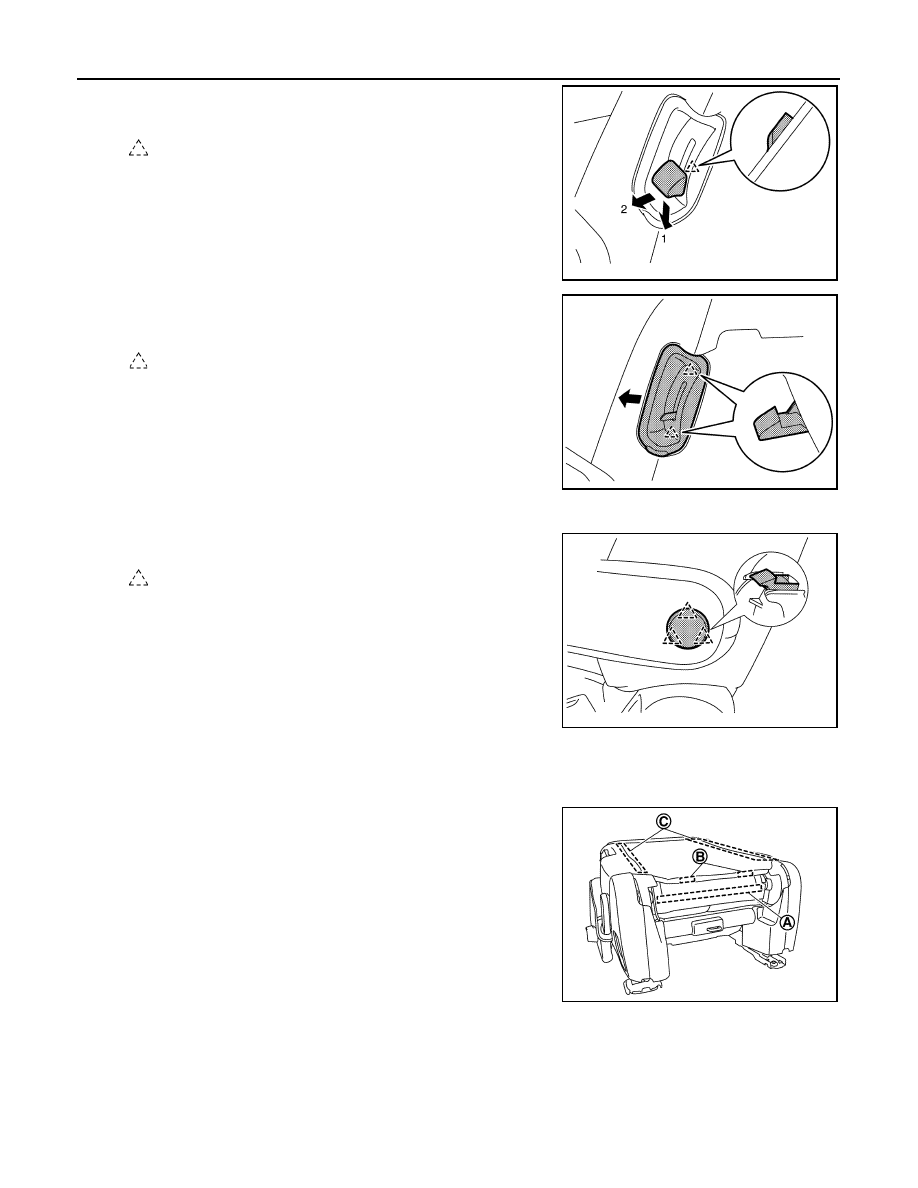

a.

Pull down walk-in lever knob, disengage pawl using a screw-
driver, and then slide walk-in lever knob to remove.

b.

Pull walk-in lever escutcheon forward, disengage pawls, and
then remove walk-in lever escutcheon.

2.

Remove inner armrest assembly and outer armrest.

a.

Disengage pawls and remove armrest cap.

b.

Remove mounting bolt, and then remove inner armrest assembly and outer armrest assembly.

3.

Remove seatback board from the seat frame & adjuster assembly.

a.

Operate seat reclining lever and fold seatback forward.

b.

Remove seatback trim hook and loop fastener (A).

c.

Remove seatback retainer (B), and then open seatback fastener
(C).

d.

Remove rubber band installed on seatback board.

: Pawl

JMJIA6230ZZ

: Pawl

JMJIA6250ZZ

: Pawl

JMJIA4680ZZ

JMJIA6251ZZ
