Nissan Quest E52. Manual - part 1064

FRONT SEAT (MANUAL SEAT)

SE-85

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REMOVAL AND INSTALLATION

FRONT SEAT (MANUAL SEAT)

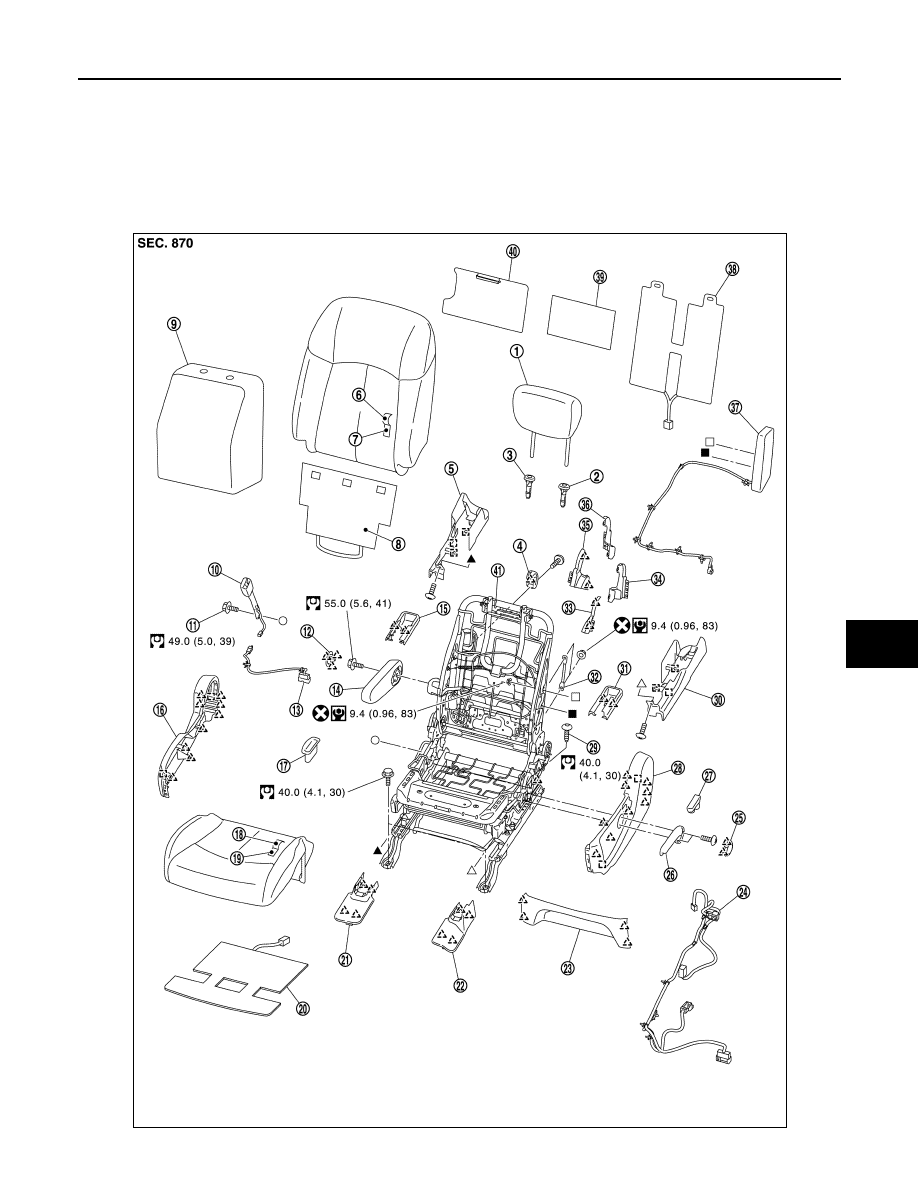

Exploded View

INFOID:0000000009652983

DRIVER SEAT

JMJIA7024GB

SE-86

< REMOVAL AND INSTALLATION >

FRONT SEAT (MANUAL SEAT)

*

: Only for seat with heater unit.

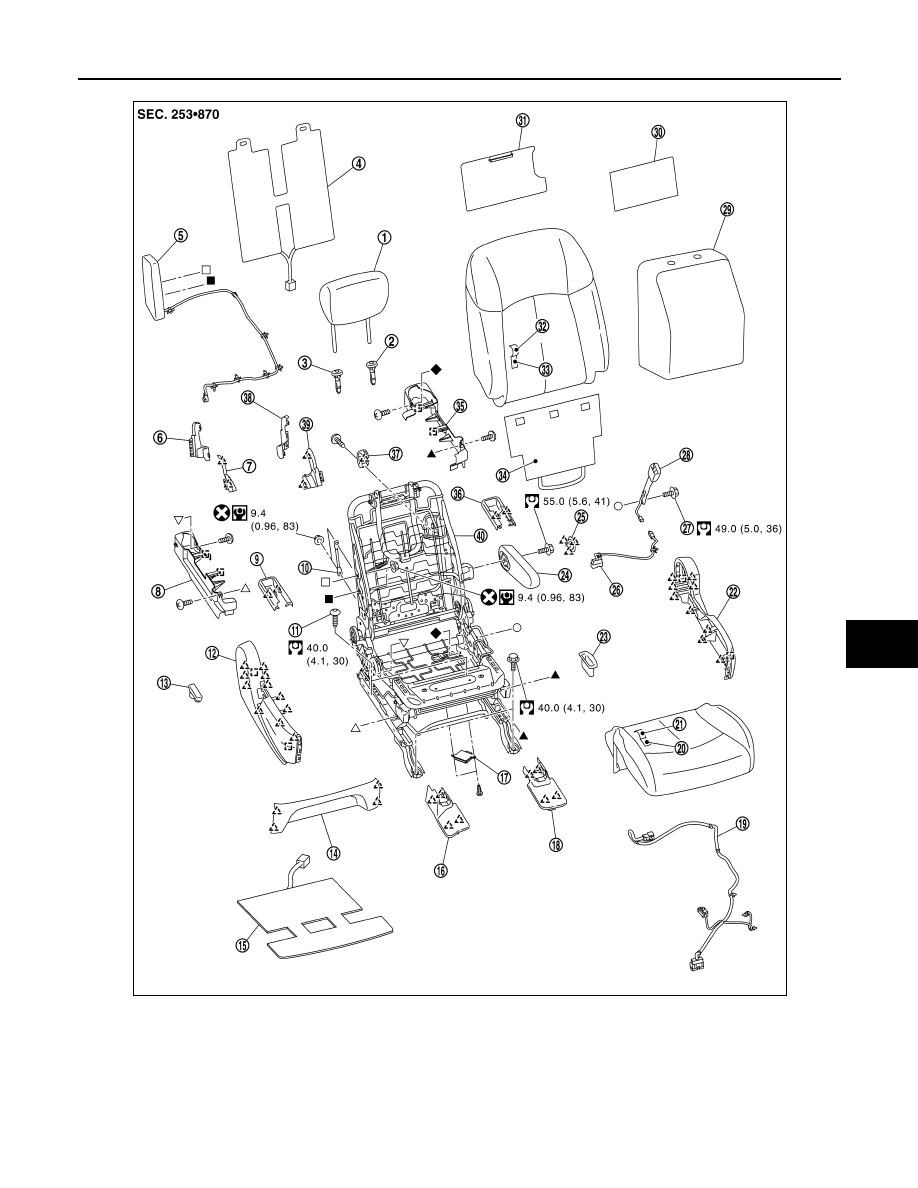

PASSENGER SEAT

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback hook assembly

5.

Lower inner finisher

6.

Seatback trim

7.

Seatback pad

8.

Seatback lower carpet

9.

Seatback silencer

10. Seat belt buckle

11.

Anchor bolt

12. Armrest cap

13. Seat belt buckle harness

14. Armrest assembly

15. Seat slide rear inner cover

16. Seat cushion inner finisher

17. Seat belt buckle trim

18. Seat cushion trim

19. Seat cushion pad

20. Seat cushion heater unit

*

21. Seat slide front inner cover

22. Seat slide front outer cover

23. Seat cushion finisher

24. Seat harness assembly

25. Seat lifter lever knob cap

26. Seat lifter lever knob

27. Seat reclining lever knob

28. Seat cushion outer finisher

29. TORX bolt

30. Lower outer finisher

31. Seat slide rear outer cover

32. Side air bag rod

33. Reclining device outer cover (front)

34. Reclining device outer cover (rear)

35. Reclining device inner cover (front)

36. Reclining device inner cover (rear)

37. Side air bag module

38. Seatback heater unit

*

39. Seatback felt

40. Seatback board

41. Seat frame & adjuster assembly

: Pawl

: Metal clip

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

FRONT SEAT (MANUAL SEAT)

SE-87

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback heater unit

*

5.

Side air bag module

6.

Reclining device outer cover (rear)

7.

Reclining device outer cover (front)

8.

Lower outer finisher

9.

Seat slide rear outer cover

10. Side air bag rod

11.

TORX bolt

12. Seat cushion outer finisher

13. Seat reclining lever knob

14. Seat cushion finisher

15. Seat cushion heater unit

*

JMJIA9481GB

SE-88

< REMOVAL AND INSTALLATION >

FRONT SEAT (MANUAL SEAT)

*

: Only for seat with heater unit.

Removal and Installation

INFOID:0000000009652984

REMOVAL

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or
more.

1.

Remove headrest.

2.

Operate seat slide lever and slide seat to the frontmost position.

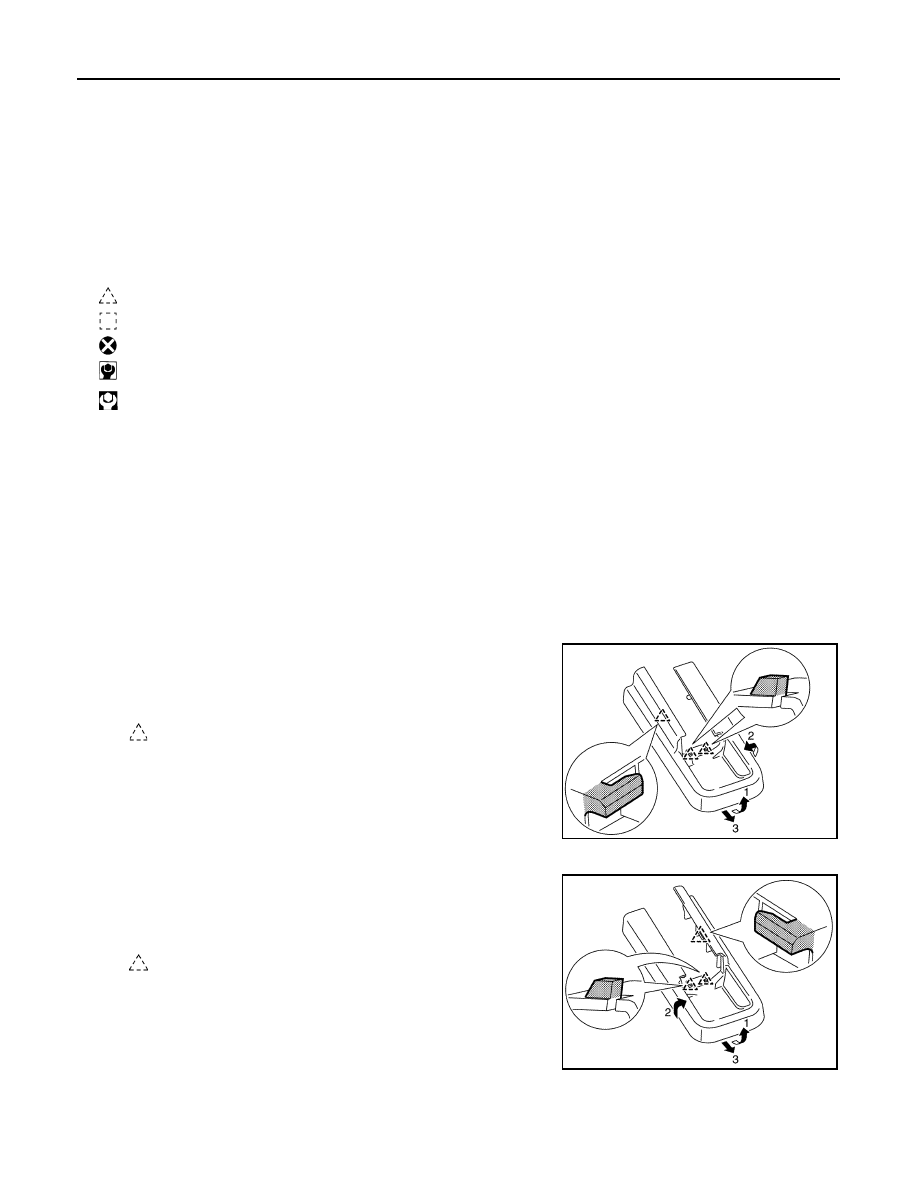

3.

Remove seat slide rear outer cover.

a.

Disengage pawls on the rear side of seat slide rear outer cover.

b.

Disengage pawls on the front side of seat slide rear outer cover.

c.

Slide seat slide rear outer cover to the rear side to remove.

4.

Remove seat slide rear inner cover.

a.

Disengage pawls on the rear side of seat slide rear inner cover.

b.

Disengage pawls on the front side of seat slide rear inner cover.

c.

Slide seat slide rear inner cover to the rear side to remove.

5.

Remove rear outer mounting TORX bolt.

6.

Remove rear inner mounting TORX bolt.

7.

Operate seat slide lever and slide seat to the rearmost position.

16. Seat slide front outer cover

17. Occupant detection system control

unit

18. Seat slide front inner cover

19. Seat harness assembly

20. Seat cushion pad

21. Seat cushion trim

22. Seat cushion inner finisher

23. Seat belt buckle trim

24. Armrest assembly

25. Armrest cap

26. Seat belt buckle harness

27. Anchor bolt

28. Seat belt buckle

29. Seatback silencer

30. Seatback felt

31. Seatback board

32. Seatback trim

33. Seatback pad

34. Seatback lower carpet

35. Lower inner finisher

36. Seat slide rear inner cover

37. Seatback hook assembly

38. Reclining device inner cover (rear)

39. Reclining device inner cover (front)

40. Seat frame & adjuster assembly

: Pawl

: Metal clip

: Always after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Pawl

JMJIA4743ZZ

: Pawl

JMJIA4744ZZ
