PWO-12

< SYSTEM DESCRIPTION >

[AC 120 V OUTLET]

COMPONENT PARTS

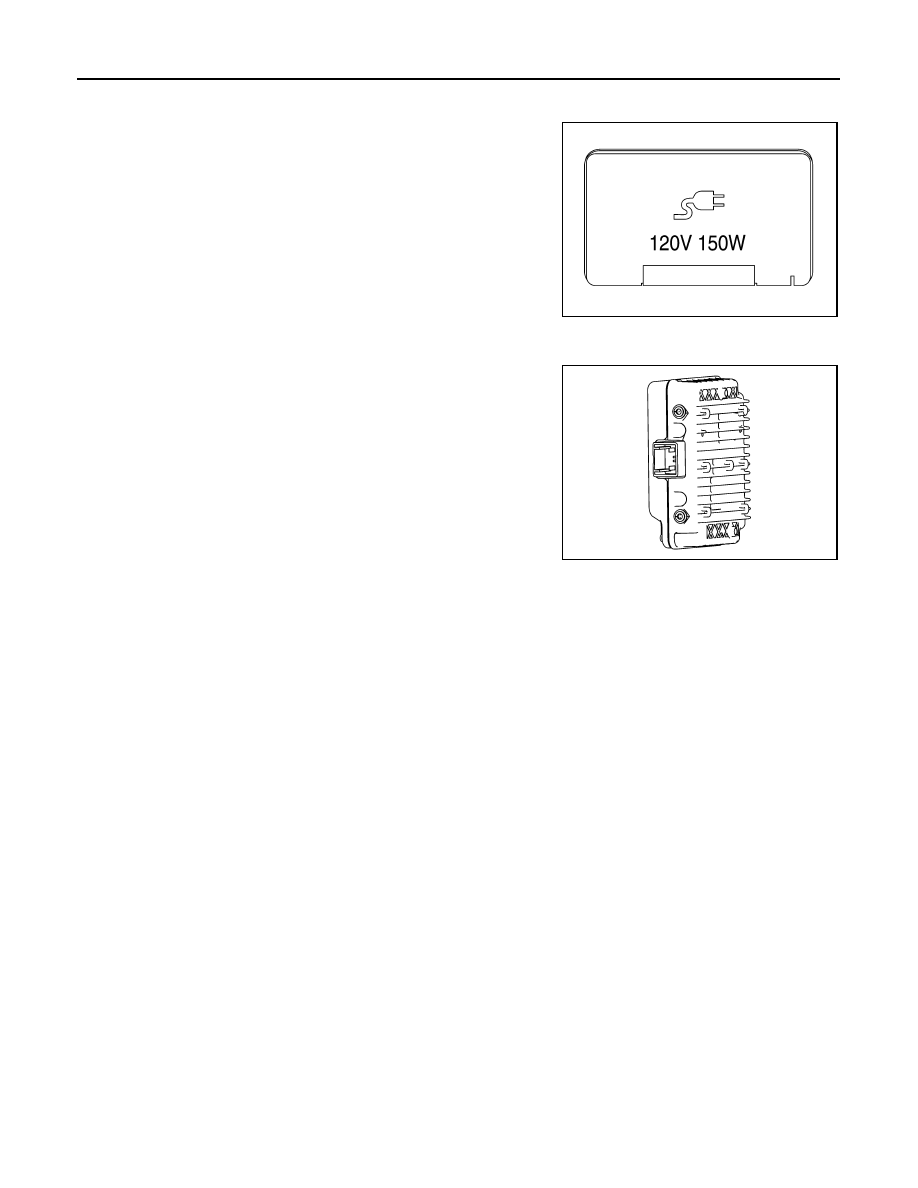

AC 120 V Outlet

INFOID:0000000009651874

The AC 120 V outlet allows using AC 120 V converted in the inverter
unit as an outlet.

Inverter Unit

INFOID:0000000009651875

The inverter unit converts an applied power supply voltage (approxi-
mately DC 12 V) to AC 120 V and outputs the converted voltage.

JSMIA0712ZZ

JSMIA0711ZZ

PWO

SYSTEM

PWO-13

< SYSTEM DESCRIPTION >

[AC 120 V OUTLET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM

System Description

INFOID:0000000009651876

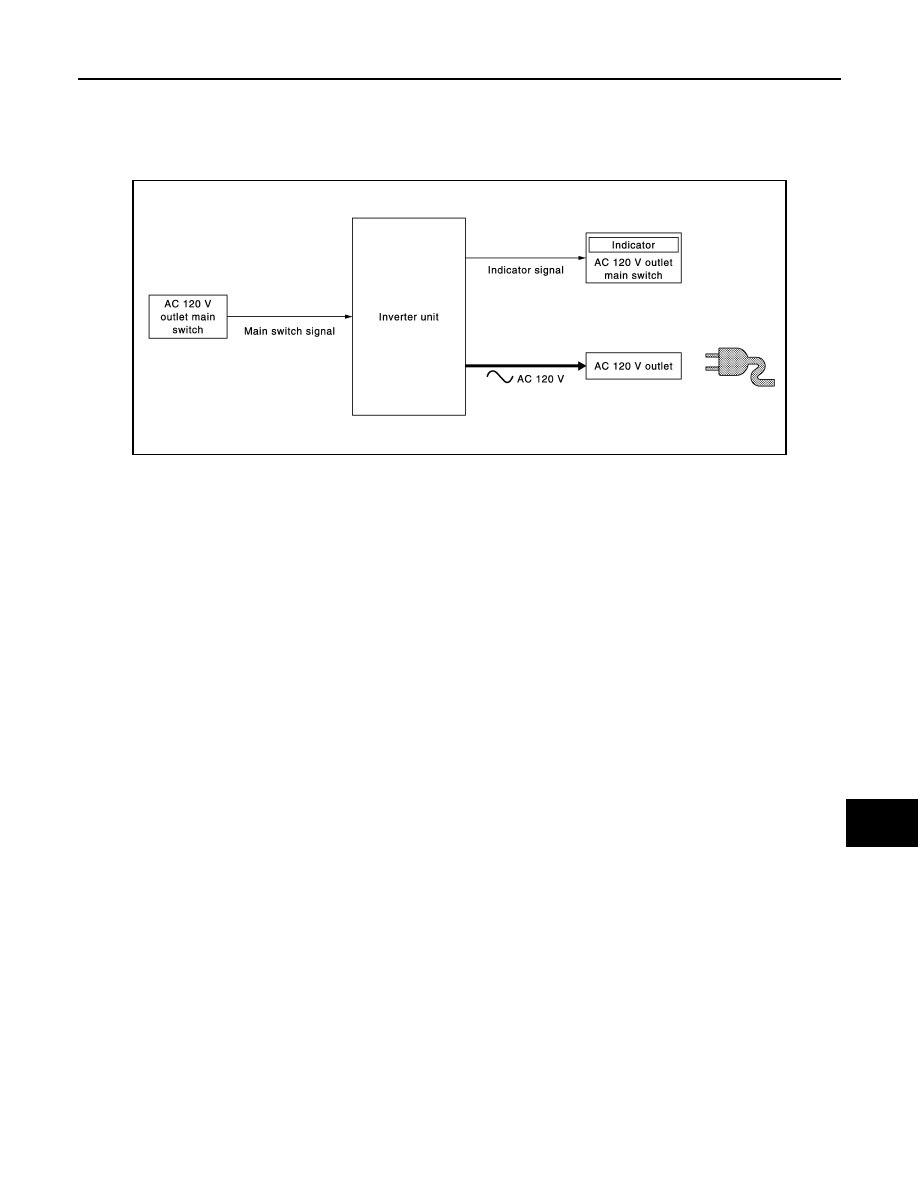

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

• When turning ON the AC 120 V outlet main switch with the ignition switch ON, the indicator turns ON and the

inverter unit is activated.

• The inverter unit converts power supply voltage to AC 120 V and outputs the converted voltage to the AC

120 V outlet two seconds after the AC 120 V outlet main switch is turned ON.

JSMIA0295GB

PWO-14

< SYSTEM DESCRIPTION >

[AC 120 V OUTLET]

SYSTEM

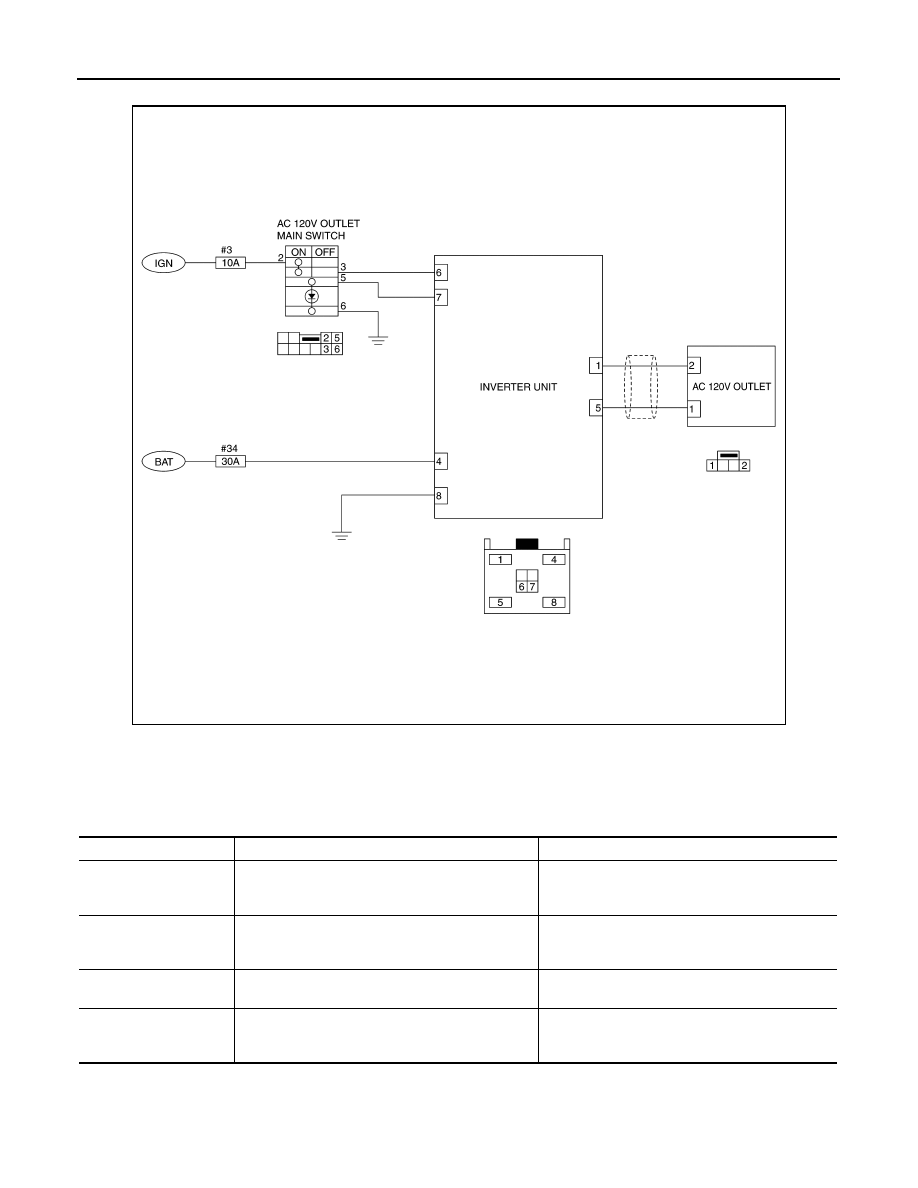

Circuit Diagram

INFOID:0000000009651877

Fail-safe

INFOID:0000000009651878

When a malfunction listed below occurs, the inverter unit turns OFF the AC 120 V outlet main switch indicator
and stops the output by operating the fail-safe.

JSMIA1144GB

Malfunction item

Fail-safe condition

Fail-safe cancellation condition

Inverter unit is overheat-
ed

When the inverter unit is overheated, the output
stops to protect the inverter unit.

After the inverter unit temperature is lowered, the
AC 120 V outlet main switch ON

⇒

 OFF

⇒

 ON op-

eration allows normal return.

Inverter unit power sup-
ply voltage is 11.5 V or
less

When inverter unit input voltage is lowered, the out-
put stops to protect the battery from running out.

Automatic normal return when inverter unit power
supply voltage reaches 11.5 V - 16 V.

Inverter unit power sup-
ply voltage is 16 V - 18 V

When inverter unit input voltage reaches 16 V - 18 V,
the output stops to protect the inverter unit.

Automatic normal return when inverter unit power
supply voltage reaches 11.5 V - 16 V.

Inverter unit power sup-
ply voltage is 18 V or
more

When inverter unit input voltage reaches 18 V or
more, the output stops to protect the inverter unit.

After the inverter unit power supply voltage reaches
11.5 V - 16 V, the AC 120V outlet main switch ON

⇒

 OFF

⇒

 ON operation allows normal return.

PWO

SYSTEM

PWO-15

< SYSTEM DESCRIPTION >

[AC 120 V OUTLET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Inverter unit output cur-
rent is 2.8 A or more

When inverter unit output current reaches 2.8 A or
more, the output stops to prevent over current. (e.g.
connecting an electric appliance exceeding rated
output)

Automatic normal return when inverter output cur-
rent reaches 2.8 A.

Inverter unit output signal
(AC 120 V output signal)
is shorted

When inverter unit output signal is shorted, the out-
put stops.

After recovering from inverter unit output signal
short, the AC 120 V outlet main switch ON

⇒

 OFF

⇒

 ON operation allows normal return.

Malfunction item

Fail-safe condition

Fail-safe cancellation condition
