Nissan Quest E52. Manual - part 99

AV

COMPONENT PARTS

AV-275

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• It displays the artist name, album title or song title recorded to the file by the ID3 tag/WMA tag display func-

tion.

• DVD playback function is equipped.

USB Interface

• Music can be played by connecting an iPod

®

 or USB memory.

Camera Controller

• Warning message, width/distance guiding line and predictive course line are generated on the image from

the rear view camera.

• The predictive course line is drawn based on the steering signal received from the steering sensor via CAN

communication.

Specification

Manufacturer name

Panasonic corporation

Audio amplifier

External amplifier

CD/DVD drive

Used disc

φ

 12 cm (4.7 in)

Playable disc

CD

CD-ROM (CD-DA)

CD-R

*1

CD-RW

*1

DVD

DVD-ROM

DVD-R

*1

DVD-RW

*1

Playable format

Music

MP3

WMA


DVD-VIDEO

VIDEO-CD

Text display function

ID3 / WMA tag

Artist name

Album title

Song title

USB

High communication standard

USB1.1

Playable format

Music

MP3

WMA

Text display function

ID3 / WMA tag

Artist name

Album title

Song title

iPod

®

Action

*2

iPod Classic

®

 1st generation

iPod Classic

®

 2nd generation

iPod nano

®

 3rd generation

iPod nano

®

 2nd generation

iPod nano

®

 1st generation

iPod

®

 5th generation

iPod touch

®

 1st generation

iPod touch

®

 2nd generation

iPhone 3rd generation

Flash memory

Total capacity

2 GB

AV-276

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

COMPONENT PARTS

• *1: If the reflectance of the surface of the media is low, the data may not be read.
• *2: It may not be used if it is not updated to the latest firmware or partial functions may not work if it is used.

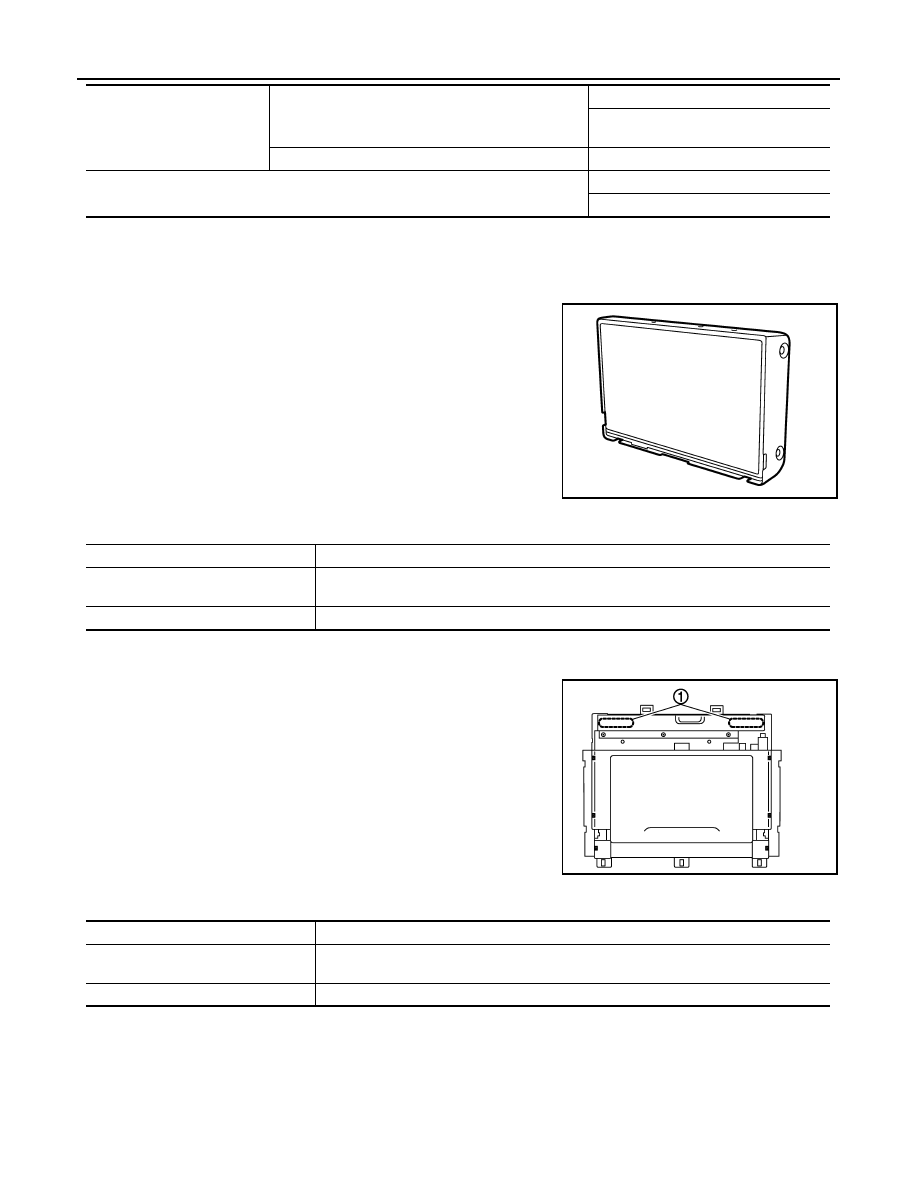

Front Display Unit

INFOID:0000000009652116

• The front display unit has an 7-inch QVGA liquid-crystal display.
• It receives the power (signal VCC and inverter VCC) from the AV

control unit and operates.

• Composite image signals (DVD, USB memory-stored video data,

auxiliary input, and camera) are input from AV control unit.

• RGB image signal is input from AV control unit (RGB, RGB area

and RGB synchronizing).

• Synchronizing signal (HP, VP) is output to AV control unit.
• This unit is connected to the AV control unit via serial communica-

tion. Images shown on the front display unit are controlled by the
AV control unit.

Specification

Rear Display Unit

INFOID:0000000009652117

• The rear display unit has an 11-inch WVGA

*

 liquid-crystal display

and a remote-control automatic folding function.

• Composite image signal [USB (video data), DVD and auxiliary

input] and headphone sound signal are input from AV control unit.

• A remote control operation signal is received through the built-in

light-receptive spot (1).

• The display brightness is adjusted automatically, according to

ambient brightness.

*: WVGA (Wide VGA) is a standard of the resolution of the display. It
extended width of VGA.

Specification

Camera controller

Guideline display function

Width/distance display

Predictive course lines display/non-dis-

play switch

Steering angle signal input method

CAN communication

Other functions

Speed sensitive volume function

Steering switch compliant

JPNIA1481ZZ

Manufacturer name

Panasonic corporation

Screen size

7-inch QVGA

[154.08

×

 86.58 mm (6.1

×

 3.4 in) ]

Number of pixels

480

×

 234 pixels

JSNIA3449ZZ

Manufacturer name

Clarion Co., Ltd.

Screen size

11-inch WVGA

[ 243.6 mm

×

137.52mm (9.6 in

×

 5.4 in) ]

Number of pixels

800

×

 480 pixels

AV

COMPONENT PARTS

AV-277

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

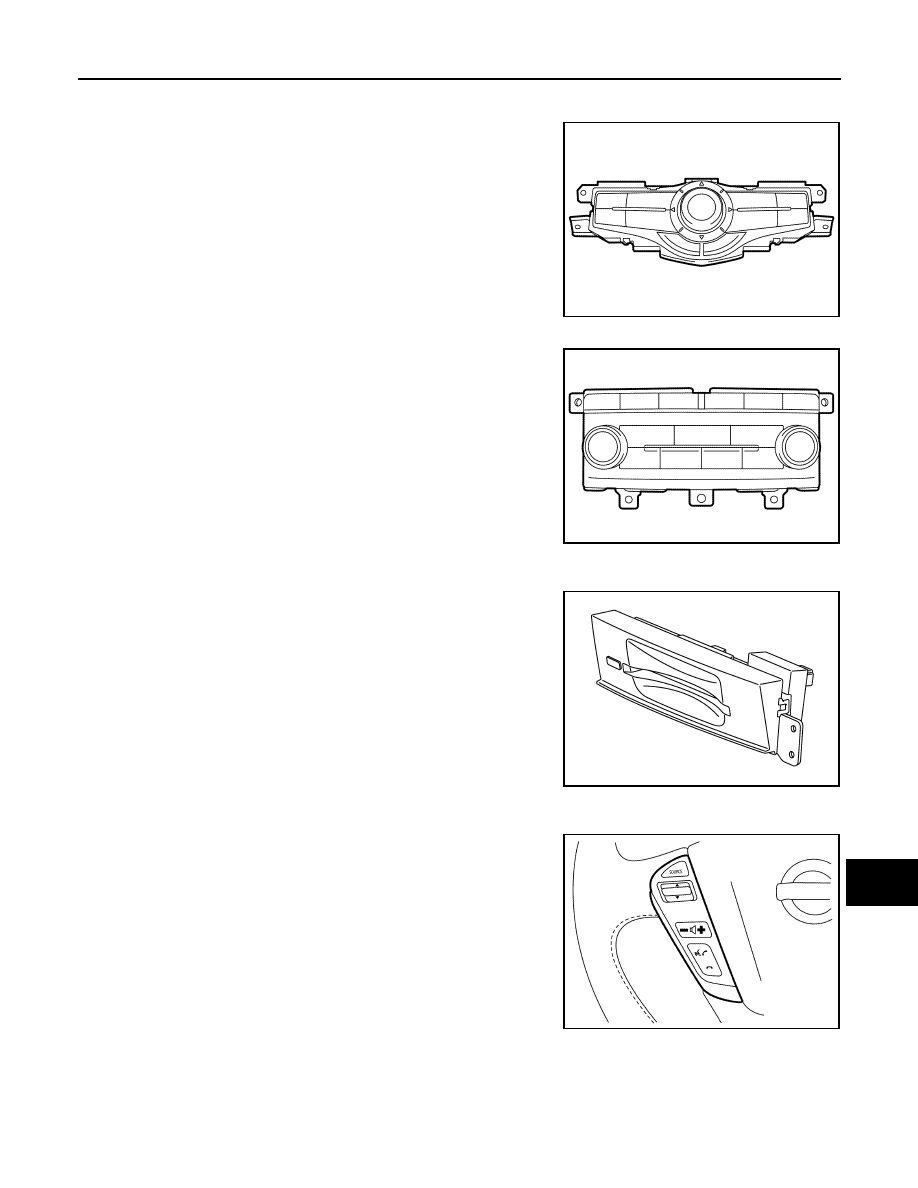

Multifunction Switch

INFOID:0000000009652118

• The multifunction switch is an integrated switch that combines the

audio operation and other operations switches. This integrated
switch is located in the lower part of the front display unit.

• Connected with preset switch via hardwire and operation signal is

transmitted to AV control unit via AV communication.

PRESET SWITCH

• The preset switch is separated from the multifunction switch and

capable of audio operation.

• Operation signals of the multifunction switch and the preset switch

are transmitted to the AV control unit via AV communication.

Disk Eject Switch

INFOID:0000000009652119

• The disk eject switch is used for removing CD/DVD from the AV

control unit.

• When the disk eject switch is pressed, a disk eject signal is trans-

mitted to the AV control unit, and the AV control unit ejects CD/
DVD.

Steering Switch

INFOID:0000000009652120

• Operations for audio and hands-free phone, etc. are possible.
• This switch is connected to the AV control unit, and the switch

operation signal is transmitted to the AV control unit via voltage
multiplex communication.

JSNIA4202ZZ

JSNIA4203ZZ

JSNIA3454ZZ

JSNIA4329ZZ

AV-278

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

COMPONENT PARTS

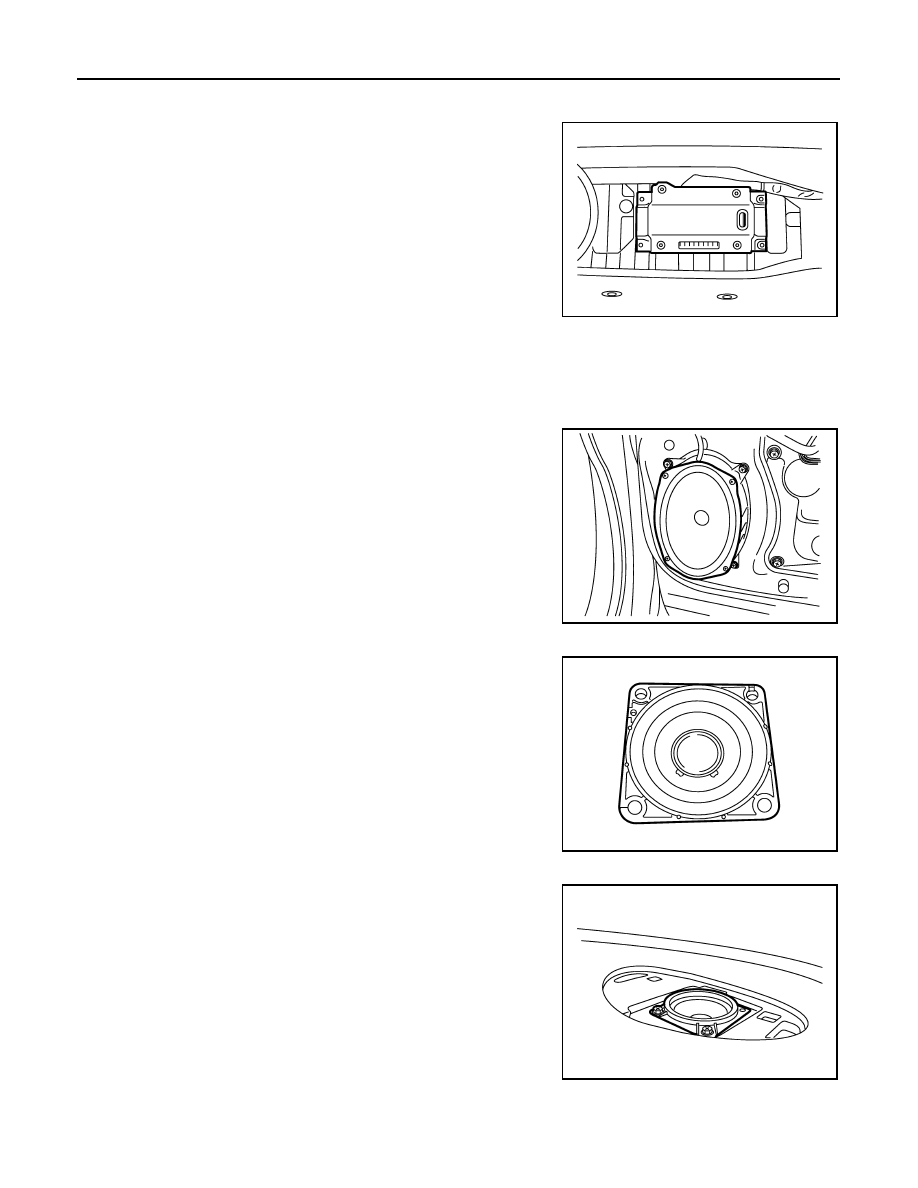

BOSE Amp.

INFOID:0000000009652121

• Installed to the luggage floor box.
• Receives sound signal from AV control unit, and outputs sound sig-

nal to each speaker and woofer.

Speaker

INFOID:0000000009652122

12 speakers system is adopted.

FRONT DOOR WOOFER

•

φ

 15.0

×

 23.0 cm (6

×

 9 in) speaker is installed to the bottom of the front door.

• Sound signal is input from the BOSE amp. to output low range

sounds.

FRONT SQUAWKER

•

φ

 6.5 cm (2 in) squawker is installed to the side of instrument

panel.

• Sound signal is input from the BOSE amp. to output high and mid

range sounds.

CENTER SQUAWKER

•

φ

 8 cm (3 in) squawker is installed to the center of instrument

panel.

• Sound signal is input from the BOSE amp. to output high and mid

range sounds.

SLIDE DOOR SQUAWKER

JSNIA3408ZZ

Rated input

: 13.6 W

Maximum
input

: 40.5 W

Impedance

: 2

Ω

JSNIA3401ZZ

Rated input

: 4.8 W

Maximum
input

: 14 W

Impedance

: 3.6

Ω

JSNIA3402ZZ

Rated input

: 7.6 W

Maximum
input

: 22.5 W

Impedance

: 3.6

Ω

JSNIA3403ZZ
