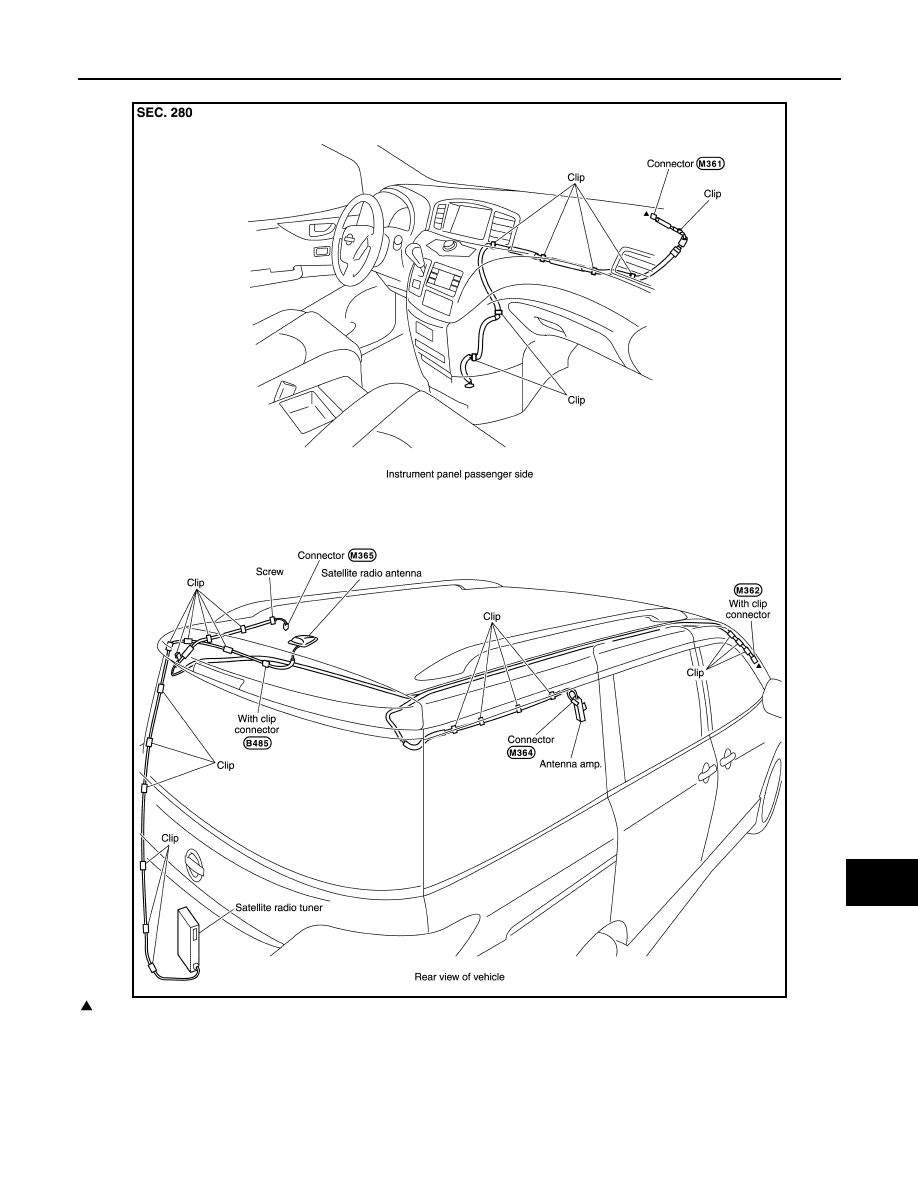

ANTENNA FEEDER LAYOUT

: Indicates that the part is connected at points with same symbol in actual vehicle.

JSNIA4219GB

AV-136

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH SEPARATE DISPLAY]

COMPONENT PARTS

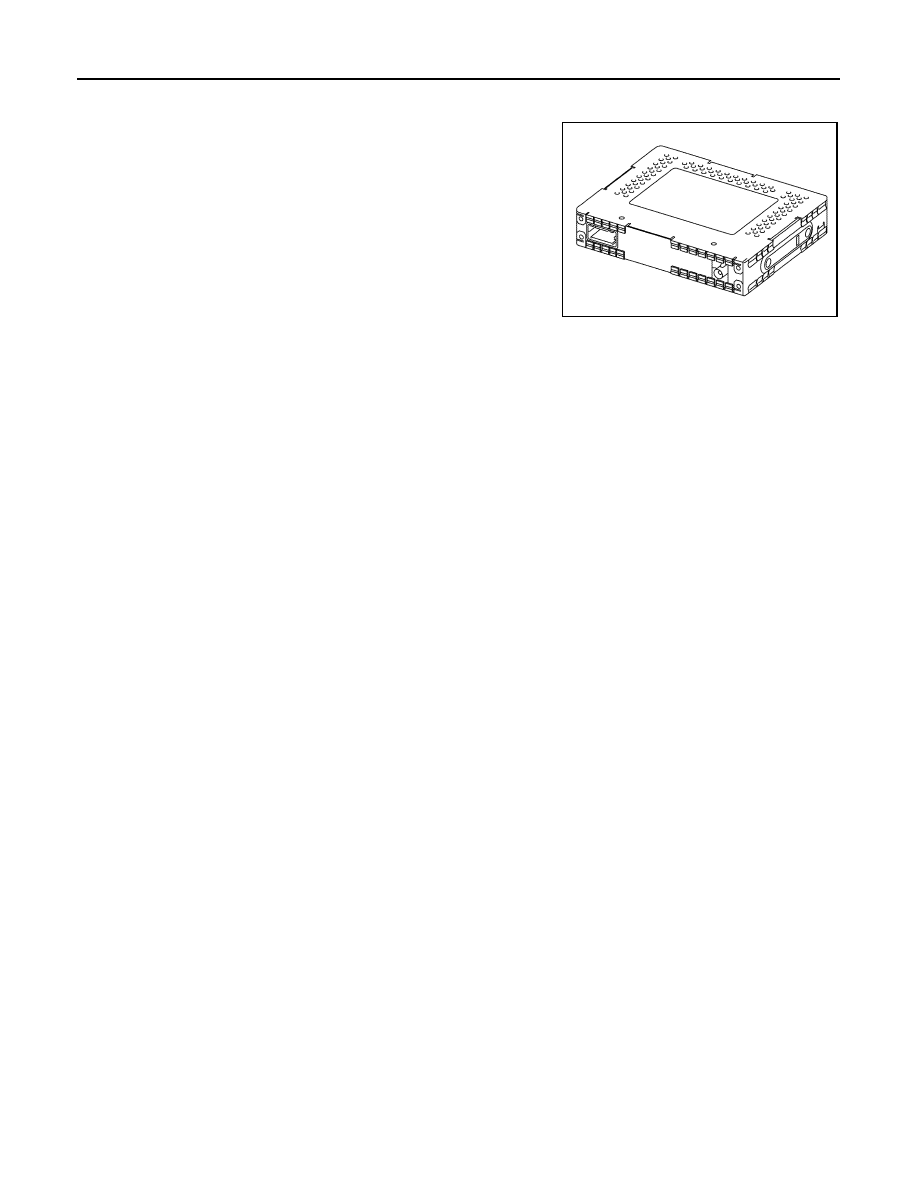

Satellite Radio Tuner

INFOID:0000000009652003

• Inputs the satellite radio signal from satellite radio antenna and

outputs the sound signal to the AV control unit.

• It is controlled with the AV control unit and serial communication

(communication signal and request signal).

Satellite Radio Antenna

INFOID:0000000009652004

SATELLITE RADIO ANTENNA

• Satellite radio antenna is installed to the rear center of the roof.
• Receives satellite radio waves and outputs it to satellite radio tuner.

JSNIA4235ZZ

AV

COMPONENT PARTS

AV-137

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH SEPARATE DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA FEEDER LAYOUT

: Indicates that the part is connected at points with same symbol in actual vehicle.

JSNIA4219GB

AV-138

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH SEPARATE DISPLAY]

COMPONENT PARTS

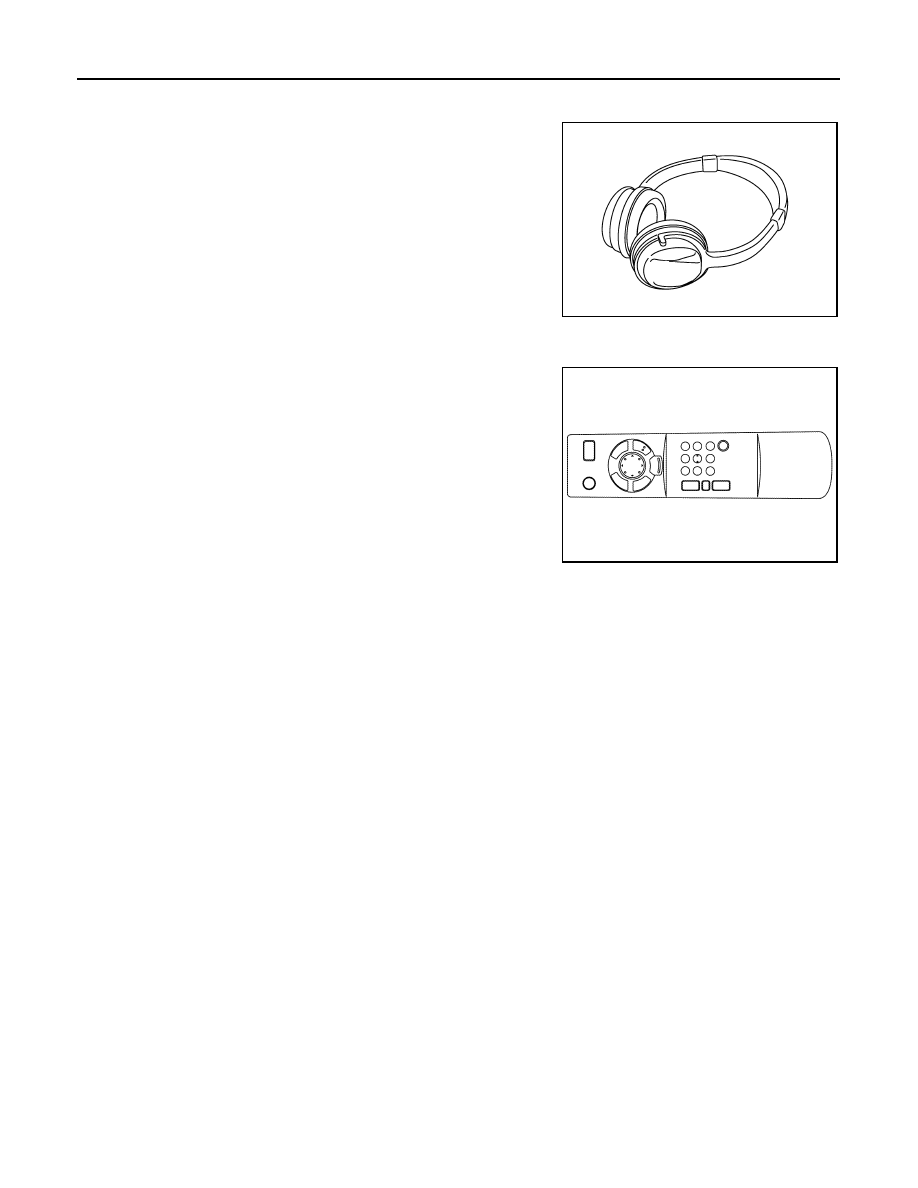

Headphone

INFOID:0000000009652005

• The adoption of the wireless headphone allows the independent

audio listening on the rear seat.

• Sound signals are received from the rear display unit via infrared

communication.

Remote Controller

INFOID:0000000009652006

• The adoption of the infrared remote controller allows audio opera-

tion and other operations on the rear seat.

• The light-receptive spot is included in the rear display unit.

Battery:

AAA battery

×

 2

JSNIA3450ZZ

Battery:

AA battery

×

 2

JSNIA4231ZZ
