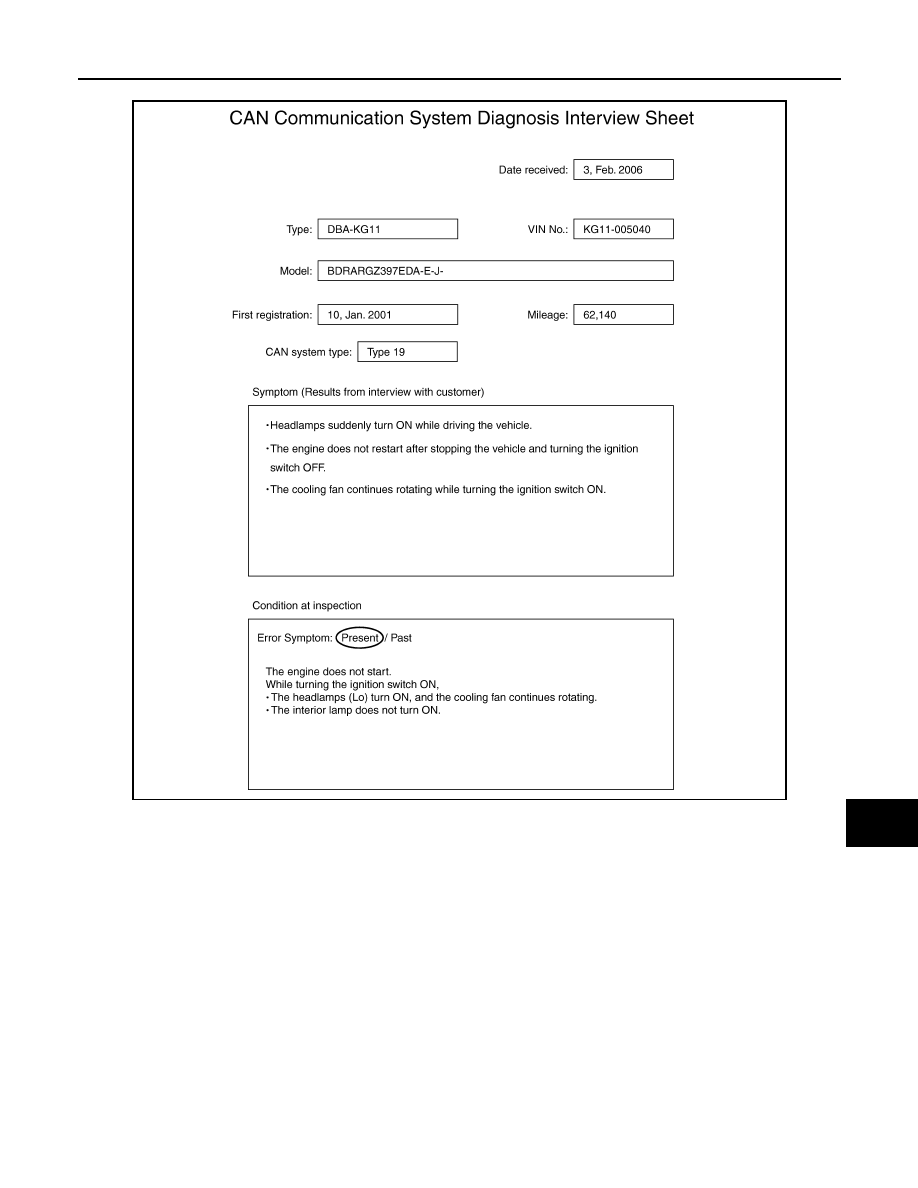

Interview Sheet (Example)

DETECT THE ROOT CAUSE

CAN diagnosis function of CONSULT detects the root cause.

JSMIA0019GB

LAN-18

< HOW TO USE THIS MANUAL >

[CAN]

HOW TO USE THIS SECTION

HOW TO USE THIS MANUAL

HOW TO USE THIS SECTION

Caution

INFOID:0000000009949483

• This section describes information peculiar to a vehicle and inspection procedures.
• For trouble diagnosis procedure, refer to

LAN-13, "Trouble Diagnosis Procedure"

.

Abbreviation List

INFOID:0000000009949484

Unit name abbreviations in CONSULT CAN diagnosis and in this section are as per the following list.

Abbreviation

Unit name

A-BAG

Air bag diagnosis sensor unit

ABS

ABS actuator and electric unit (control unit)

BCM

BCM

DLC

Data link connector

ECM

ECM

EPS

EPS control unit

IPDM-E

IPDM E/R

M&A

Combination meter

STRG

Steering angle sensor

TCM

TCM

LAN
