Inspection

INFOID:0000000009445768

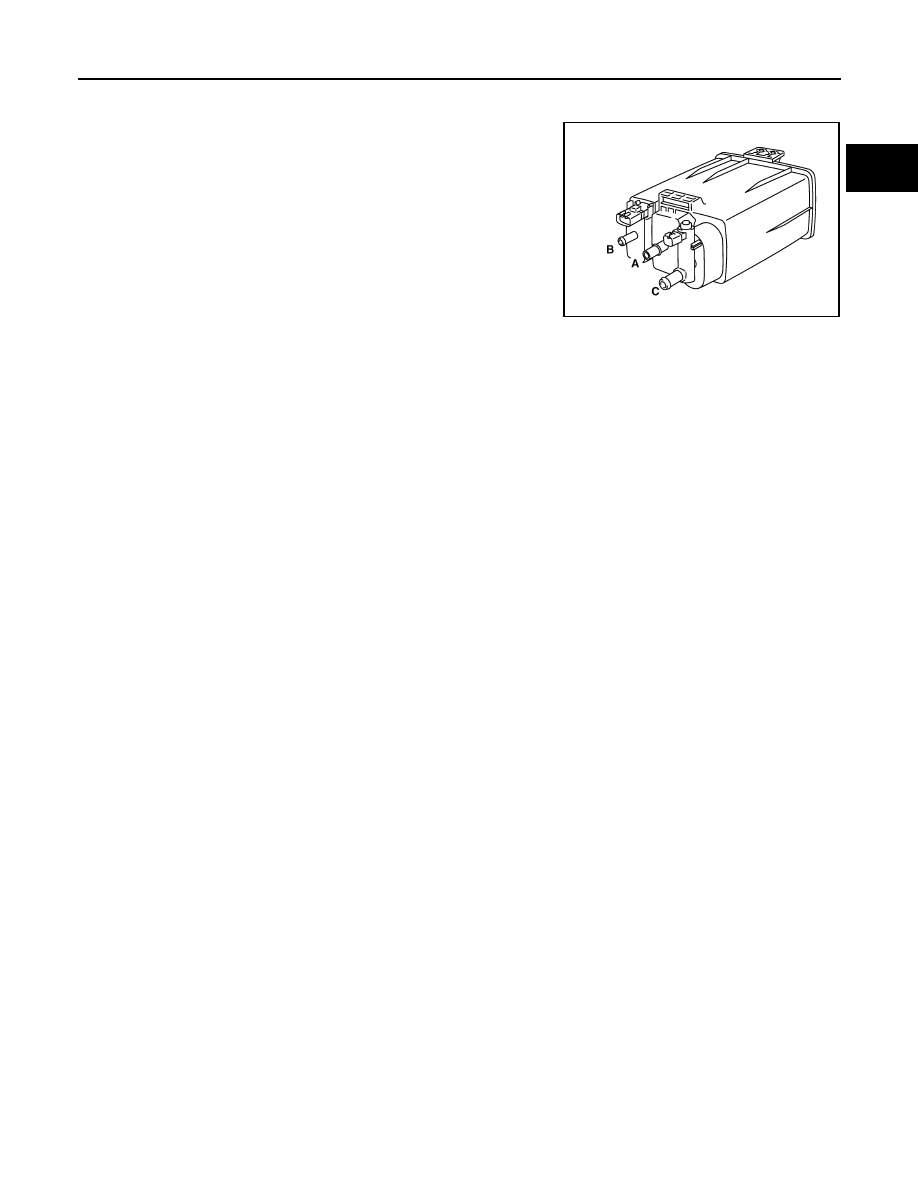

Check EVAP canister as follows:
1. Block port (B).
2. Blow air into port (A) and check that it flows freely out of port (C).
3. Release blocked port (B).
4. Apply vacuum pressure to port (B) and check that vacuum pres-

sure exists at the ports (A) and (C).

5. Block port (A) and (B).
6. Apply pressure to port (C) and check that there is no leakage.

PBIB1212E

FL-16

< REMOVAL AND INSTALLATION >

EVAP CANISTER FILTER

EVAP CANISTER FILTER

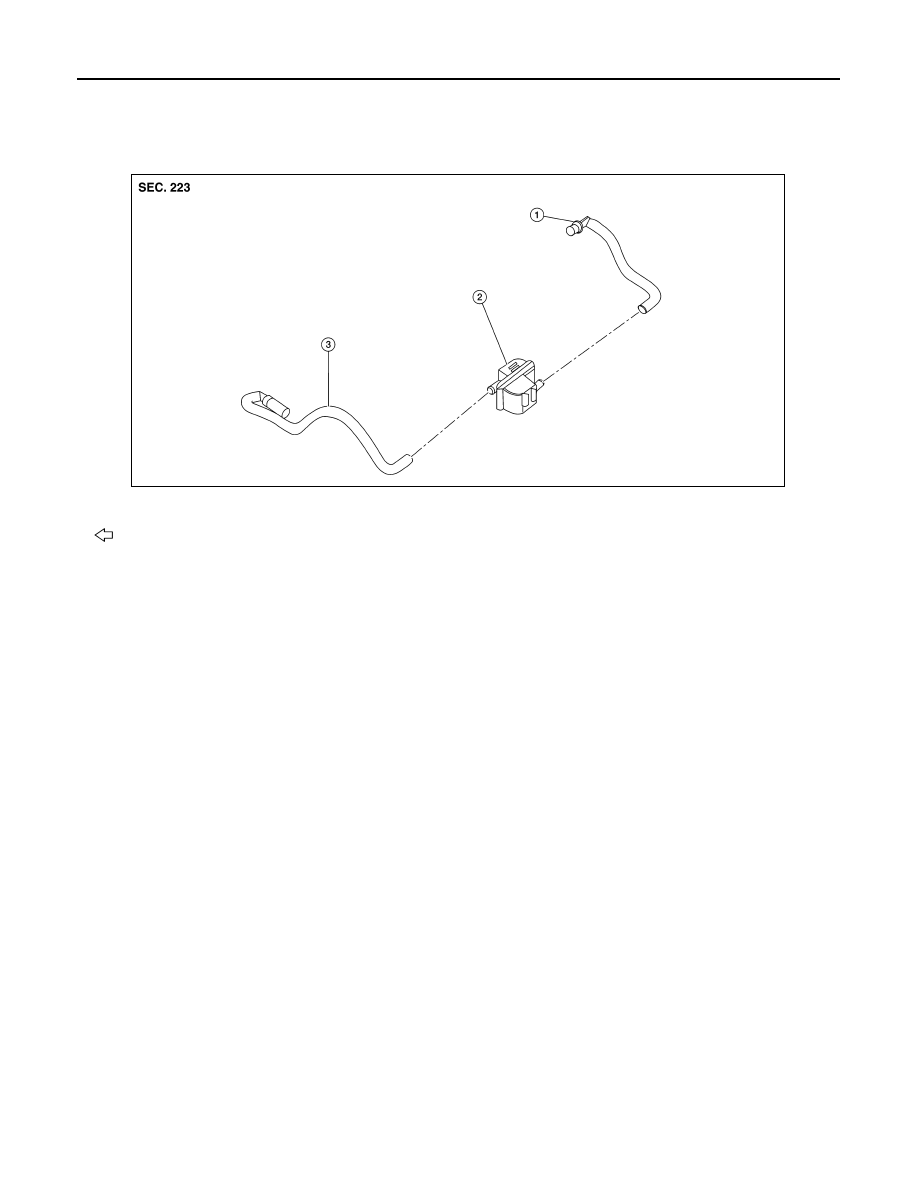

Exploded View

INFOID:0000000009445752

Removal and Installation

INFOID:0000000009445753

REMOVAL

1. Disconnect EVAP vent control valve hose from EVAP canister.
2. Remove EVAP canister filter hose from EVAP canister filter.
3. Remove EVAP canister filter.

INSTALLATION

Installation is in the reverse order of removal.

1.

EVAP canister filter hose

2.

Evap canister filter

3.

EVAP vent control valve hose

Front

ALBIA1148ZZ

EVAP CANISTER VENT CONTROL VALVE

FL-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

EVAP CANISTER VENT CONTROL VALVE

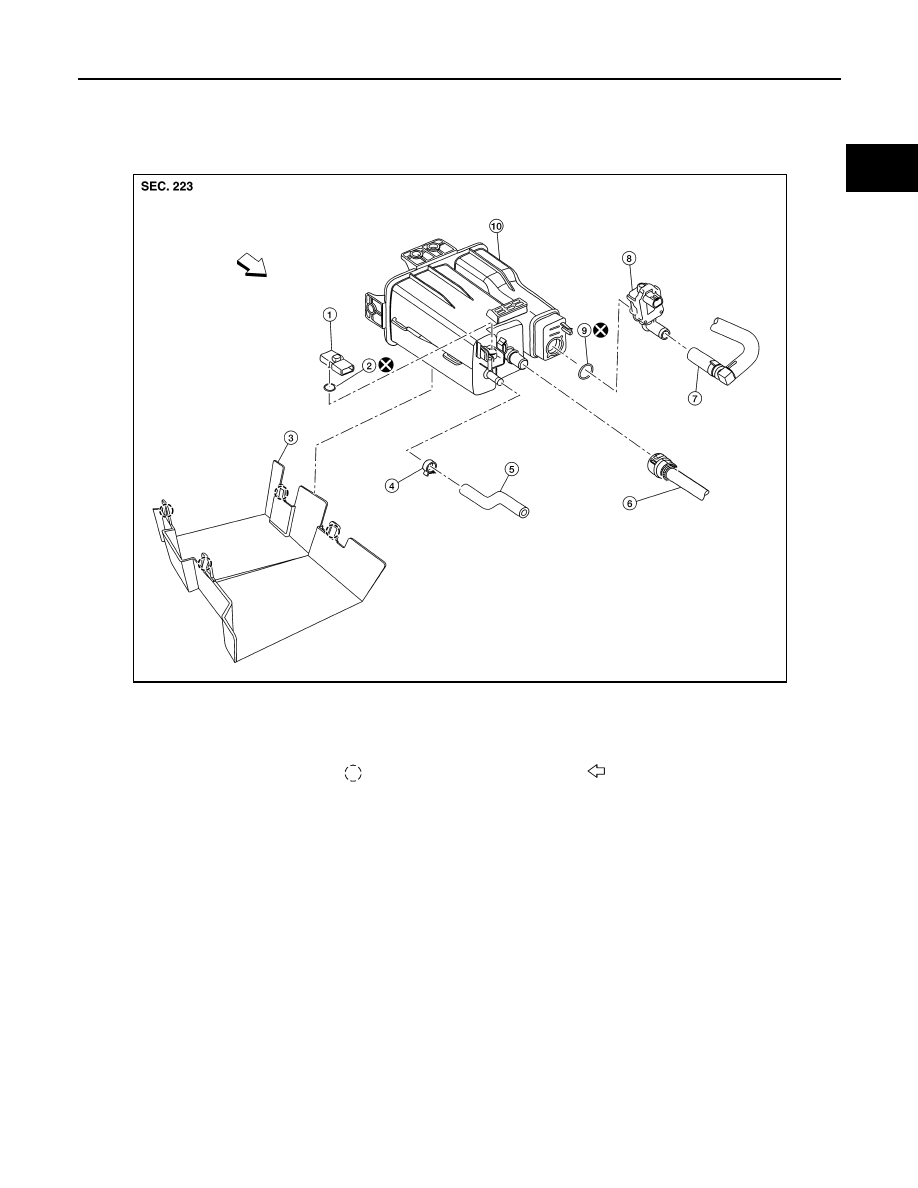

Exploded View

INFOID:0000000009445754

Removal and Installation

INFOID:0000000009445755

NOTE:

The EVAP canister vent control valve and EVAP canister system pressure sensor can be removed without

removing the EVAP canister.

REMOVAL

1. Disconnect EVAP vent control valve hose from EVAP canister.
2. Disconnect EVAP canister vent control valve harness connector.

1.

EVAP control system pressure sensor 2.

O-ring

3.

EVAP canister protector

4.

Hose clamp

5.

EVAP canister purge hose

6.

EVAP vent line

7.

EVAP canister vent control valve hose 8.

EVAP canister vent control valve

9.

O-ring

10. EVAP canister

Pawl

Front

AWBIA1593ZZ

FL-18

< REMOVAL AND INSTALLATION >

EVAP CANISTER VENT CONTROL VALVE

3. Turn EVAP canister vent control valve counterclockwise.

4. Remove the EVAP canister vent control valve and O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring.

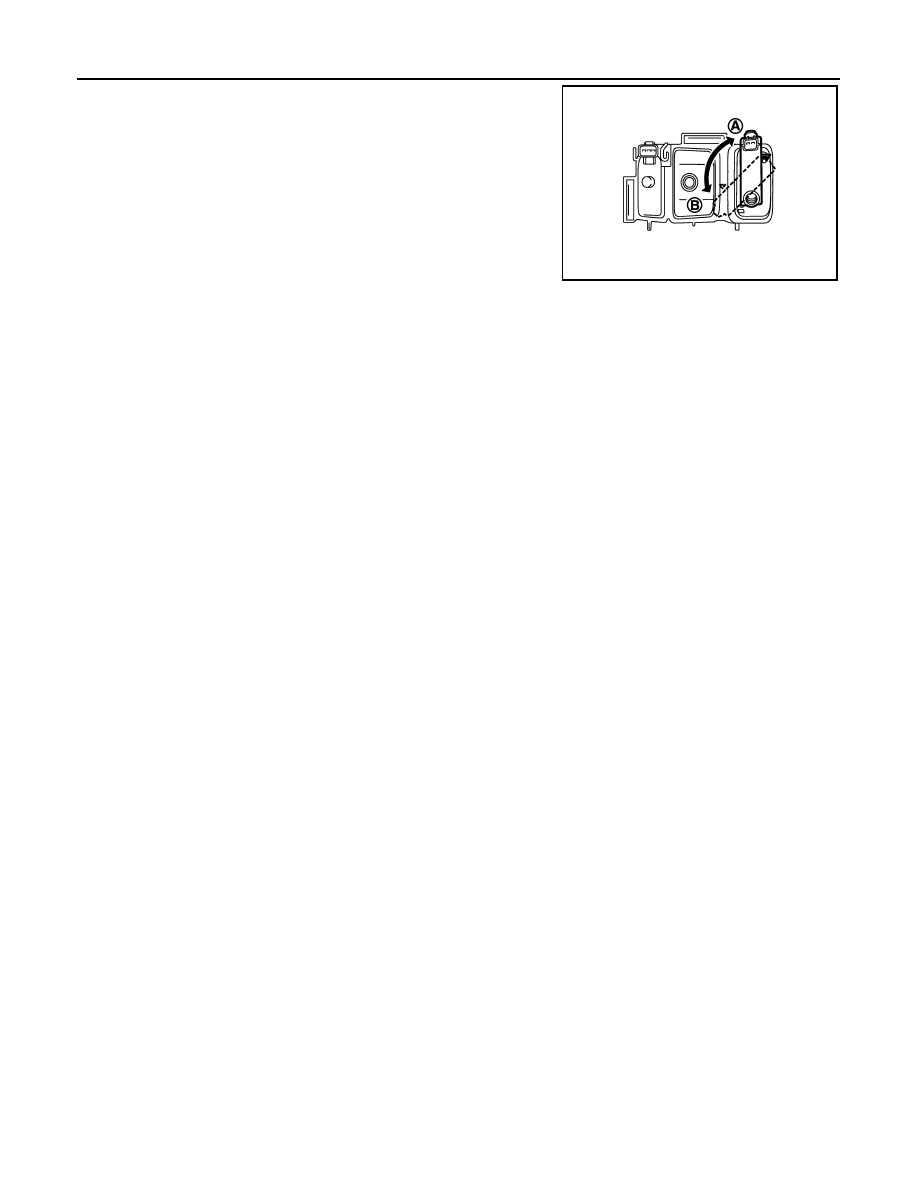

(A)

: Lock

(B)

: Unlock

PBIB3091E
