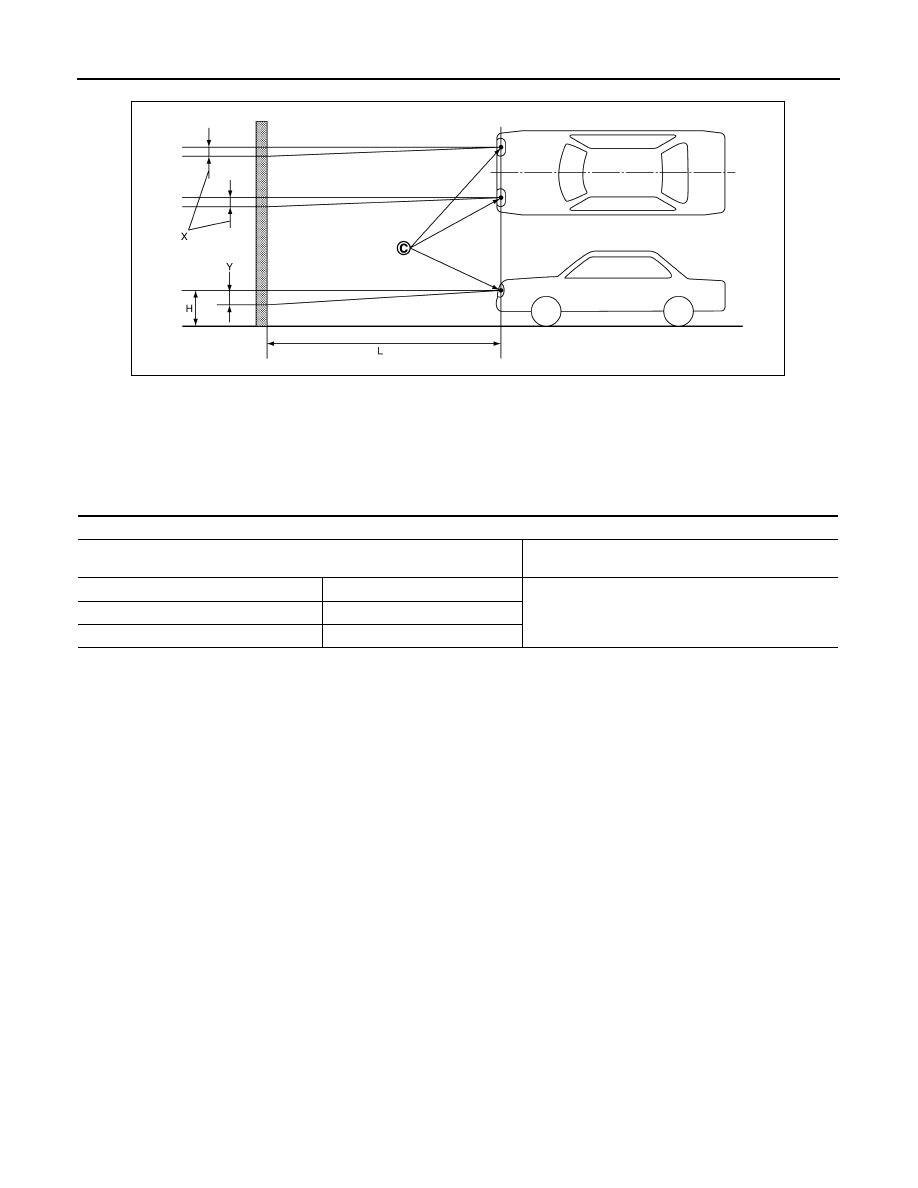

EXL-96 < PERIODIC MAINTENANCE > HEADLAMP AIMING ADJUSTMENT Unit: mm (in) LOW BEAM AND HIGH BEAM NOTE: • Basic illuminating area for evaluation and/or adjustment should be within range shown on aiming chart. • Ensure fog lamps (if equipped) are turned off. 2. Block the opposite headlamp from projecting a beam pattern onto the adjustment screen, using a suitable object. Aim each headlamp individually. CAUTION: Do not cover the lens surface with tape etc. The lens is made of resin. 3. Place the screen on the same level and flat surface as the vehicle. NOTE: • Surface should be free of any debris that would cause a difference between the headlamp center and the adjustment screen. 4. Face the front of the vehicle to the screen and measure distance between the headlamp center and the screen surface. 5. Start the engine and turn the headlamp on. highest and lowest cutoff line height) is positioned within the vertical aim range dimensions shown on the aiming chart. C. Vertical center line of headlamp H. Horizontal center line of headlamp L. Distance from headlamp center to screen X. Aiming adjustment area (lateral) Y. Aiming adjustment area Distance from headlamp center to screen (L) : 10 m (33 ft) Aiming adjustment area Vertical direction (Y) (Lower side from headlamp center height) Lateral direction (X) (Left side from headlamp center line) Highest light axis 100 (3.94) 0 - 100 (3.94) Target light axis 100 (3.94) Lowest light axis 150 (5.91) JSLIA0029ZZ Distance (D) between the headlamp center and the screen : 10 m (33 ft) |
