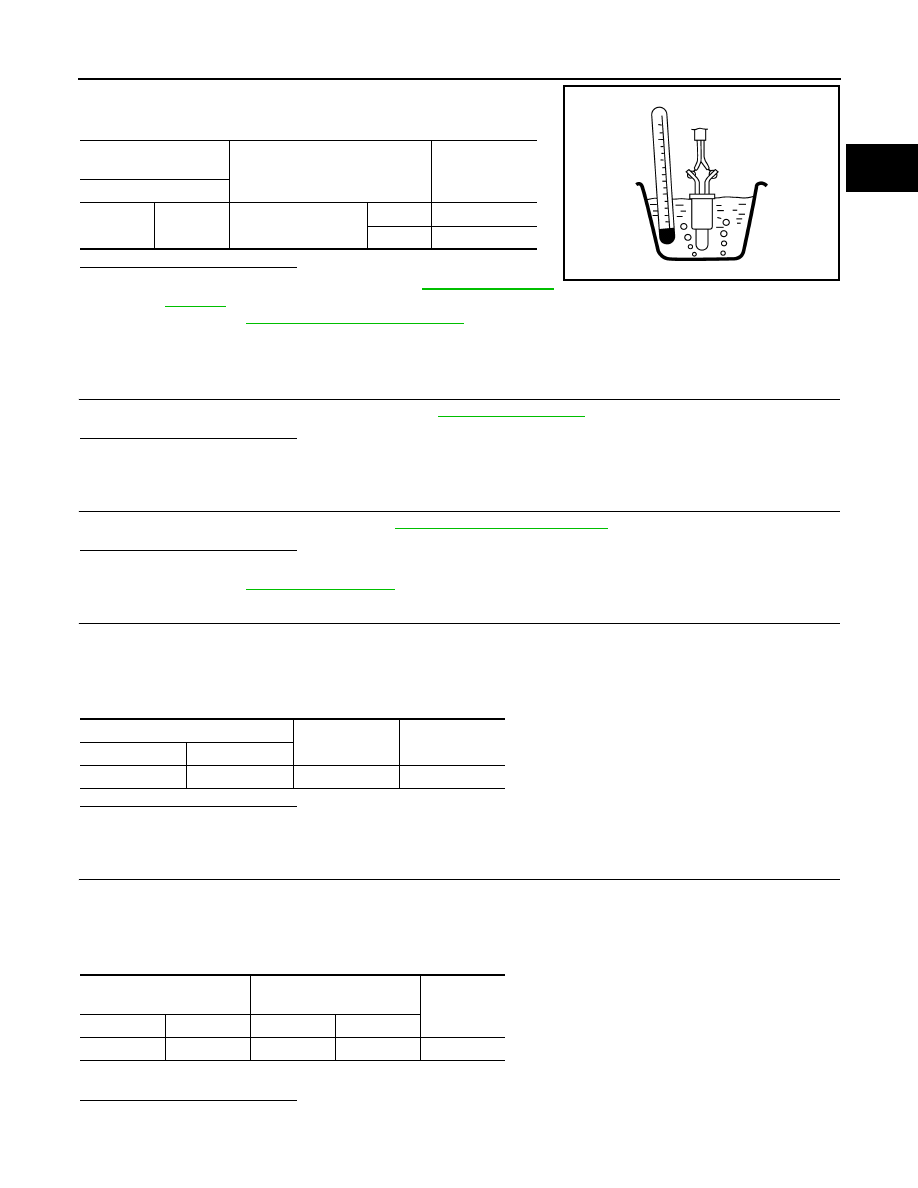

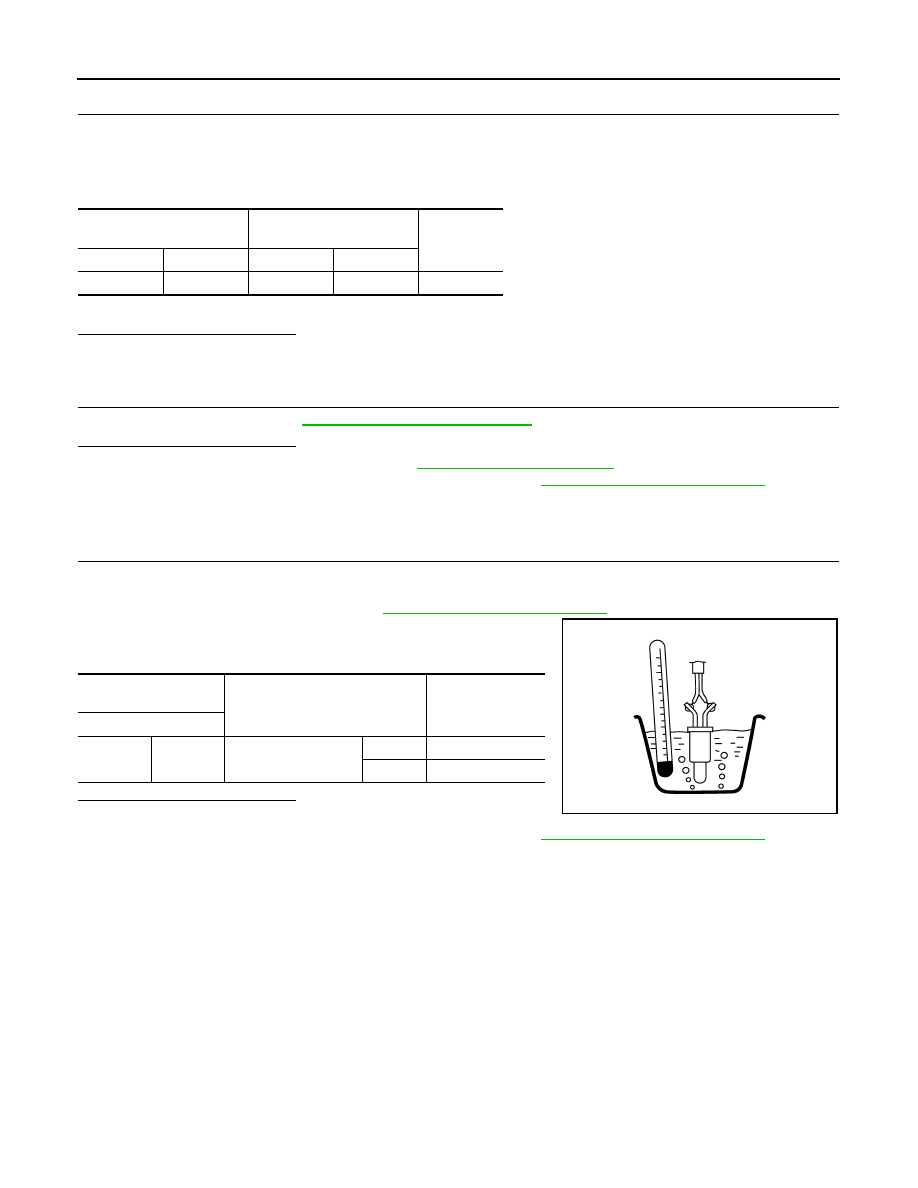

EC-254 < DTC/CIRCUIT DIAGNOSIS > [HR16DE] P0181 FTT SENSOR 2. Wait at least 10 seconds. 3. Check 1st trip DTC. With GST Follow the procedure “With CONSULT” above. YES >> Proceed to . NO >> GO TO 6. 6. PERFORM COMPONENT FUNCTION CHECK (FOR MALFUNCTION B) Perform component function check. Refer to EC-254, "Component Function Check" NOTE: Use the component function check to check the overall function of the FTT sensor circuit. During this check, a 1st trip DTC might not be confirmed. YES >> INSPECTION END NO >> Proceed to . 7. PRECONDITIONING If DTC CONFIRMATION PROCEDURE has been previously conducted, always perform the following proce- dure before conducting the next test. 1. Turn ignition switch OFF and wait at least 10 seconds. 2. Turn ignition switch ON. 3. Turn ignition switch OFF and wait at least 10 seconds. TESTING CONDITION: • Before performing the following procedure, do not add fuel. • Before performing the following procedure, check that fuel level is between 1/4 and 4/4. • Before performing the following procedure, confirm that battery voltage is 11 V or more at idle. >> GO TO 8. 8. PERFORM DTC CONFIRMATION PROCEDURE B 1. Start engine and let it idle for 60 minutes. 2. Move the vehicle to a cool place. NOTE: Cool the vehicle in an environment of ambient air temperature between −10°C (14°F) and 35°C (95°F). 3. Turn ignition switch OFF and soak the vehicle for 12 hours. CAUTION: Never turn ignition switch ON during soaking. NOTE: The vehicle must be cooled with the food open. 4. Start engine and let it idle for 5 minutes or more. CAUTION: Never turn ignition switch OFF during idling. 5. Check 1st trip DTC. YES >> Proceed to . NO >> INSPECTION END Component Function Check INFOID:0000000009020754 1. CHECK FUEL TANK TEMPERATURE (FTT) SENSOR 1. Turn ignition switch OFF. 2. Disconnect fuel level sensor unit and fuel pump harness connector. 3. Remove fuel level sensor unit. Refer to |
