LOW TIRE PRESSURE WARNING LAMP BLINKS

WT-35

< SYMPTOM DIAGNOSIS >

LOW TIRE PRESSURE WARNING LAMP BLINKS

Diagnosis Procedure

INFOID:0000000009267474

NOTE:

If low tire pressure warning lamp repeats blinking ON for 2 seconds and OFF for 0.2 seconds, wake-up opera-

tion for all transmitters is not complete.

Carry out transmitter wake-up operation. Refer to

WT-19, "Work Procedure"

CHECK BCM CONNECTOR

1. Turn ignition switch OFF.

2. Disconnect BCM connectors.

3. Check terminals for damage or loose connections.
Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-69, "Removal and Installation"

BCS-122, "Removal and Installa-

tion"

>> Repair or replace damaged parts.

WT-36

< SYMPTOM DIAGNOSIS >

ID REGISTRATION CANNOT BE COMPLETED

ID REGISTRATION CANNOT BE COMPLETED

Diagnosis Procedure

INFOID:0000000009267475

PERFORM ID REGISTRATION OF ALL TRANSMITTERS

Carry out ID registration of all transmitters. Refer to

WT-20, "Work Procedure"

Can ID registration of all transmitters be completed?

YES

>> Inspection End.

>> Refer to

BCS-26, "AIR PRESSURE MONITOR : CONSULT Function (BCM - AIR PRESSURE

MONITOR)"

BCS-91, "AIR PRESSURE MONITOR : CONSULT Function (BCM - AIR PRES-

SURE MONITOR)"

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

WT-37

< SYMPTOM DIAGNOSIS >

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000009267476

Use chart below to find the cause of the symptom. If necessary, repair or replace these parts.

×: Applicable

Reference page

—

fer

TIRE i

n t

his cha

rt.

r to

ROAD WHEEL

is ch

art

Possible cause and SUSPECTED PARTS

Imp

rop

er i

lla

tio

-of-ro

Incorrect t

ire

pressure

Uneven tire

wear

Def

orm

ati

r da

n-u

iformi

rrec

t t

ire

FRONT A

AND FRONT SUSP

ENSION

REAR A

AND REAR SUSP

ENSION

ROAD WHEE

DRIVE SHAFT

BRAKE

STE

RING

Symptom

TIRE

Noise

Shake

Vibration

Shimmy

Shudder

Poor quality ride or
handling

ROAD
WHEEL

Noise

Shake

Shimmy, Shudder

Poor quality ride or
handling

WT-38

< PERIODIC MAINTENANCE >

ROAD WHEEL

PERIODIC MAINTENANCE

ROAD WHEEL

Inspection

INFOID:0000000009267477

ALUMINUM WHEEL

1. Check tires for wear and improper inflation.
2. Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel

runout.

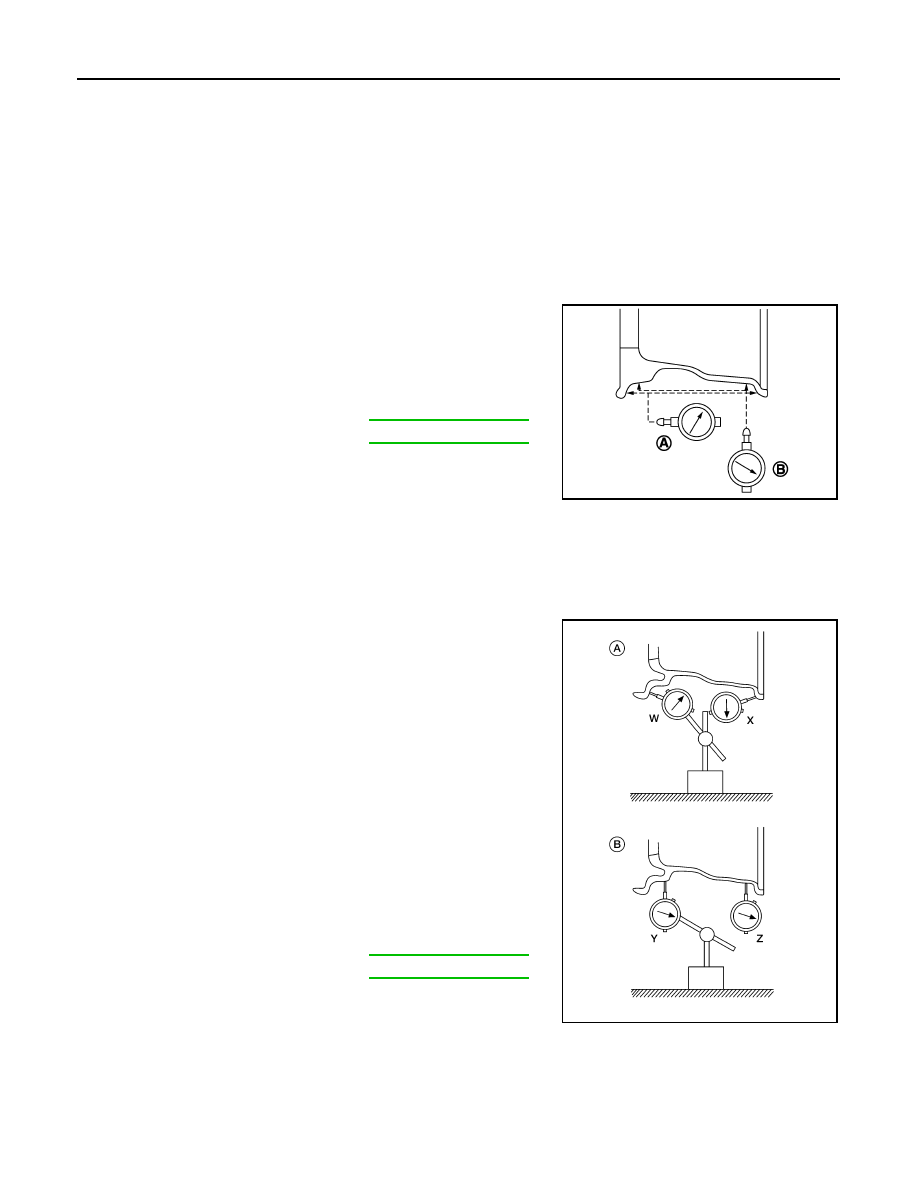

a. Remove tire from aluminum wheel and mount wheel on a balancer machine.
b. Set dial indicator as shown.
c.

Check runout, if runout value exceeds the limit, replace alumi-

num wheel.

STEEL WHEEL

1. Check tires for wear and improper inflation.
2. Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel

runout.

a. Remove tire from steel wheel and mount wheel on a balancer machine.
b. Set two dial indicators as shown.
c.

Set each dial indicator to "0".

d. Rotate wheel and check dial indicators at several points around

the circumference of the wheel.

e. Calculate runout at each point as shown below.

Select maximum positive runout value and the maximum nega-

tive value.

Add the two values to determine total runout.

In case a positive or negative value is not available, use the

maximum value (negative or positive) for total runout.

If the total runout value exceeds the limit, replace steel wheel.

Limit
Lateral Deflection (A)

Refer to

WT-45, "Road Wheel"

Vertical Deflection (B) Refer to

WT-45, "Road Wheel"

SEIA0737E

Lateral deflection (A) = (W+X)/2
Vertical deflection (B) = (Y+Z)/2

Limit
Lateral Deflection (A)

Refer to

WT-45, "Road Wheel"

Vertical Deflection (B) Refer to

WT-45, "Road Wheel"

AWEIA0186ZZ
