SE-46

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

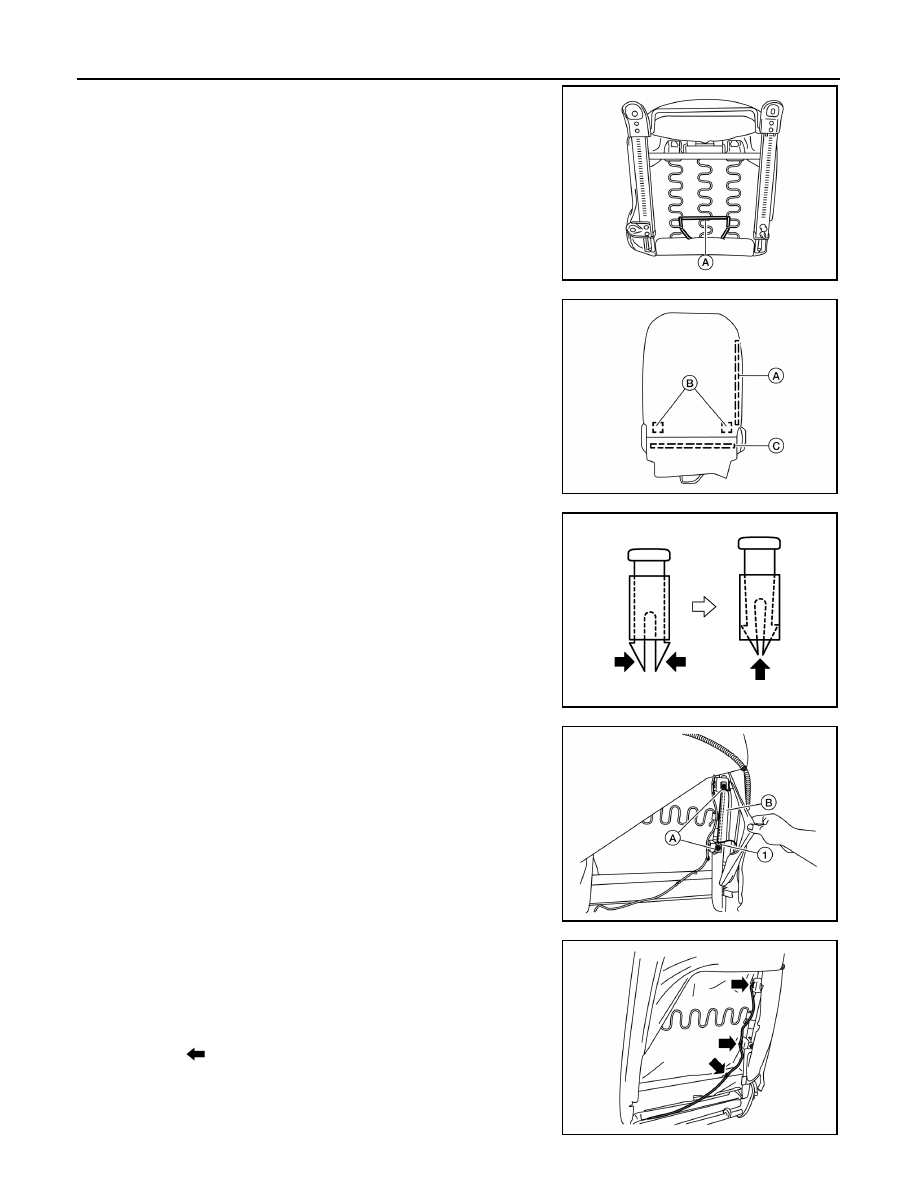

2. Release the lower seatback trim retainer strap (A) from the

cushion springs.

3. Release the J-hook retainer (C), unzip seatback zipper (A) and

release J-clips (B) holding the seatback trim to the seat frame

assembly.

4. Reach up through seatback trim and release locks as shown

and remove the headrest holders (if equipped).

CAUTION:

Before removing/installing the headrest holder, check its

orientation (front/rear and right/left)

5. Remove and discard the two chute rod nuts (A), then route the

chute rod (1) through the opening and remove it from the chute

(B).

CAUTION:

Do not reuse the chute rod nuts.

6. Release the side air bag module harness from seat frame

assembly.

NOTE:

Take note of harness routing and attachment location for accu-

rate installation.

a. From the back of the seat unclip the side air bag module har-

ness clips (

).

AWJIA0913ZZ

AWJIA0914ZZ

PIIB4084J

AWJIA0922ZZ

AWJIA0915ZZ

FRONT SEAT

SE-47

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

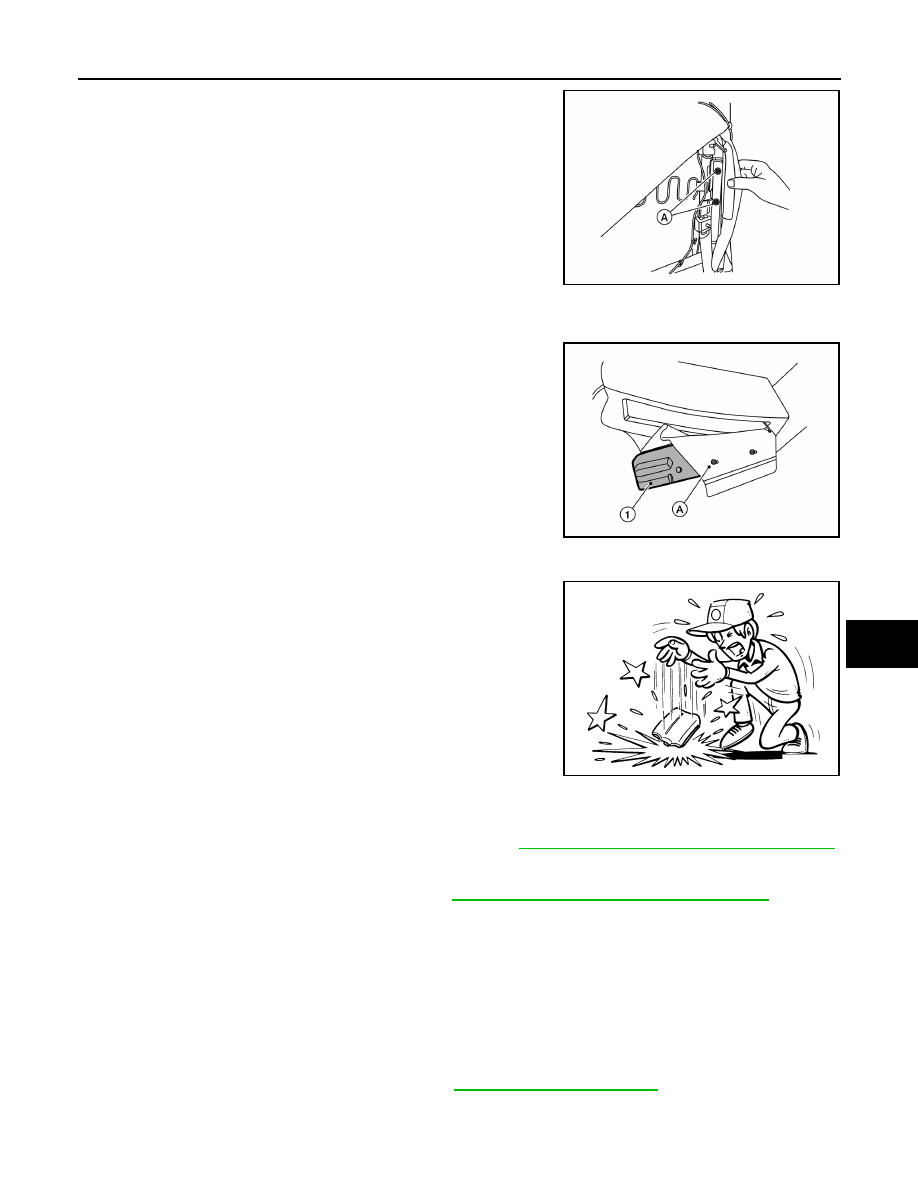

7. Remove and discard the two side air bag module nuts (A).

CAUTION:

Do not reuse the side air bag module nuts.

8. Disengage the side air bag module studs from the seatback frame and lift the seatback trim and seatback

pad as an assembly from the seat frame assembly.

9. Pull the side air bag module (1) out of the chute (A) and remove

from the seatback trim.

CAUTION:

• Replace the side air bag module if it has been dropped or

sustained an impact.

• Do not strike the side air bag module.

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Tighten the side air bag module nuts to specification. Refer to

SE-38, "PASSENGER SIDE : Exploded View"

.

CAUTION:

Do not reuse the side air bag module nuts.

• Tighten the chute rod nuts to specification. Refer to

SE-38, "PASSENGER SIDE : Exploded View"

.

CAUTION:

Do not reuse the chute rod nuts.

CAUTION:

• Inspect seatback pad, seatback trim and seatback trim chutes. Replace if damaged.

• Smooth out all wrinkles during assembly.

• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with same type and color. Always install clips in the original location in the harness.

• After work is completed, check that no system malfunction is detected causing the air bag warning

lamp to illuminate.

• If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunc-

tion parts, perform the SRS final check. Refer to

SRC-15, "SRS Final Check"

.

AWJIA0916ZZ

AWJIA0924ZZ

JMHIA0009ZZ

SE-48

< UNIT DISASSEMBLY AND ASSEMBLY >

REAR SEAT

REAR SEAT

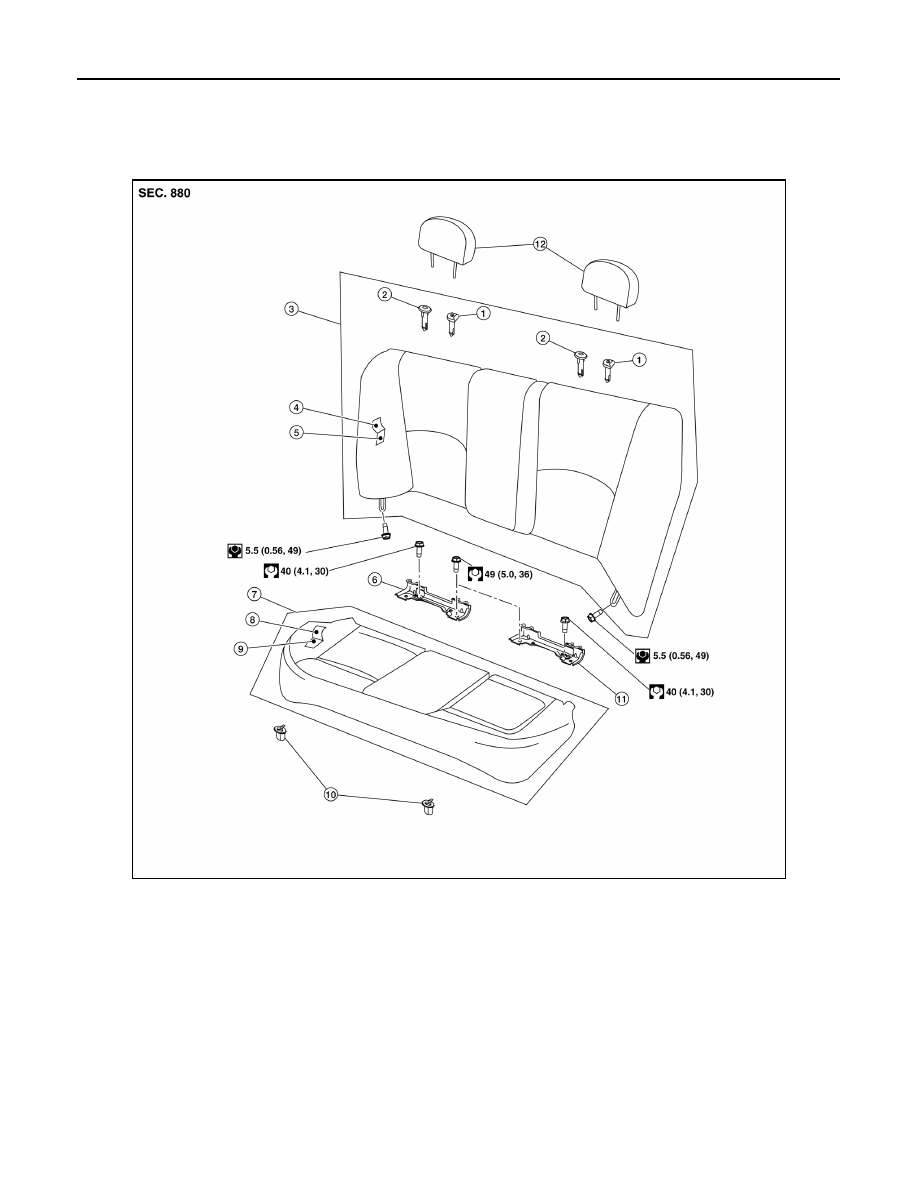

Exploded View - Fixed Seatback

INFOID:0000000009268536

FIXED SEATBACK

ALJIA0982ZZ

1.

Headrest holder (locked)

2.

Headrest holder (free)

3.

Rear seatback assembly

4.

Seatback trim

5.

Seatback pad

6.

LATCH bracket (RH)

7.

Seat cushion assembly

8.

Seat cushion trim

9.

Seat cushion pad

10. Seat cushion hook

11. LATCH bracket (LH)

12. Headrest

REAR SEAT

SE-49

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

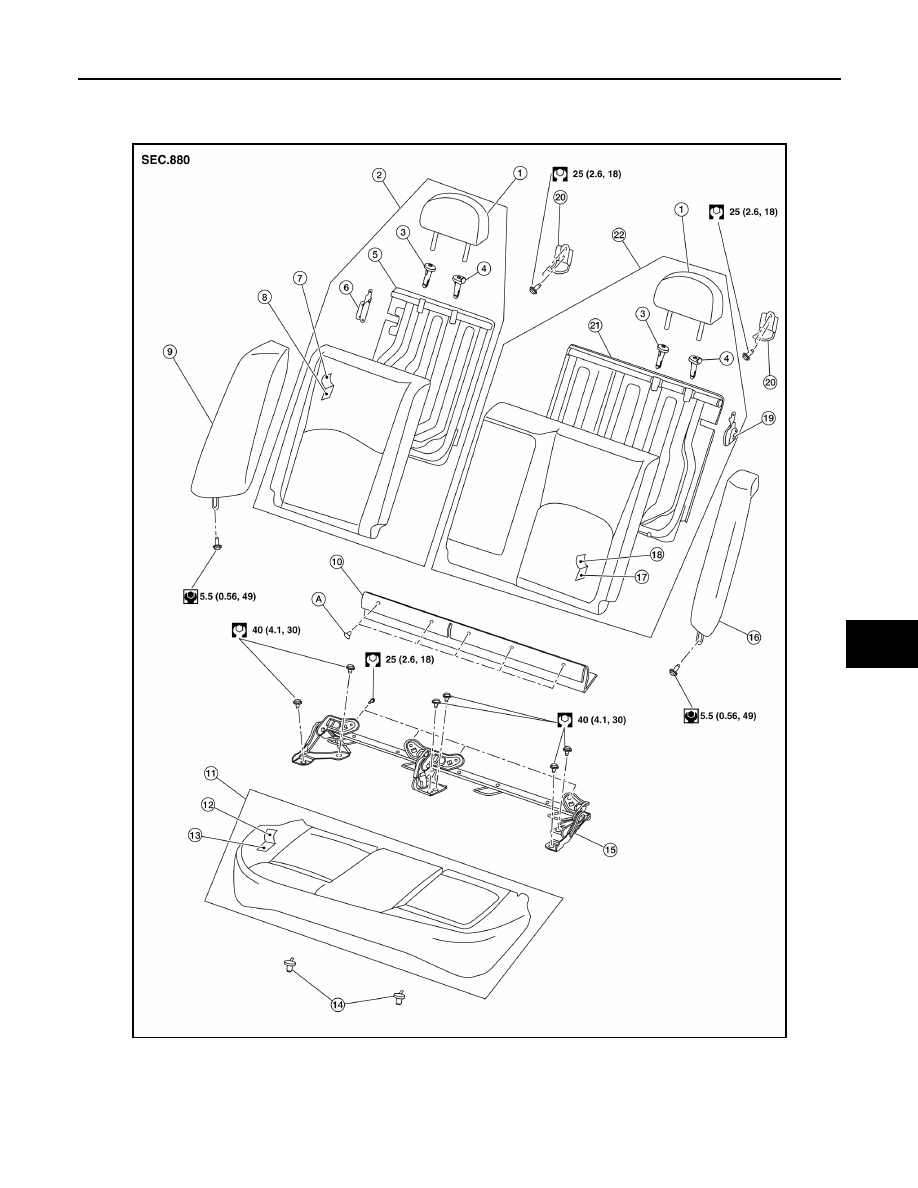

Exploded View - 60:40 Split Seatback

INFOID:0000000009268537

60:40 SPLIT SEATBACK

ALJIA0981ZZ

1.

Headrest

2.

Rear seatback assembly (RH)

3.

Headrest holder (free)

4.

Headrest holder (locked)

5.

Rear seatback frame (RH)

6.

Seatback latch assembly (RH)

7.

Seatback trim (RH)

8.

Seatback pad (RH)

9.

Rear seat bolster (RH)

10. Seatback hinge finisher

11. Seat cushion assembly

12. Seat cushion trim
