PG-50

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

REAR DOOR RH HARNESS

ABMIA3372GB

D301

W/8

: To B11

D305 GR/6

: Rear door lock actuator RH

D303

W/8

: Rear power window switch RH

D307 W/2

: Rear door speaker RH

D304

B/2

: Rear power window motor RH

PG

ELECTRICAL UNITS LOCATION

PG-51

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ELECTRICAL UNITS LOCATION

Electrical Units Location

INFOID:0000000009267731

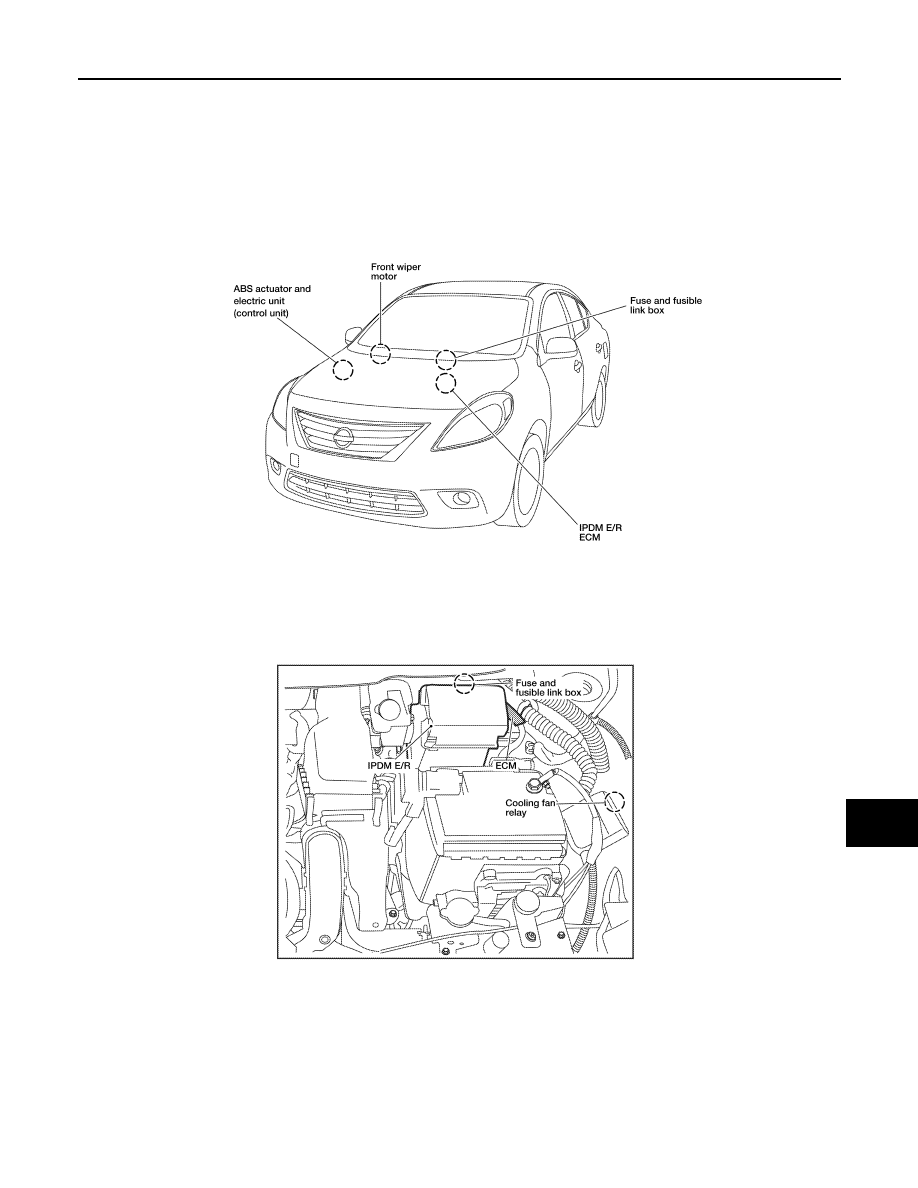

ENGINE COMPARTMENT

ABMIA4742GB

PG-52

< DTC/CIRCUIT DIAGNOSIS >

ELECTRICAL UNITS LOCATION

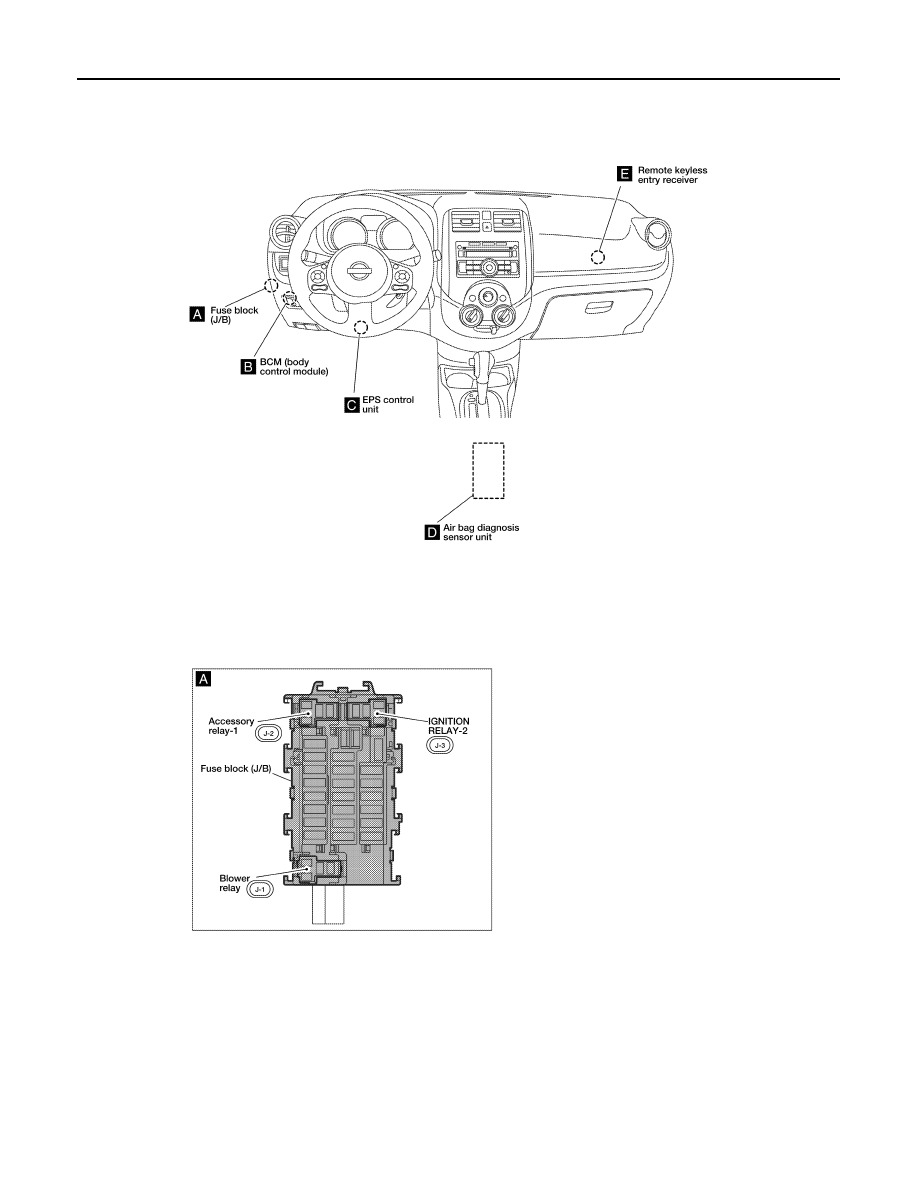

PASSENGER COMPARTMENT

ABMIA4743GB

PG

ELECTRICAL UNITS LOCATION

PG-53

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

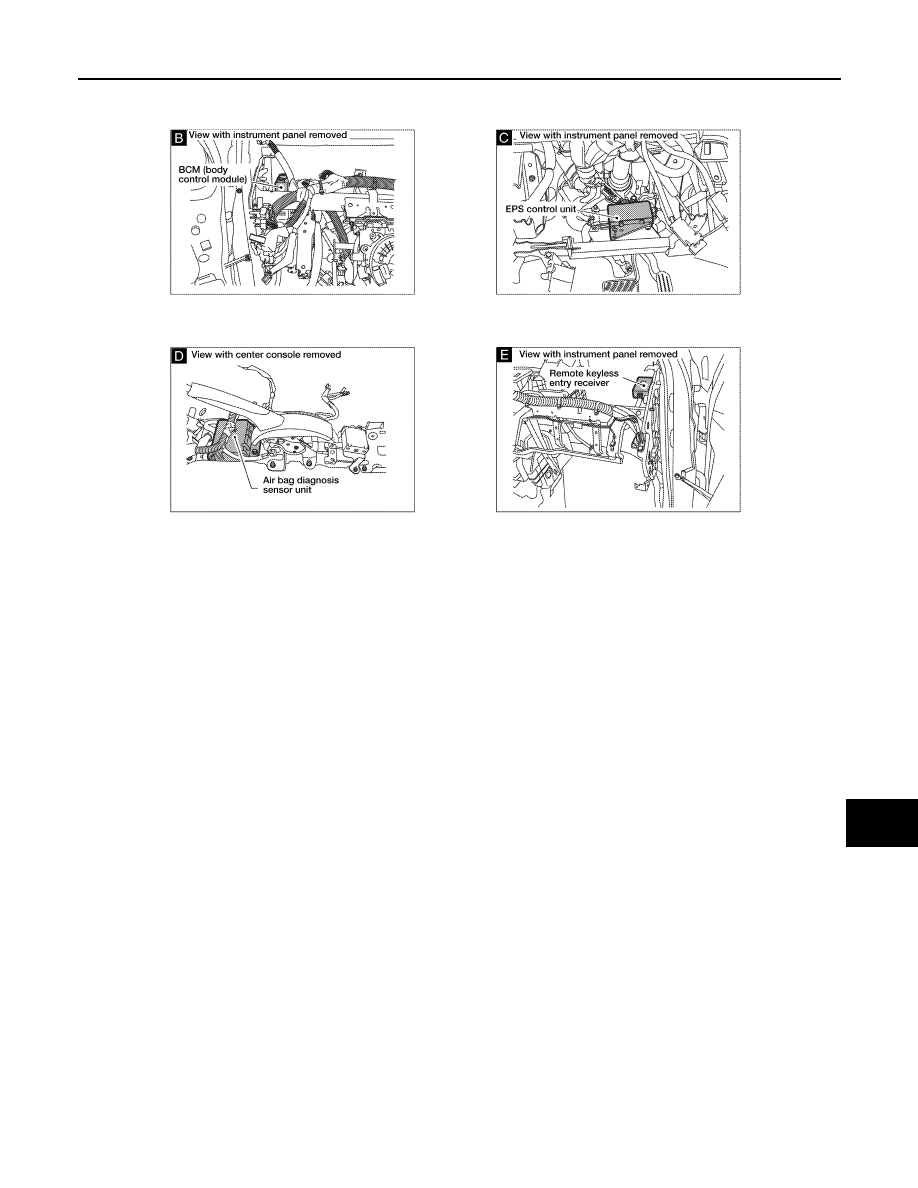

ABMIA4744GB
