DOOR MIRROR REAR FINISHER

MIR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR REAR FINISHER

Removal and Installation

INFOID:0000000009269100

REMOVAL

1. Remove the door mirror glass. Refer to

MIR-18, "Removal and Installation"

.

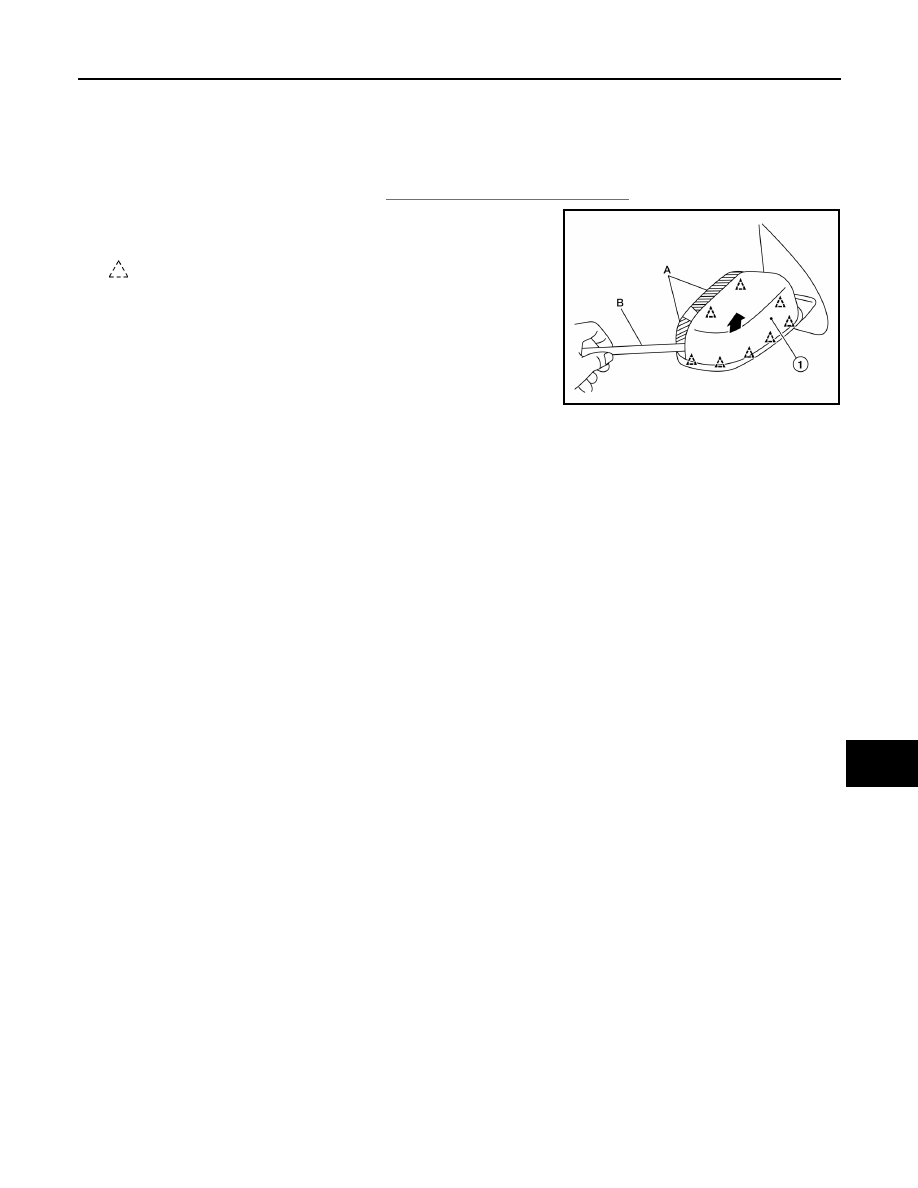

2. Apply protective tape on mirror body (A). Disengage the pawls

and remove door mirror rear finisher (1) from the door mirror

assembly using a suitable tool (B).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

After installation, visually check the pawls are securely engaged.

ALLIA1038ZZ

MIR-20

< REMOVAL AND INSTALLATION >

DOOR MIRROR REMOTE CONTROL SWITCH

DOOR MIRROR REMOTE CONTROL SWITCH

Removal and Installation

INFOID:0000000009269101

REMOVAL

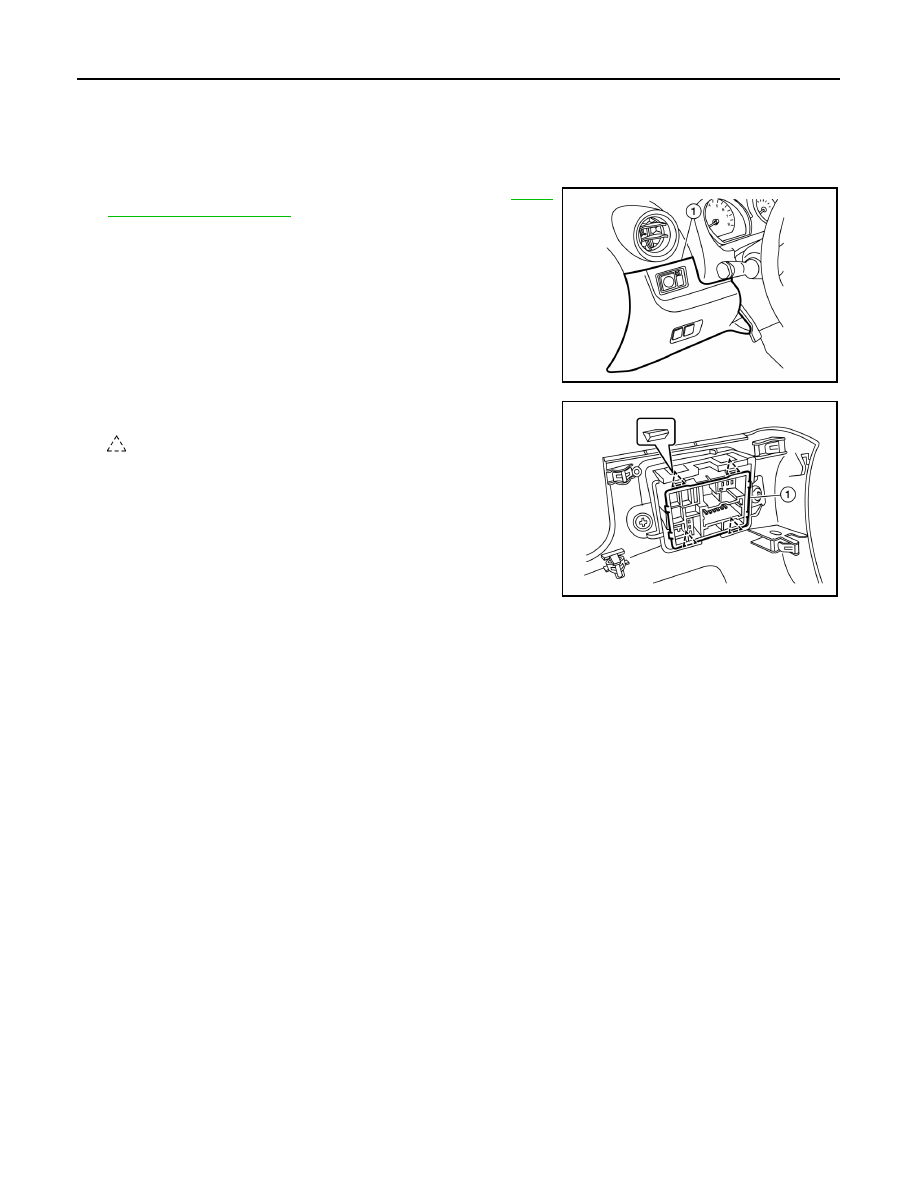

1. Remove the instrument lower panel LH (1). Refer to

IP-20,

"Removal and Installation"

.

2. Remove door mirror remote control switch (1) from the instru-

ment lower panel LH using a suitable tool.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

ALLIA1032ZZ

ALLIA1033ZZ
