INSTRUMENT PANEL ASSEMBLY

10. Remove combination switch. Refer to

EXL-107, "Removal and Installation"

.

11. Remove combination meter. Refer to

MWI-104, "Removal and Installation"

 (TYPE A) or

MWI-53,

"Removal and Installation"

 (TYPE B).

12. Remove cluster lid C. Refer to

IP-21, "Removal and Installation"

.

13. Remove audio unit (if equiped), refer to

AV-28, "Removal and Installation"

 (BASE AUDIO) or

AV-77,

"Removal and Installation"

 (MID AUDIO) or remove AV control unit, refer to

AV-222, "Removal and Instal-

lation"

 (NAVIGATION).

14. Remove A/C control finisher.

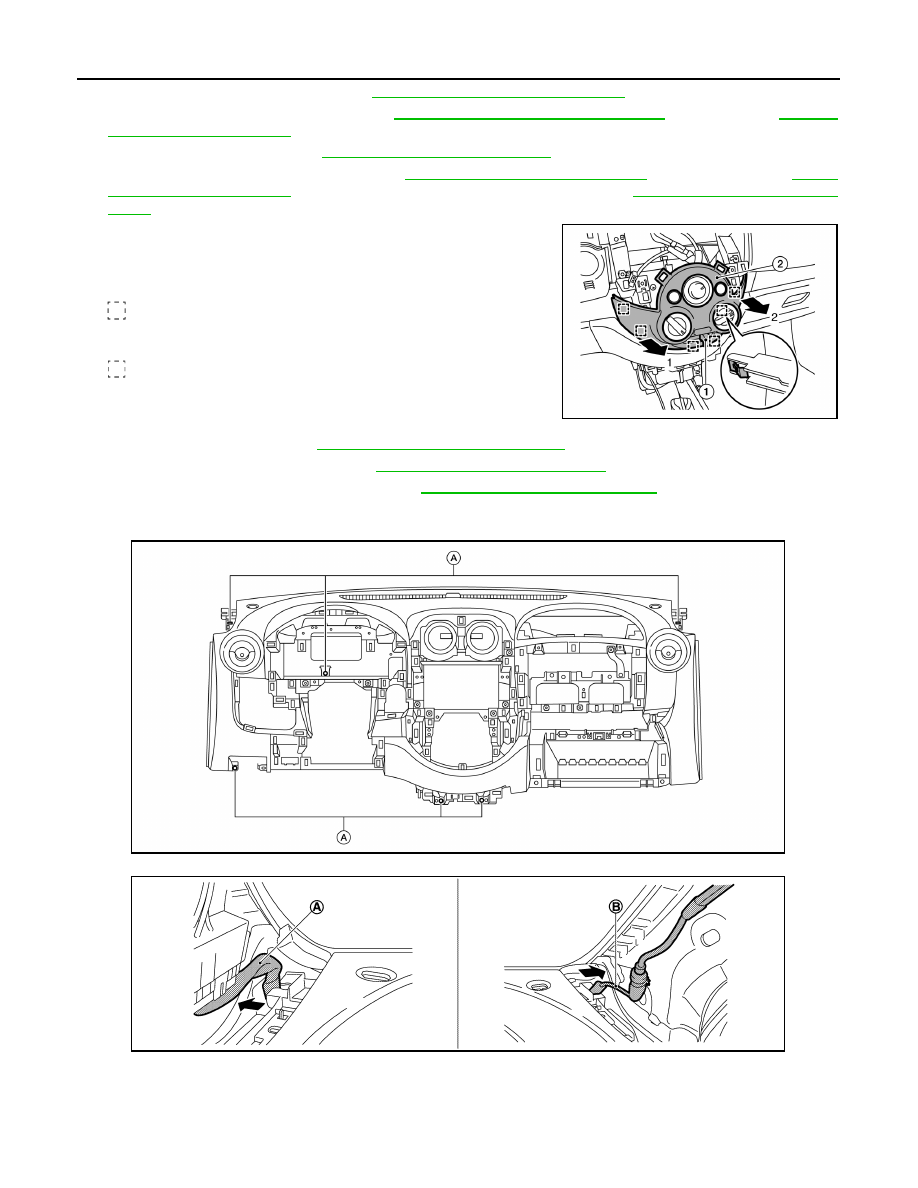

a. Remove intake door lever knob (1).
b. Pull left side of A/C control finisher (2) rearward to release left

side metal clips.

: Metal clip

c.

Pull right side of A/C control finisher (2) rearward to release right

side metal clips and remove A/C control finisher.

: Metal clip

15. Remove A/C control. Refer to

HAC-48, "Removal and Installation"

.

16. Remove glove box assembly. Refer to

IP-22, "Removal and Installation"

.

17. Remove passenger air bag module. Refer to

SR-17, "Removal and Installation"

.

18. Remove instrument panel assembly.
a. Remove instrument panel assembly screws (A).

b. Disengage the harness (A, B) from the instrument panel assembly at the base of each front pillar.

c.

Remove instrument panel assembly through passenger door opening.

CAUTION:

• Cover shift selector assembly with a shop cloth to prevent damage to instrument panel assem-

bly.

AWJIA0710ZZ

AWJIA0711ZZ

JMJIA6065ZZ

INSTRUMENT PANEL ASSEMBLY

IP-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

• When removing instrument panel assembly, two people are required to prevent it from dropping.

19. Removal of the following components is only necessary if replacing the instrument panel assembly.

• Side ventilator grilles (LH/RH): Refer to

VTL-5, "SIDE VENTILATOR GRILLE : Removal and Installa-

tion"

.

• Center ventilator duct LH/RH: Refer to

VTL-6, "CENTER VENTILATOR DUCT : Removal and Installa-

tion"

.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse the steering wheel nut after removal, replace with a new nut.

• Do not reuse the passenger air bag bolts after removal, replace with new bolts.

IP-18

< REMOVAL AND INSTALLATION >

STEERING COLUMN COVERS

STEERING COLUMN COVERS

Removal and Installation

INFOID:0000000009266852

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-20, "Removal and Installation"

.

2. Remove lower knee protector (LH) bolts and lower knee protector (LH). Refer to

IP-14, "Exploded View"

.

3. Remove steering column covers.

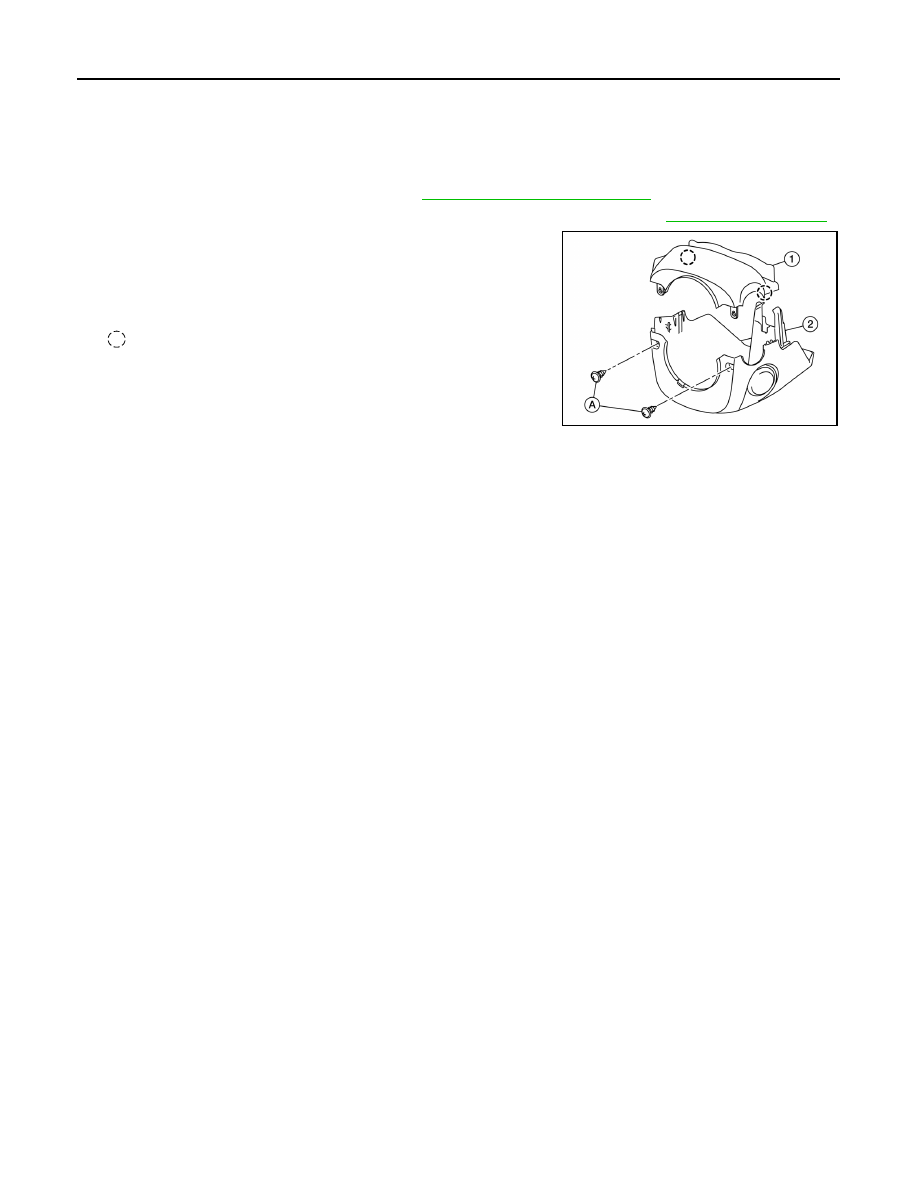

a. Remove steering column cover screws (A).
b. Tilt the steering column to the lowest position.
c.

Pull steering column upper cover (1) upward to disengage steer-

ing column upper cover pawls.

: Pawl

d. Remove steering column upper cover.
e. Pull steering column lower cover (2) downward to remove.

INSTALLATION

Installation is in the reverse order of removal.

AWJIA0707ZZ

CLUSTER LID A

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CLUSTER LID A

Removal and Installation

INFOID:0000000009266853

REMOVAL

1. Remove steering column covers. Refer to

IP-18, "Removal and Installation"

.

2. Remove cluster lid C. Refer to

IP-21, "Removal and Installation"

.

3. Remove cluster lid A.

•

:  Pawl

•

:  Metal  clip

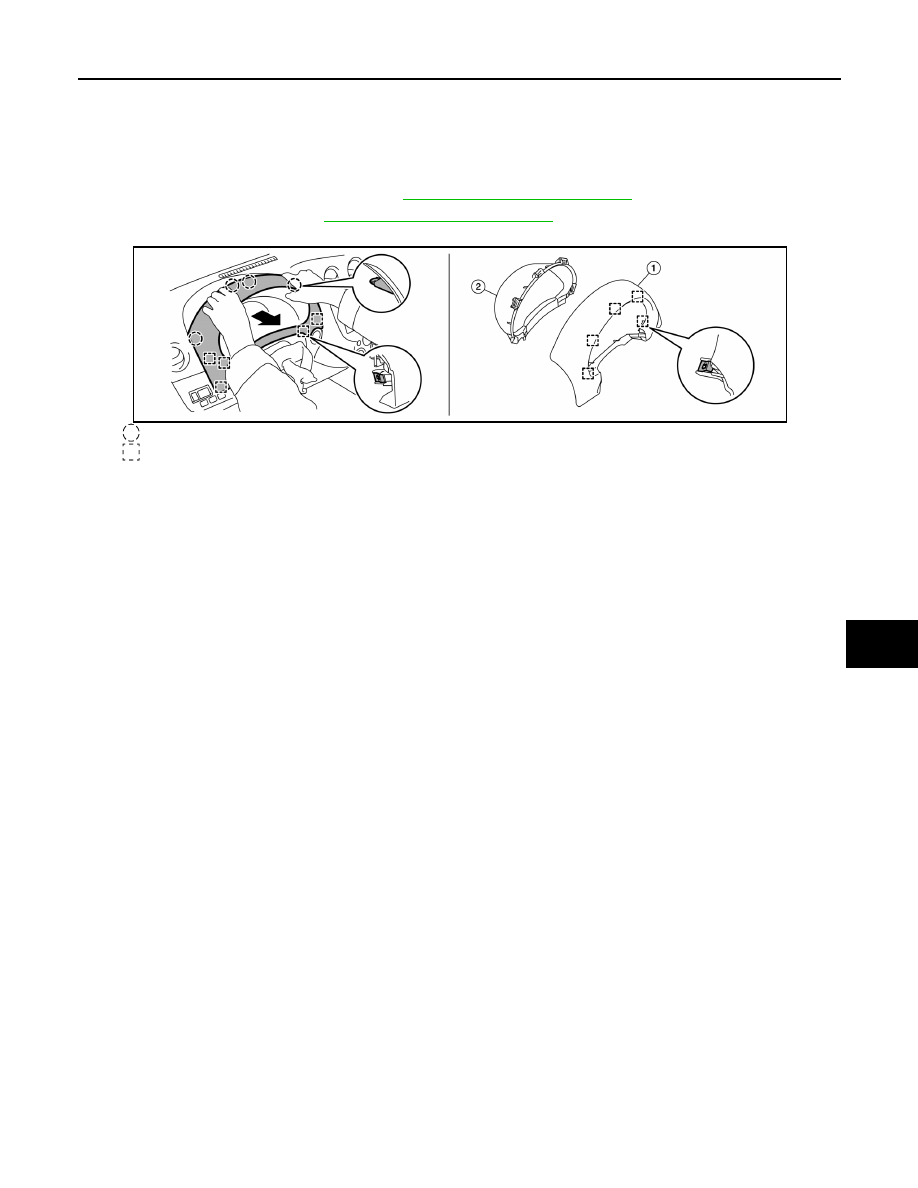

a. Remove combination meter finisher and cluster lid A as an assembly by pulling rearward to release pawls

and metal clips.

b. Separate cluster lid A (2) from combination meter finisher (1) by releasing the metal clips (If necessary).

INSTALLATION

Installation is in the reverse order of removal.

AWJIA0709ZZ
