11. Disconnect fuel filler hose at fuel filler tube side.

12. Disconnect vent hose from fuel tank side.

13. Support the center part of fuel tank (1) using a suitable jack (A).

14. Remove fuel tank mounting bands (LH/RH).
15. Lower transmission jack carefully to remove fuel tank while holding it by hand.

CAUTION:

Fuel tank may be in an unstable condition because of the shape of fuel tank bottom. Be sure to

hold tank securely.

INSTALLATION

Installation is in the reverse order of removal.

Fuel Filler Hose

• Insert fuel filler hose to the length below.

• Be sure hose clamp is not placed on swelled area of fuel filler tube.

• Install fuel filler hose to fuel tank, paying attention to install mark.

• Tighten fuel filler hose clamp so that the remaining length of screw thread becomes to the following.

EVAP Hose

1. Check connections for damage or foreign material.
2. Align the matching side connection part with the center of shaft, and insert connector straight until a "click"

sound is heard.

Inspection

INFOID:0000000009267706

INSPECTION AFTER INSTALLATION

Use the following procedure to check for fuel leakage.
1. Turn ignition switch “ON” (with engine stopped), and check connections for leakage by applying fuel pres-

sure to fuel piping.

2. Start engine and rev it up and check there are no fuel leakage at the fuel system tube and hose connec-

tions.

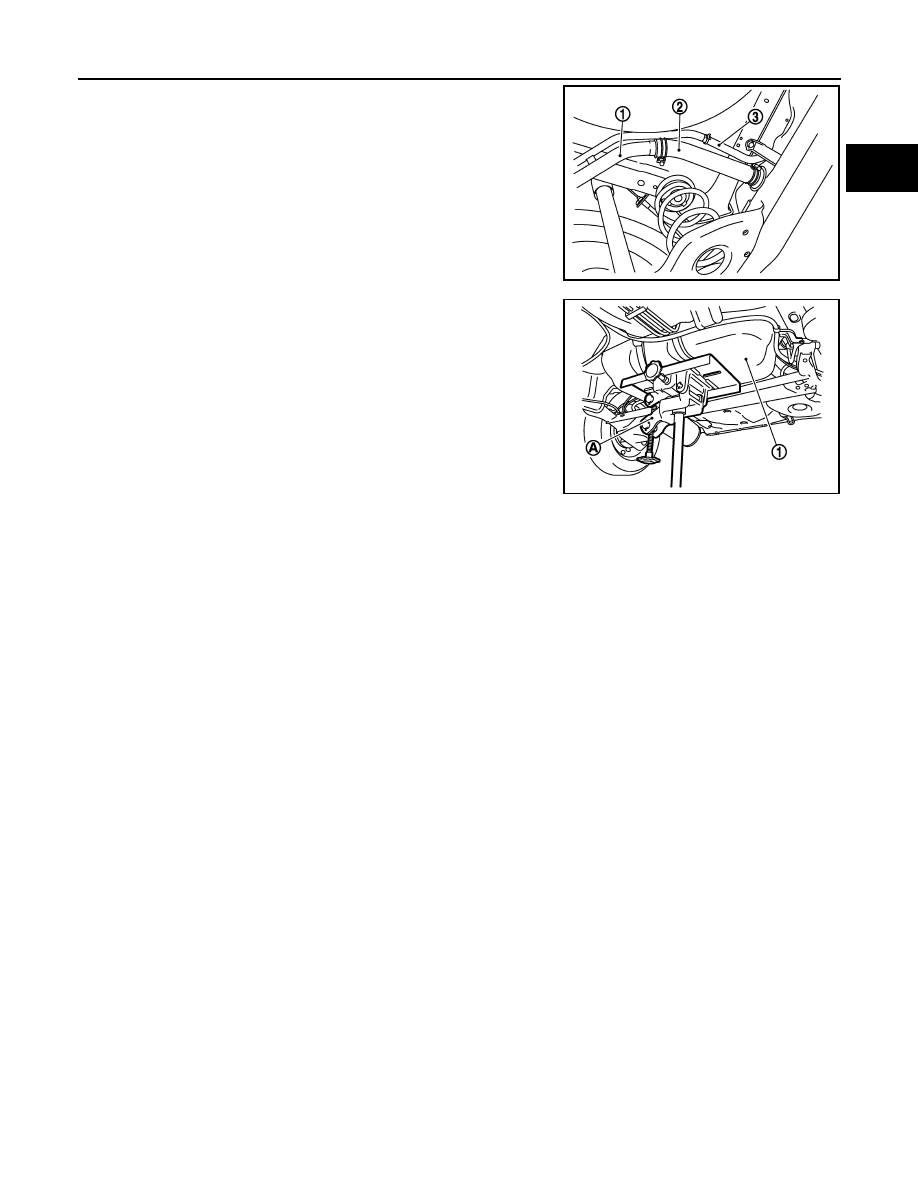

(1)

: Fuel filler tube

(2)

: Fuel filler hose

(3)

: Vent hose

JPBIA3423ZZ

JPBIA3424ZZ

Fuel filler hose

: 35 mm (1.38 in)

The other hose

: 25 mm (0.98 in)

Fuel tank side hose clamp

: 7 - 11 mm (0.28 - 0.43 in)

Fuel filler tube side hose clamp

: 8 - 12mm (0.31 - 0.47 in)

FL-12

< REMOVAL AND INSTALLATION >

EVAP CANISTER

EVAP CANISTER

Exploded View

INFOID:0000000009267707

Removal and Installation

INFOID:0000000009267708

NOTE:

The EVAP canister vent control valve and EVAP canister system pressure sensor can be removed without

removing the EVAP canister.

REMOVAL

1. Remove the EVAP canister protector cover.
2. Disconnect the harness connectors from the EVAP control system pressure sensor and the EVAP canis-

ter vent control valve.

3. Disconnect the EVAP canister purge hose, the EVAP vent line, and the EVAP canister vent control valve

hose.

4. Remove the EVAP canister bolt.
5. Remove the EVAP canister from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

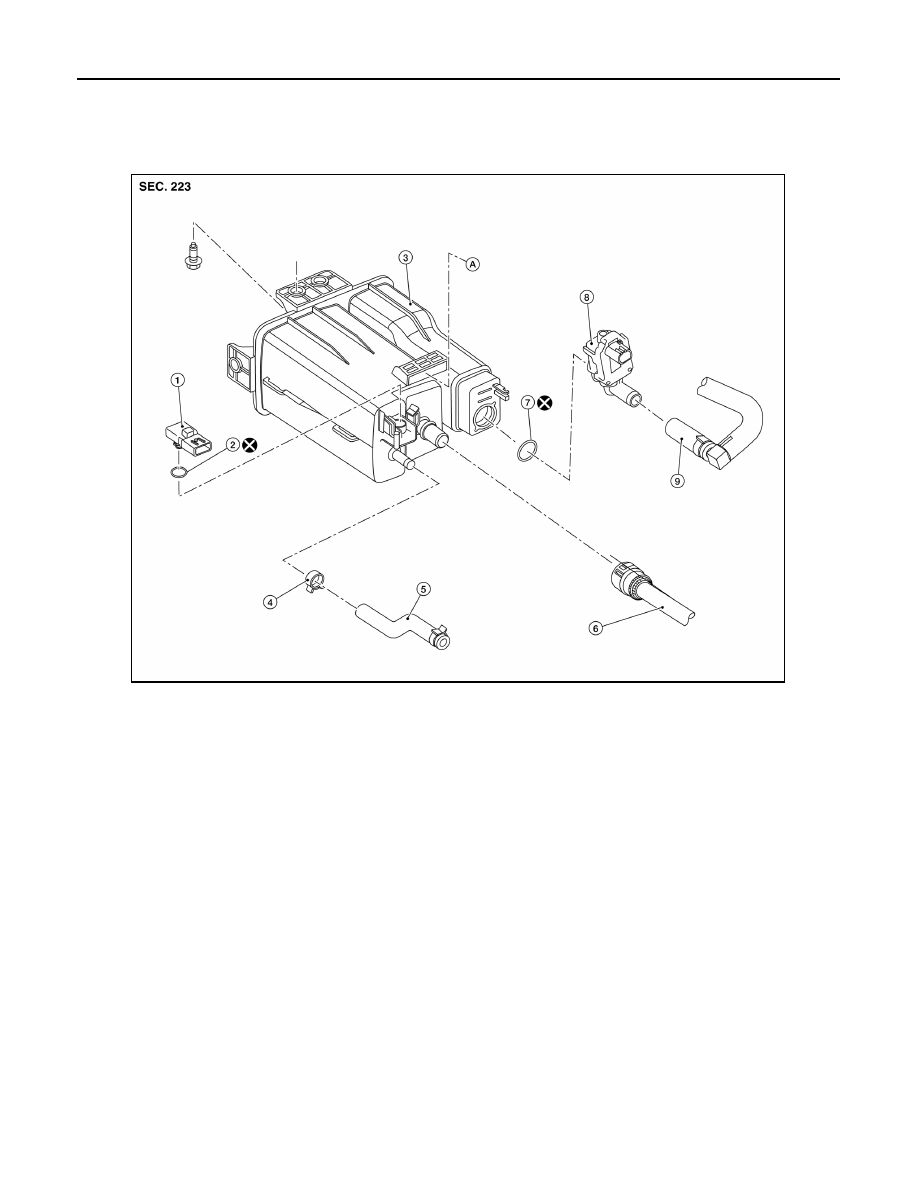

1.

EVAP control system pressure sensor 2.

O-ring

3.

EVAP canister

4.

Hose clamp

5.

EVAP canister purge hose

6.

EVAP vent line

7.

O-ring

8.

EVAP canister vent control valve

9.

EVAP canister vent control valve
hose

A.

Mount to vehicle bracket

ALBIA0750ZZ

EVAP CANISTER

FL-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

Do not reuse O-rings.

Inspection

INFOID:0000000009267709

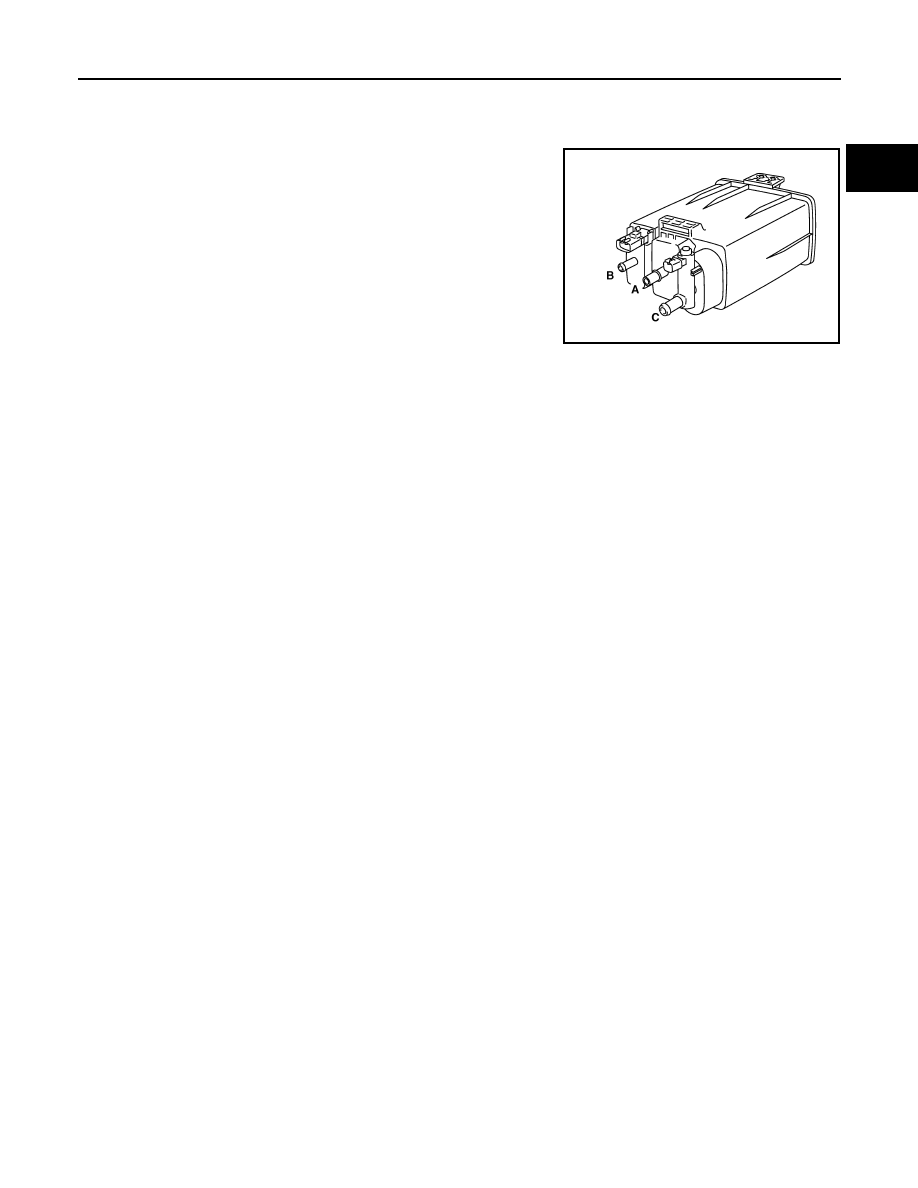

Check EVAP canister as follows:
1. Block port (B).
2. Blow air into port (A) and check that it flows freely out of port (C).
3. Release blocked port (B).
4. Apply vacuum pressure to port (B) and check that vacuum pres-

sure exists at the ports (A) and (C).

5. Block port (A) and (B).
6. Apply pressure to port (C) and check that there is no leakage.

PBIB1212E

FL-14

< REMOVAL AND INSTALLATION >

EVAP CANISTER FILTER

EVAP CANISTER FILTER

Exploded View

INFOID:0000000009267710

Removal and Installation

INFOID:0000000009267711

REMOVAL

1. Remove the EVAP canister protector cover.
2. Disconnect EVAP canister vent control valve hose from EVAP canister filter.
3. Disconnect canister drain hose from EVAP canister filter.
4. Remove the bolt and the EVAP canister filter.

INSTALLATION

Installation is in the reverse order of removal.

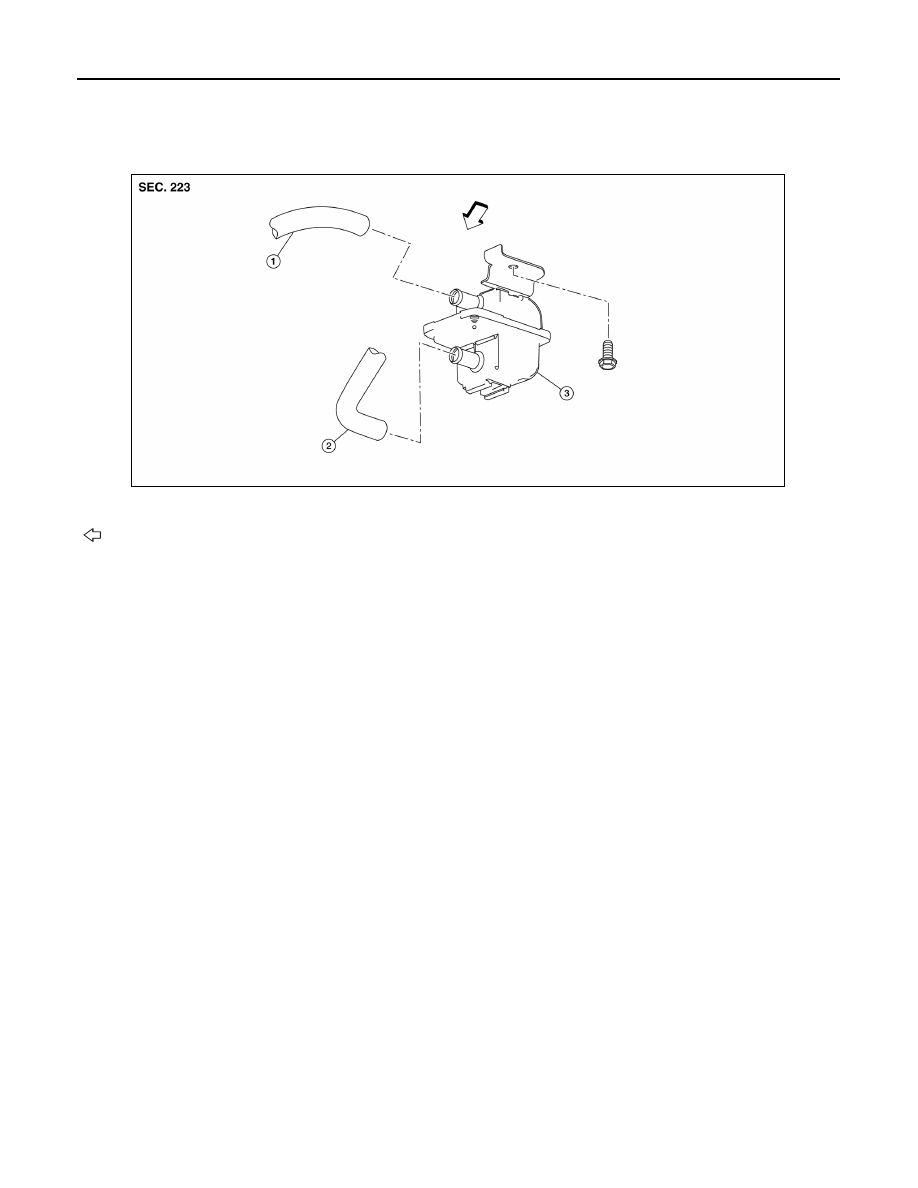

ALBIA0751ZZ

1.

EVAP canister vent control valve hose

2.

Canister drain hose

3.

EVAP canister filter

Front
