DLK-202

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

Hazard and horn reminders do not operate if any door switch is ON (any door is OPEN).

Hazard reminder can be changed using “HAZARD LAMP SET” mode in “WORK SUPPORT”.

Horn reminder can be changed using “HORN CHIRP SET” mode in “WORK SUPPORT”.

Refer to

BCS-84, "MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)"

.

 Without CONSULT

Refer to Owner’s Manual for instructions.

AUTO DOOR LOCK OPERATION

When all doors are locked, ignition switch is OFF and key switch is OFF (mechanical key is removed from the

ignition cylinder), doors are unlocked with keyfob button. When BCM does not receive the following signals

within 1 minute, all doors are locked.

• Door switch is ON (door is opened)

• Door is locked

• Ignition switch is ON

• Key switch is ON (mechanical key is inserted in the ignition cylinder)

Auto door lock mode can be changed by “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

BCS-84,

"MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)"

.

PANIC ALARM OPERATION

When key switch is OFF (mechanical key is removed from the ignition cylinder), BCM turns ON and OFF horn

and headlamp intermittently with input of PANIC ALARM signal from keyfob.

BCM outputs to headlamps and IPDM E/R for panic alarm signal (horn signal) via CAN communication lines.

The alarm automatically turns OFF after 25 seconds or when BCM receives any signal from keyfob.

Panic alarm operation mode can be changed using “PANIC ALARM SET” mode in “WORK SUPPORT”.

Refer to

BCS-84, "MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)"

.

INTERIOR LAMP TIMER OPERATION

When the following conditions occur, remote keyless entry system turns on interior lamp for 15 seconds with

input of UNLOCK signal from keyfob. For detailed description, refer to

INL-9, "INTERIOR ROOM LAMP CON-

TROL SYSTEM : System Description"

.

• Interior room lamp switch is in the DOOR position

• Door switch OFF (when all the doors are closed).

TRUNK LID OPENER SYSTEM

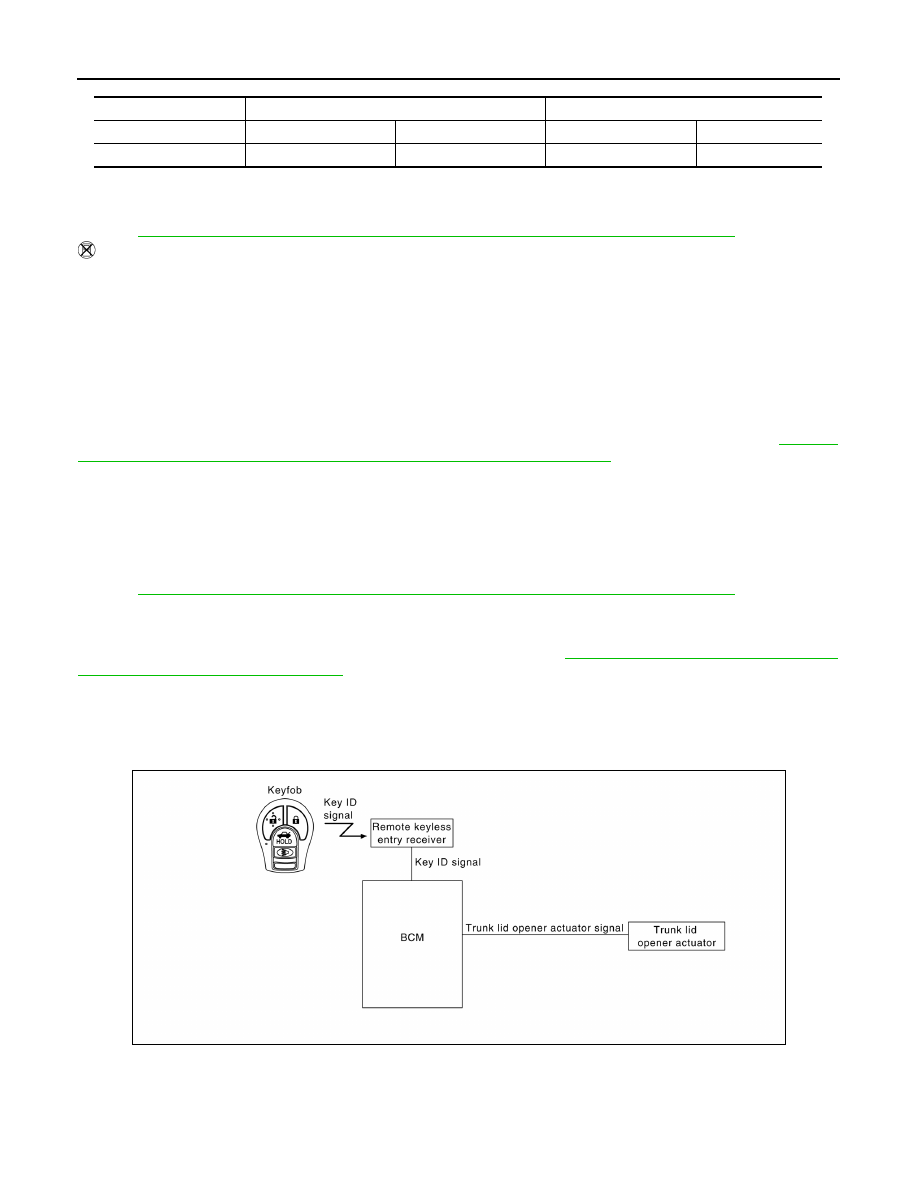

TRUNK LID OPENER SYSTEM : System Diagram

INFOID:0000000009561394

TRUNK LID OPENER SYSTEM : System Description

INFOID:0000000009561395

TRUNK LID OPEN OPERATION

Horn reminder setting

ON

OFF

Keyfob operation

Lock

Unlock

Lock

Unlock

Horns sound

Once

—

—

—

AWKIA1889GB

SYSTEM

DLK-203

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• When the trunk release button of the keyfob is pressed, the trunk release signal transmits from the keyfob to

the BCM via the remote keyless entry receiver.

• When the BCM receives the trunk release signal, it operates the trunk lid opener.

OPERATION CONDITION

OPERATION AREA

To ensure that the keyfob works effectively, use within 10 m (33ft) range of the vehicle, however the operable

range may differ according to surroundings.

Remote controller operation

Operation condition

Trunk release

Key switch is OFF. Key is removed from the ignition cylinder.

DLK-204

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000009561396

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

Direct Diagnostic Mode

Description

ECU identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

ECU id

en

tif

ica

tion

Se

lf Di

ag

no

st

ic

 Res

u

lt

Dat

a

 M

on

ito

r

Acti

ve

 T

est

W

o

rk

 su

pp

ort

Co

nf

ig

ur

at

io

n

CAN DIAG SUP

P

OR

T MNTR

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

Panic alarm system

PANIC ALARM

×

DIAGNOSIS SYSTEM (BCM)

DLK-205

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK
DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)

INFOID:0000000009561397

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

* : Initial setting

MULTI REMOTE ENT
MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT)

INFOID:0000000009561412

DATA MONITOR

Monitor Item [Unit]

Description

IGN ON SW [On/Off]

Indicates condition of ignition switch ON position.

KEY ON SW [On/Off]

Indicates condition of key switch.

CDL LOCK SW [On/Off]

Indicates condition of lock signal from door lock and unlock switch.

CDL UNLOCK SW [On/Off]

Indicates condition of unlock signal from door lock and unlock switch.

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

DOOR SW-RR [On/Off]

Indicates condition of rear door switch RH.

DOOR SW-RL [On/Off]

Indicates condition of rear door switch LH.

ACC ON SW [On/Off]

Indicates condition of ignition switch ACC position.

KEYLESS LOCK [On/Off]

Indicates condition of lock signal from keyfob.

KEYLESS UNLOCK [On/Off]

Indicates condition of unlock signal from keyfob.

KEY CYL LK-SW [On/Off]

Indicates condition of lock signal from door key cylinder switch.

KEY CYL UN-SW [On/Off]

Indicates condition of unlock signal from door key cylinder switch.

VEHICLE SPEED [km/h/mph]

Indicates vehicle speed signal received from combination meter on CAN communication line.

Test Item

Description

DOOR LOCK

This test is able to check door lock operation [OTR ULK/DR UNLK/ALL UNLK/ALL LCK].

Support Item

Setting

Description

AUTOMATIC DOOR LOCK SELECT

P RANGE

Doors lock automatically when shifted out of Park (P).

VH SPD*

Doors lock automatically when vehicle speed reaches 24 km/h (15 mph).

AUTOMATIC DOOR UNLOCK
SELECT

MODE6*

Drivers door unlocks automatically when key is removed.

MODE5

Drivers door unlocks automatically when shifted into Park (P).

MODE4

Drivers door unlocks automatically when ignition is switched from ON to OFF.

MODE3

Doors unlock automatically when key is removed.

MODE2

Doors unlock automatically when shifted into Park (P).

MODE1

Doors unlock automatically when ignition is switched from ON to OFF.

AUTOMATIC LOCK/UNLOCK
SELECT

Lock/Unlock*

Automatic door locks function operates in lock and unlock.

Lock Only

Automatic door locks function operates in lock only.

Unlock Only

Automatic door locks function operates in unlock only.

Off

Automatic door locks function OFF.
