Nissan Versa Sedan. Manual - part 164

DEF-10

< ECU DIAGNOSIS INFORMATION >

BCM

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000009268317

ECU

Reference

BCM (with Intelligent Key system)



BCS-28, "Reference Value"



BCS-45, "Fail-safe"



BCS-47, "DTC Inspection Priority Chart"



BCS-48, "DTC Index"

BCM (without Intelligent Key system)



BCS-93, "Reference Value"



BCS-104, "Fail-safe"



BCS-104, "DTC Inspection Priority Chart"



BCS-105, "DTC Index"

REAR WINDOW DEFOGGER SYSTEM

DEF-11

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

WIRING DIAGRAM

REAR WINDOW DEFOGGER SYSTEM

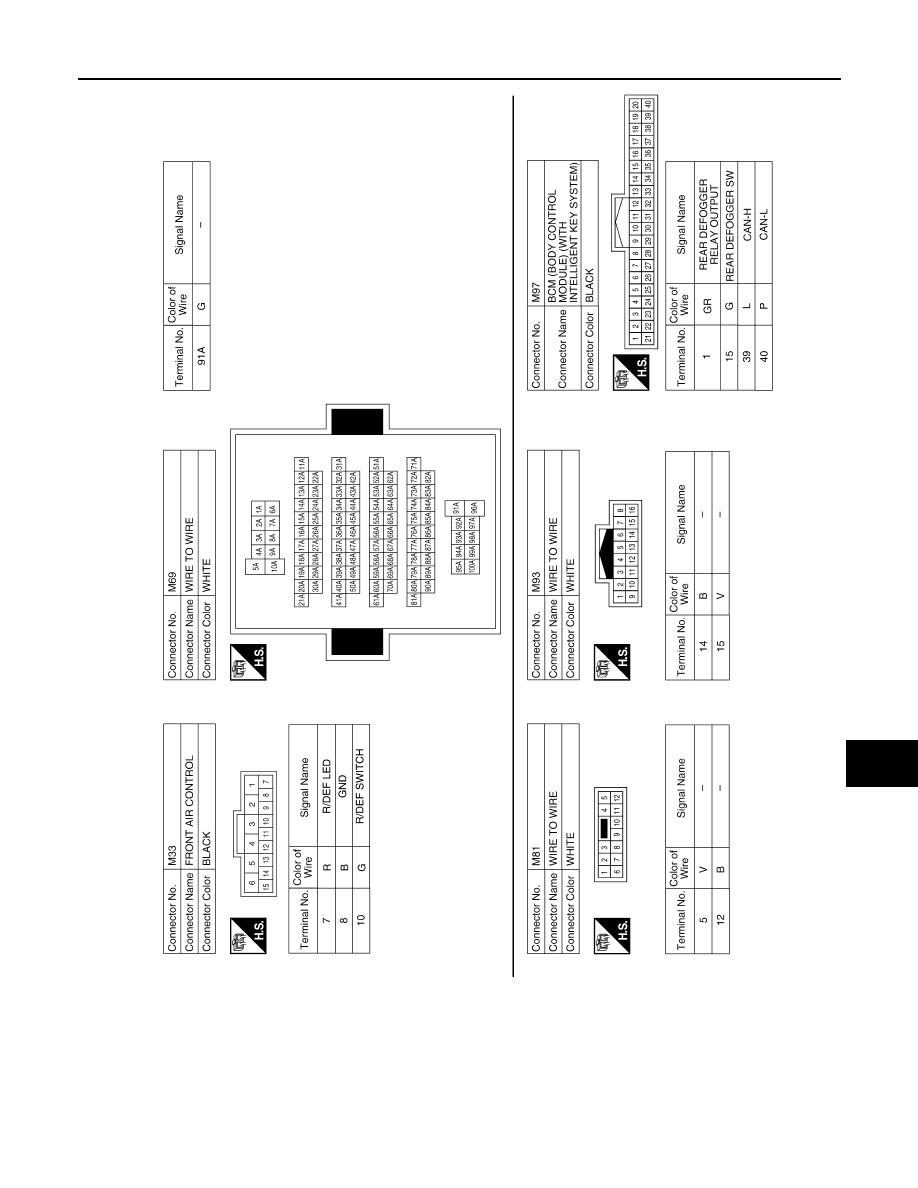

Wiring Diagram

INFOID:0000000009268318

ABLWA2172GB

DEF-12

< WIRING DIAGRAM >

REAR WINDOW DEFOGGER SYSTEM

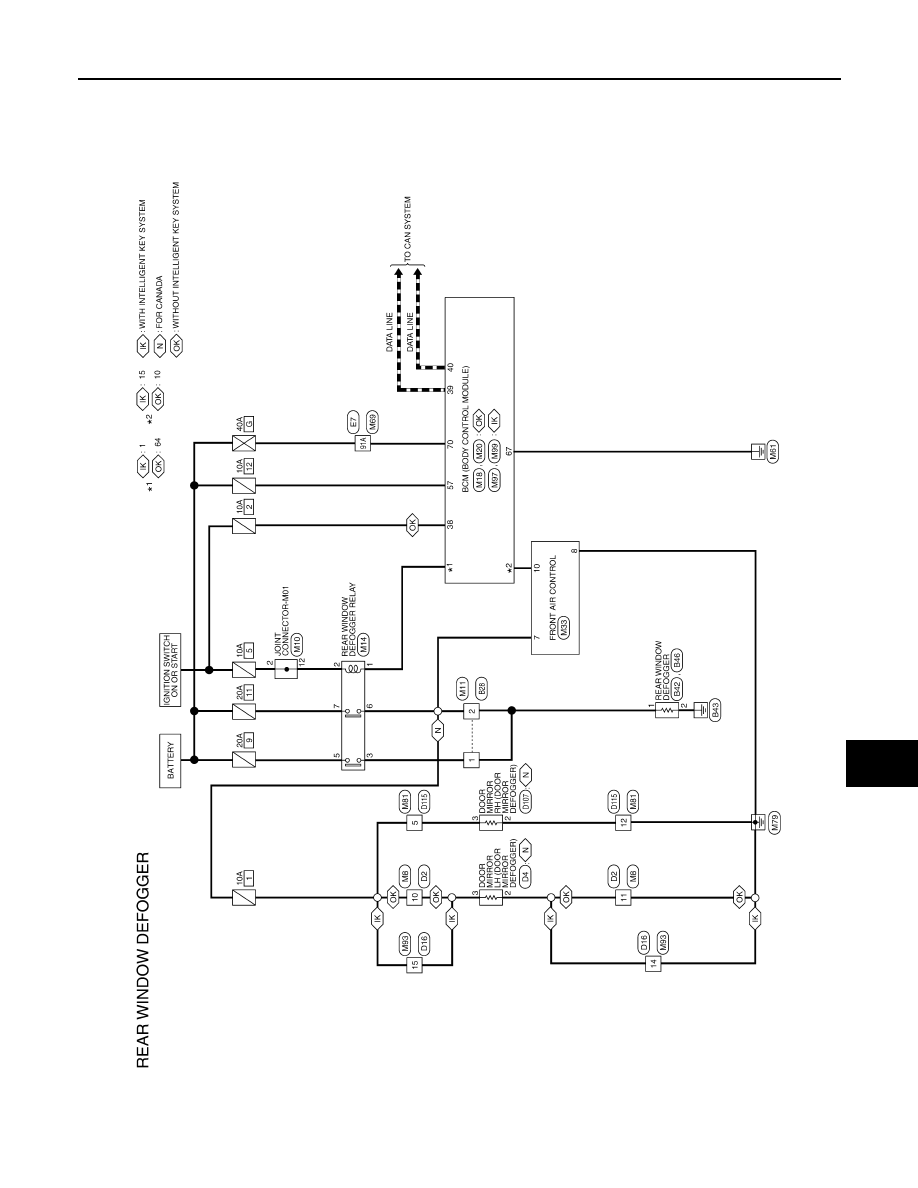

ABLIA4867GB

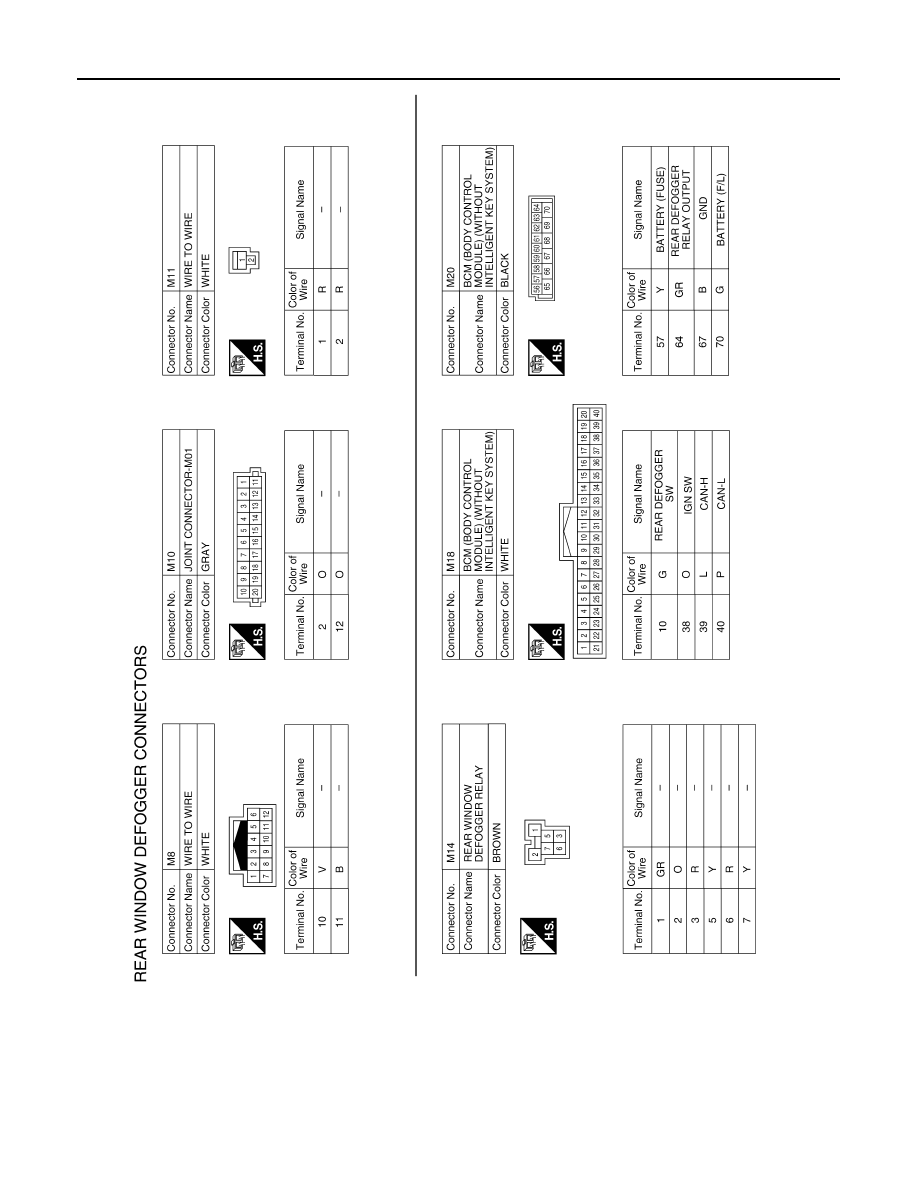

REAR WINDOW DEFOGGER SYSTEM

DEF-13

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

ABLIA4868GB
